Toyota COROLLA 扶手和遮阳板 — Figure 7401

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 3 images and 2 PNC and OE references.

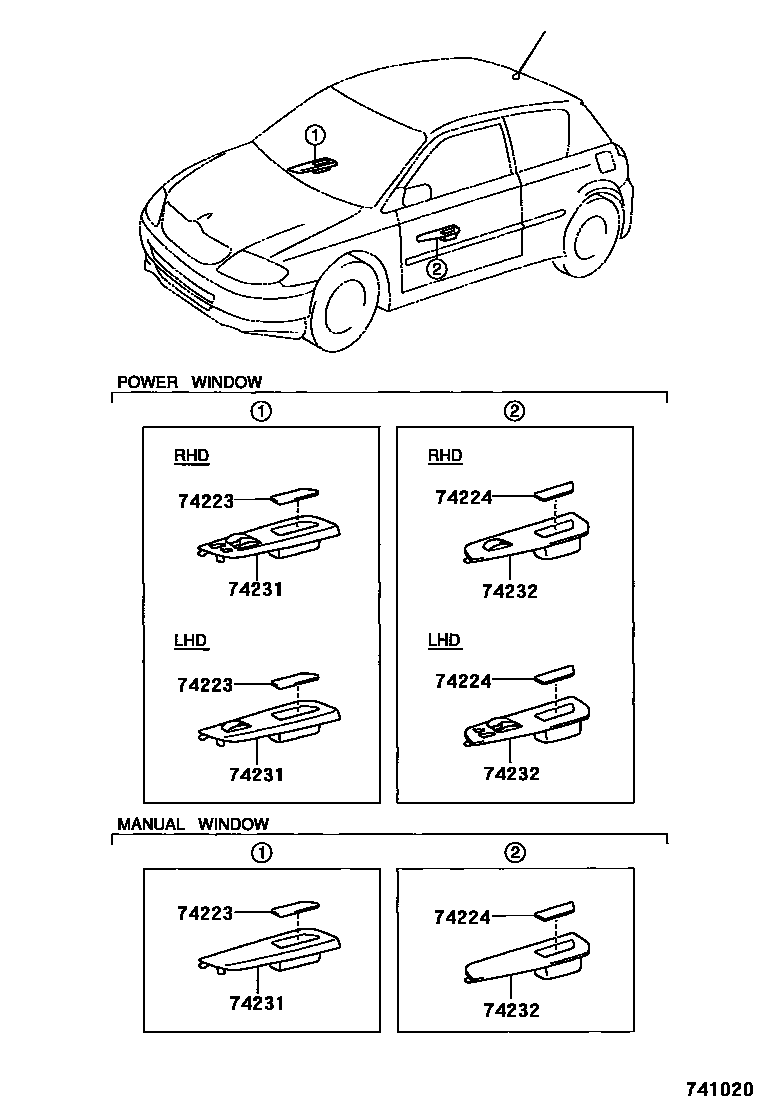

Toyota COROLLA 扶手和遮阳板 EPC diagram — 741020
扶手和遮阳板 — 741020 (200111 – 999999)

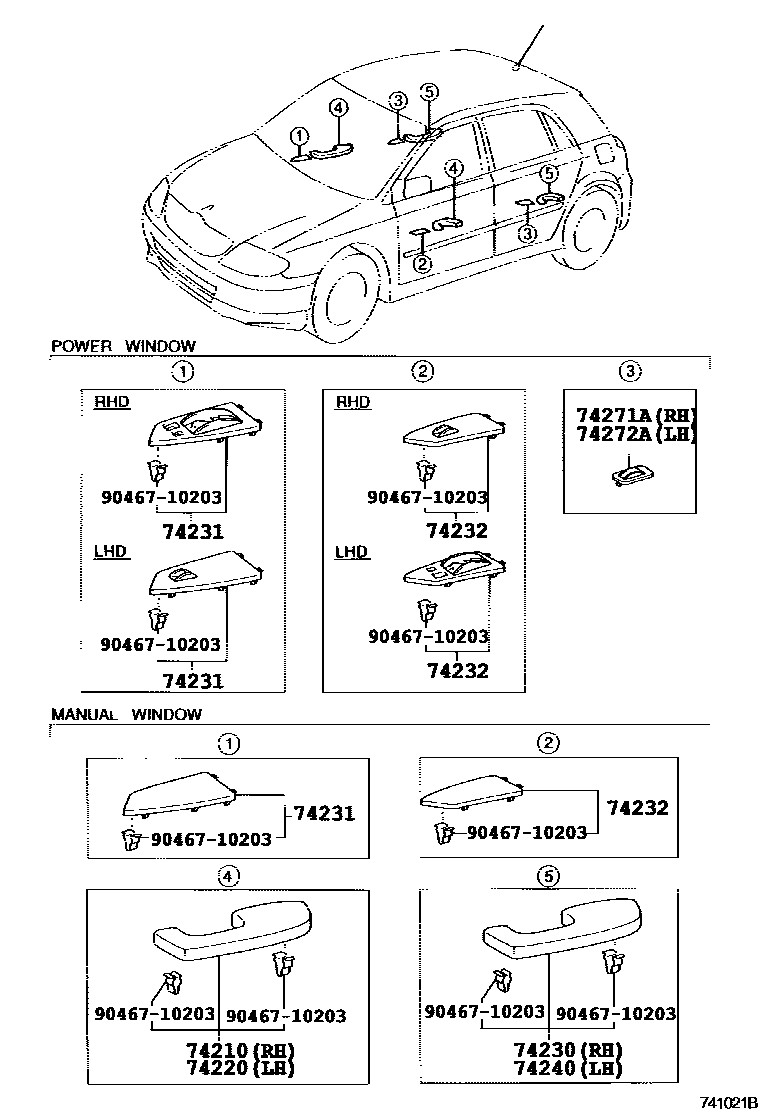

Toyota COROLLA 扶手和遮阳板 EPC diagram — 741021B
扶手和遮阳板 — 741021B (200111 – 999999)

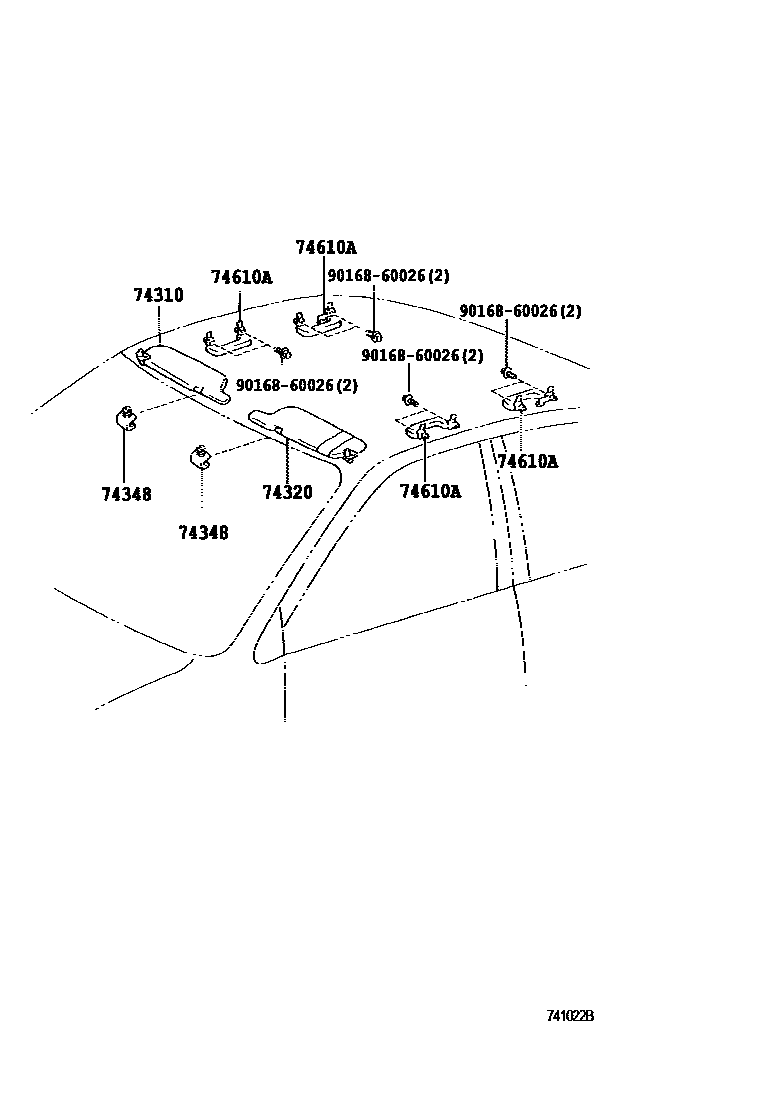

Toyota COROLLA 扶手和遮阳板 EPC diagram — 741022B
扶手和遮阳板 — 741022B (200111 – 999999)

PNC and OE references

PNCPart nameOE numbers
74223Right door armrest cover74223-02010
74224Left door armrest cover74224-02010
