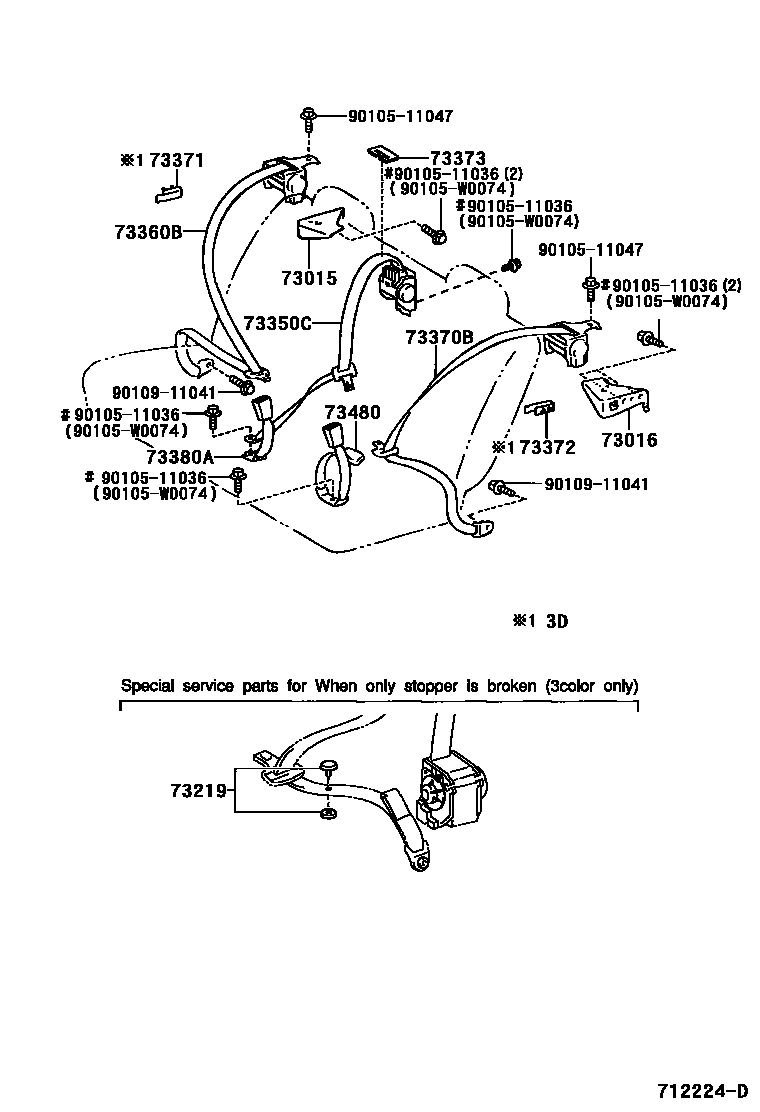

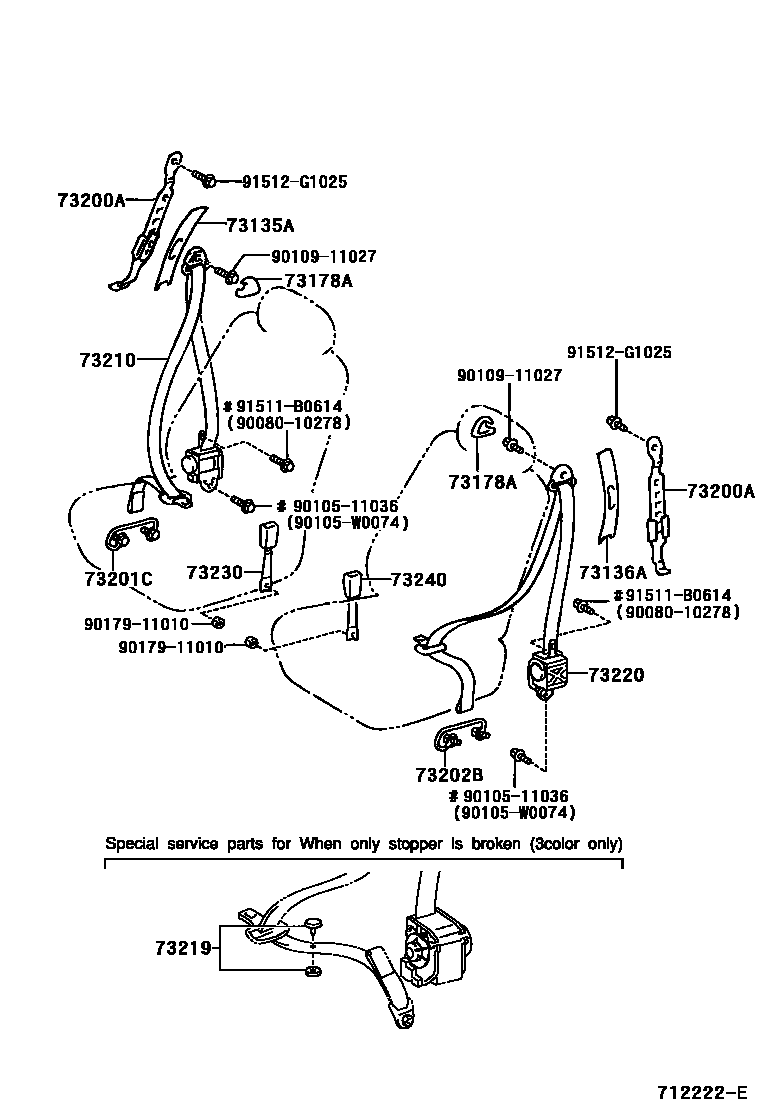

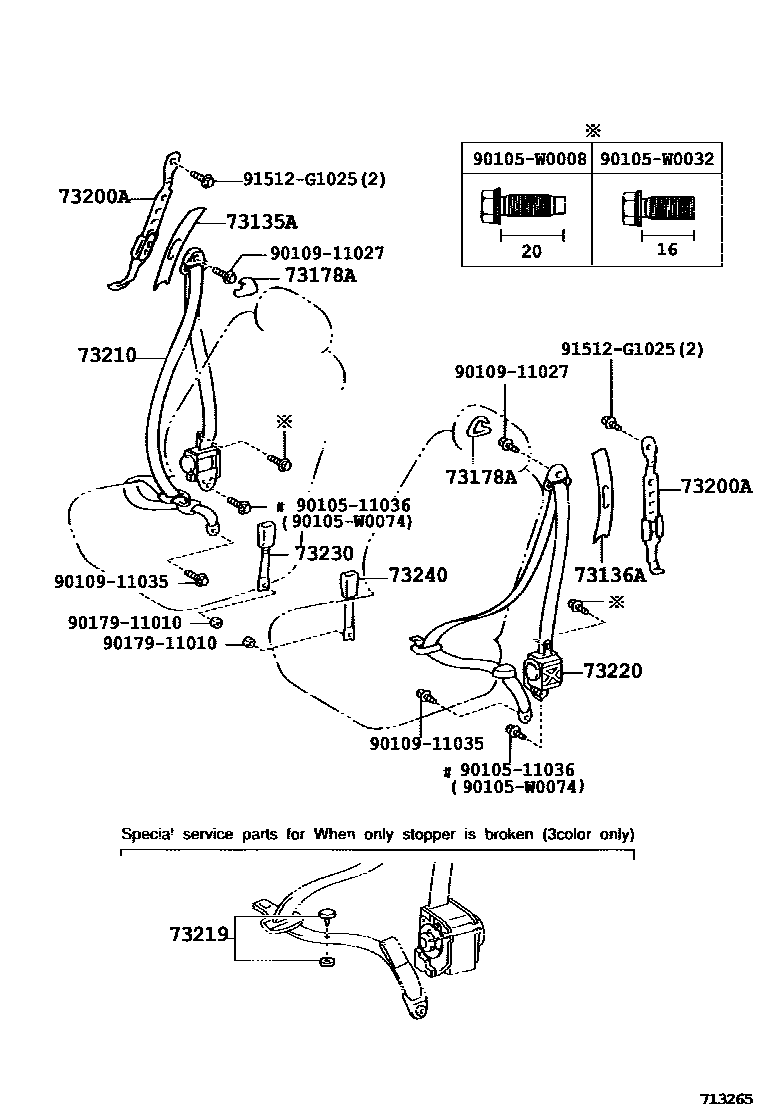

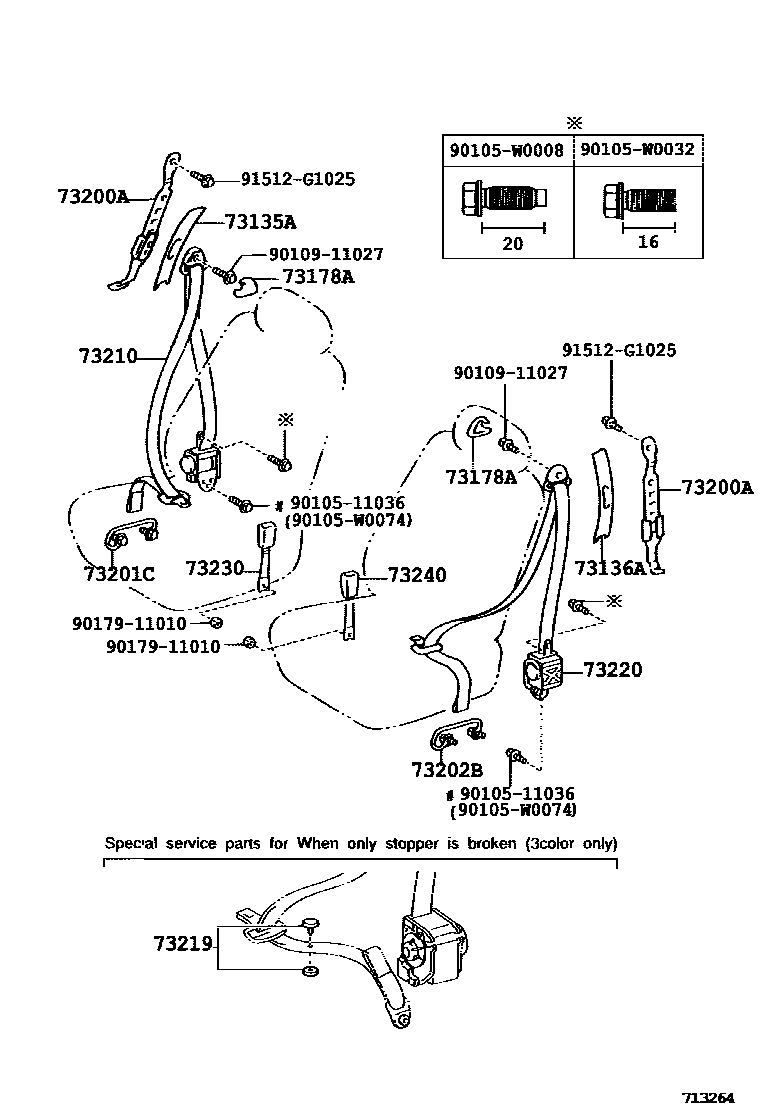

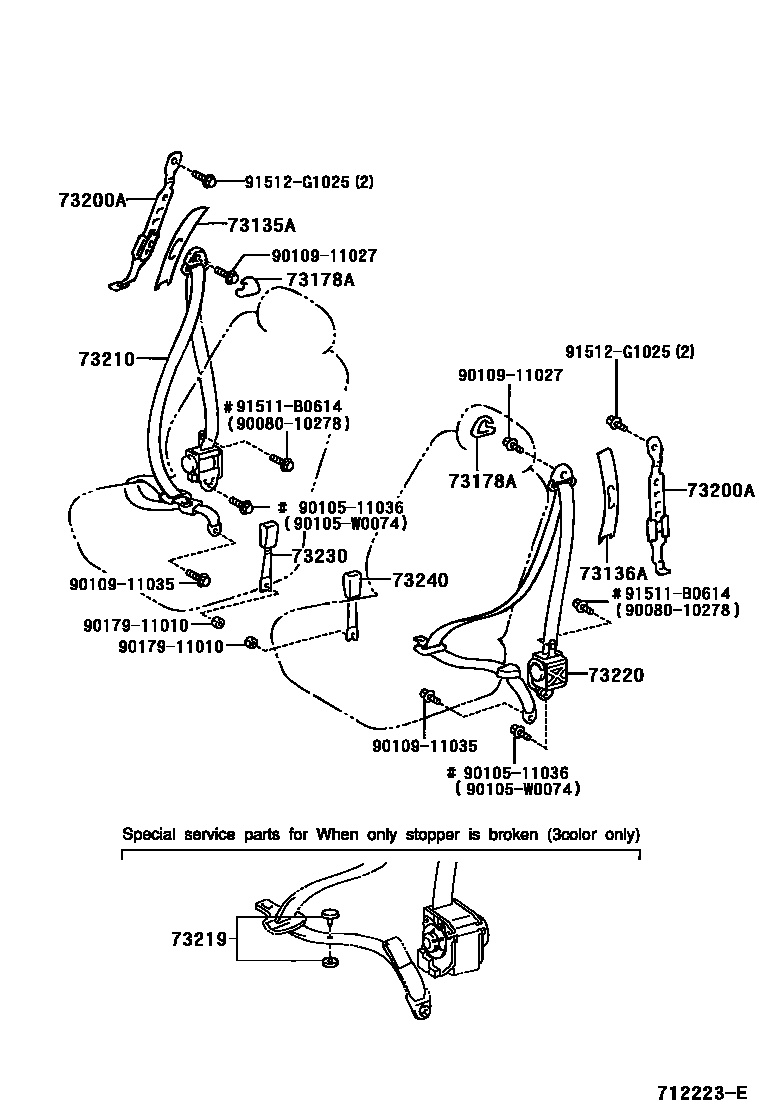

Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104
Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 5 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73015 | Right seat belt outer anchor bracket sub-assembly | 73015-02010 |
| 73016 | Left side seat belt outer anchor bracket sub-assembly | 73016-02010 |
| 73201C | Front right seat outer seat belt lever sub-assembly | 73201-02010 · 73201-02011 |
| 73202B | Front left seat outer seat belt lever sub-assembly | 73202-02010 · 73202-02011 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
