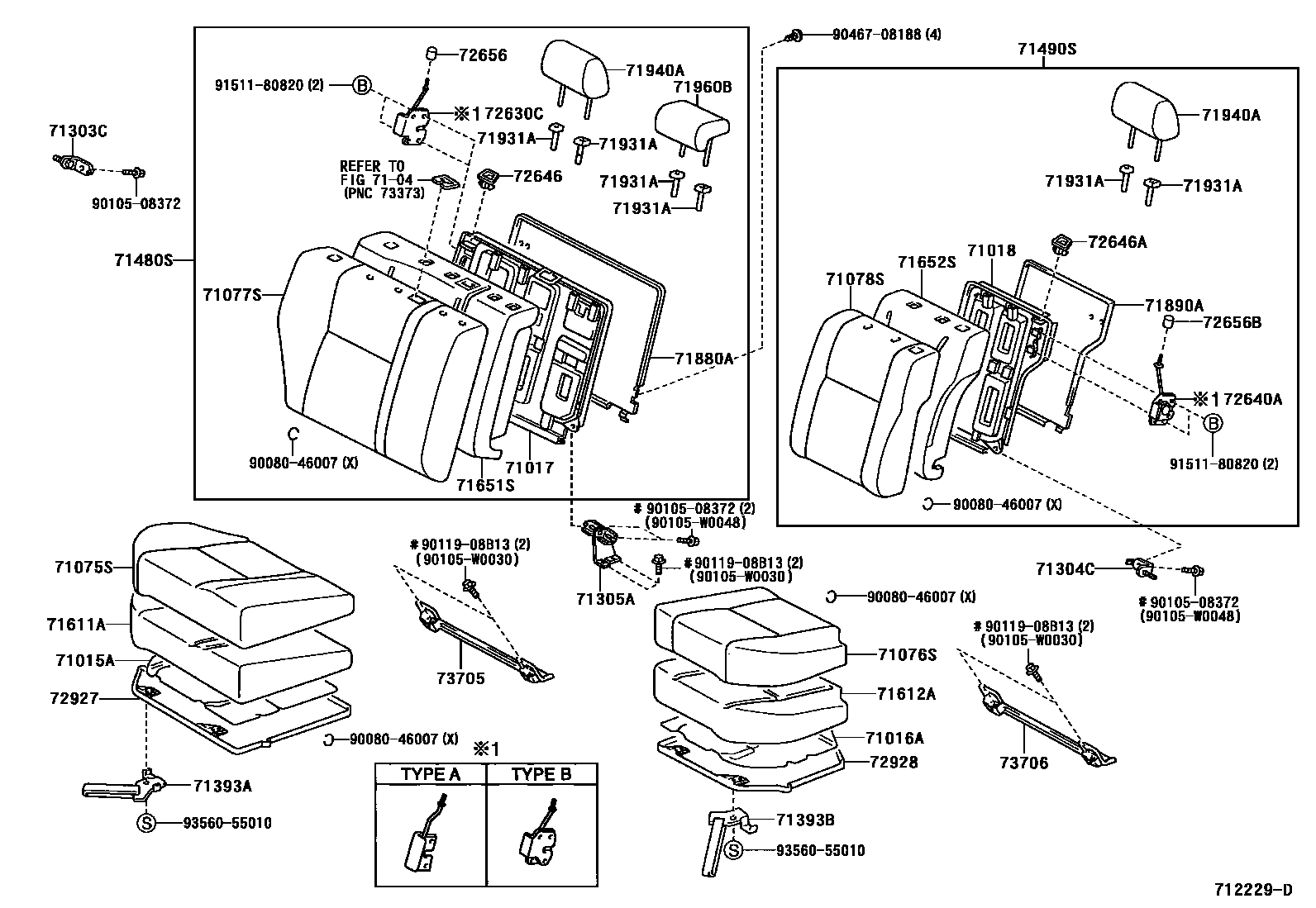

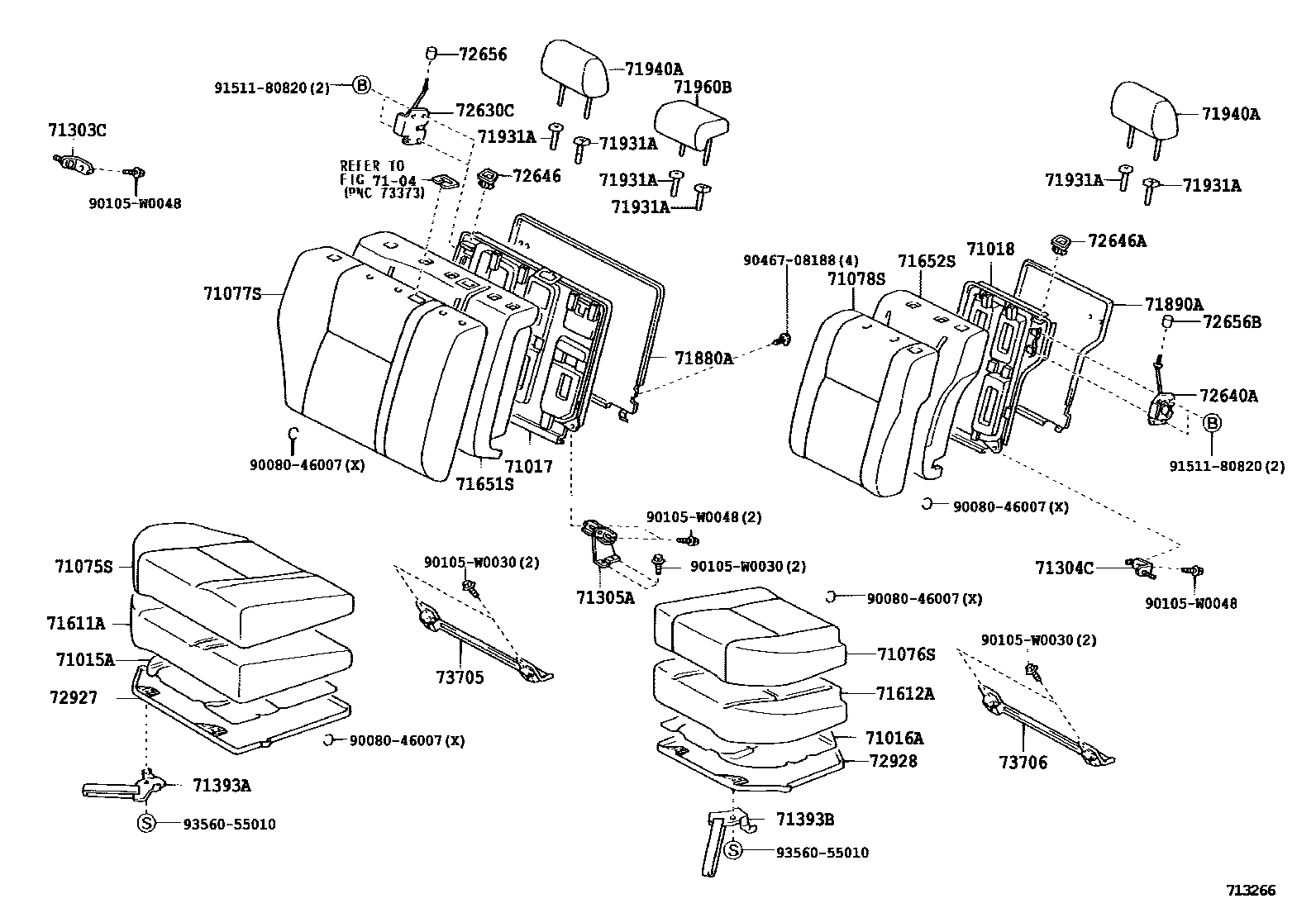

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-02060 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-02010 |
| 71017 | Right rear seat back frame sub-assembly | 71017-02150 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02080 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-02030 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-02030 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-02030 |
| 71611A | Rear right seat cushion | 71611-02030 |
| 71612A | Rear left seat cushion | 71612-02010 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02090 · 71651-02190 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02090 · 71652-02190 |
| 72630C | Rear right seat back lock assembly | 72630-02040 · 72630-13140 |
| 72640A | Rear left seat back lock assembly | 72640-02040 · 72640-13130 |
| 72927 | Rear right seat cushion lower cover | 72927-02020 |
| 72928 | Rear left seat cushion lower cover | 72928-02020 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-02020 · 73705-02060 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-02020 · 73706-02050 |
