Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

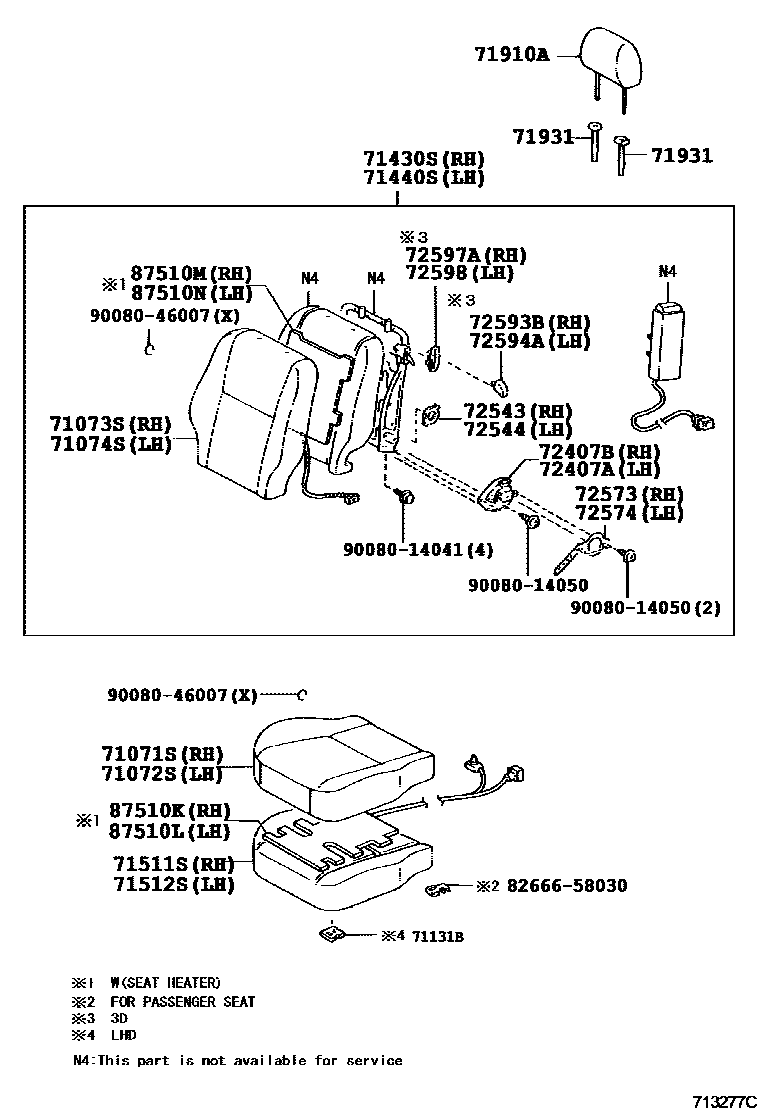

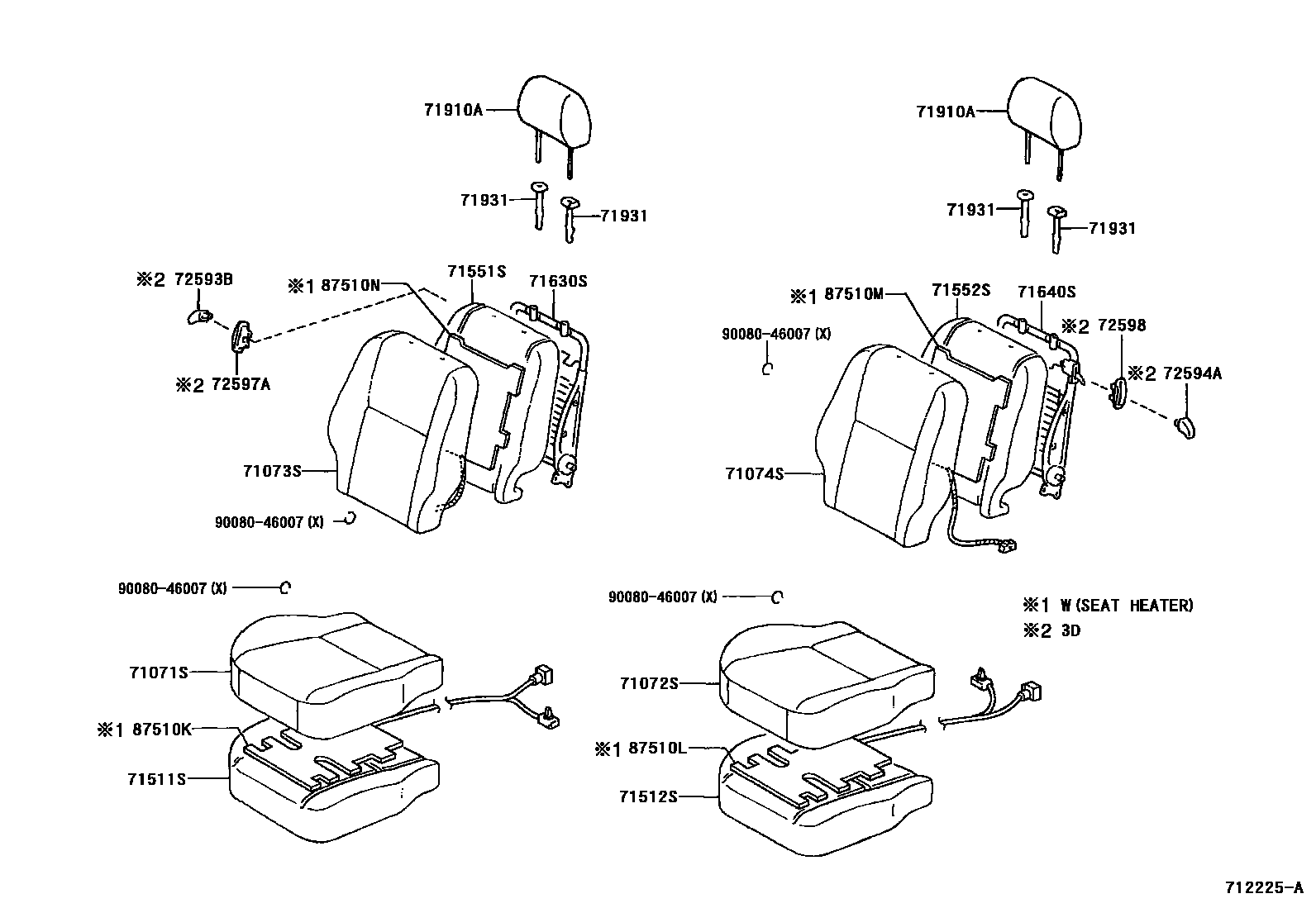

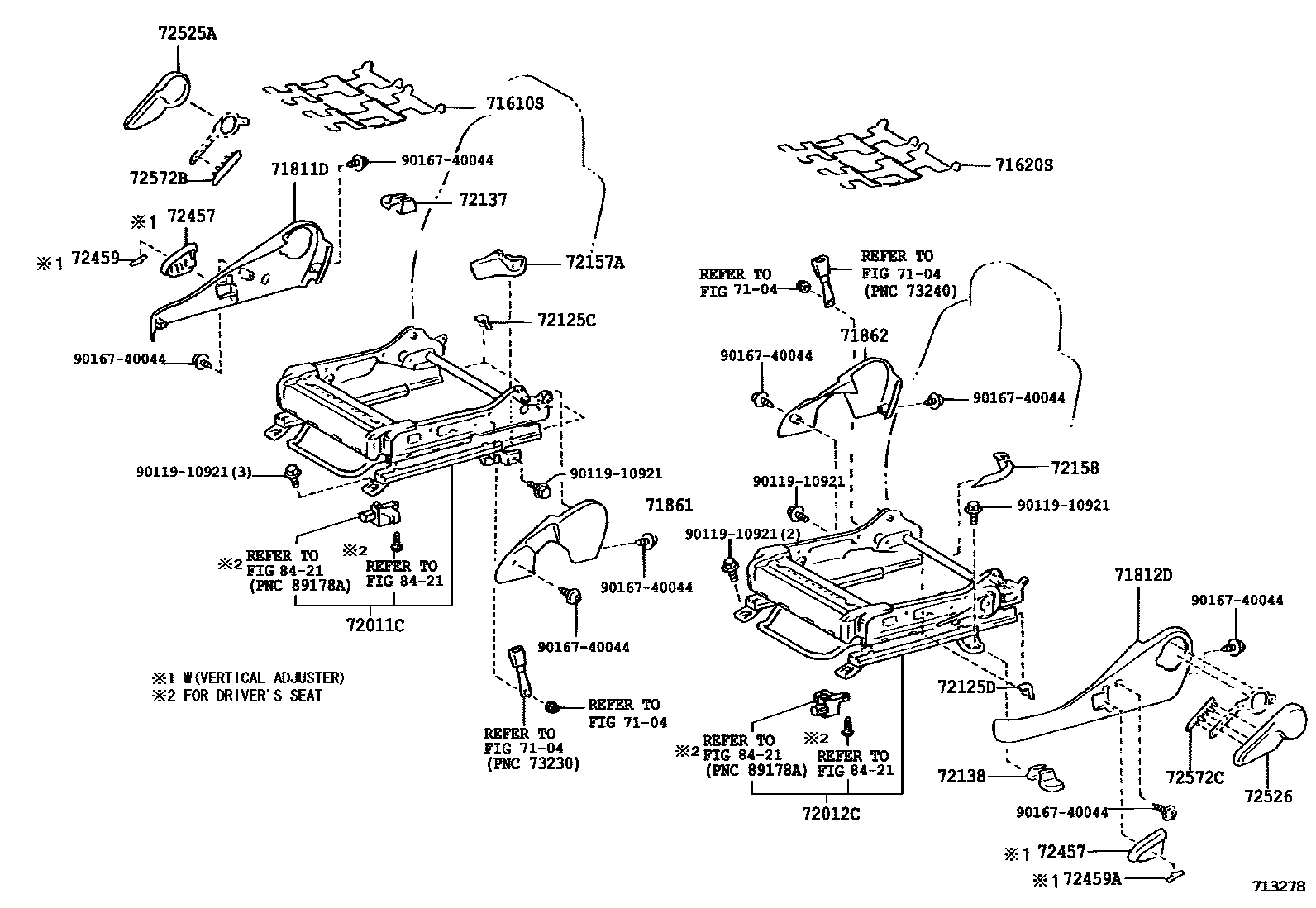

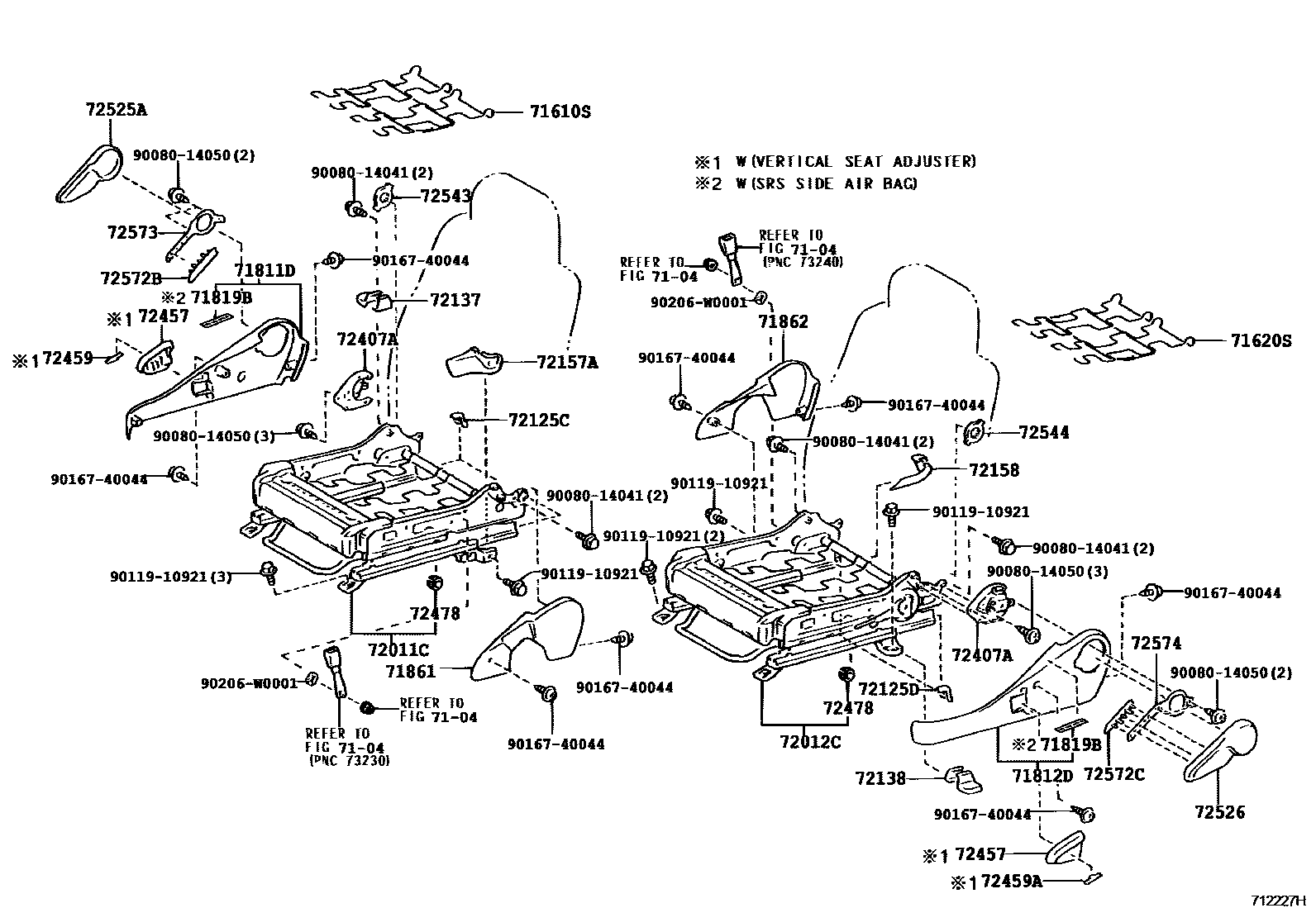

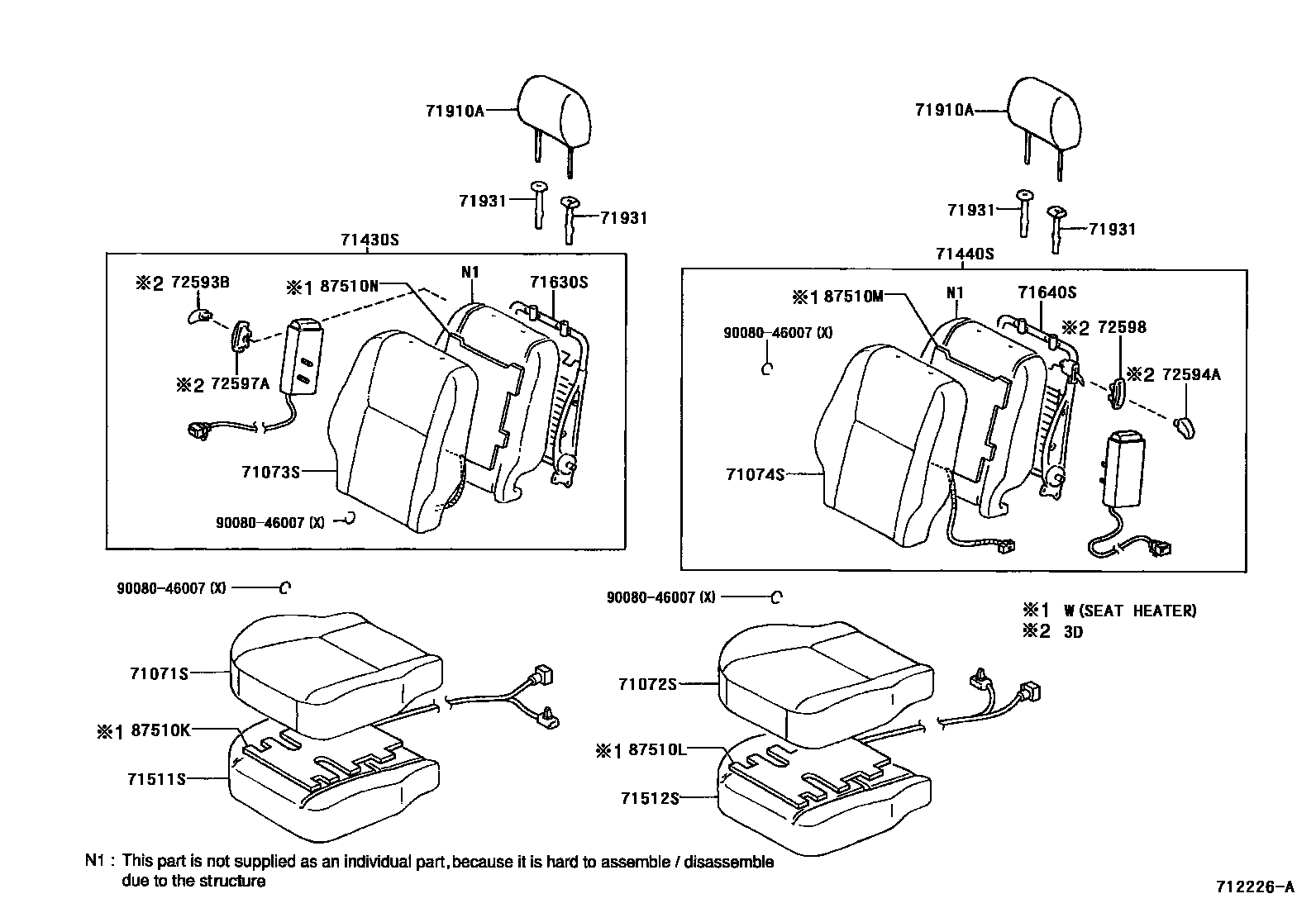

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 5 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71131B | Front seat cushion 1 | 71131-13020 |
| 71511S | Front right seat cushion cushion (for split seats) | 71502-02020 · 71502-05010 · 71511-02110 · 71511-02120 · 71511-05060 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-02020 · 71502-05010 · 71511-02110 · 71511-02120 · 71511-05060 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02150 · 71551-02170 |
| 71552S | Front left seat back cushion (for split seats) | 71551-02150 · 71552-02100 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71051-02010 · 71051-02030 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71051-02010 · 71051-02030 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-02070 · 71630-02090 · 71630-02270 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-02030 · 71640-02040 · 71640-02210 |
| 72011C | Front right seat adjuster sub-assembly | 72010-02020 · 72010-02030 · 72010-02060 · 72010-02090 · 72010-02100 · 72010-02150 · 72010-02160 |
| 72012C | Front left seat adjuster sub-assembly | 72020-02050 · 72020-02060 · 72020-02090 · 72020-02130 · 72020-02140 · 72020-02150 · 72020-02160 |
| 72125C | Seat No. 1 slide rail locking plate cover | 72125-02010 |
| 72125D | Slide rail cover on rear seat No. 2 | 72125-02010 |
| 72137 | Right seat outer slide rail cover | 72137-02040 |
| 72138 | Left seat outer slide rail cover | 72138-02040 |
| 72157A | Right seat inner slide rail bracket cover | 72157-02040 |
| 72158 | Left seat inner slide rail bracket cover | 72158-02040 |
| 72407A | Front left seat recliner housing sub-assembly | 72407-02010 · 72407-02020 |
| 72407B | Front right seat recliner housing sub-assembly | 72407-02010 |
| 72478 | height adjuster bushing | 72478-02010 |
| 72543 | Right seat backrest tilt adjustment control panel | 72543-02010 |
| 72544 | Left seat backrest tilt adjustment control panel | 72543-02010 |
| 72572B | Right seat back recliner knob cover | 72572-02010 |
| 72572C | Left seat back recliner knob cover | 72572-02020 |
| 72573 | Right seat back tilt control lever | 72573-02010 |
| 72574 | Left seat back tilt control lever | 72574-02010 |
| 87510K | Front right seat cushion heater assembly | 87510-02020 |
| 87510L | Front left seat cushion heater assembly | 87510-02020 |
| 87510M | Front right seat back heater assembly | 87510-02010 |
| 87510N | Front left seat back heater assembly | 87510-02010 |
