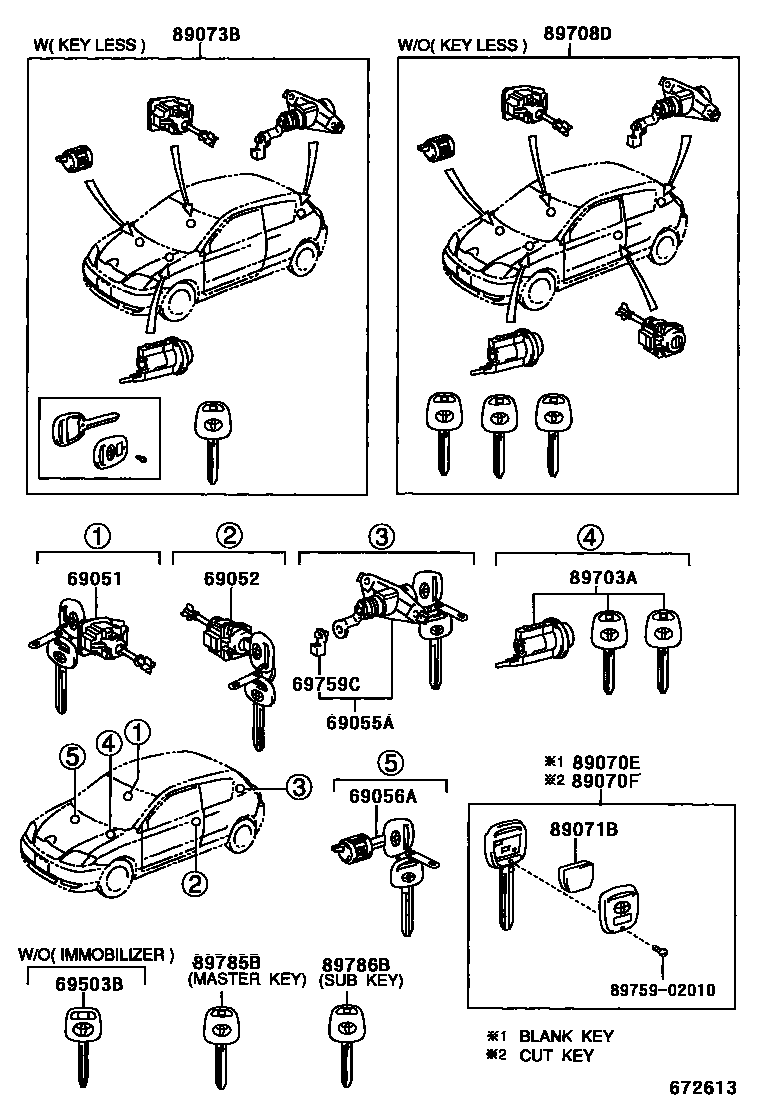

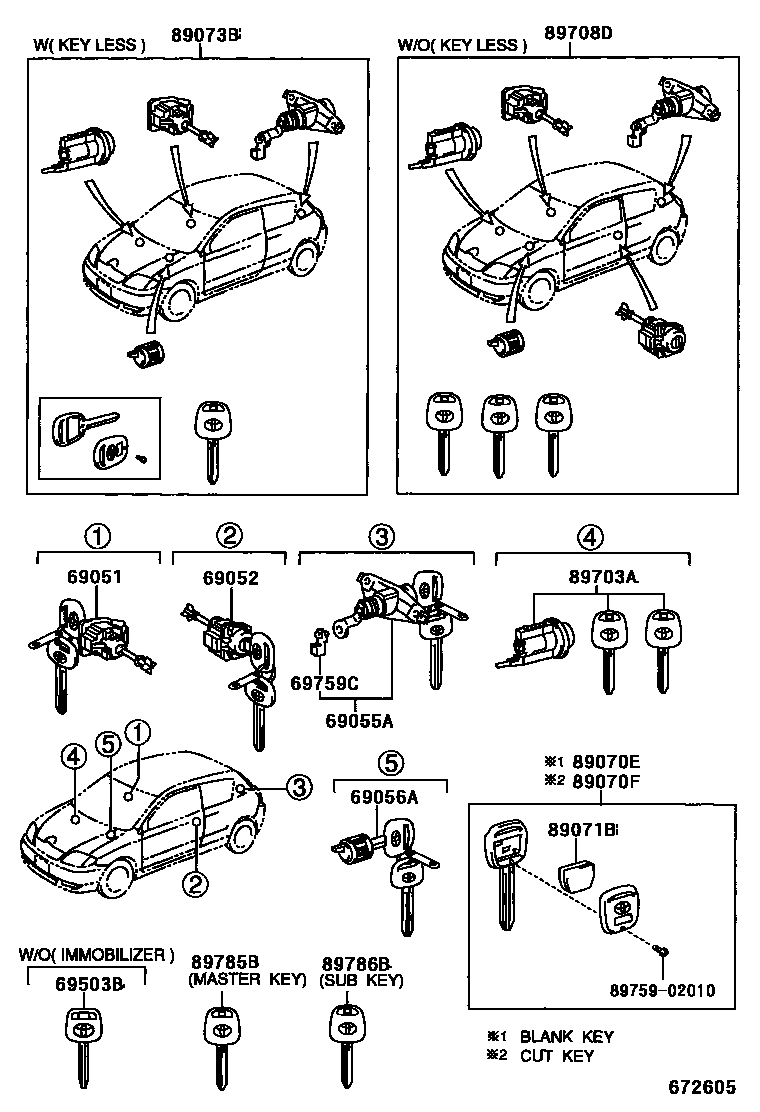

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-02080 |
| 69052 | Left door lock cylinder and key assembly | 69052-02070 |
| 69055A | Luggage lock cylinder and key assembly | 69055-02080 |
| 69056A | Glove box lock cylinder and key assembly | 69056-02010 |
| 69503B | internal tooth key | 69515-05010 |
| 69759C | Back door lock cylinder buckle | 69759-20090 |
| 89070E | Remote key assembly | 89070-0D020 |
| 89070F | Remote key assembly (internal tooth key) | 89070-0D030 |
| 89071B | Remote key sub-assembly module assembly | 89071-0D010 |
| 89073B | Lock cylinder assembly with transmitter housing (without module) | 89073-02050 · 89073-02060 |
| 89703A | Ignition lock cylinder and key assembly with transceiver | 89073-02040 · 89703-02040 |
| 89708D | Key lock cylinder assembly with transceiver transmitter | 89708-02080 |
| 89785B | transceiver key master transmitter | 89785-05020 · 89785-05030 |
| 89786B | transceiver key secondary transmitter | 89786-05020 · 89786-05030 |
