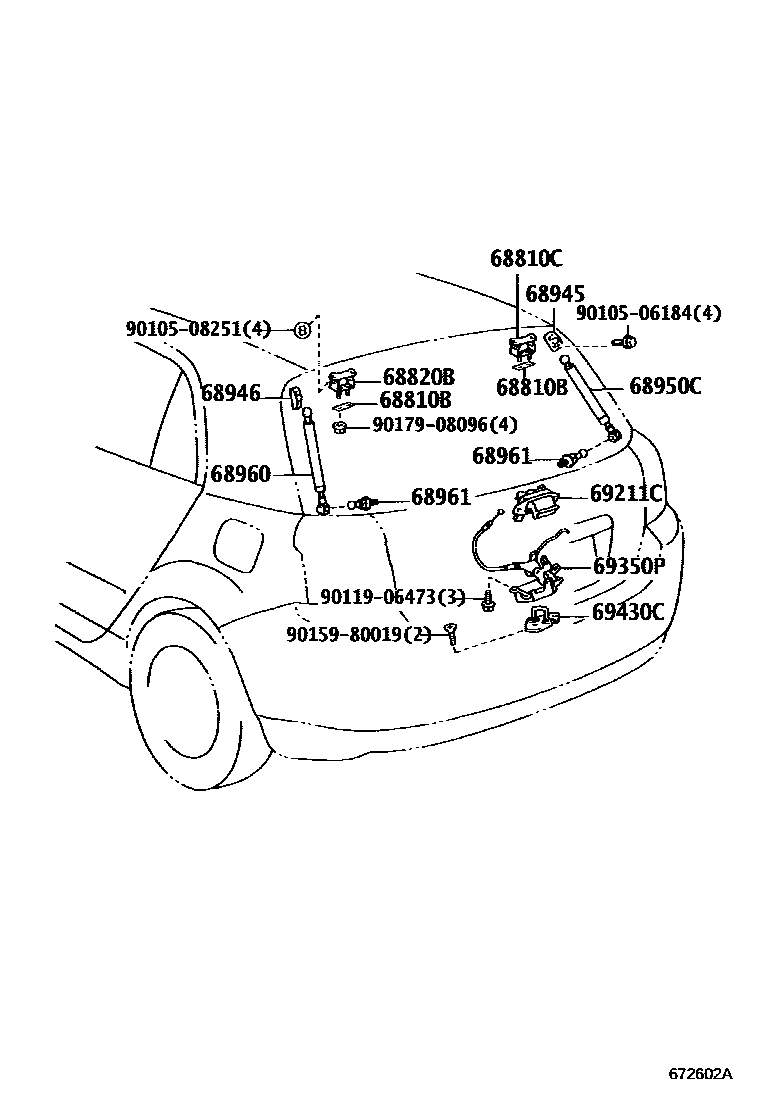

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810B | Back door hinge gasket | 68838-05020 |
| 68810C | Back door right hinge assembly | 68810-05010 |
| 68820B | Back door left hinge assembly | 68810-05010 |
| 68945 | Back door right damping stay upper bracket | 68945-02010 |
| 68946 | Rear door left damping strut upper bracket | 68945-02010 |
| 68950C | Back door right support rod assembly | 68950-02040 · 68950-02041 |
| 68960 | Back door left support rod assembly | 68960-02030 · 68960-02031 |
| 68961 | Rear door support rod bolts | 68961-02020 |
| 69211C | Back door outer handle | 69023-02010 |
| 69350P | ENS. VERR, HAYON, AV COMM PLAFONNIER | 69350-02030 · 69350-02031 · 69350-02040 · 69350-02041 · 69350-13290 · 69350-13300 |
| 69430C | Back door lock assembly | 69430-0D010 · 69430-52020 |
