Toyota COROLLA 背门板和背门玻璃 — Figure 6708

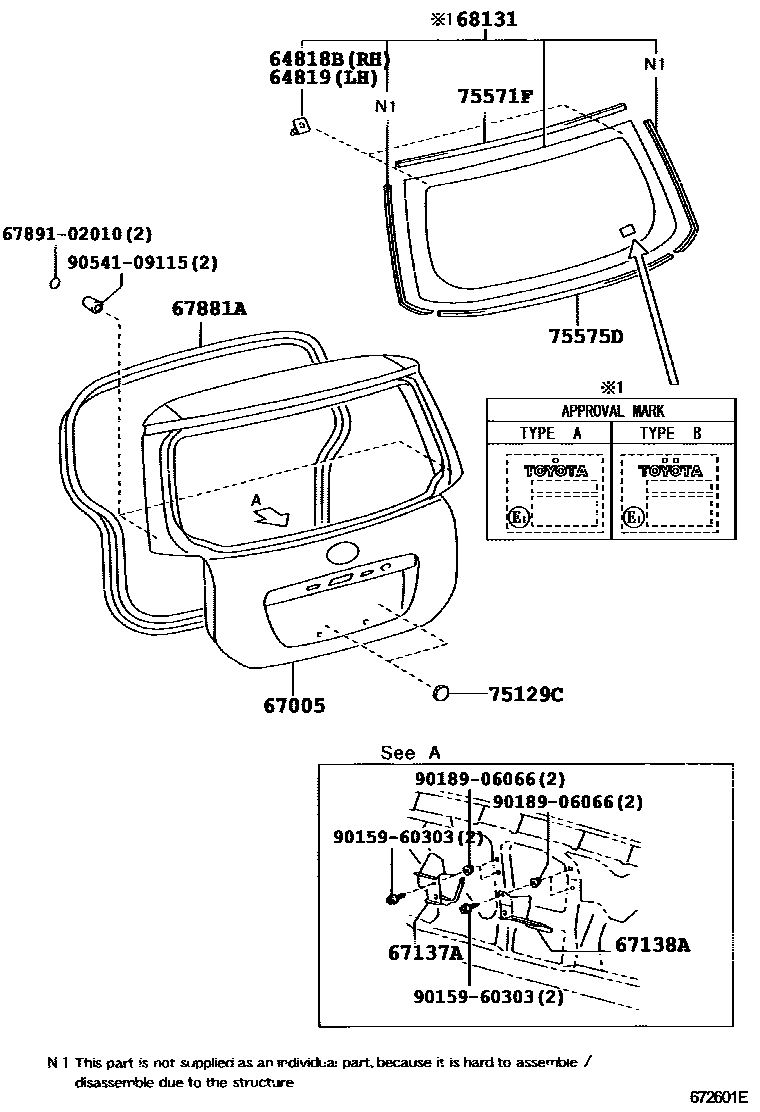

Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64818B | No. 1 back door glass spacer | 64818-13060 |
| 64819 | No. 2 back window glass spacer | 64819-13040 |
| 67005 | Rear door panel sub-assembly | 67005-02060 |
| 67137A | Right extension section of rear door outer panel | 67137-13010 |
| 67138A | Left extension section of rear door outer panel | 67138-13010 |
| 67881A | Back door seal | 67881-02050 · 67881-02051 |
| 68131 | back door glass | 68105-02030 · 68105-02031 · 68105-02040 · 68105-02041 |
| 75129C | rear license plate cushion | 75129-40010 |
| 75571F | Back door and window protection strip | 75571-02080 |
| 75575D | Protective strip under rear window | 75575-02040 |
