Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

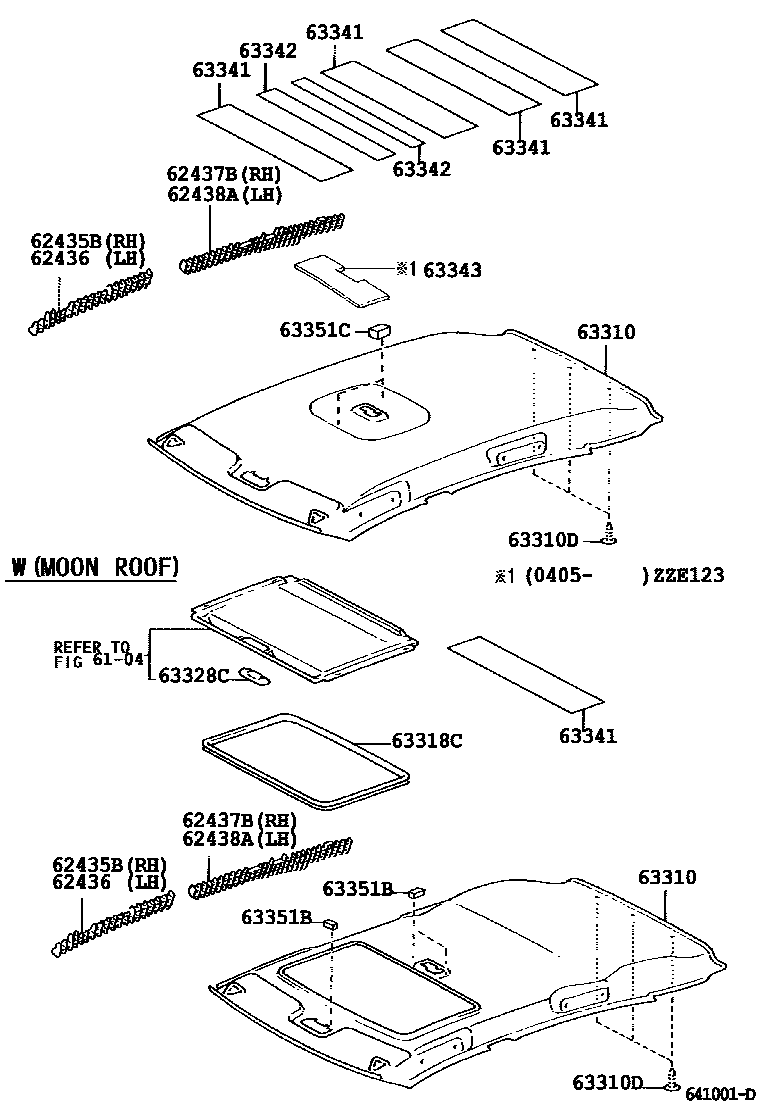

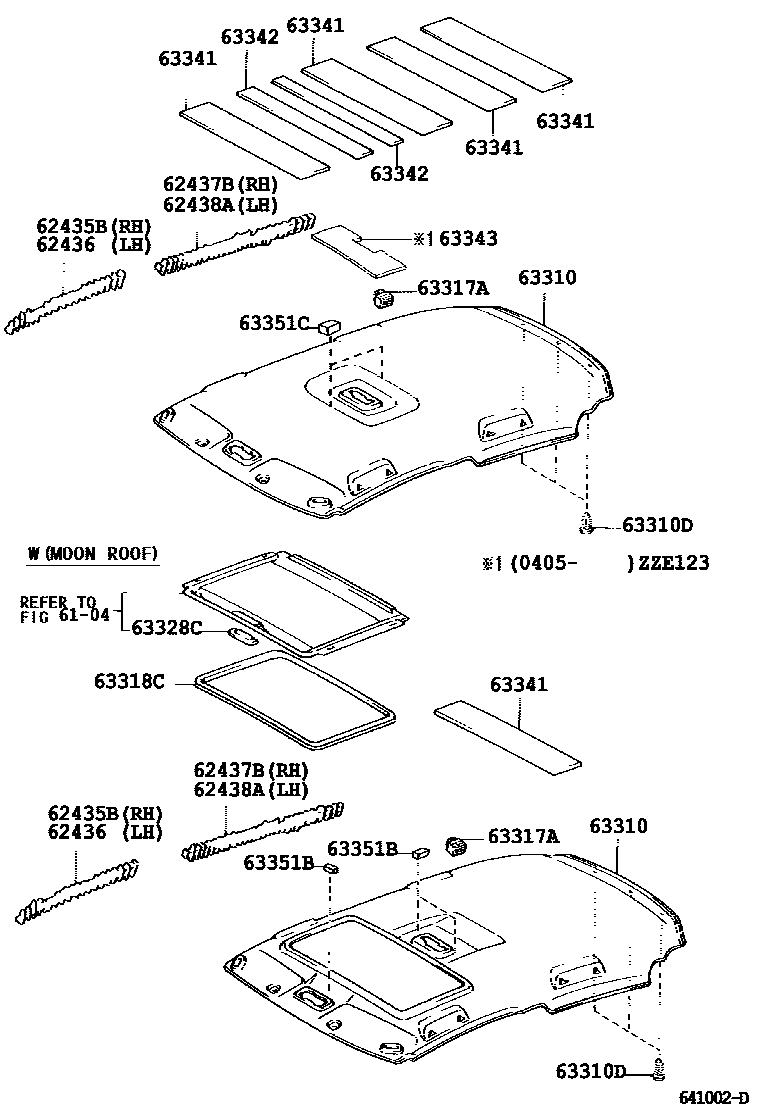

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62435B | Right front roof rail pad | 62435-02020 |
| 62436 | Left front roof rail pad | 62436-02020 |
| 62437B | Right rear roof rail pad | 62437-02010 |
| 62438A | Left rear roof rail pad | 62438-02010 |
| 63317A | headliner fixings | 63317-13020 |
| 63341 | No. 1 roof silencer mat | 63341-02050 |
| 63342 | No. 2 roof muffler pad | 63342-02090 |
| 63343 | No. 3 roof muffler pad | 63343-02080 |
| 63351B | roof lining pads | 63351-02100 |
| 63351C | roof lining pads | 63351-02080 |
