Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

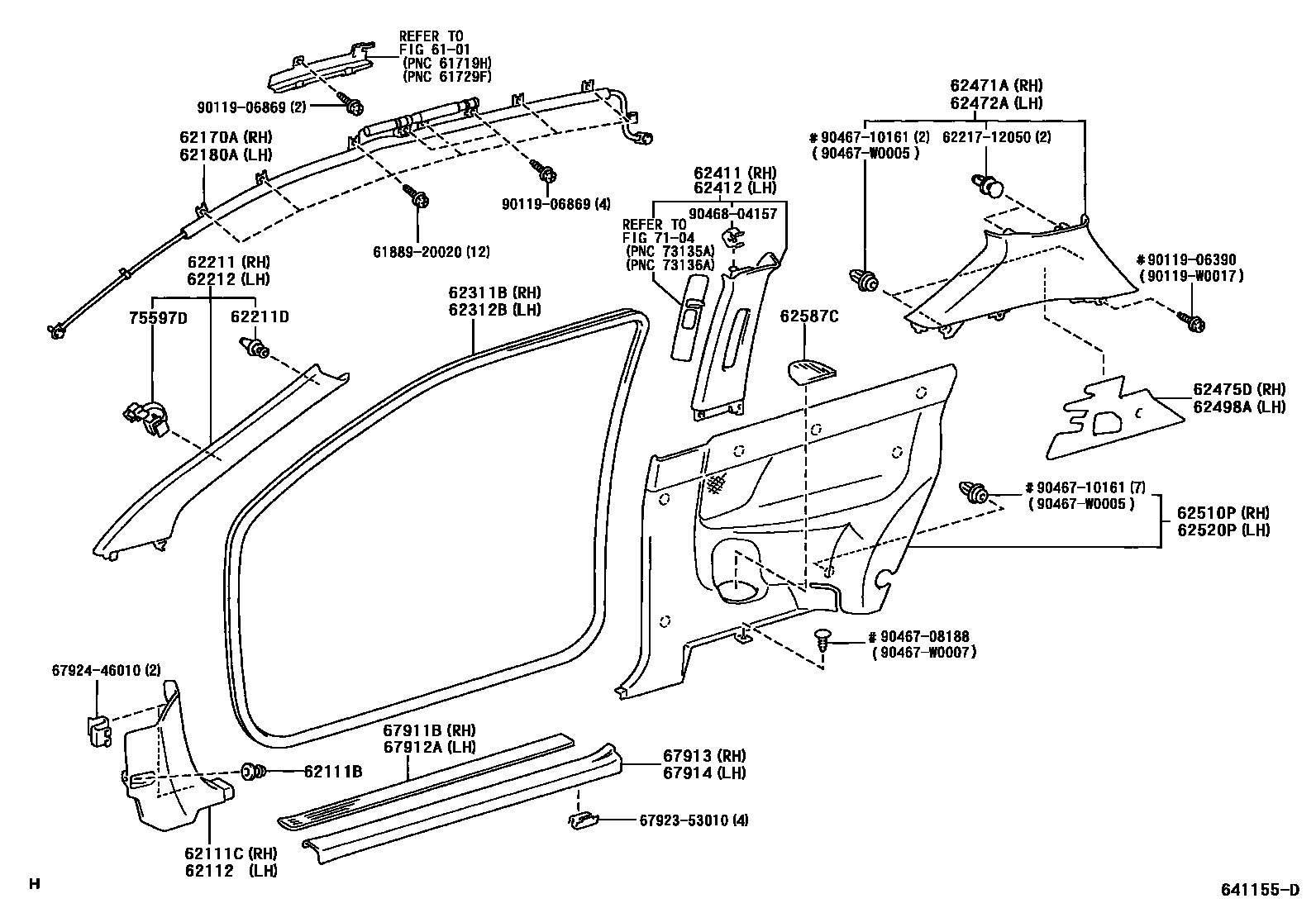

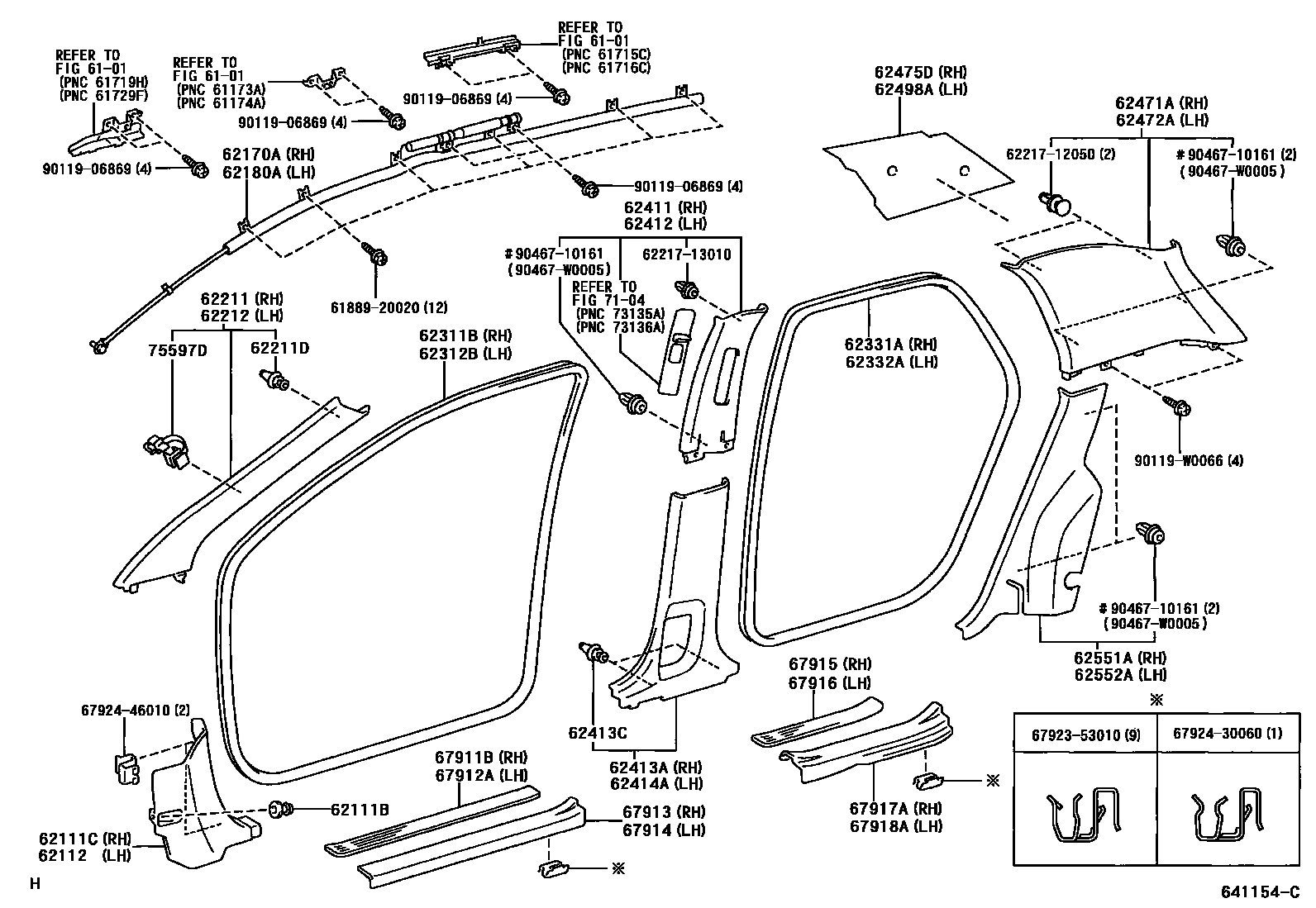

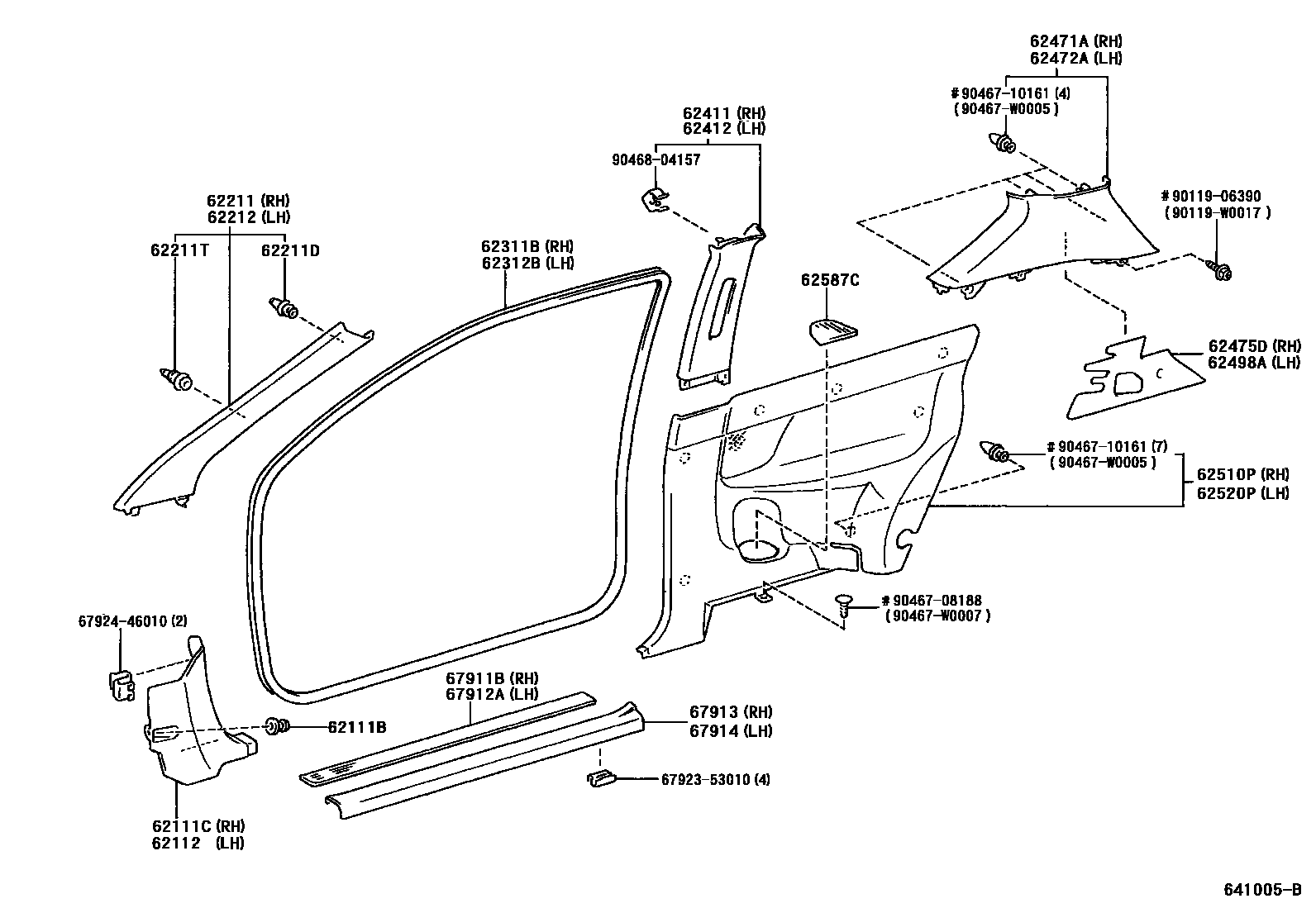

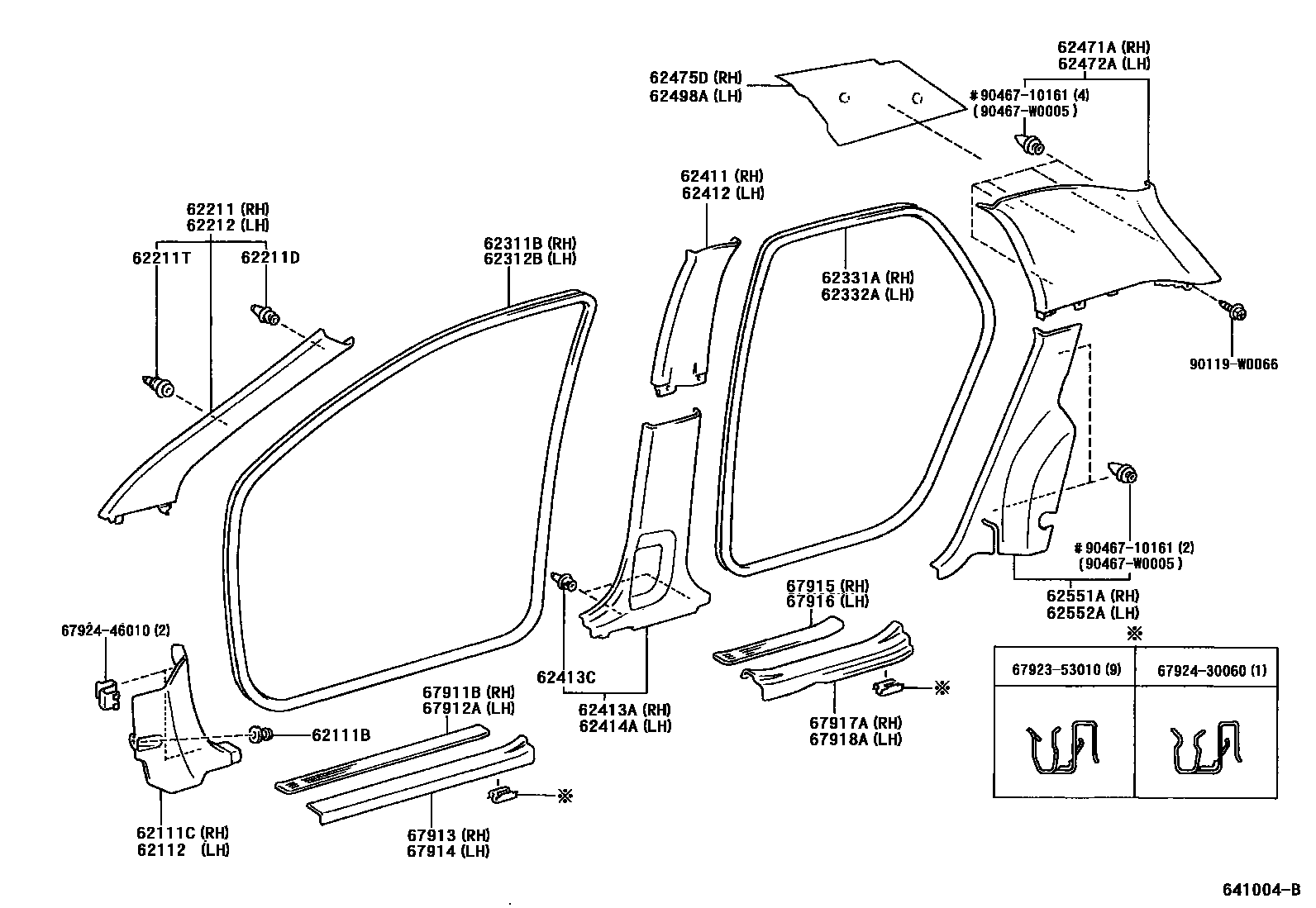

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-06191 |
| 62170A | Right curtain air bag assembly | 62170-02020 · 62170-02030 · 62170-02050 · 62170-02051 · 62170-02060 · 62170-02061 |
| 62180A | Left curtain air bag assembly | 62180-02020 · 62180-02030 · 62180-02050 · 62180-02051 · 62180-02060 · 62180-02061 |
| 62211D | Clip (for body front pillar decorative panel) | 90467-10161 · 90467-W0005 |
| 62211T | Clip (for front pillar decorative panel) | 62217-13010 |
| 62311B | Right front door opening waterproof tape | 62311-13030 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 · 90467-W0005 |
| 62475D | Roof right interior trim panel lining | 62475-02030 · 62475-02040 |
| 62498A | Roof left interior panel lining | 62475-02030 · 62475-02040 |
| 67911B | Right front door outer wear plate | 67911-02020 · 67911-02030 · 67911-12060 · 67911-12070 · 67911-12090 · 67911-12100 |
| 67912A | Left front door outer wear plate | 67912-02020 · 67912-02030 · 67912-12030 · 67912-12040 · 67912-12060 · 67912-12070 |
| 67915 | Right rear door outer wear plate | 67915-02020 |
| 67916 | Left rear door outer wear plate | 67916-02020 |
| 75597D | Roof side trim clips | 75597-05010 · 75597-0F010 |
