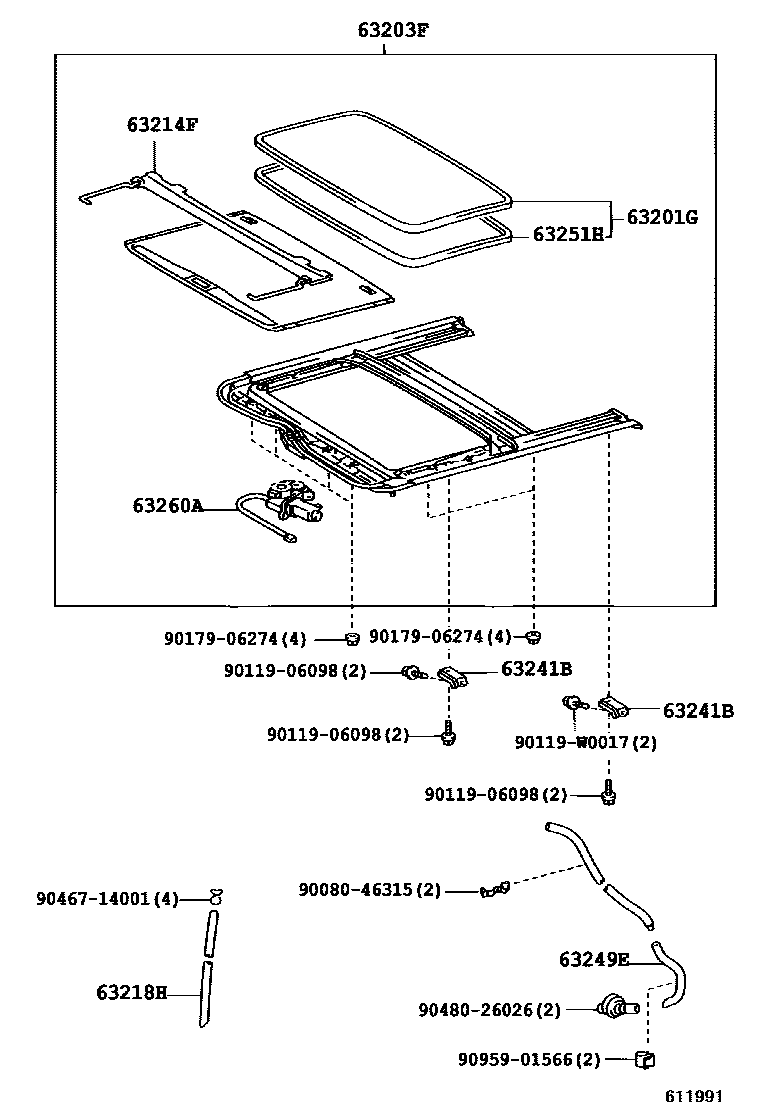

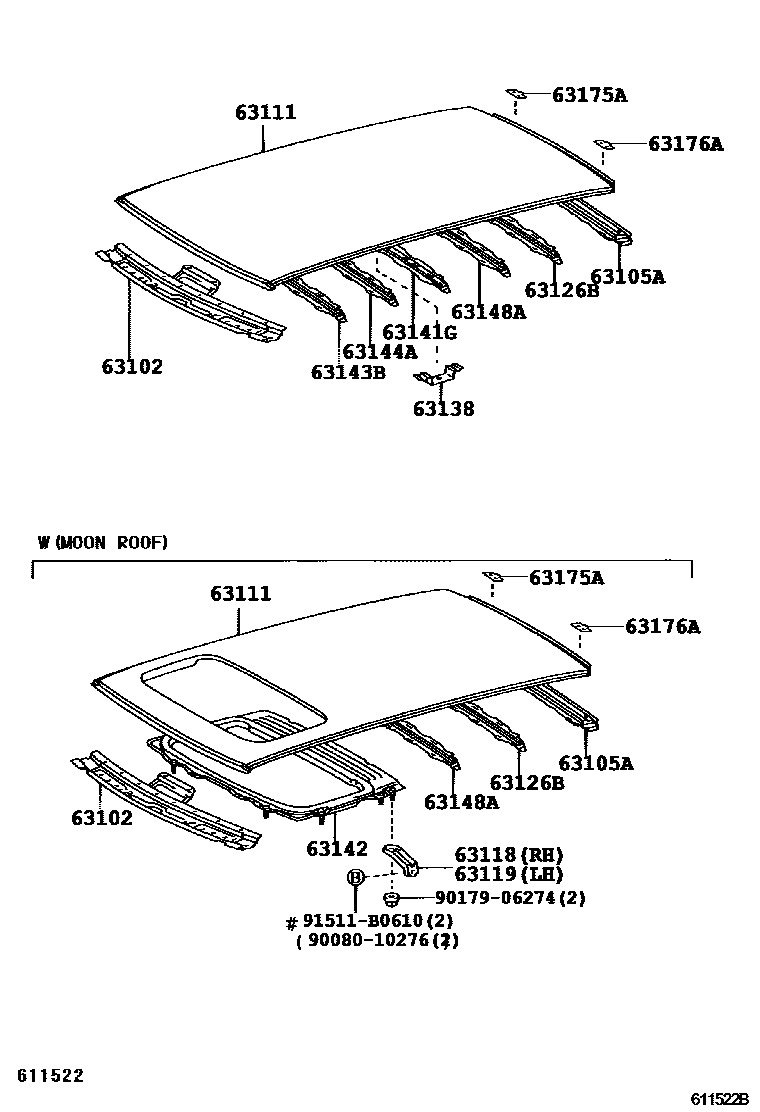

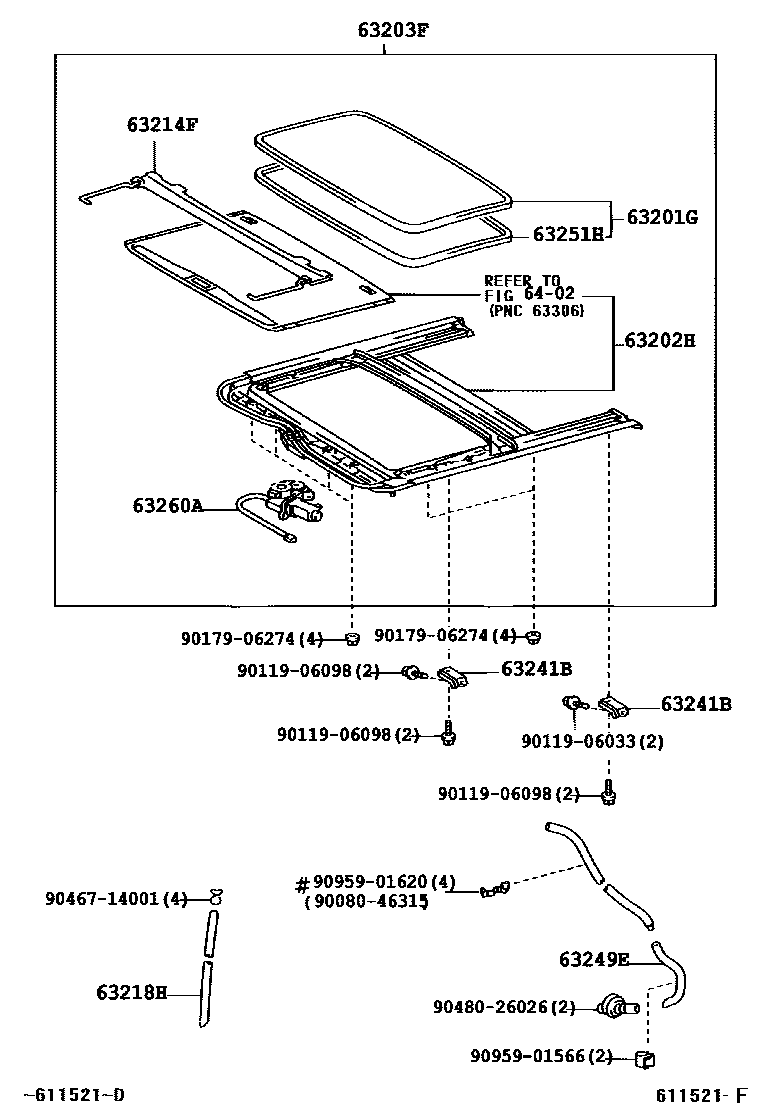

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102 | Roof panel plus front strong piece sub-assembly | 63102-12150 · 63102-13090 |
| 63105A | Back door opening frame sub-assembly | 63105-13200 |
| 63111 | roof panel | 63111-02120 · 63111-02130 |
| 63118 | Right roof panel bracket | 63118-12100 |
| 63119 | Left roof panel bracket | 63118-12100 |
| 63126B | No. 2 rear roof panel reinforcement | 63126-02010 · 63126-13010 |
| 63138 | No. 2 ceiling light bracket | 63138-12011 |
| 63141G | No. 1 roof panel reinforcement | 63141-02050 · 63141-13080 |
| 63142 | No. 2 roof panel reinforcement | 63103-02010 |
| 63143B | No. 3 roof panel reinforcement | 63143-02020 · 63143-12100 |
| 63144A | No. 4 roof panel reinforcement | 63144-02030 · 63144-13030 |
| 63148A | No. 7 roof panel reinforcement | 63148-02020 · 63148-13030 |
| 63175A | Back door right recessed hinge reinforcement | 63175-52020 |
| 63176A | Back door left recessed hinge reinforcement | 63176-52020 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-02040 |
| 63214F | Roof rear drain channel | 63214-02040 |
| 63218H | Sliding skylight drain hose | 63249-02090 · 63249-02091 · 63249-02092 |
| 63241B | Sliding sunroof frame bracket No. 1 | 63241-02040 |
| 63249E | Sliding skylight drain hose | 63249-02100 · 63249-02101 · 63249-02102 |
| 63251H | Sliding skylight seal | 63251-02040 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-02020 · 63260-02050 |
