Toyota COROLLA 角窗 — Figure 6103

Toyota COROLLA EPC diagram 6103, 角窗, with 1 images and 6 PNC and OE references.

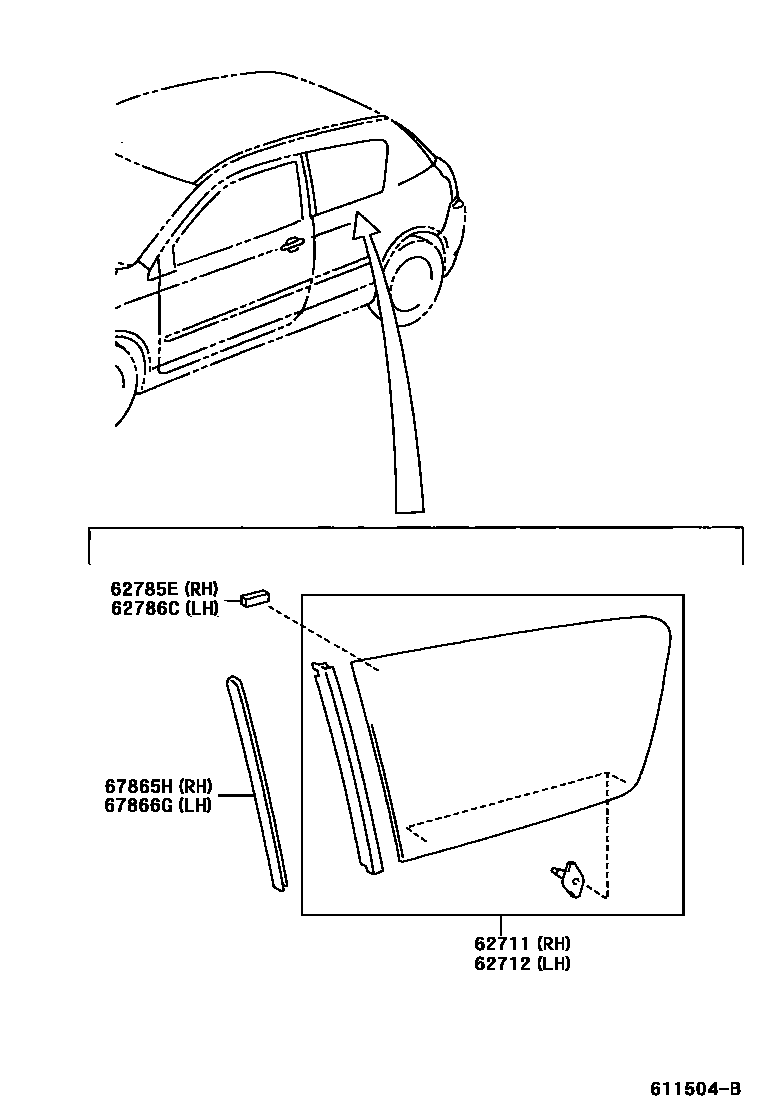

Toyota COROLLA 角窗 EPC diagram — 611504B
角窗 — 611504B (200111 – 999999)

PNC and OE references

PNCPart nameOE numbers
62711Right corner window glass62710-02030
62712Left corner window glass62720-02030
62785ERight corner window glass spacer62785-16030
62786CLeft corner window glass spacer62785-16030
67865HRight center pillar upper end sealing strip67865-02010
67866GLeft center pillar upper end sealing strip67866-02010
