Toyota COROLLA 前围板和挡风玻璃 — Figure 5503

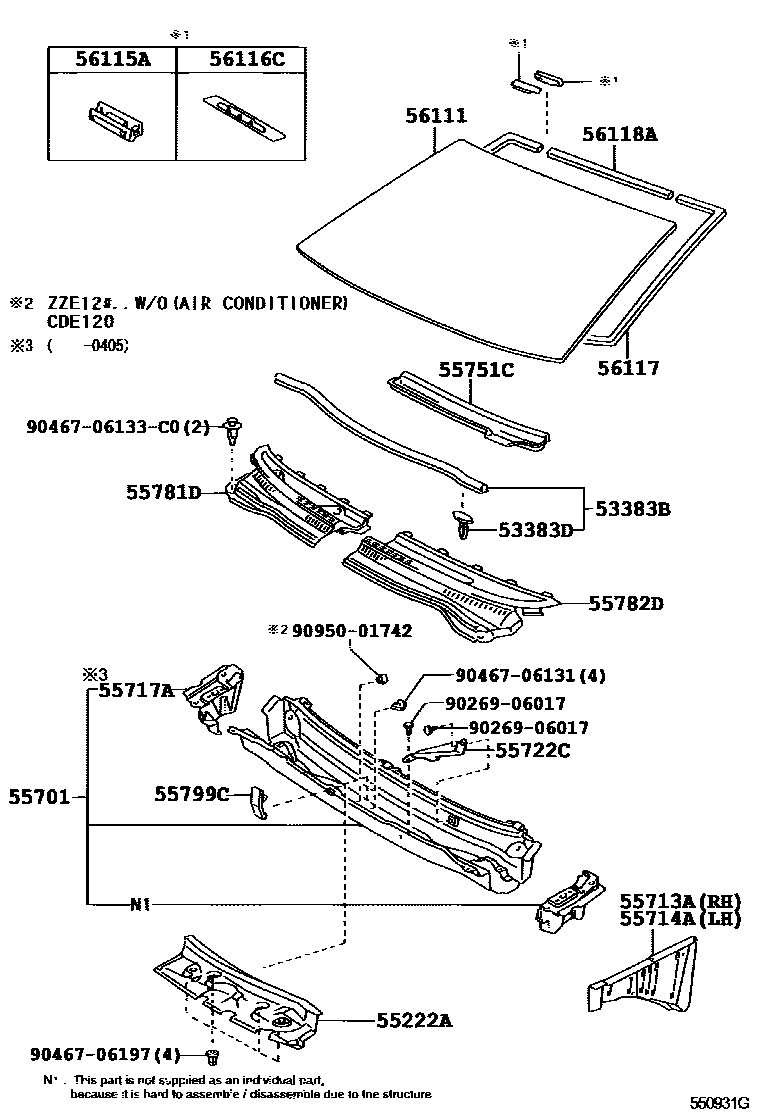

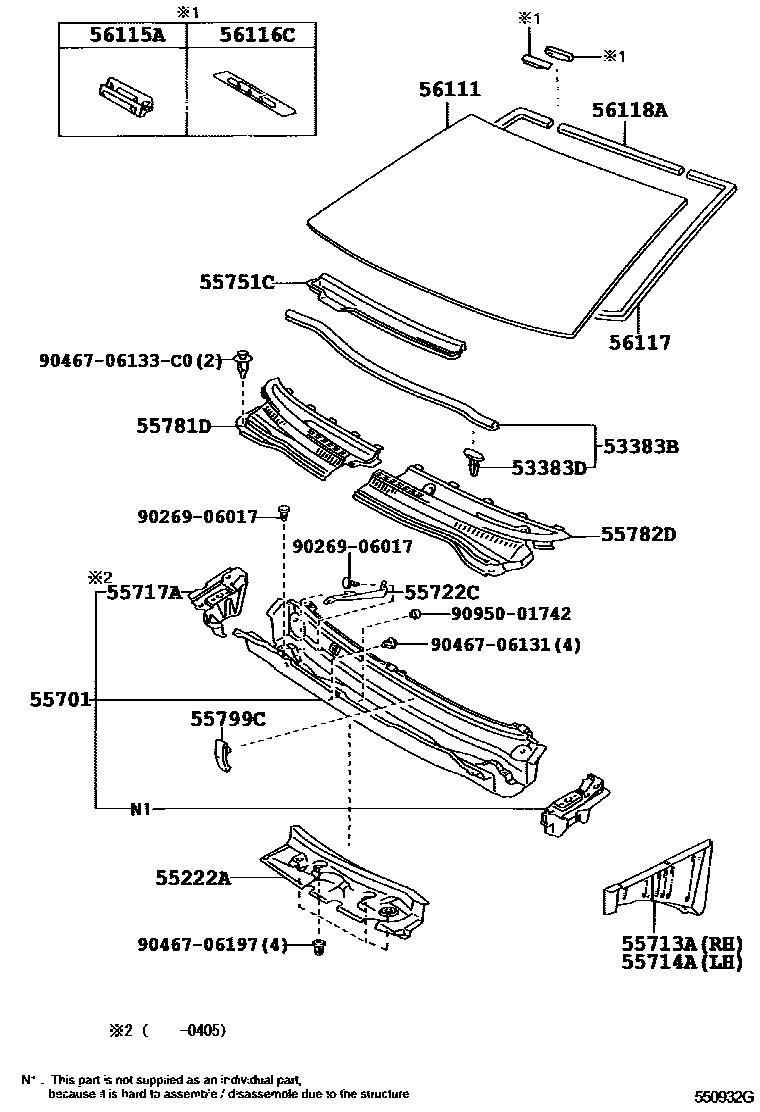

Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-02060 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 90467-08108 |
| 55222A | Center heat insulation pad on outer side of front cowl | 55224-02010 · 55224-02011 |
| 55701 | Front apron sub-assembly | 55700-02210 · 55700-02211 · 55700-02220 · 55700-02221 · 55700-02350 · 55700-02360 |
| 55713A | Right front wall upper side panel | 55713-02030 |
| 55714A | Left front wall upper side panel | 55714-02030 |
| 55717A | Upper right inner panel of cowl | 55717-02900 |
| 55722C | From the cowl upper cover to the cowl inner bracket | 55721-12100 · 55721-12110 |
| 55751C | Front ventilator splash guard | 55751-02030 · 55751-02040 |
| 55781D | Ventilation grille on right front apron | 55708-02140 · 55708-02150 · 55708-02160 · 55708-02240 · 55708-02250 |
| 55782D | Ventilation grille on left front apron | 55709-02060 · 55709-02070 · 55709-02080 · 55709-02150 |
| 55799C | Ventilation grille clips on front apron | 55799-13020 |
| 56111 | windshield | 56101-02040 · 56101-02180 · 56101-02190 · 56101-02200 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117 | Front pillar outer sealing strip | 56117-02040 |
