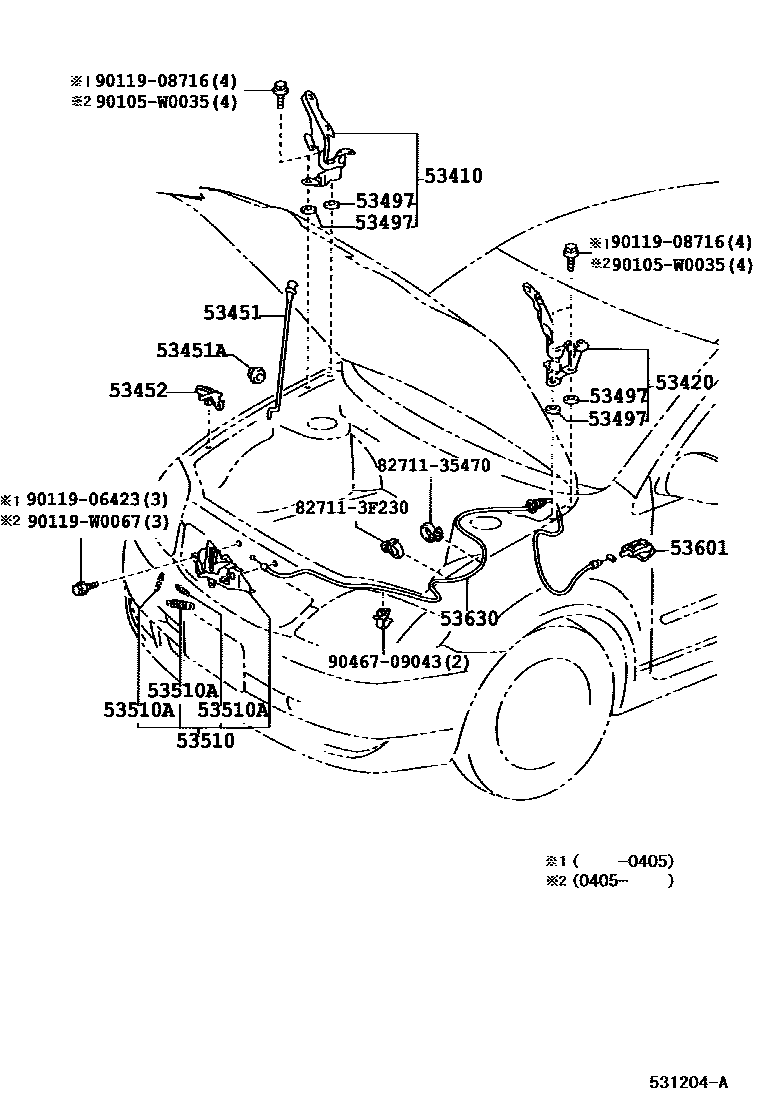

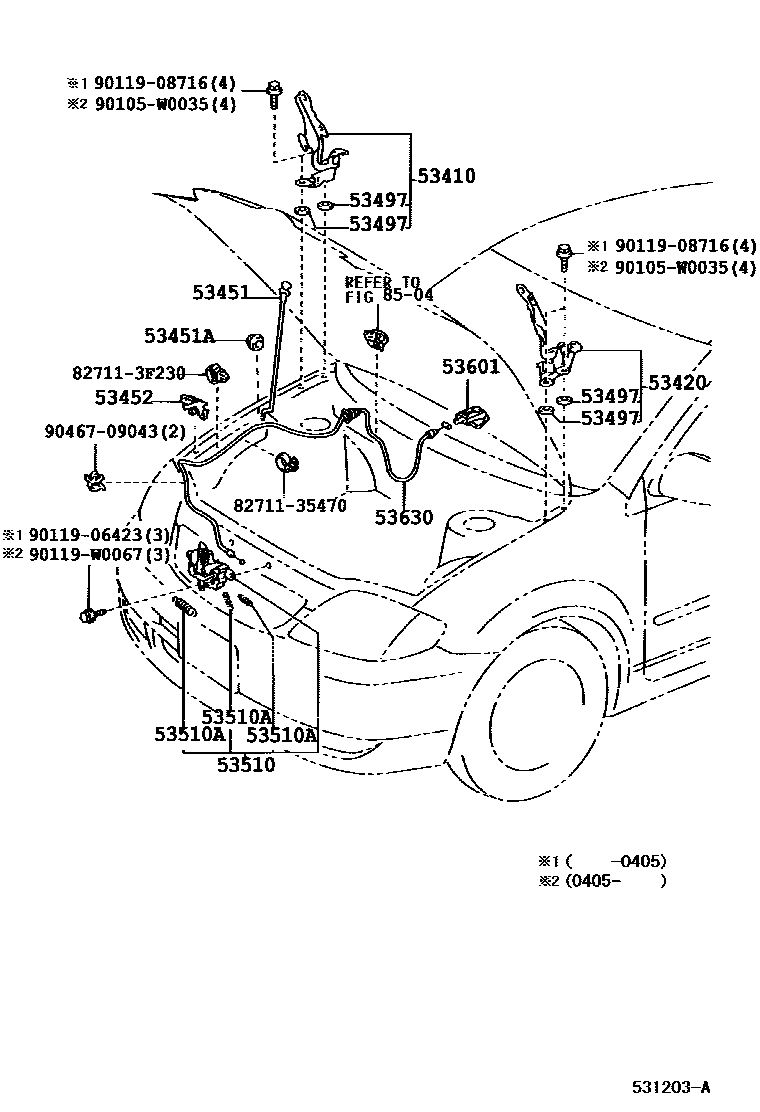

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-02050 |
| 53420 | Engine cover left hinge assembly | 53420-02050 |
| 53451 | Engine cover support rod | 53440-12030 |
| 53451A | Gasket (for engine cover support rod) | 90480-15034 |
| 53452 | Engine cover stay rod fixing | 53452-02020 |
| 53497 | No. 1 engine cover hinge gasket | 53497-05010 |
| 53510 | Engine cover lock assembly | 53510-02140 · 53510-02190 · 53510-02200 · 53510-02201 |
| 53510A | Tension spring (for hood lock) | 90080-50258 · 90080-50265 · 90080-50266 · 90080-50365 |
| 53630 | Engine hood lock control cable assembly | 53630-02100 · 53630-02110 · 53630-12510 |
