VOCR EPC

Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 1 PNC and OE references.

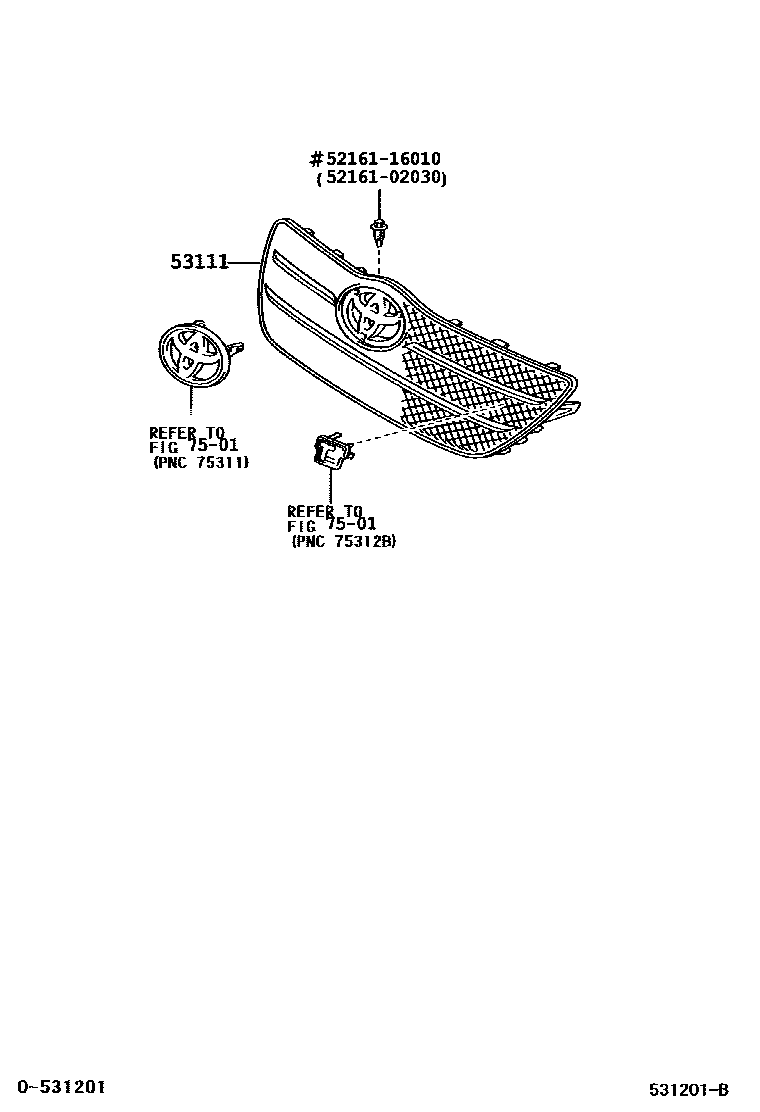

Toyota COROLLA radiator grille EPC diagram — 531201B
radiator grille — 531201B (200111 – 200405)

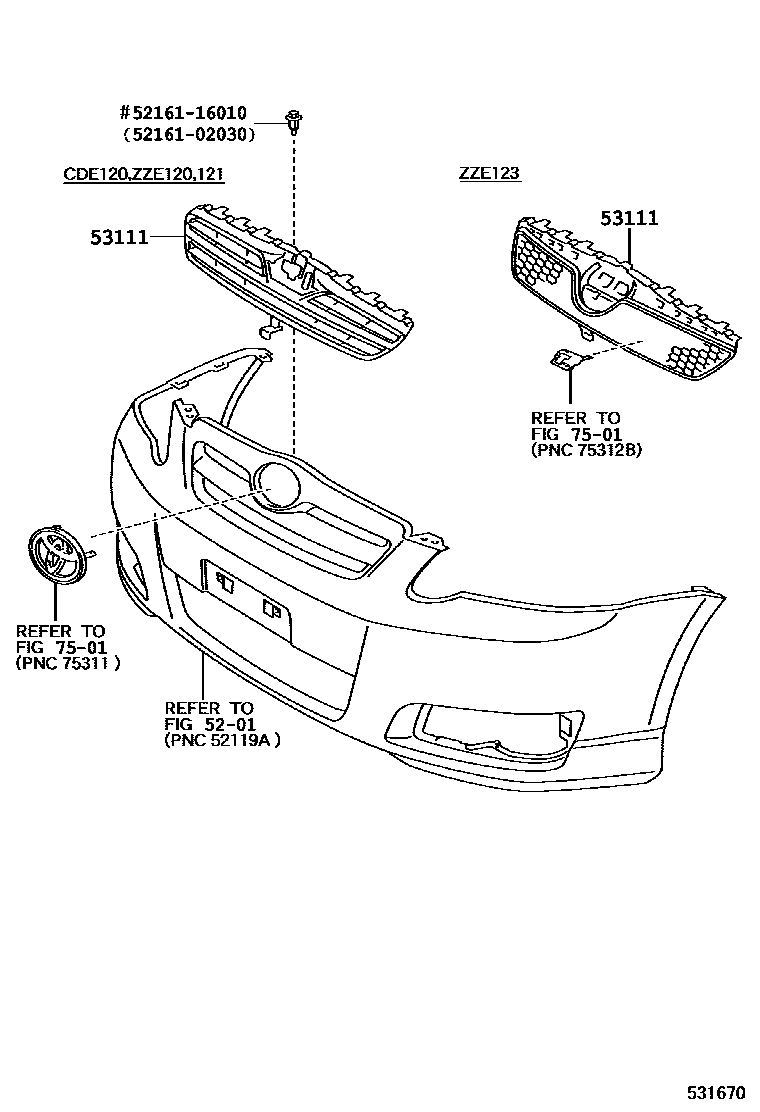

Toyota COROLLA radiator grille EPC diagram — 531670
radiator grille — 531670 (200405 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53100-02010 · 53111-02150 · 53111-02160 · 53111-02330 · 53111-02340
