Toyota COROLLA 后保险杠及附件 — Figure 5202

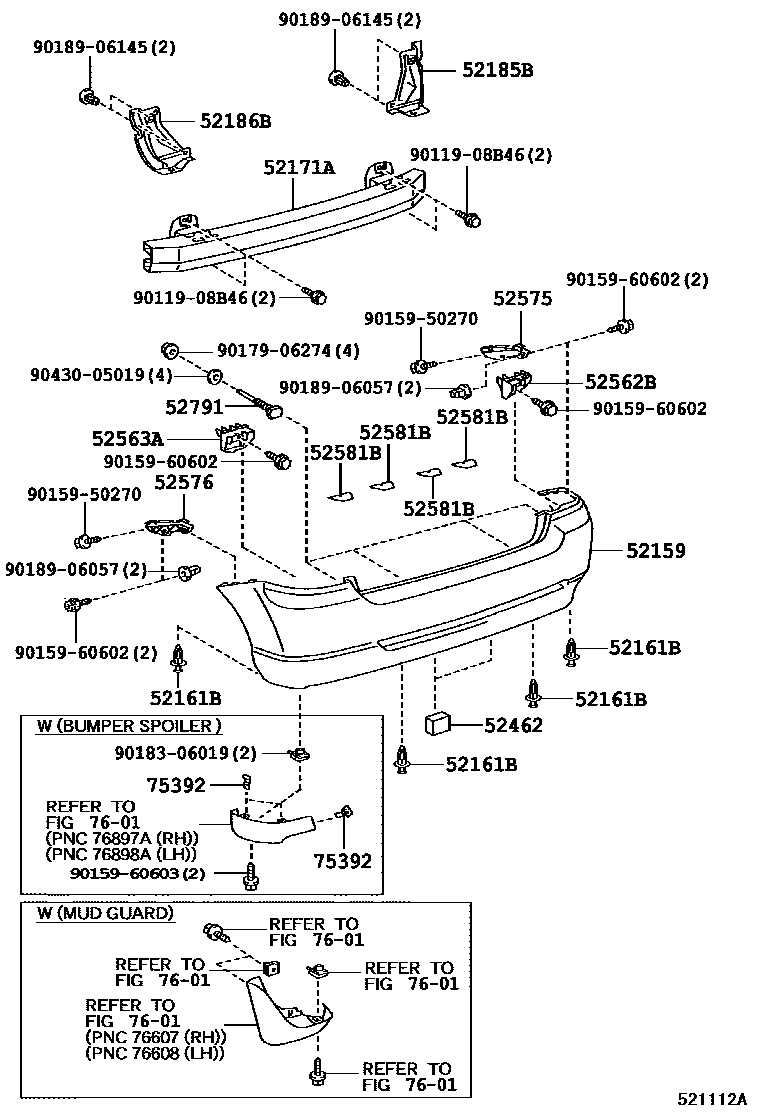

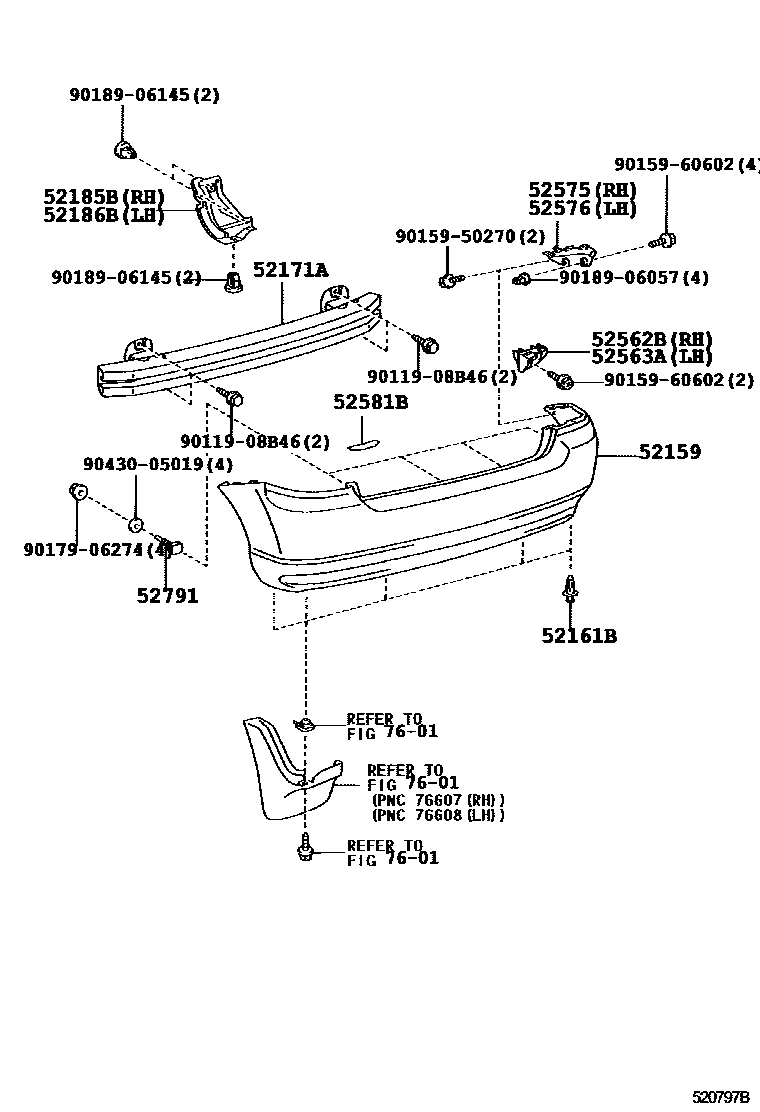

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-02910 · 52159-02923 · 52159-02924 |
| 52161B | Rear bumper insert | 52161-02030 · 52161-16010 |
| 52171A | Rear bumper reinforcement No. 1 | 52023-02060 |
| 52185B | Installation support on the right side of the rear bumper | 52185-02040 |
| 52186B | Rear bumper left side mounting support | 52186-02030 |
| 52462 | Rear bumper right side lining | 52462-02030 |
| 52562B | Rear bumper upper right fixing bracket | 52562-02010 |
| 52563A | Rear bumper upper left fixing bracket | 52563-02010 |
| 52575 | Rear bumper right side fixing bracket | 52575-02040 · 52575-02060 |
| 52576 | Rear bumper left side fixing bracket | 52576-02040 · 52576-02060 |
| 52581B | rear bumper protector | 52581-02020 |
| 52791 | Bumper protection strip No. 1 fixing bolt | 52791-12040 |
| 75392 | External protective strip fixings | 75392-35200 |
