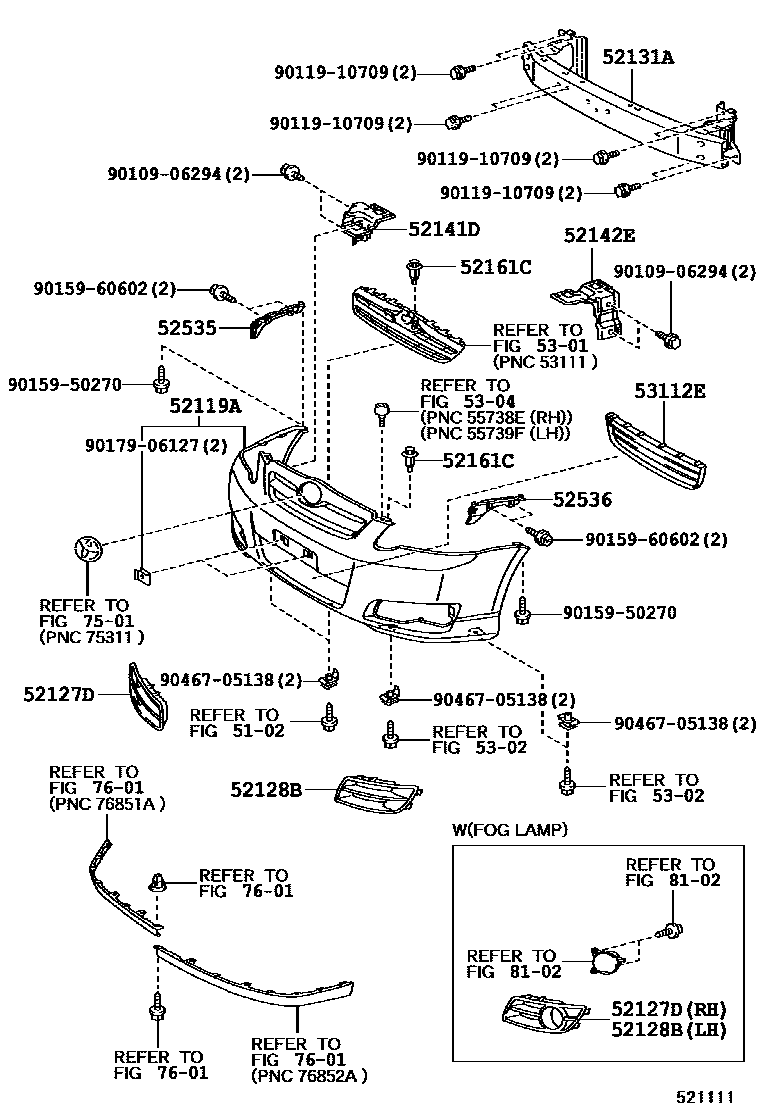

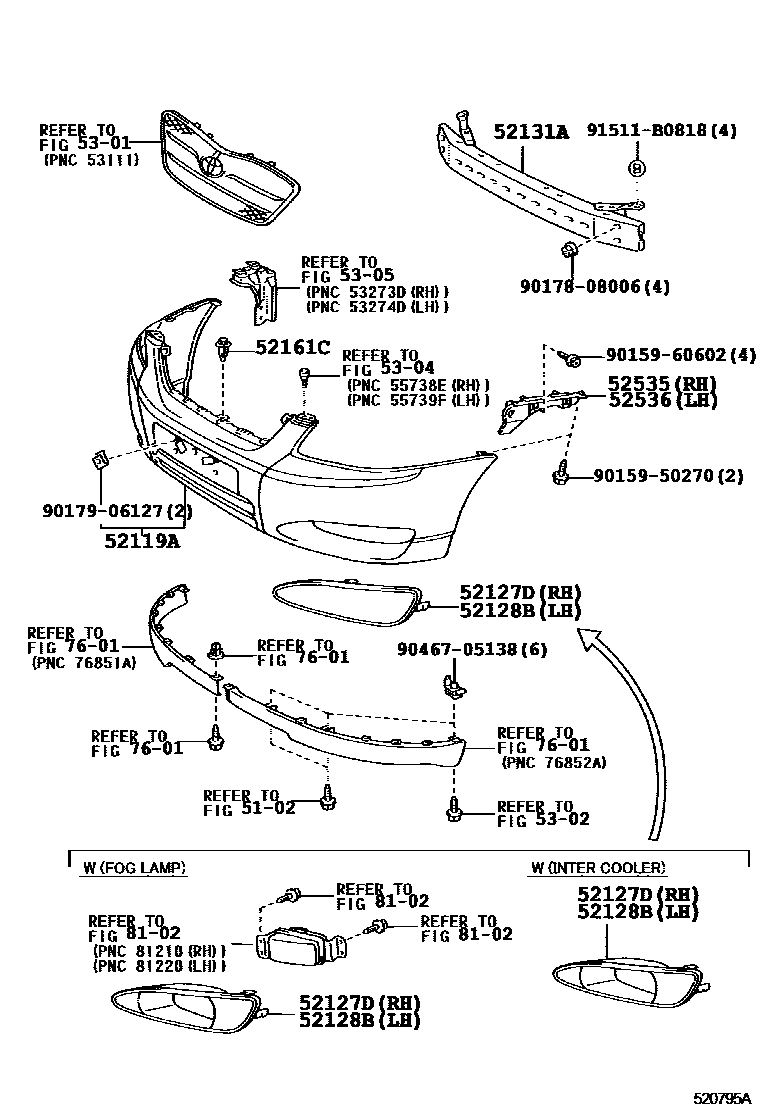

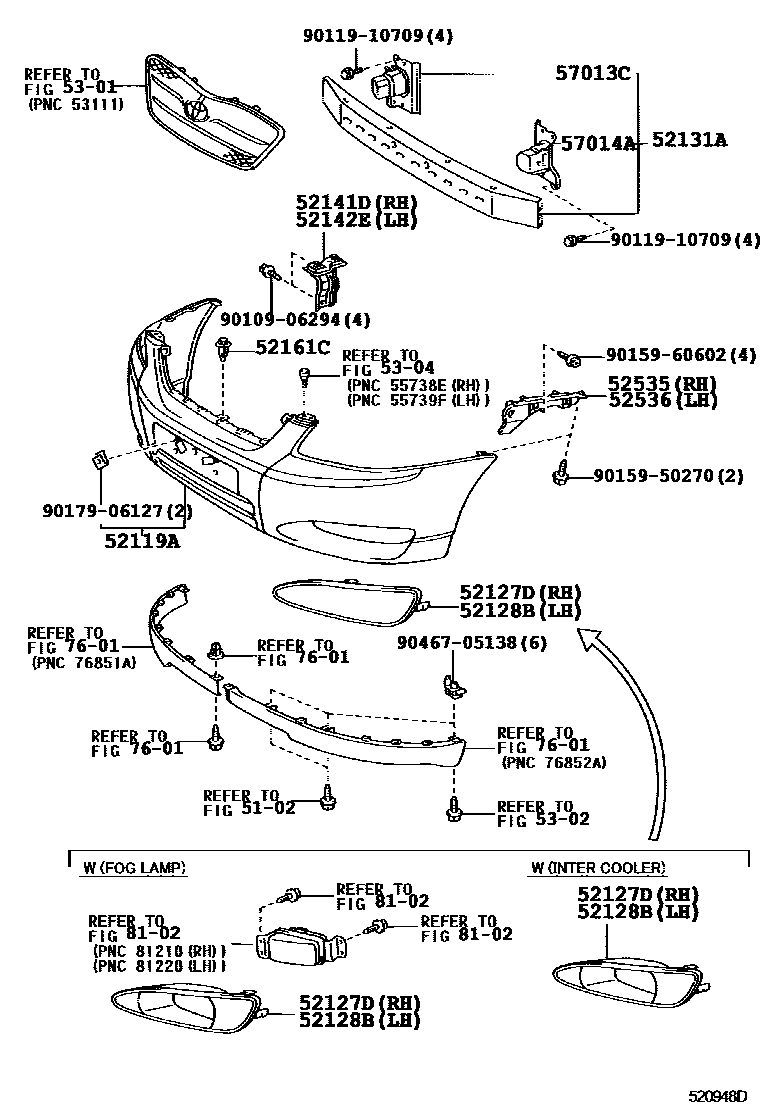

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52119A | front bumper cover | 52119-02921 · 52119-02922 · 52119-02932 · 52119-02933 · 52119-02940 · 52119-02941 |
| 52127D | Front bumper right hole cover | 52127-02040 · 52127-02050 · 52127-02060 · 52127-02120 · 52127-02130 · 52127-02140 |
| 52128B | Front bumper left hole cover | 52128-02030 · 52128-02040 · 52128-02050 · 52128-02051 · 52128-02110 · 52128-02120 · 52128-02130 · 52128-02140 · 52128-02150 |
| 52131A | Front bumper reinforcement | 52021-02050 · 52021-02090 |
| 52141D | Front bumper right side stay | 52081-02010 · 52081-02040 |
| 52142E | Front bumper left stay sub-assembly | 52082-02010 · 52082-02030 |
| 52161C | front bumper insert | 52161-02030 · 52161-16010 |
| 52535 | Front bumper right side fixing bracket | 52535-02030 |
| 52536 | Front bumper left fixed bracket | 52536-02020 |
| 53112E | No. 1 radiator lower grille | 53112-02060 · 53112-02070 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-02010 · 57013-02020 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-02010 · 57014-02020 |
