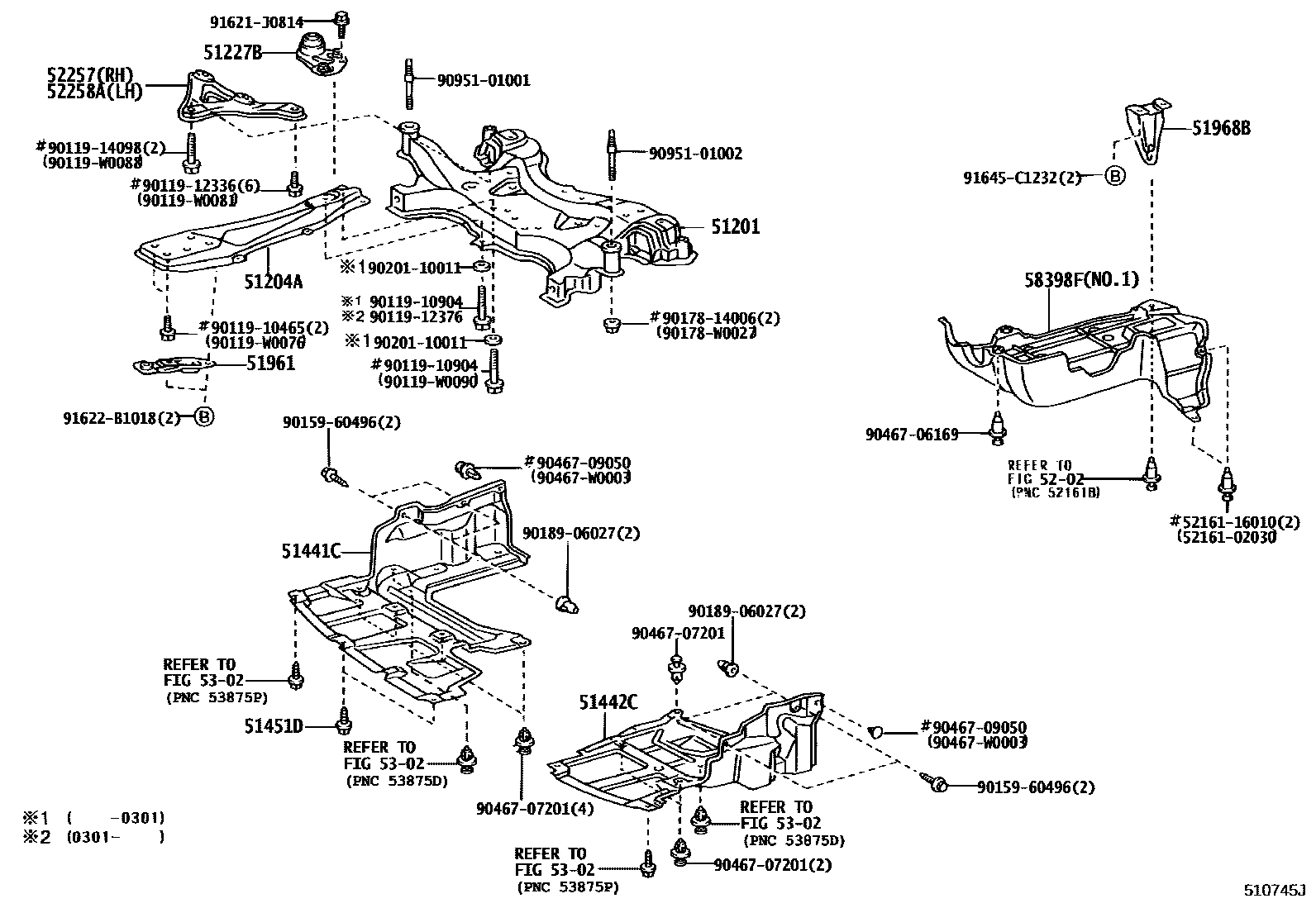

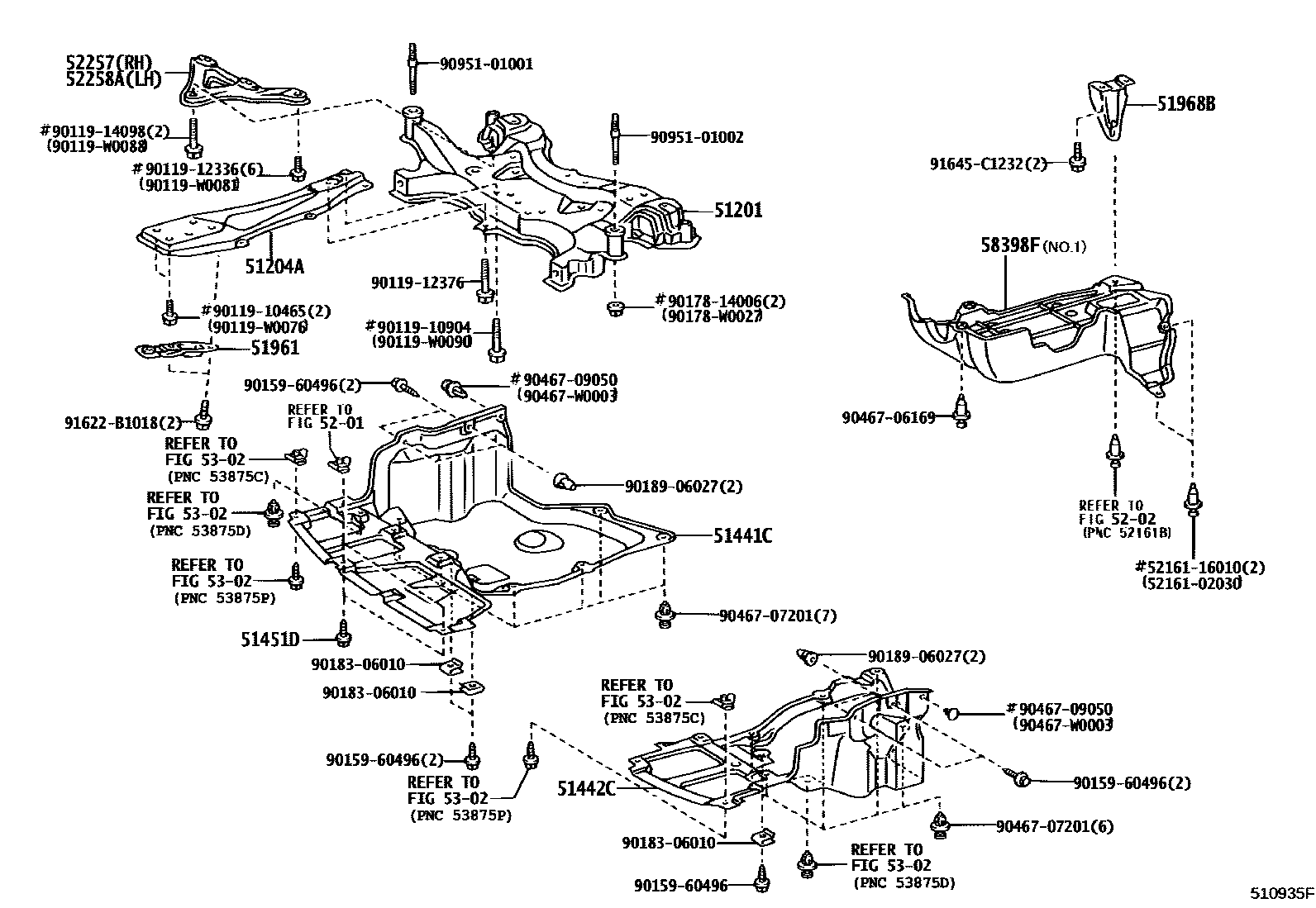

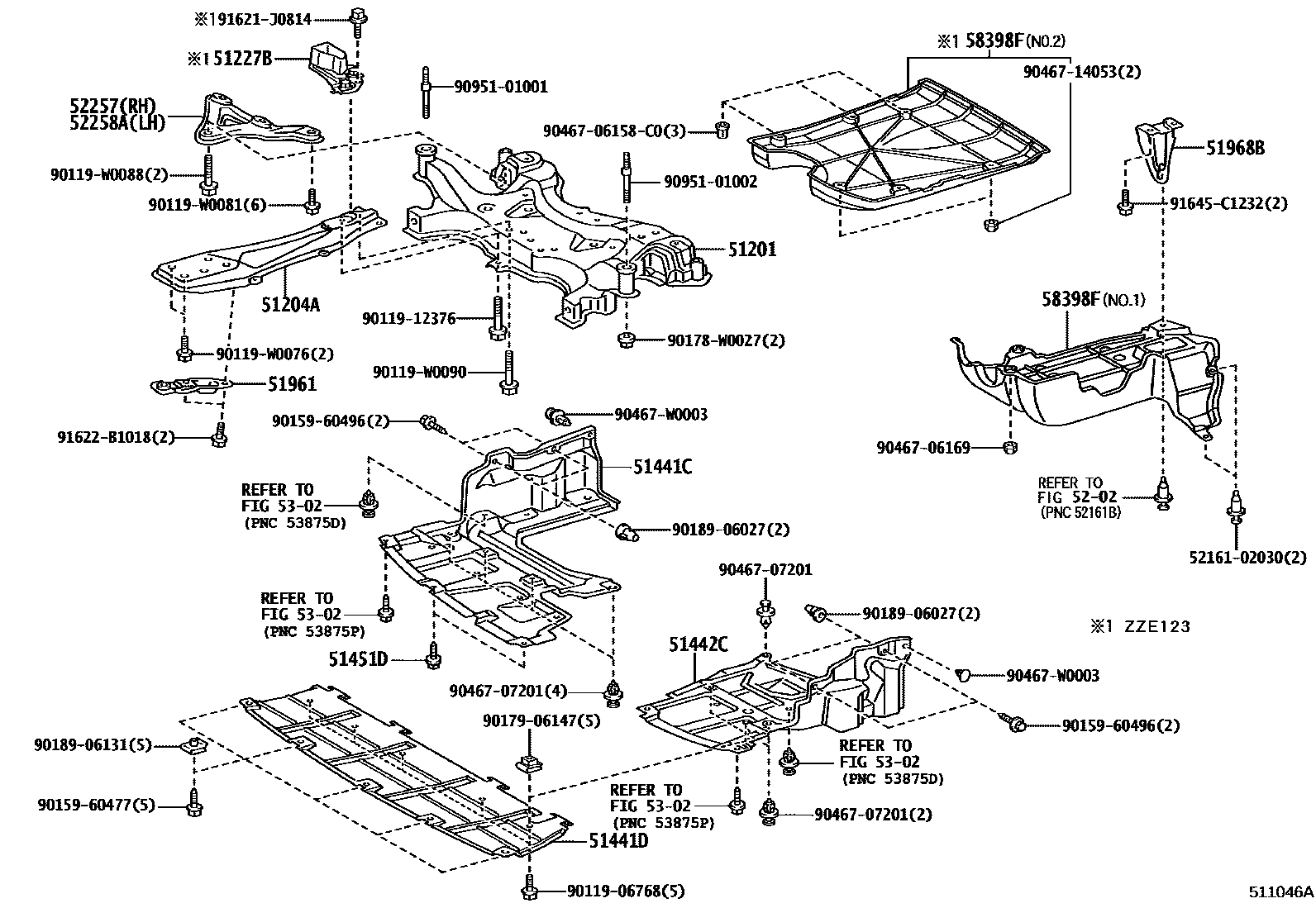

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-02080 · 51201-02081 · 51201-02082 |
| 51204A | Engine center mount beam sub-assembly | 51204-02041 · 51204-05021 · 51204-05022 · 51204-05050 · 51204-05051 |
| 51227B | Front suspension beam dynamic damper | 51227-02040 · 51227-12090 |
| 51441C | Engine right bottom cover | 51410-02020 · 51410-02050 · 51410-02070 · 51410-02110 · 51441-02080 |
| 51441D | engine cover | 51451-13020 |
| 51442C | Engine left bottom cover | 51420-02020 · 51420-02040 · 51420-02080 · 51442-02110 · 51442-02120 · 51442-02150 |
| 51451D | VIS, NO.1 | 90159-60488 |
| 51961 | No. 1 hook | 51960-02020 |
| 51968B | Left rear transport hook | 51968-02020 |
| 52257 | Right front suspension cross member rear bracket | 52257-02020 |
| 52258A | Left front suspension cross member rear bracket | 52258-02020 |
| 58398F | No. 1 floor under cover | 58398-02010 · 58399-13070 |
