Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

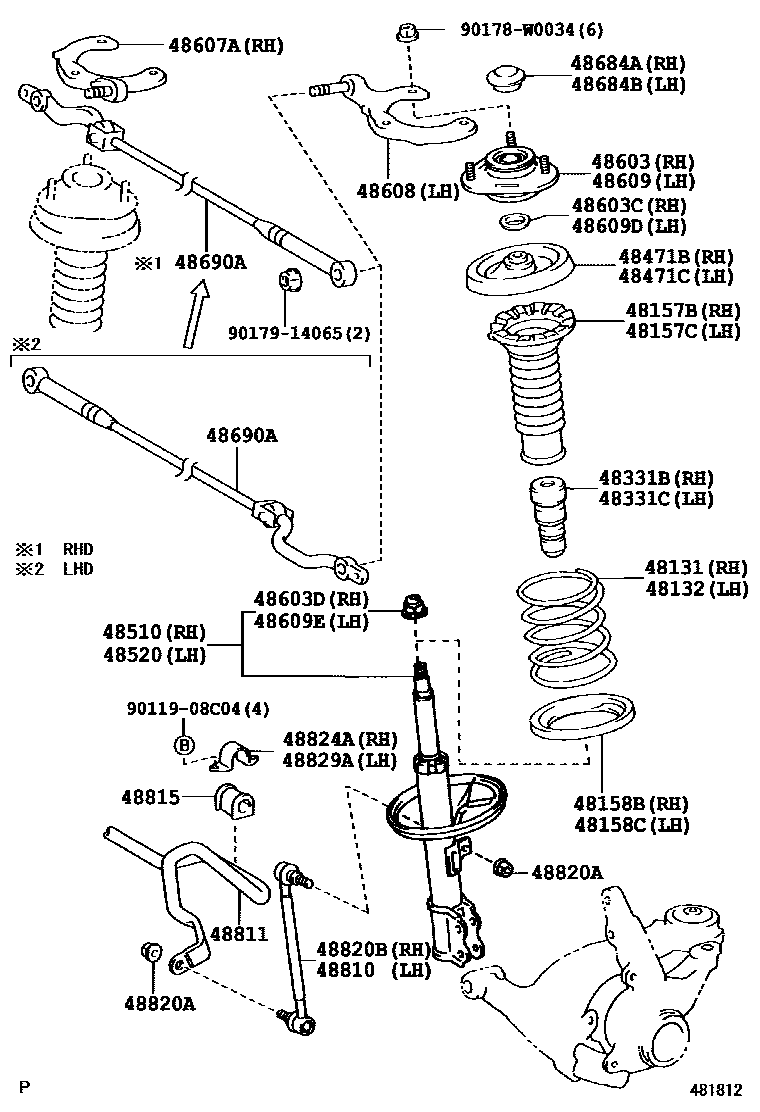

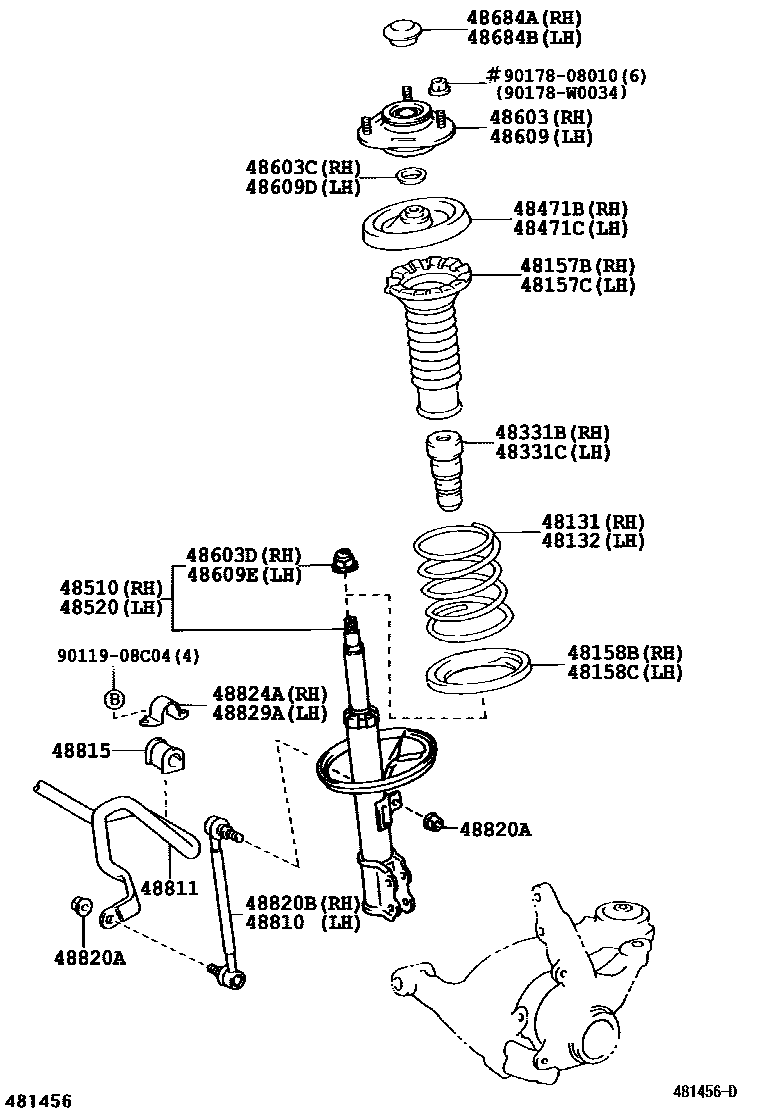

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-02830 · 48131-02840 · 48131-02841 · 48131-02850 · 48131-02860 · 48131-02870 · 48131-02880 · 48131-02A00 |
| 48132 | Left front coil spring | 48131-02830 · 48131-02840 · 48131-02841 · 48131-02850 · 48131-02860 · 48131-02870 · 48131-02880 · 48131-02A00 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-02060 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-02060 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-02050 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-02050 |
| 48331B | Right front spring buffer block | 48331-02050 · 48331-05050 |
| 48331C | Left front spring buffer block | 48331-02050 · 48331-05050 |
| 48471B | Front coil spring upper right seat | 48044-02030 |
| 48471C | Front coil spring upper left seat | 48044-02030 |
| 48510 | Right front shock absorber assembly | 48510-09570 · 48510-09580 · 48510-09590 · 48510-09600 · 48510-09A60 · 48510-09A70 · 48510-09A80 · 48510-09A90 · 48510-09L10 |
| 48520 | Left front shock absorber assembly | 48520-09470 · 48520-09480 · 48520-09490 · 48520-09500 · 48520-09880 · 48520-09890 · 48520-09A00 · 48520-09A10 · 48520-09D80 |
| 48603 | Right front suspension bearing sub-assembly | 48609-02100 · 48609-02130 · 48609-02140 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22002 |
| 48603D | Nut (for front mount to right front shock absorber) | 90179-14015 |
| 48607A | Right support rod bracket sub-assembly | 48607-12030 · 48607-12040 |
| 48608 | Left support rod bracket sub-assembly | 48608-12030 · 48608-12040 |
| 48609 | Left front suspension bearing sub-assembly | 48609-02100 · 48609-02130 · 48609-02140 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22002 |
| 48609E | Nut (for front mount to left front shock absorber) | 90179-14015 |
| 48684A | Right front suspension support dust cover | 48684-05020 |
| 48684B | Left front suspension support dust cover | 48684-05020 |
| 48690A | Suspension support cover damper assembly | 48690-12010 · 48690-12020 |
| 48810 | Left front stabilizer bar link assembly | 48820-02020 |
| 48811 | front stabilizer bar | 48811-02110 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-02110 |
| 48820A | Nut (for front stabilizer bar link) | 90179-10183 |
| 48820B | Right front stabilizer bar link assembly | 48820-02020 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-12150 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-12150 |
