Toyota COROLLA 制动助力器和真空管 — Figure 4703

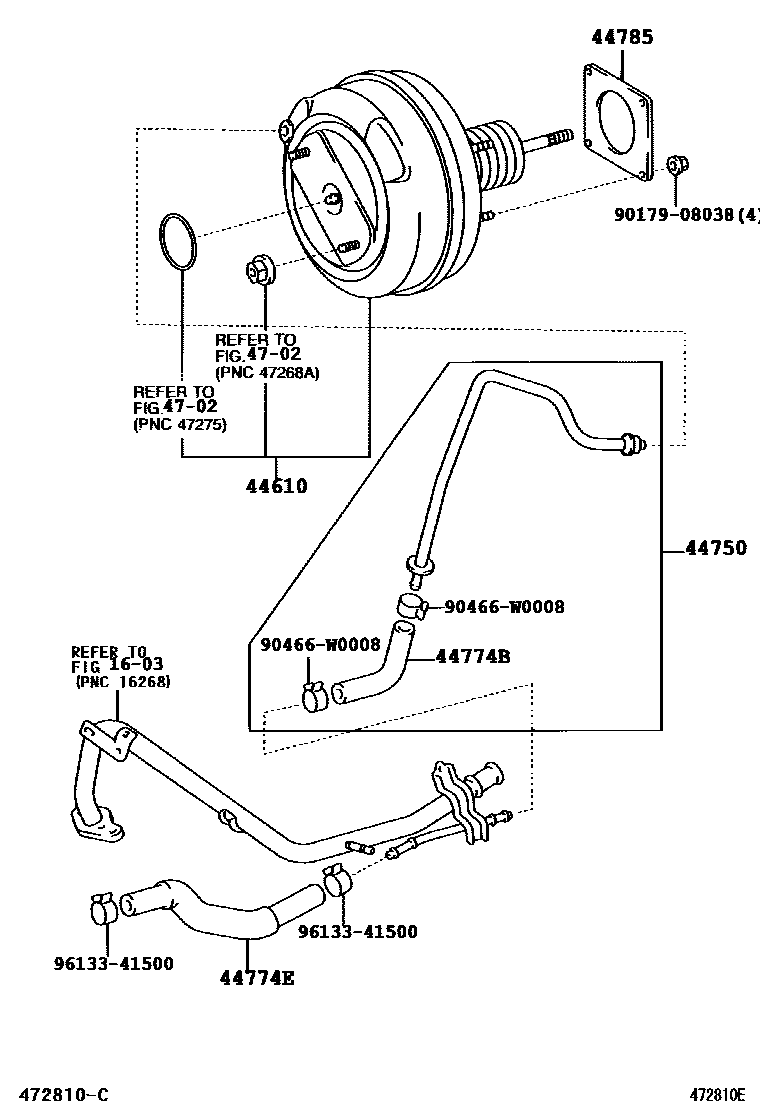

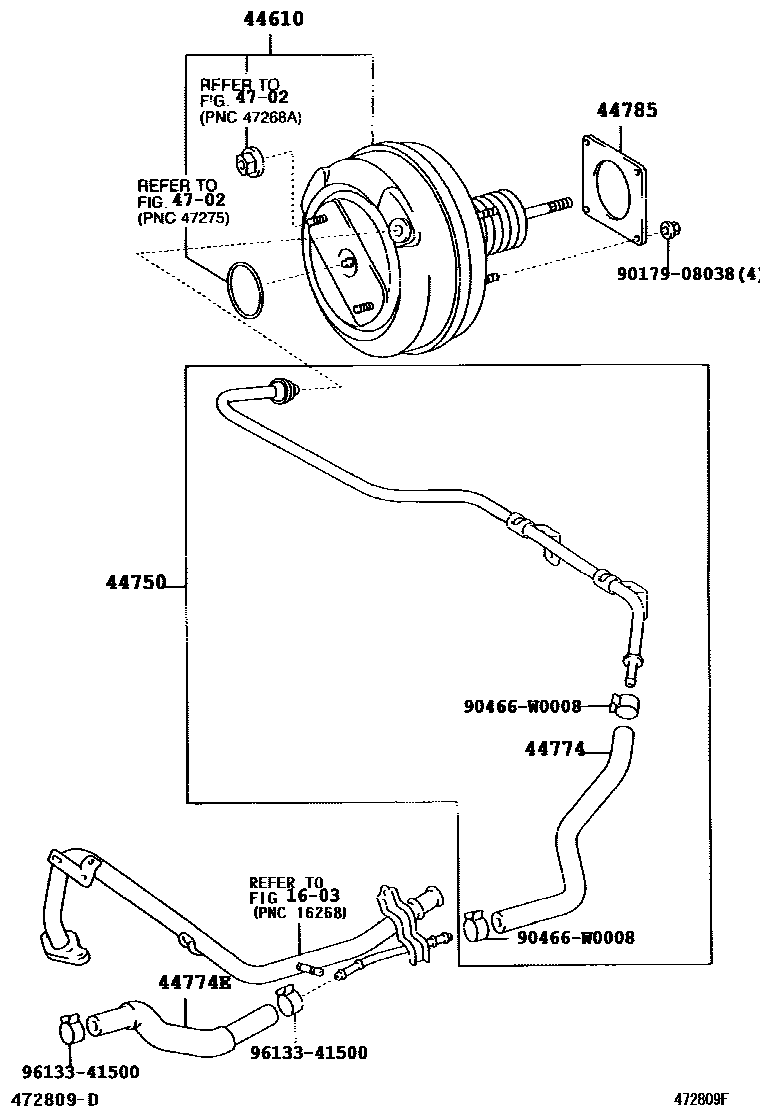

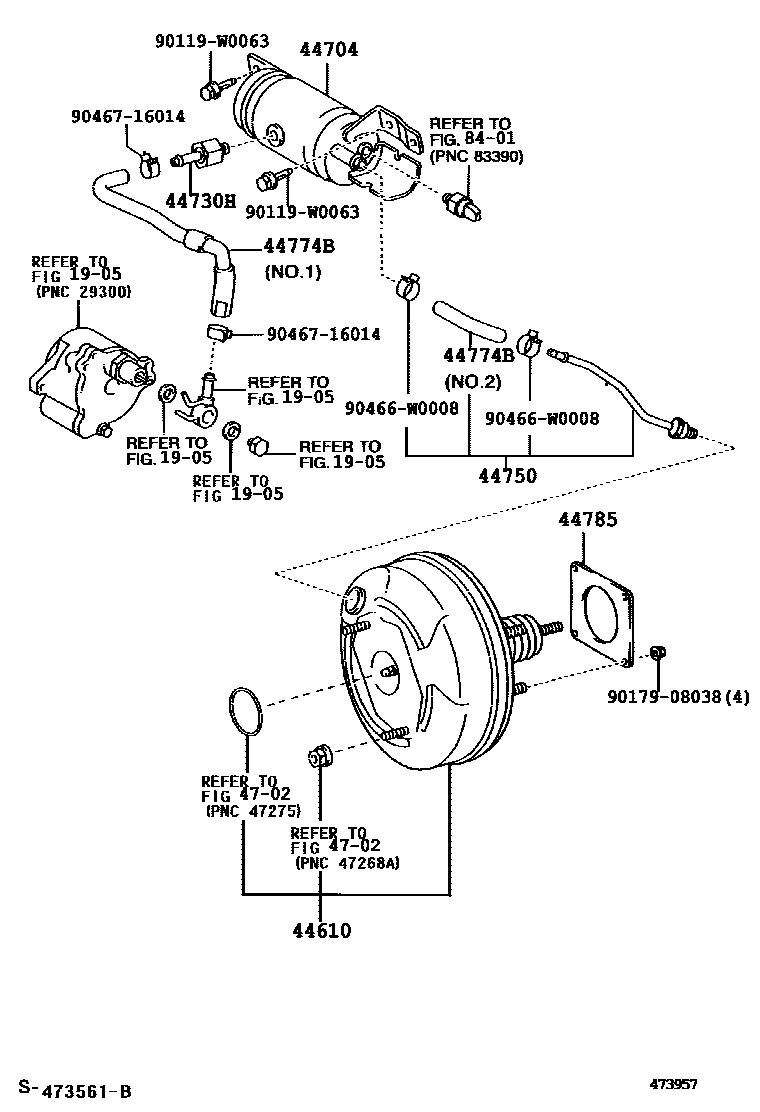

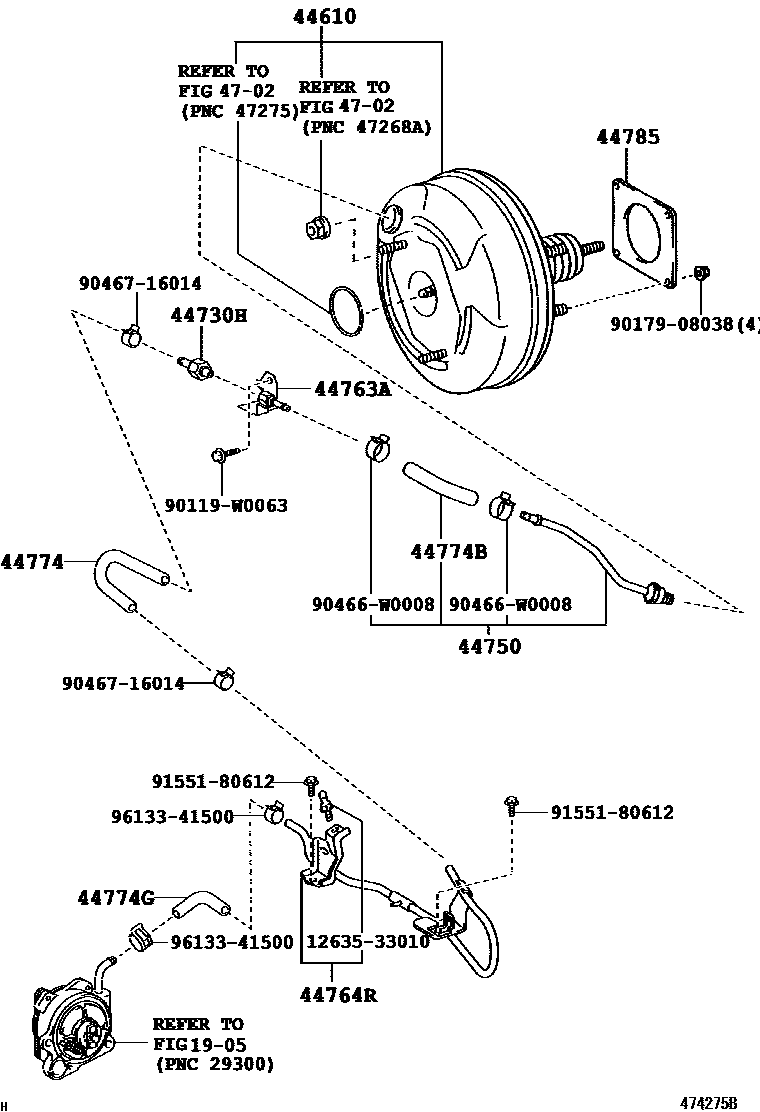

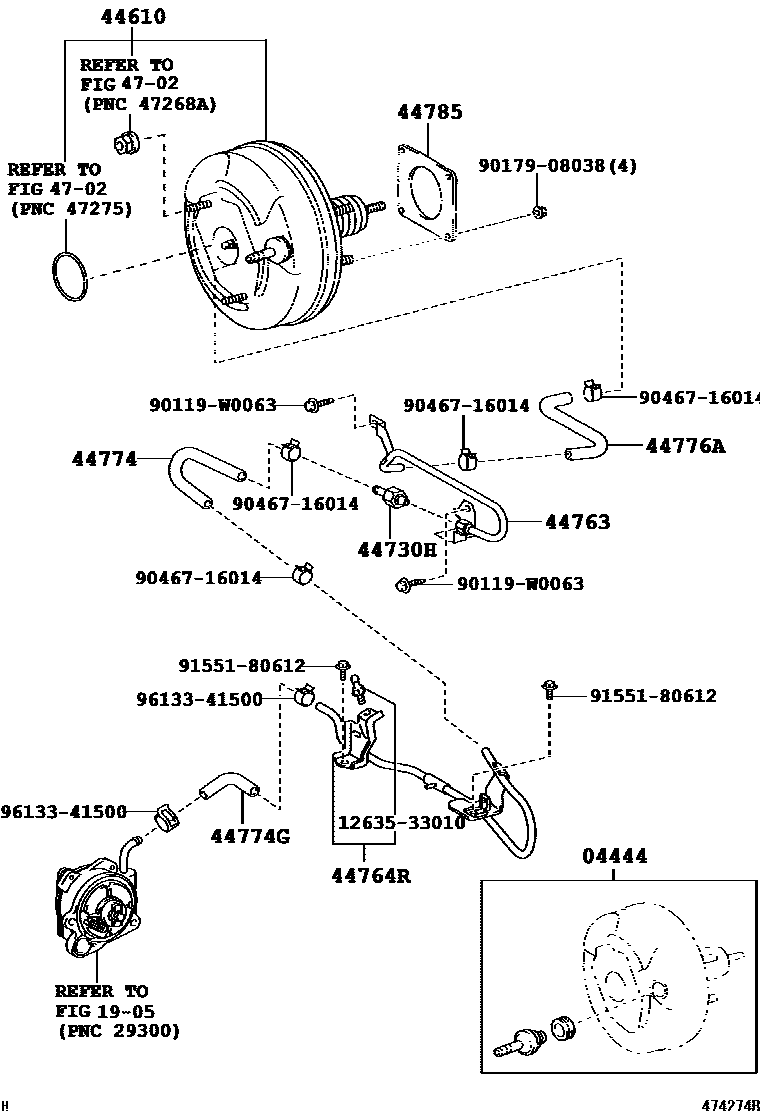

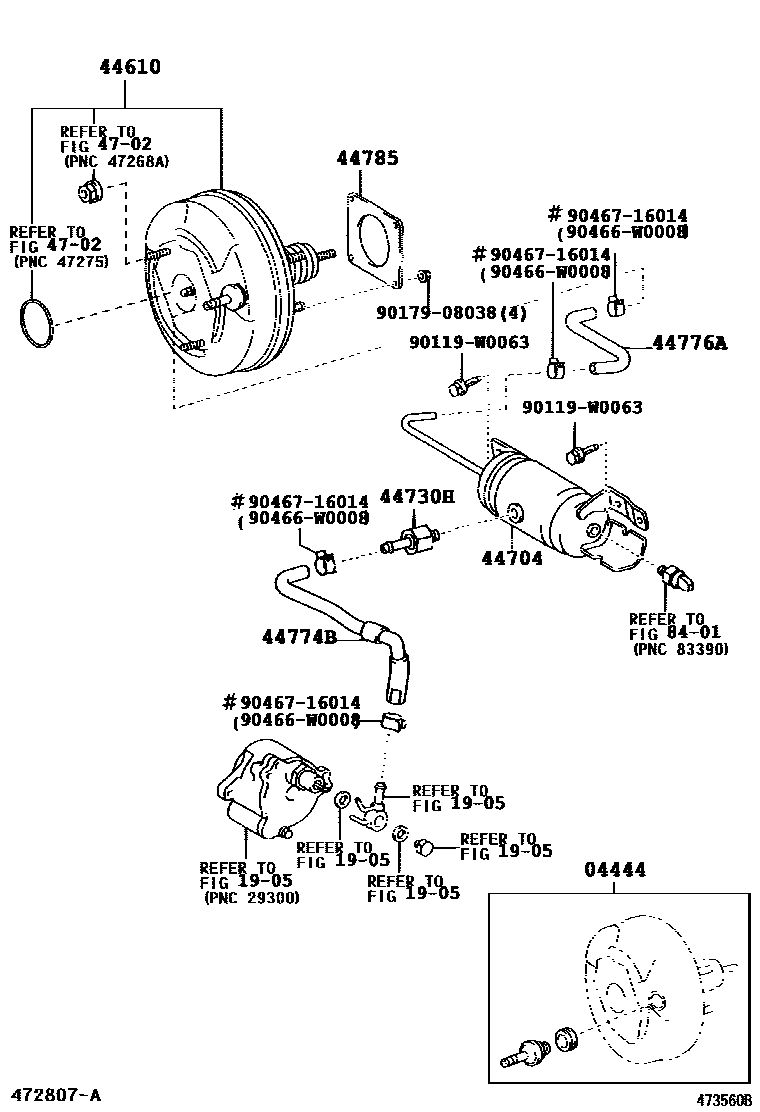

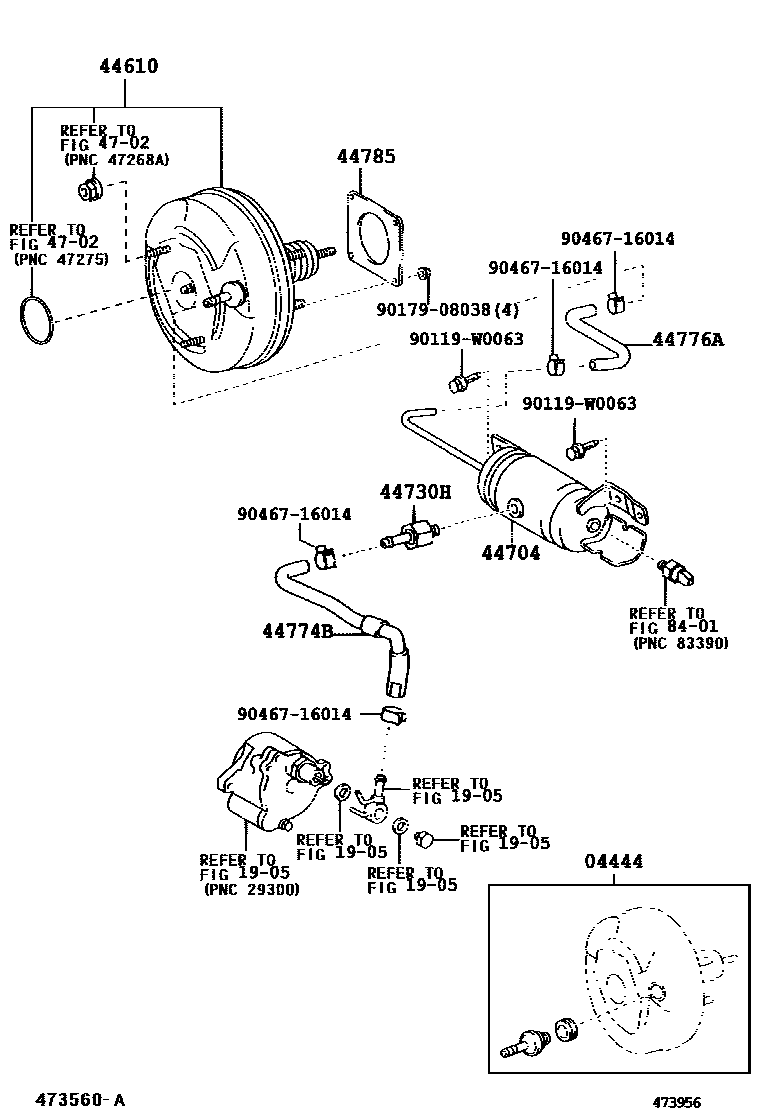

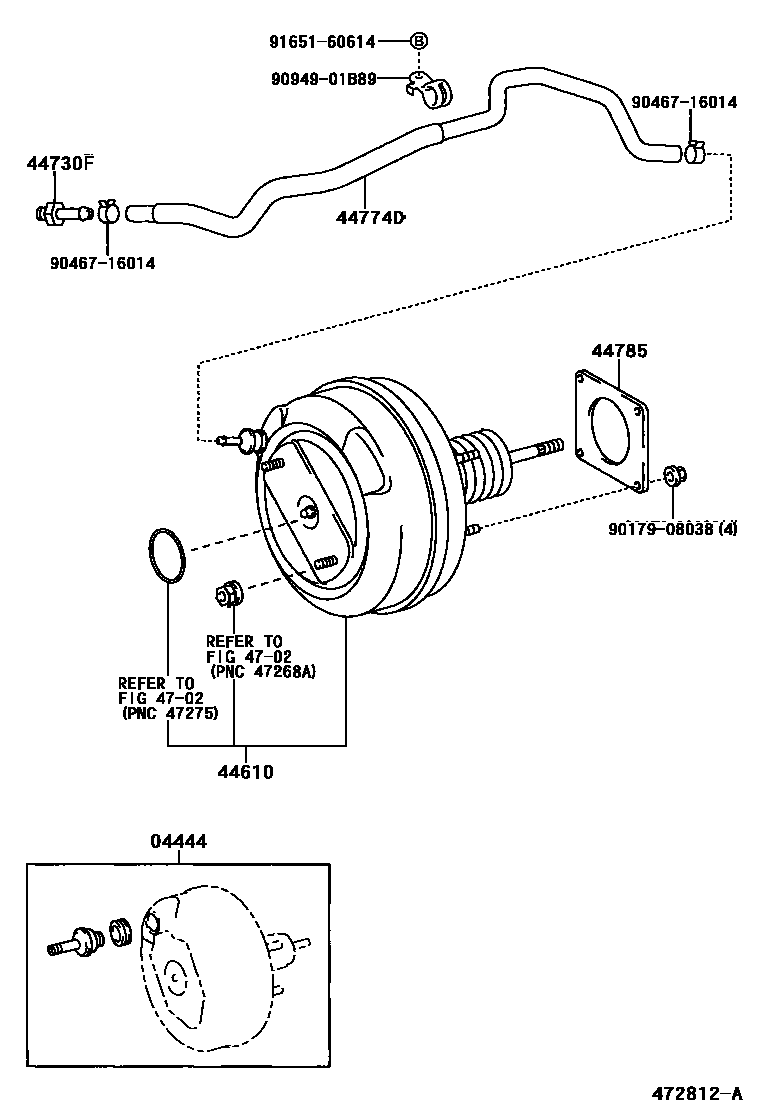

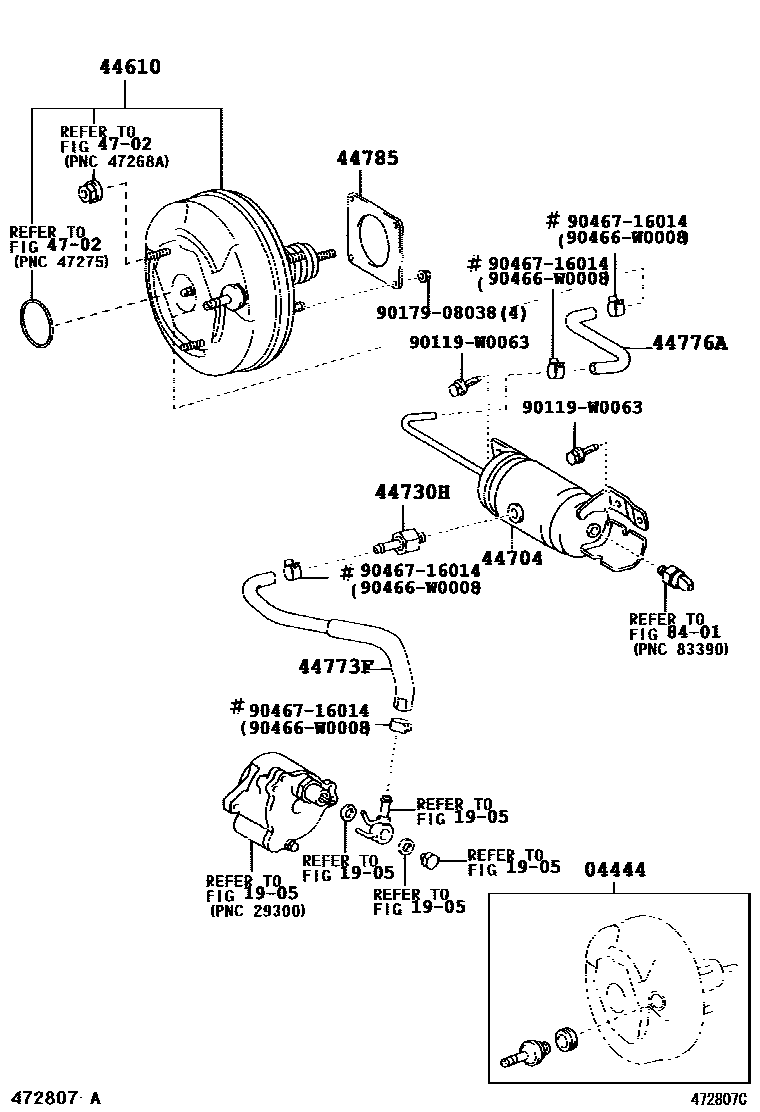

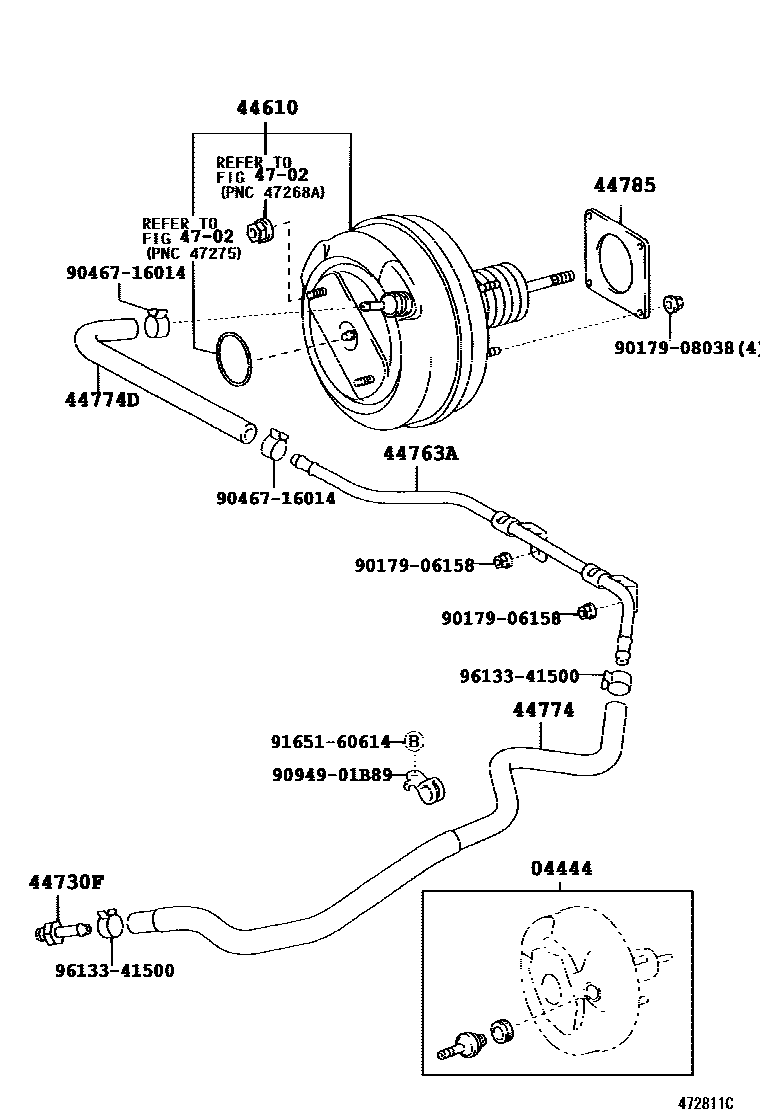

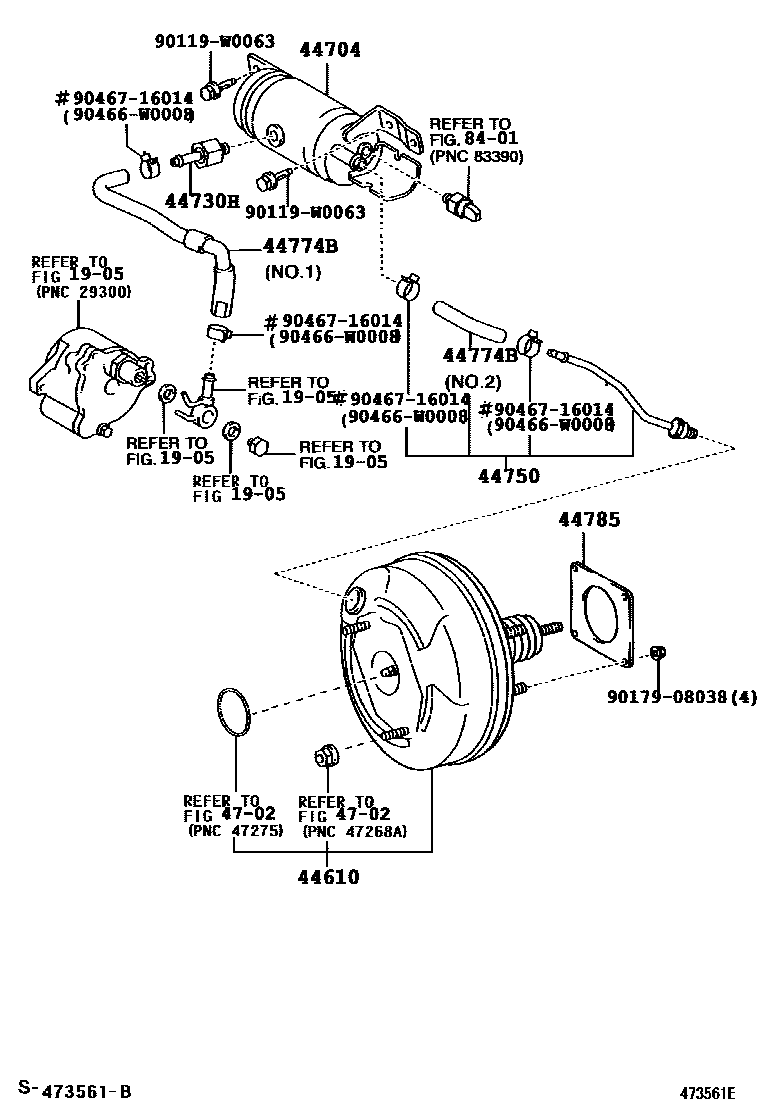

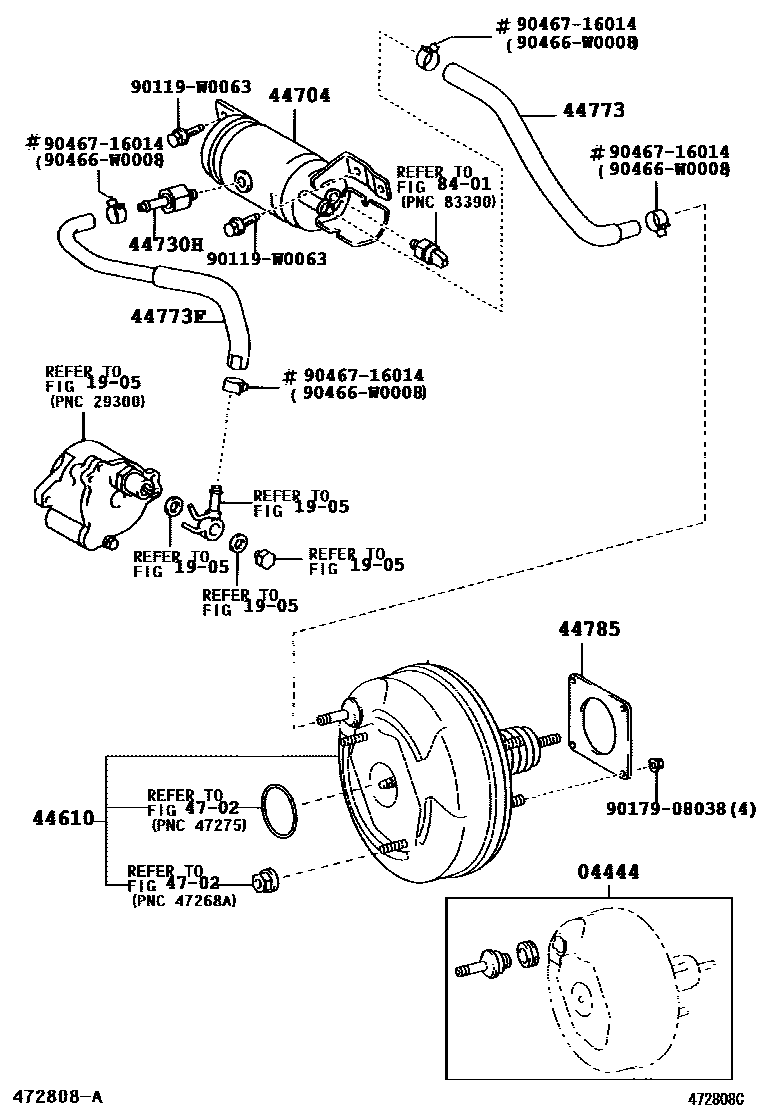

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 12 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04444 | Booster control valve assembly | 04444-02010 |
| 44610 | brake booster assembly | 44610-09050 · 44610-09060 · 44610-09070 · 44610-09080 · 44610-09100 · 44610-09360 · 44610-09370 · 44610-09380 · 44610-09470 · 44610-09480 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-12150 · 44704-12160 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51319 |
| 44730H | Vacuum check valve assembly (for vacuum reservoir) | 44730-12080 |
| 44750 | Vacuum hose assembly | 44750-02080 · 44750-02150 · 44750-02160 · 44750-02230 |
| 44763 | booster vacuum tube | 44763-12380 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-12360 · 44763-12370 |
| 44764R | Tubing (connector to vacuum reservoir) | 44764-12010 |
| 44773 | No. 2 vacuum hose | 44773-12790 |
| 44773F | Hoses (connector to check valve) | 44773-12750 |
| 44774 | Hoses (joints to connector tubes) | 44774-12420 · 44774-12430 · 44774-12480 |
| 44774B | Hoses (joints to connector tubes) | 44774-02040 · 44774-12500 · 44774-20370 · 44774-20380 · 44774-20410 |
| 44774D | Hoses (fitting to fitting) | 44774-12450 · 44774-12490 |
| 44774E | Hoses (joints to connector tubes) | 44774-12470 |
| 44774G | Hoses (connector to solenoid valve) | 44774-52021 |
| 44776A | Hoses (vacuum reservoir to brake booster) | 44776-12160 |
| 44785 | brake booster pad | 44785-20020 |
