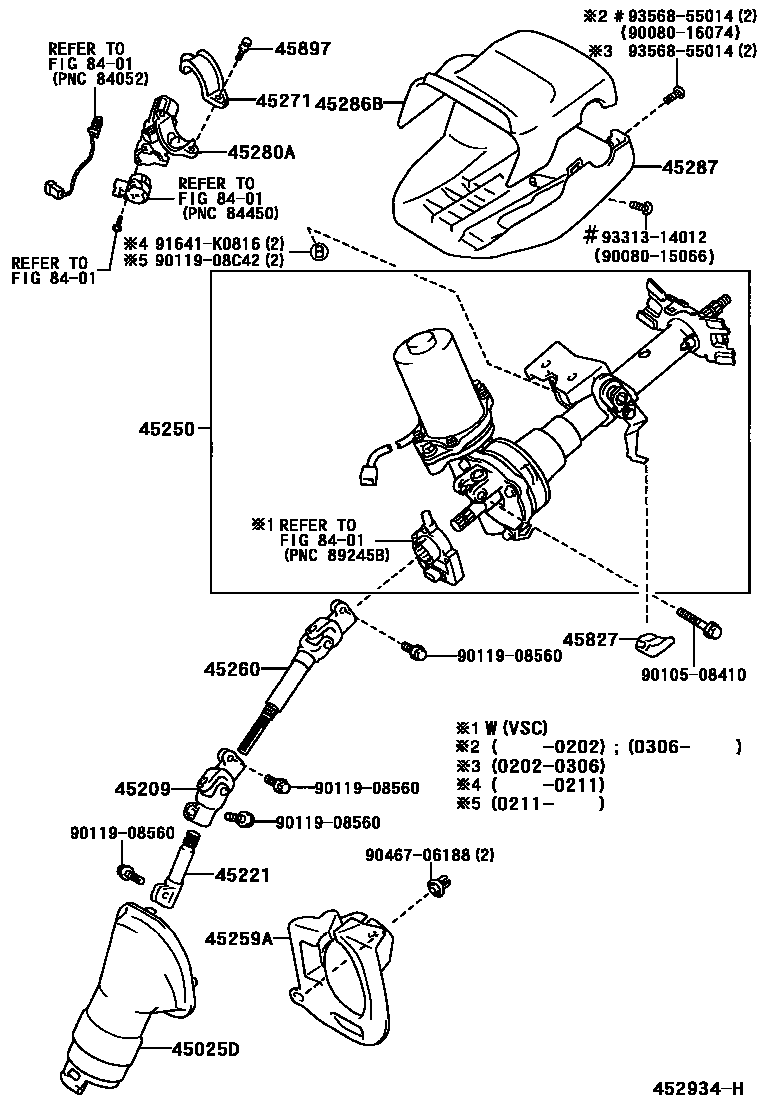

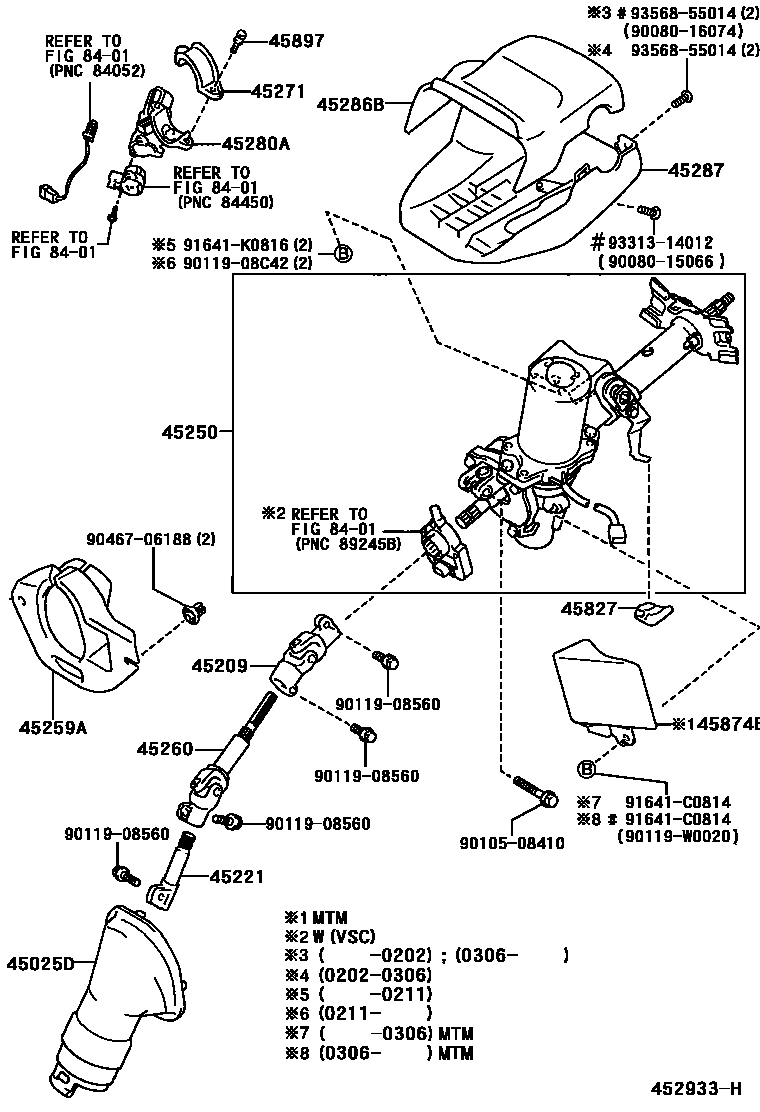

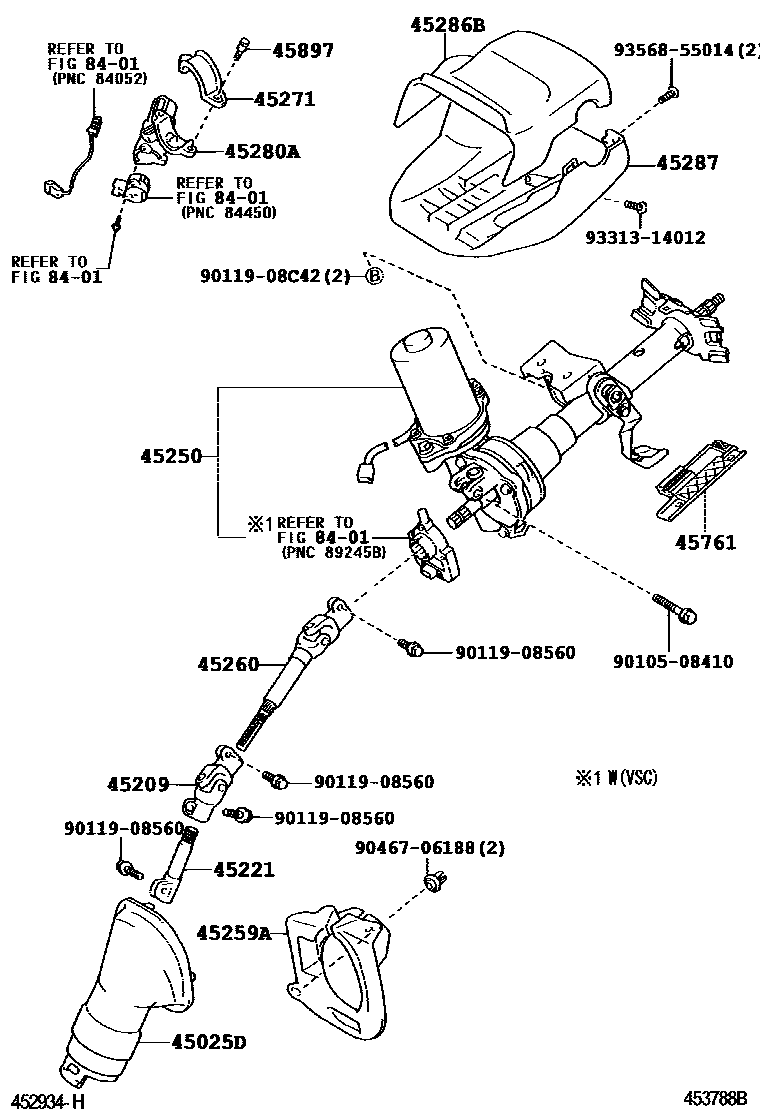

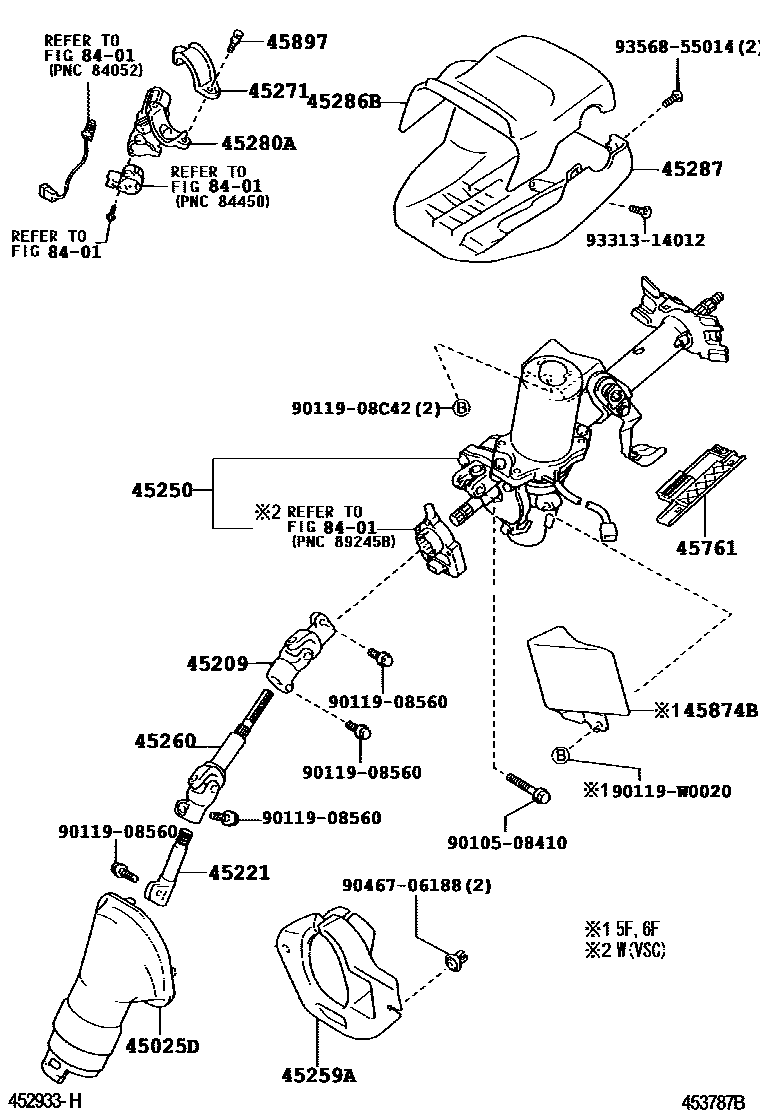

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-02010 · 45025-02060 · 45025-02070 · 45025-13050 · 45025-13060 · 45025-13070 |
| 45209 | Steering slip fork sub-assembly | 45209-02010 · 45209-02011 · 45209-02020 |
| 45221 | steering intermediate shaft | 45221-02020 · 45221-02021 · 45221-02022 |
| 45250 | Steering column assembly | 45250-02310 · 45250-02320 · 45250-02330 · 45250-02440 · 45250-02470 · 45250-02480 · 45250-02490 · 45250-02500 |
| 45259A | Steering column hole cover silencer plate | 45259-02030 · 45259-02040 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-02030 · 45260-02031 · 45260-02040 |
| 45271 | Clamp on steering column | 45271-16020 |
| 45280A | Steering column upper bracket assembly | 45280-02050 · 45280-02060 |
| 45761 | Telescopic steering slider | 45761-02010 |
| 45827 | Steering tilt lever button | 45827-02020 |
| 45874B | No. 1 steering column guard | 45874-13020 · 45874-13060 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
