Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

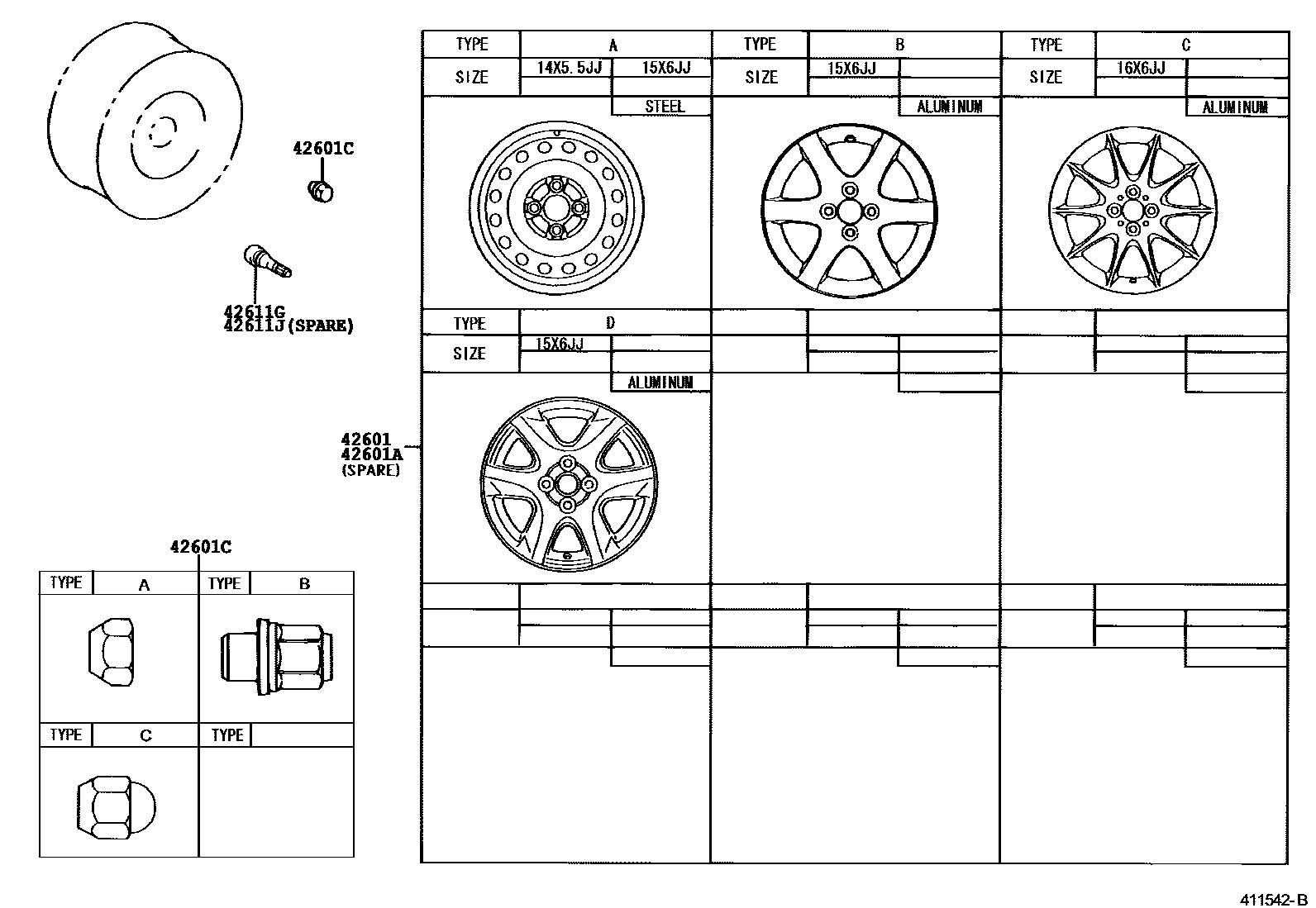

| 42601 | spoke wheel | 42611-02410 · 42611-02420 · 42611-02430 · 42611-02440 · 42611-YY100 |
| 42601A | Spoke wheel (for spare tire) | 42611-02410 · 42611-02420 · 42611-02440 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 |

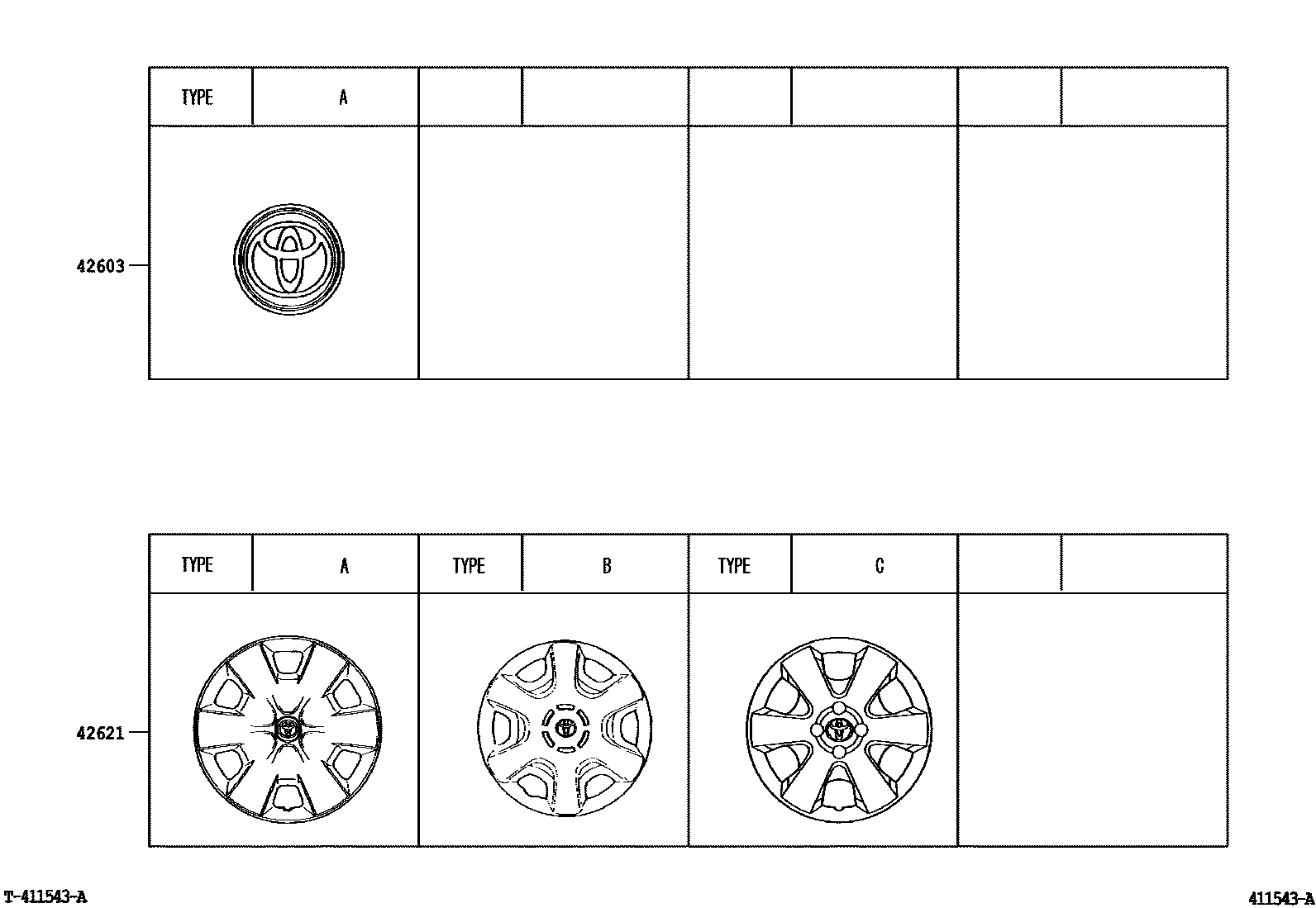

| 42603 | Wheel hub decorative parts sub-assembly | 42603-02150 · 42603-32210 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-02150 · 42602-02160 · 42602-02200 |
