Toyota COROLLA 变速器油冷却器和配管(ATM) — Figure 3514

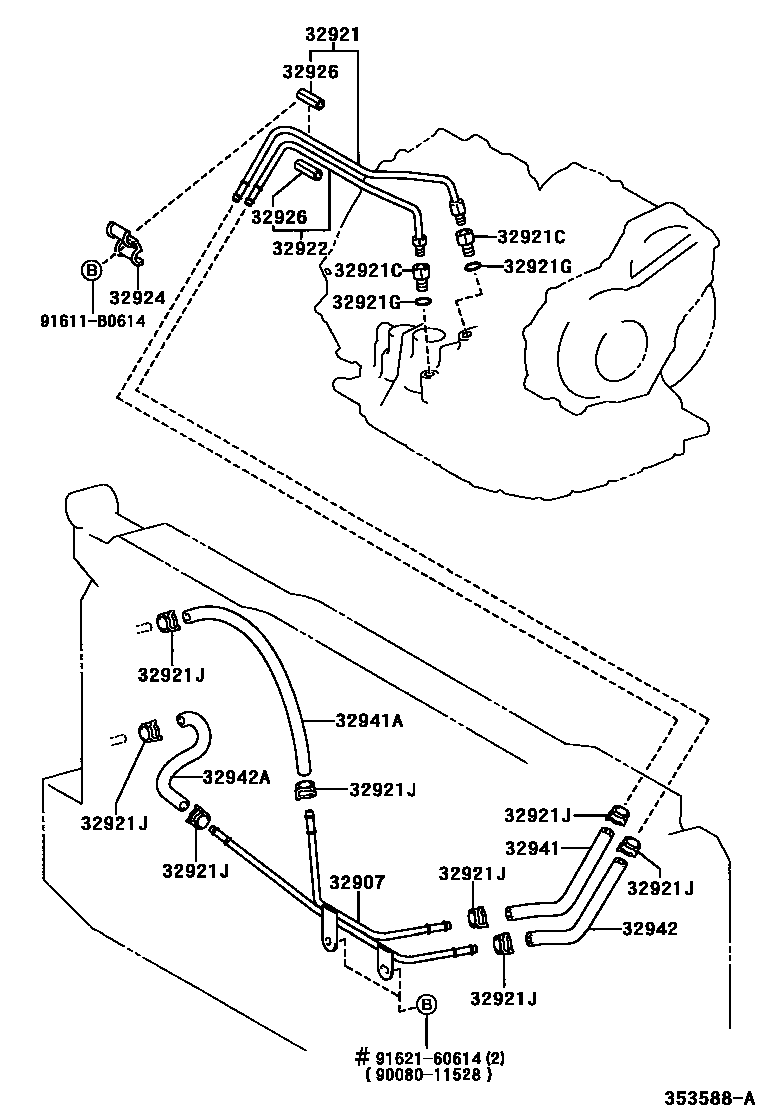

Toyota COROLLA EPC diagram 3514, 变速器油冷却器和配管(ATM), with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32907 | No. 2 transmission oil cooler oil outlet pipe sub-assembly | 32907-13010 |
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-12430 · 32921-12490 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-14019 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-11006 |
| 32921J | Clamp (for transmission oil cooler hose) | 96135-51300 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-12300 · 32922-12420 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 90462-10127 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-10010 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 90445-15050 |
| 32941A | No. 2 transmission oil cooler oil inlet hose | 90445-15058 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 90445-15050 |
| 32942A | No. 2 transmission oil cooler oil outlet hose | 90445-15050 |
