Toyota COROLLA 离合器总泵 — Figure 3103

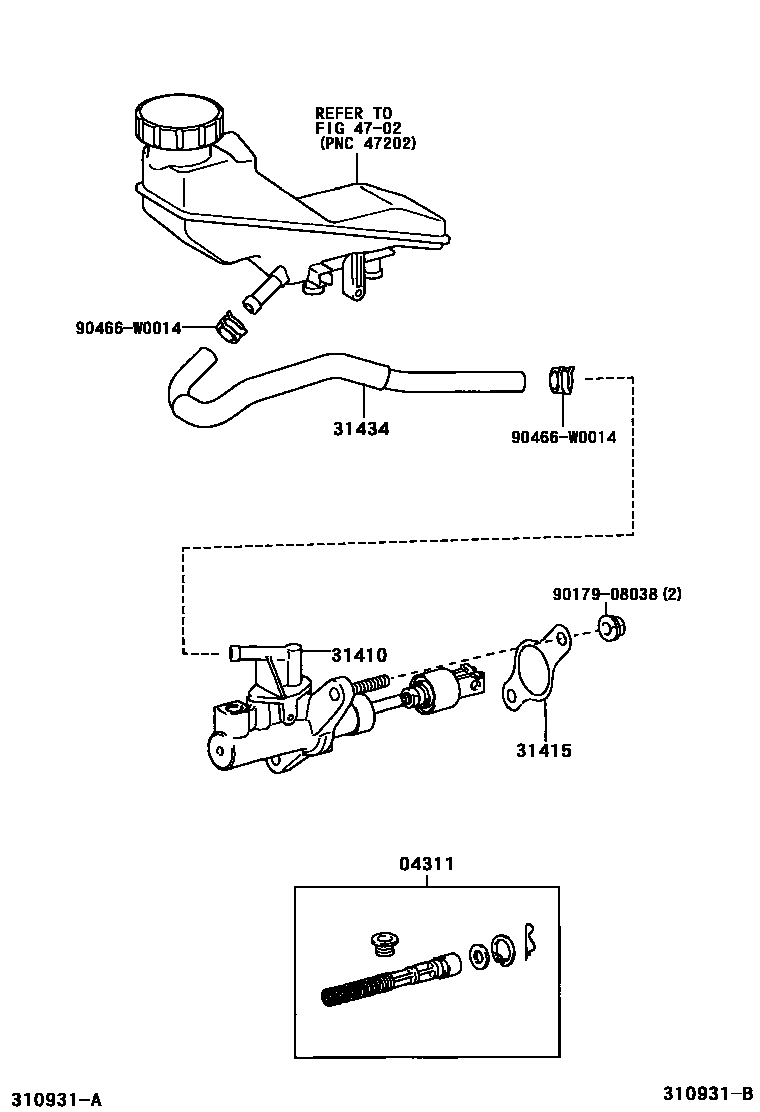

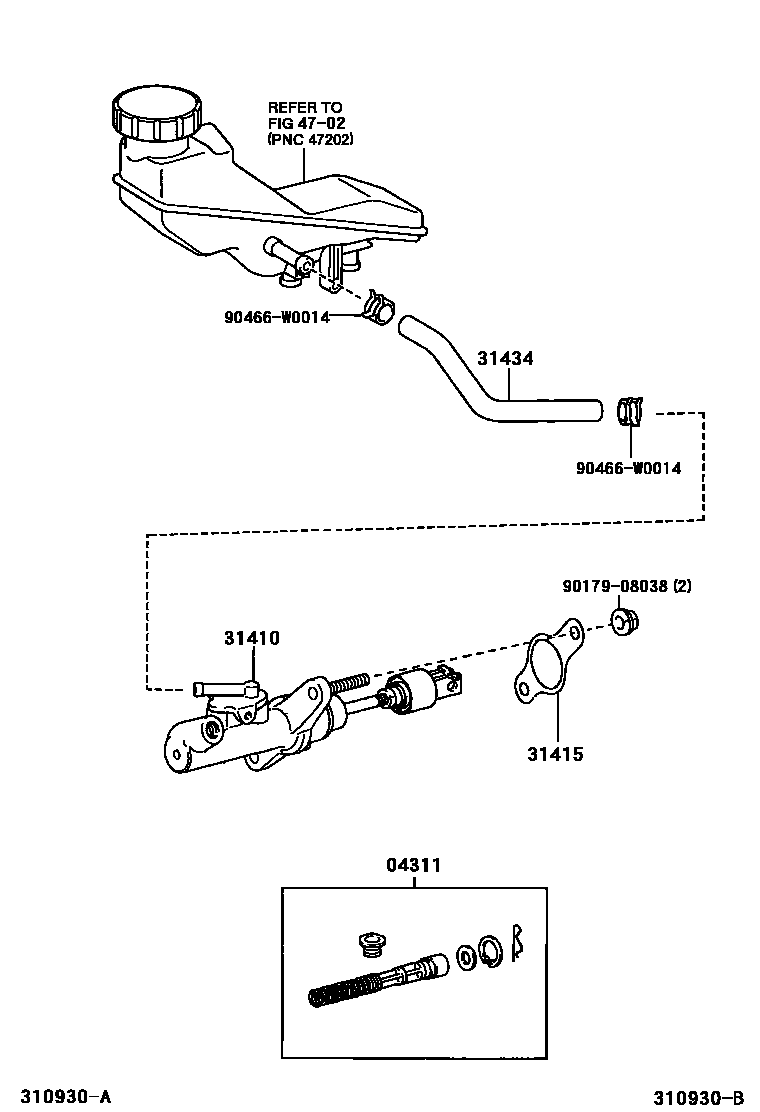

Toyota COROLLA EPC diagram 3103, 离合器总泵, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04311 | Clutch master cylinder assembly | 04311-12110 |
| 31410 | Clutch master cylinder assembly | 31420-05010 · 31420-05011 · 31420-05020 · 31420-05021 · 31420-12010 · 31420-20070 |
| 31415 | Clutch master cylinder gasket | 31415-10010 |
| 31434 | Clutch reservoir connecting pipe | 31434-12030 · 31434-12040 · 31434-12070 · 31434-12080 |
