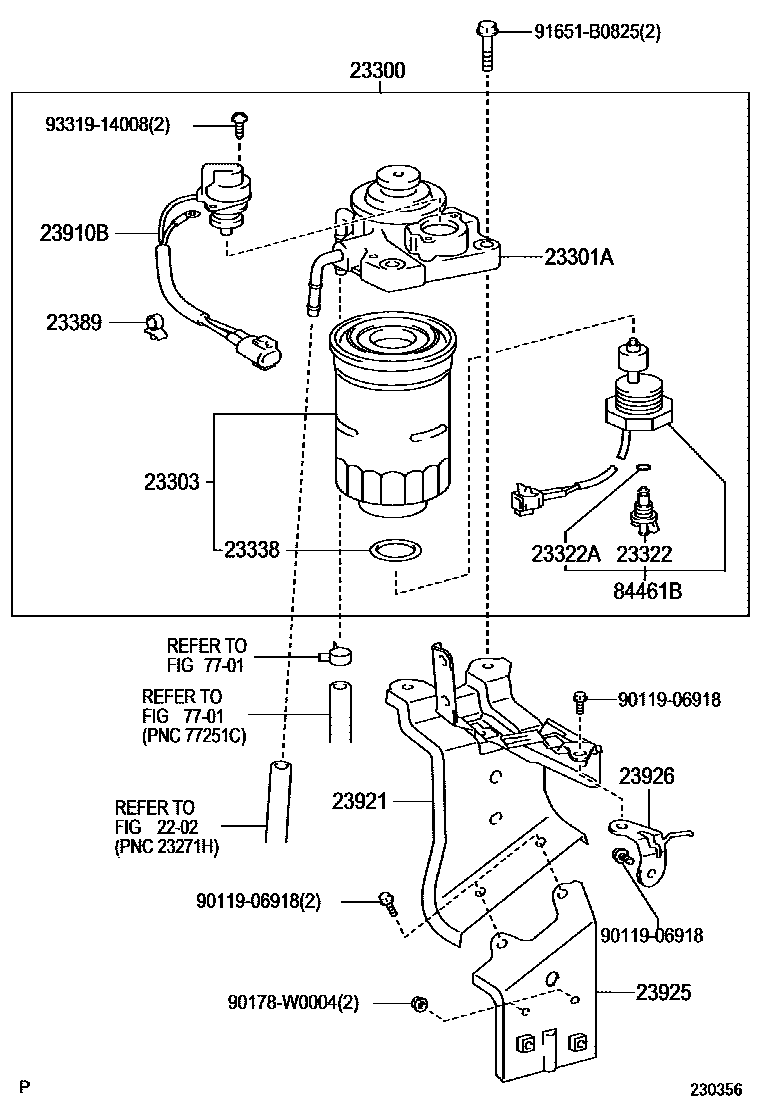

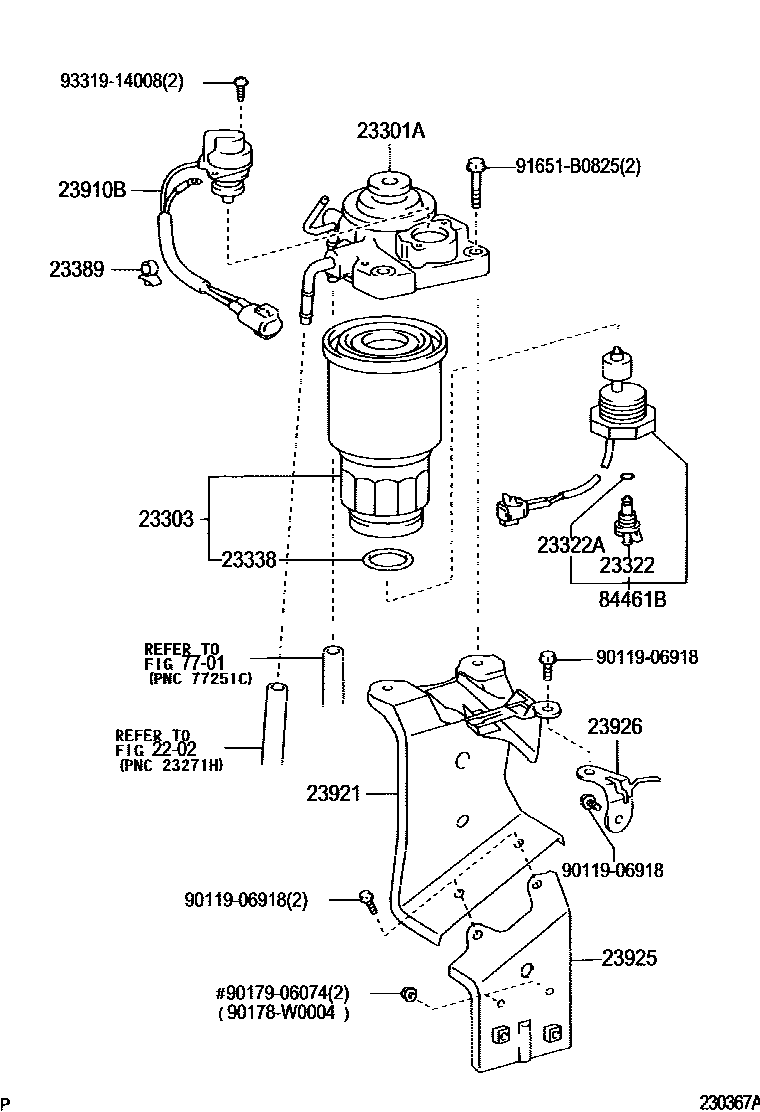

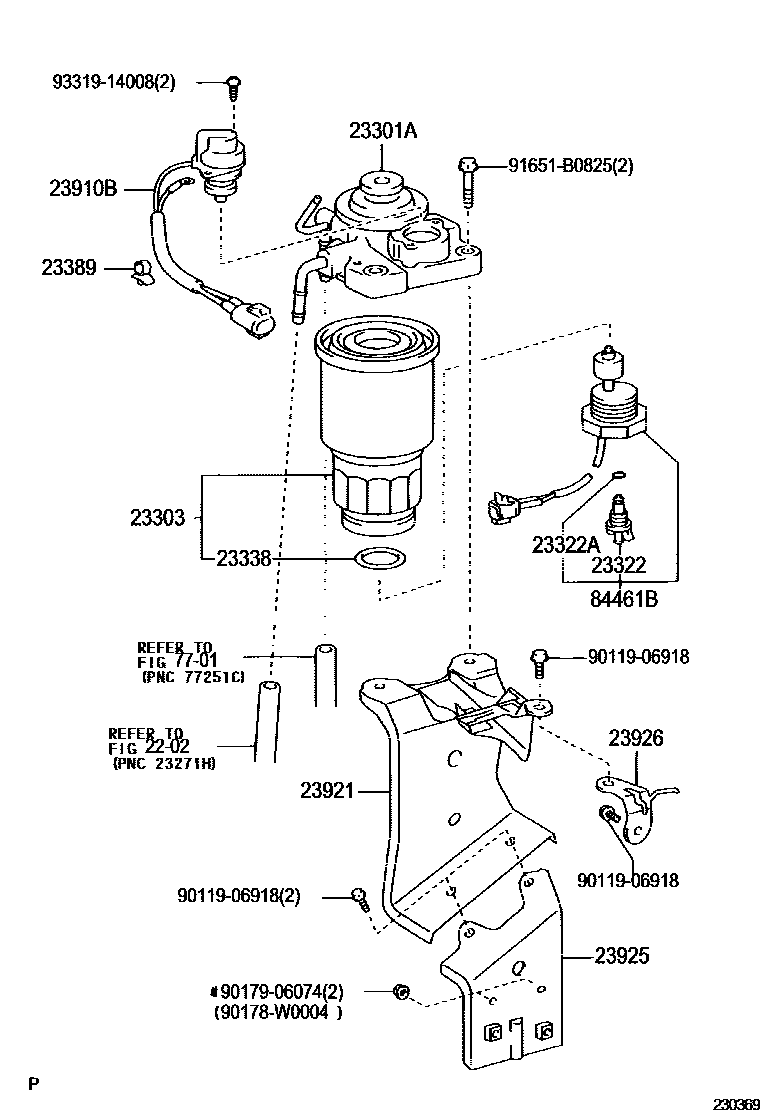

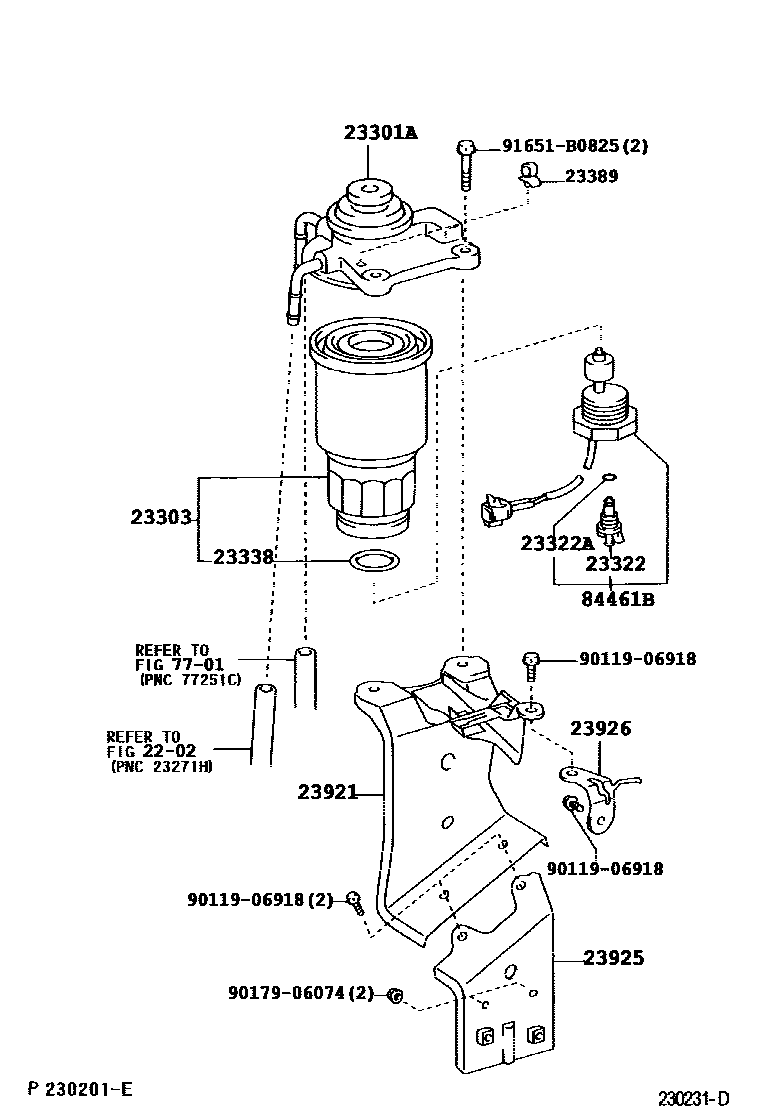

Toyota COROLLA fuel filter — Figure 2302
Toyota COROLLA EPC diagram 2302, fuel filter, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23300 | fuel filter assembly | 23300-0N030 · 23300-0N040 |
| 23301A | Fuel filter cover assembly | 23380-0G021 · 23380-0G031 · 23380-27081 · 23380-27130 · 23380-27140 |
| 23303 | Fuel filter element sub-assembly | 23303-64010 · 23390-30180 · 23390-33010 · 23390-64450 · 23390-64480 |
| 23322 | Drain plug (for fuel filter) | 23388-64470 |
| 23322A | O-ring (for drain plug) | 23344-54010 |
| 23338 | Gasket (for warning switch) | 23344-64010 |
| 23389 | fuel filter clip | 23389-0G021 · 23389-27080 · 23389-27130 |
| 23910B | Fuel heater assembly | 23910-27020 · 23910-27030 |
| 23921 | Fuel filter support | 23921-27050 · 23921-27100 · 23921-33040 |
| 23925 | fuel filter support stay | 23925-0G010 · 23925-27010 |
| 23926 | No. 2 fuel filter support bracket | 23926-0G010 · 23926-27010 |
| 84461B | Liquid level warning switch | 84461-20100 · 84461-60080 |
