Toyota COROLLA 喷油嘴 — Figure 2201

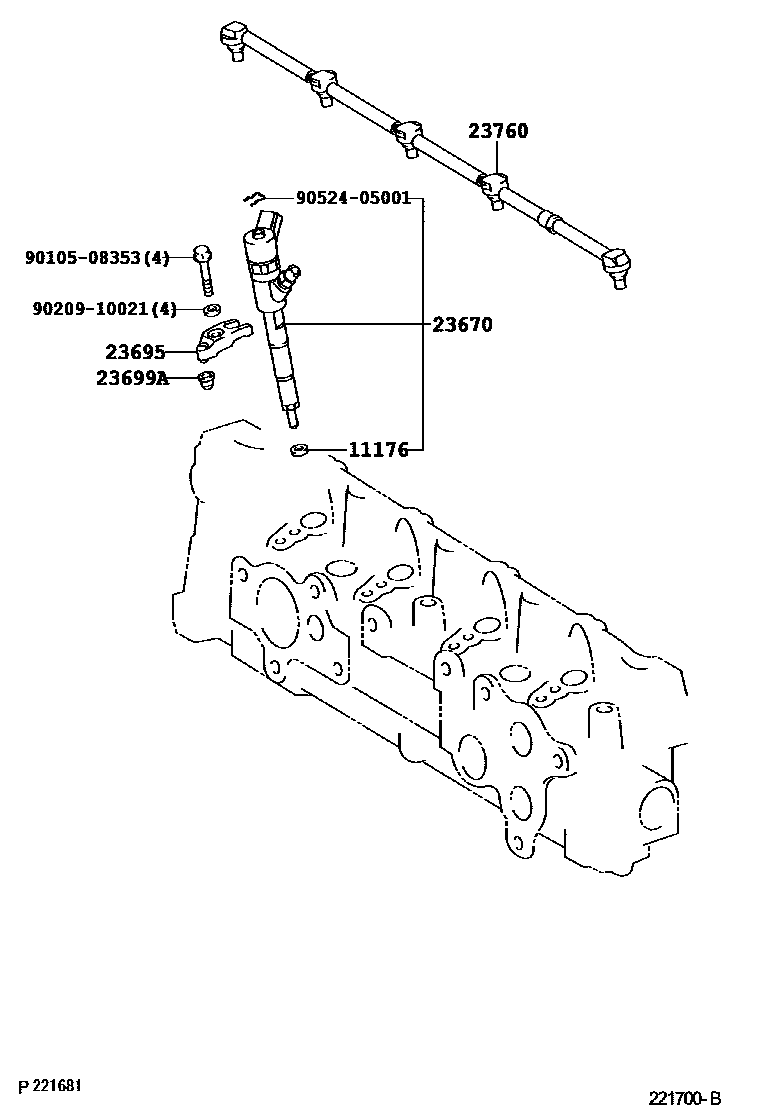

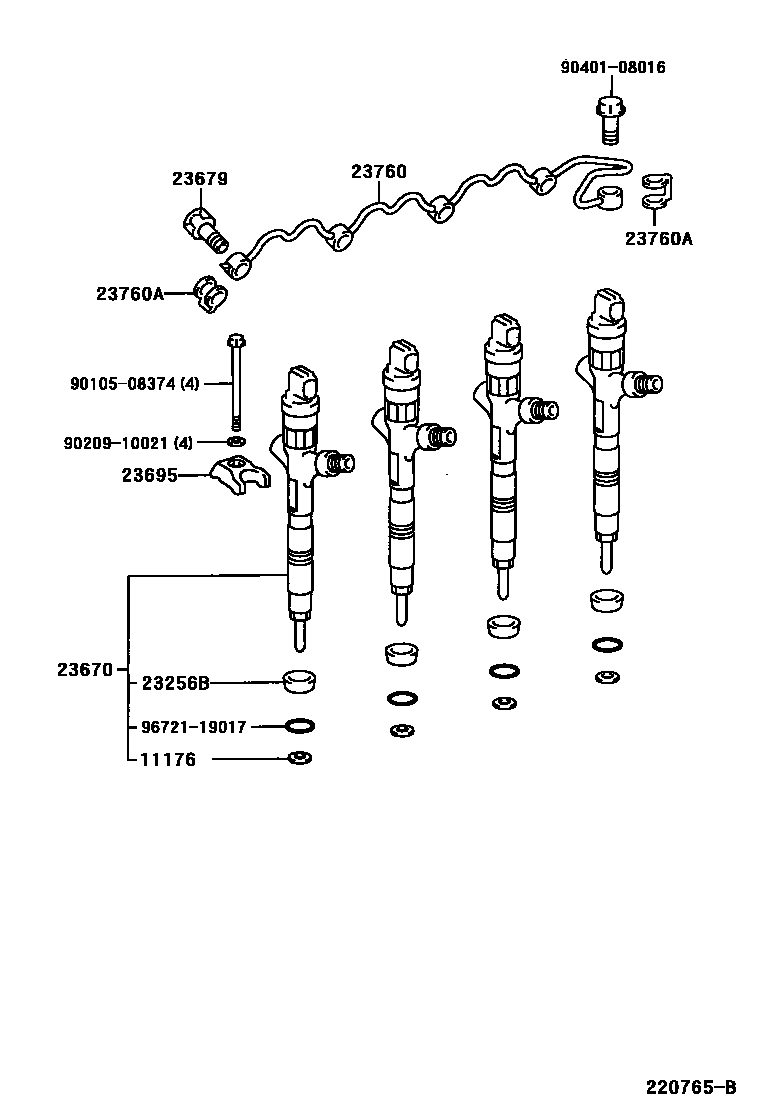

Toyota COROLLA EPC diagram 2201, 喷油嘴, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11176 | Injector seat | 11176-27010 · 11176-33010 |
| 23256B | No. 1 injector retaining ring | 23256-27010 · 23256-27020 · 23256-30010 |
| 23670 | Fuel injector assembly | 23670-09030 · 23670-29025 · 23670-29035 · 23670-39105 |
| 23679 | Fuel injector hollow screw | 23679-0G010 · 23679-27020 · 23679-30020 |
| 23695 | No. 1 injector body clamp | 23695-27010 · 23695-27020 · 23695-33010 |
| 23699A | Injector body clamp seat | 23699-33010 · 23699-74010 |
| 23760 | Fuel injector overflow pipe assembly | 23760-33020 · 23761-27010 |
| 23760A | padding | 90904-30008 |
