Toyota COROLLA Alternator — Figure 1903

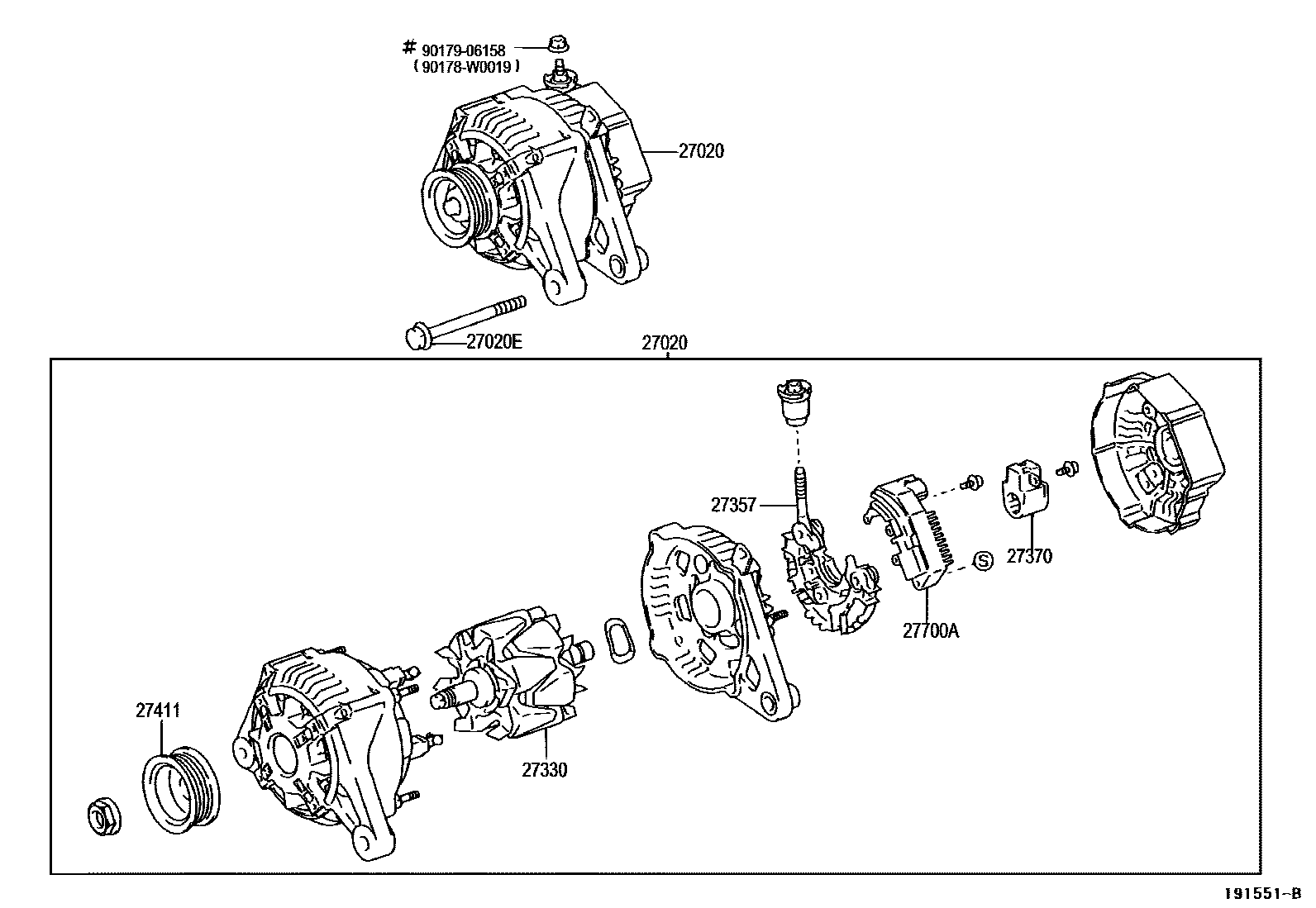

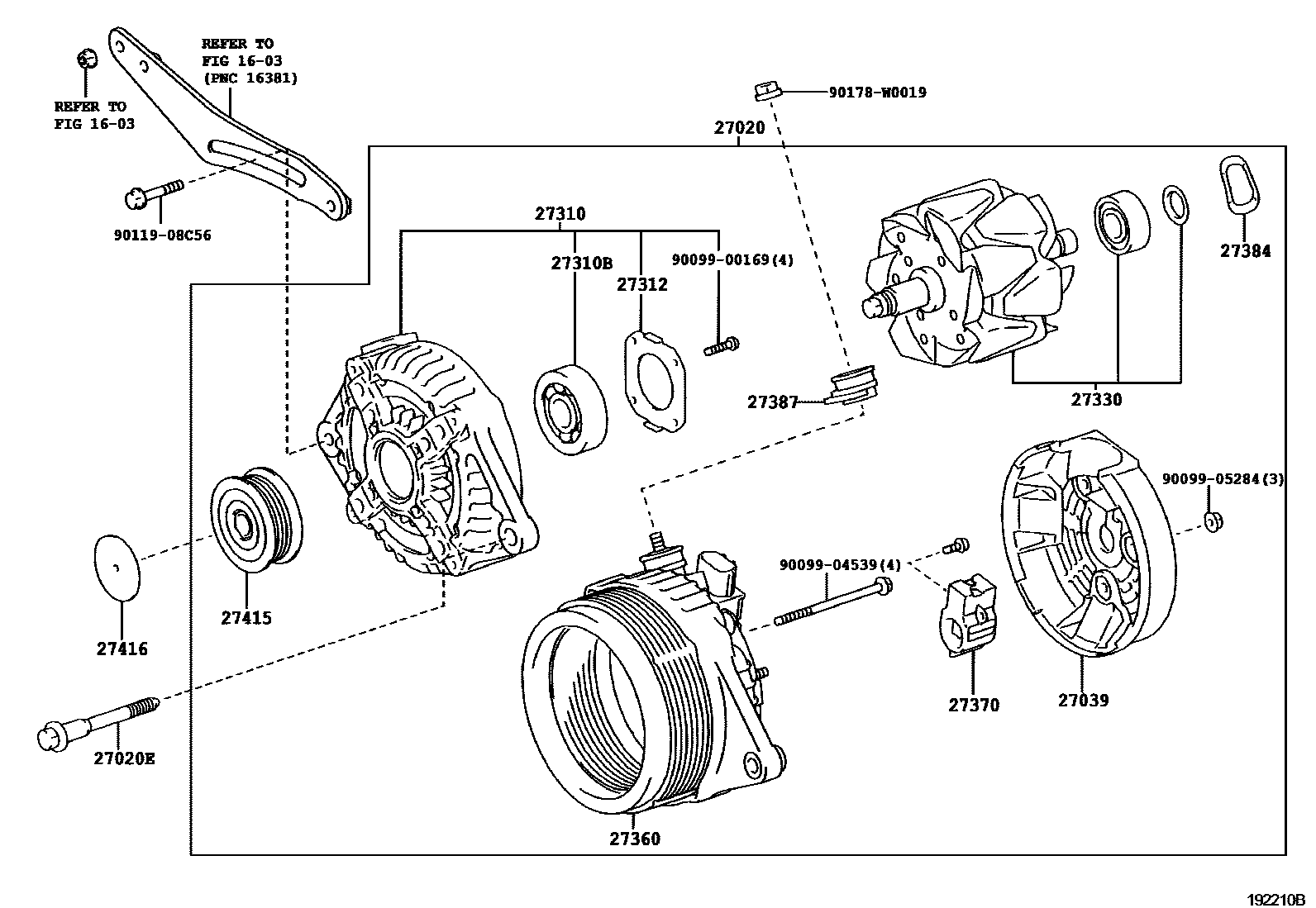

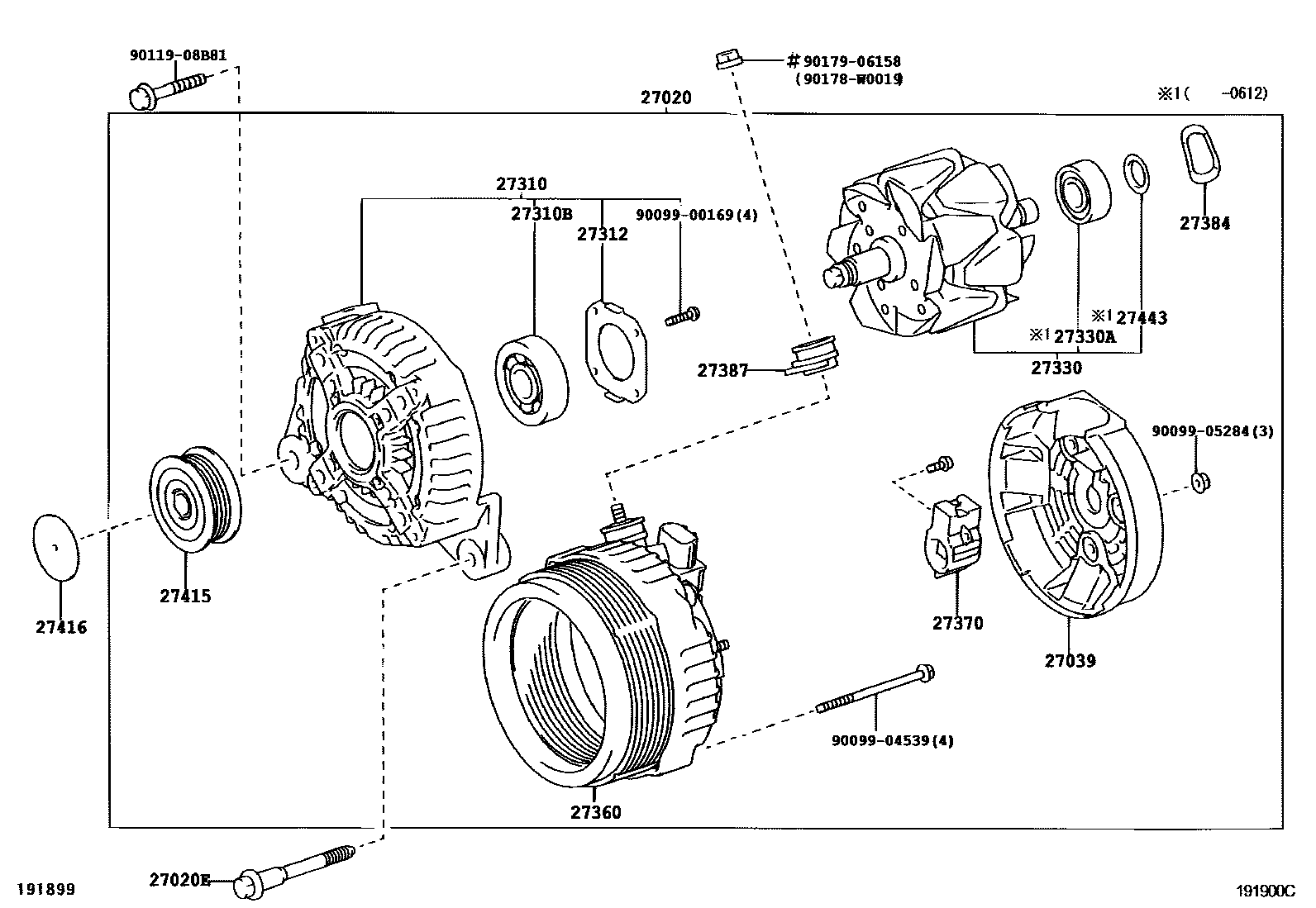

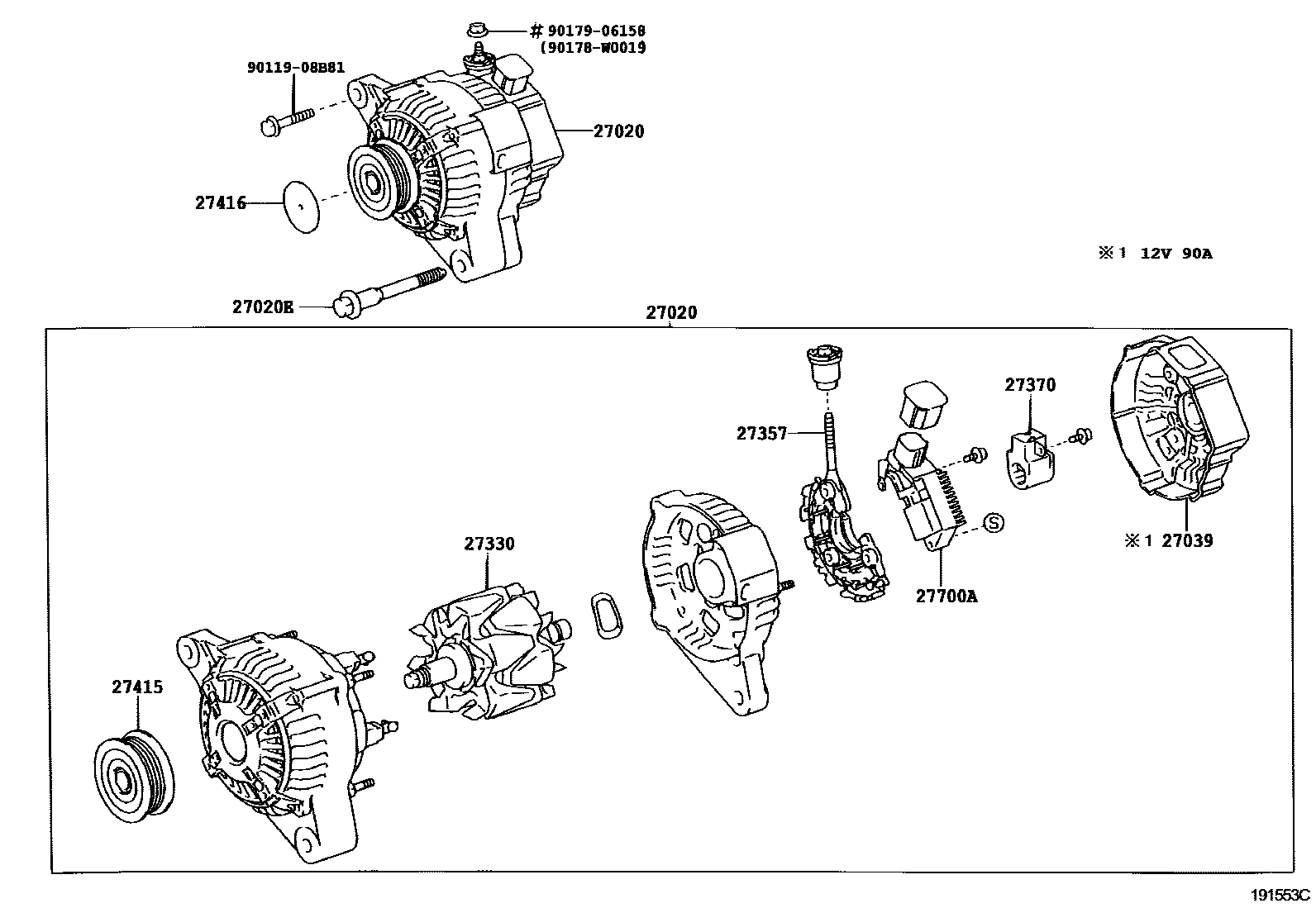

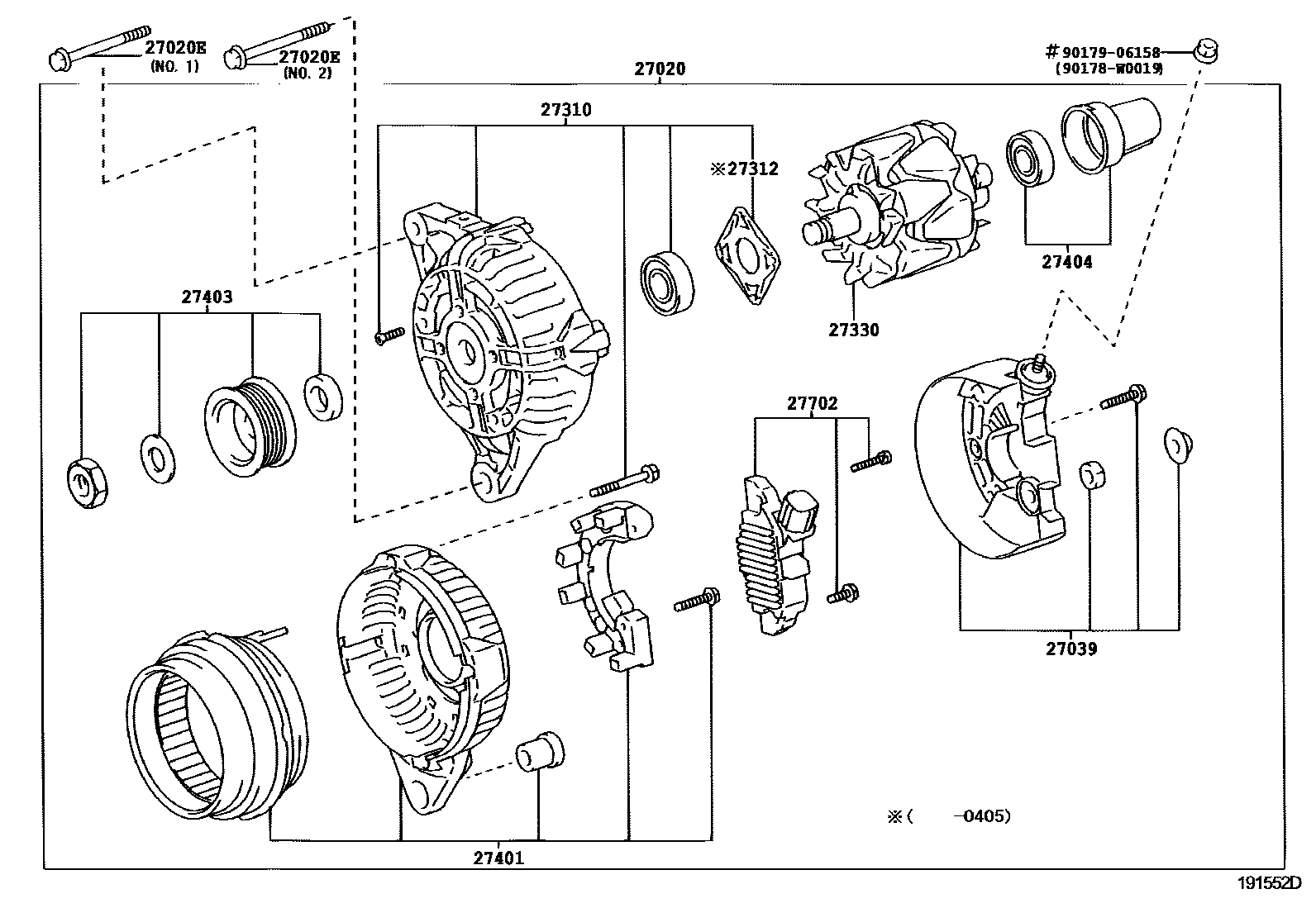

Toyota COROLLA EPC diagram 1903, Alternator, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0D030 · 27060-0D140 · 27060-22210 · 27060-27060 · 27060-27070 · 27060-27090 · 27060-33071 |
| 27020E | Bolts (for generator) | 90105-10075 · 90105-10223 · 90105-10520 · 90901-05004 · 91511-80830 |
| 27039 | Alternator Rear End Cover | 27039-0D030 · 27039-21100 · 27039-27060 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0D020 · 27310-27050 · 27310-33110 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10142 · 90099-10223 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-0D020 · 27330-0D110 · 27330-16390 · 27330-20130 · 27330-30070 · 27330-74550 |
| 27330A | Bearings (for generator rotor) | 90099-10140 |
| 27357 | Generator rectifier frame | 27357-20130 · 27357-22070 · 27357-22200 |
| 27360 | Alternator Stator Coil Assembly | 27360-27060 · 27360-33110 |
| 27370 | Alternator Brush Holder Assembly | 27370-20130 · 27370-27060 · 27370-31220 · 27370-75060 |
| 27384 | Washer | 27384-50030 |
| 27387 | Terminal Insulator | 27387-20130 |
| 27401 | Generator (with rectifier) stator sub-assembly | 27401-0D010 |
| 27403 | Generator pulley assembly | 27403-0D010 |
| 27404 | Generator bearing components | 27404-0D010 |
| 27411 | Alternator Pulley | 27411-50050 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-27011 · 27415-33050 |
| 27416 | Generator pulley cover | 27416-27010 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27700A | Generator voltage regulator assembly | 27700-27080 · 27700-46060 · 27700-64090 |
| 27702 | Generator (with brush) voltage regulator sub-assembly | 27702-0D010 |
