Toyota COROLLA 歧管喷气系统 — Figure 1706

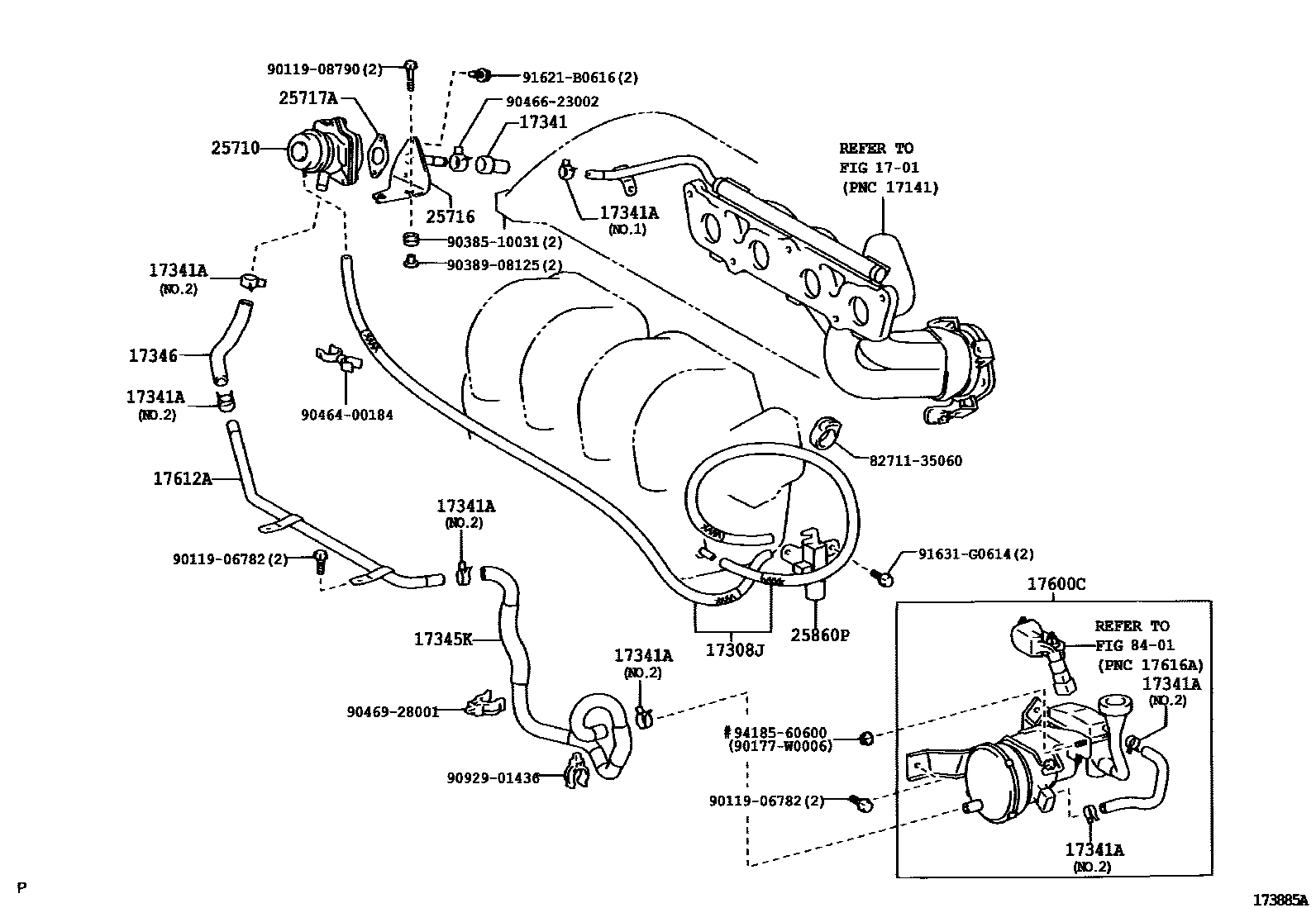

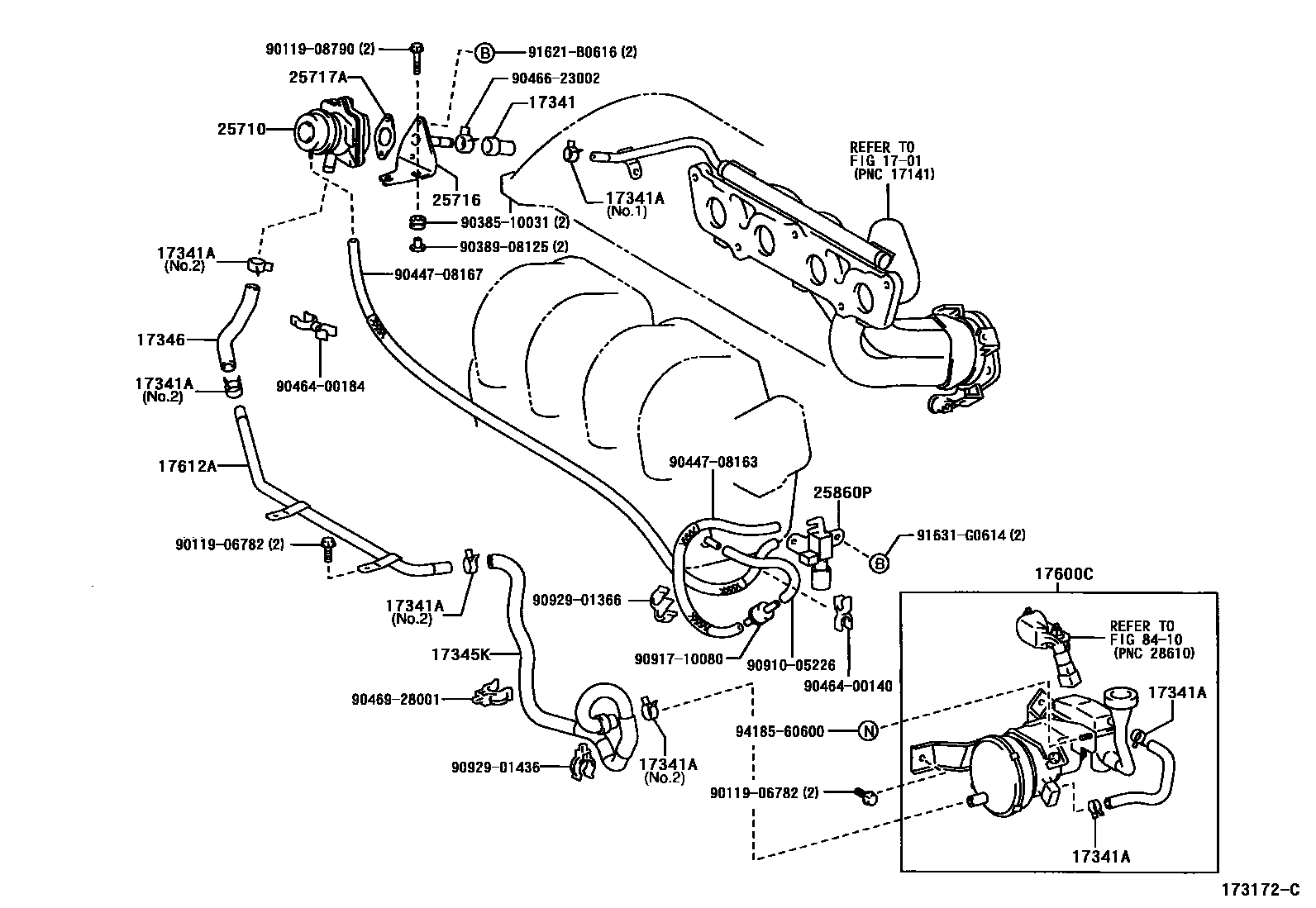

Toyota COROLLA EPC diagram 1706, 歧管喷气系统, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308J | Vacuum hose sub-assembly | 17308-22040 |
| 17341 | Hoses No. 1 (for air injection systems) | 17341-88600 |
| 17341A | No. 1 clip or clip (for No. 1 air injection system hose) | 90467-21010 · 96134-52600 |
| 17345K | No. 5 air hose | 17345-22050 · 17345-22051 · 17345-22052 |
| 17346 | No. 6 hose (for air injection system) | 17346-22010 |
| 17600C | air pump assembly | 17600-22030 |
| 17612A | Air pump outlet pipe | 17612-22010 |
| 25710 | Air switch valve assembly | 25710-22010 |
| 25716 | Air switch valve bracket | 25716-22010 |
| 25717A | air switch valve gasket | 25717-22010 |
| 25860P | Vacuum switch valve assembly | 25860-22090 |
