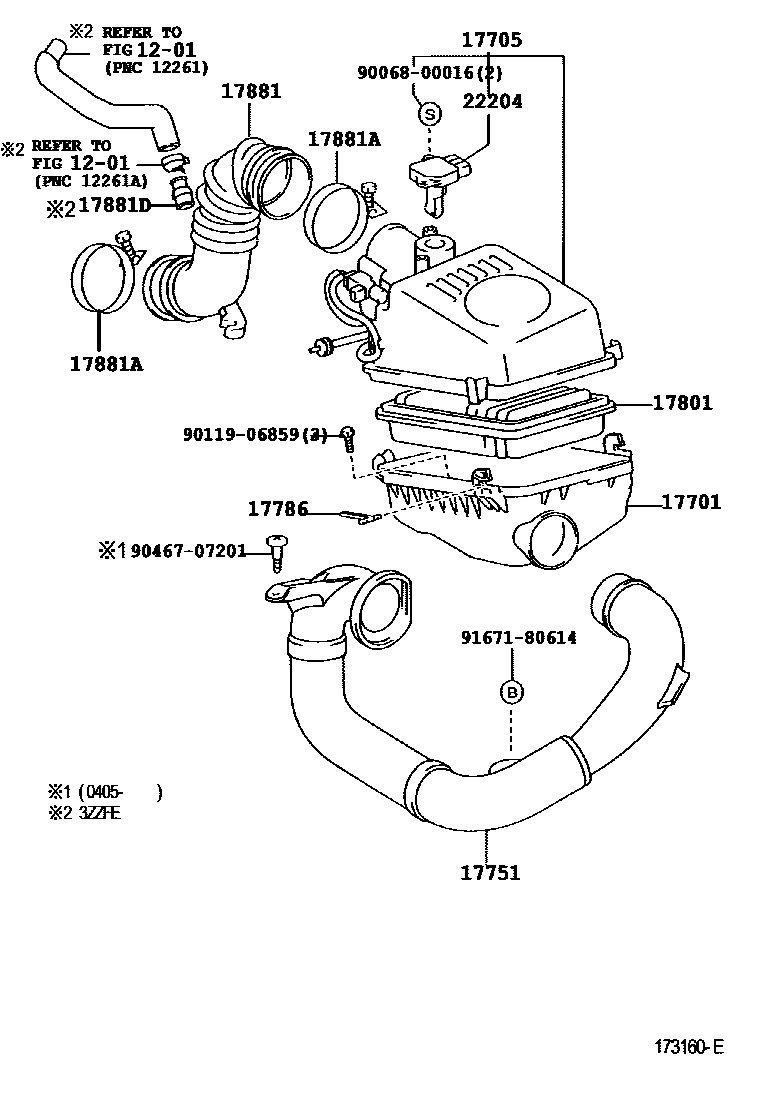

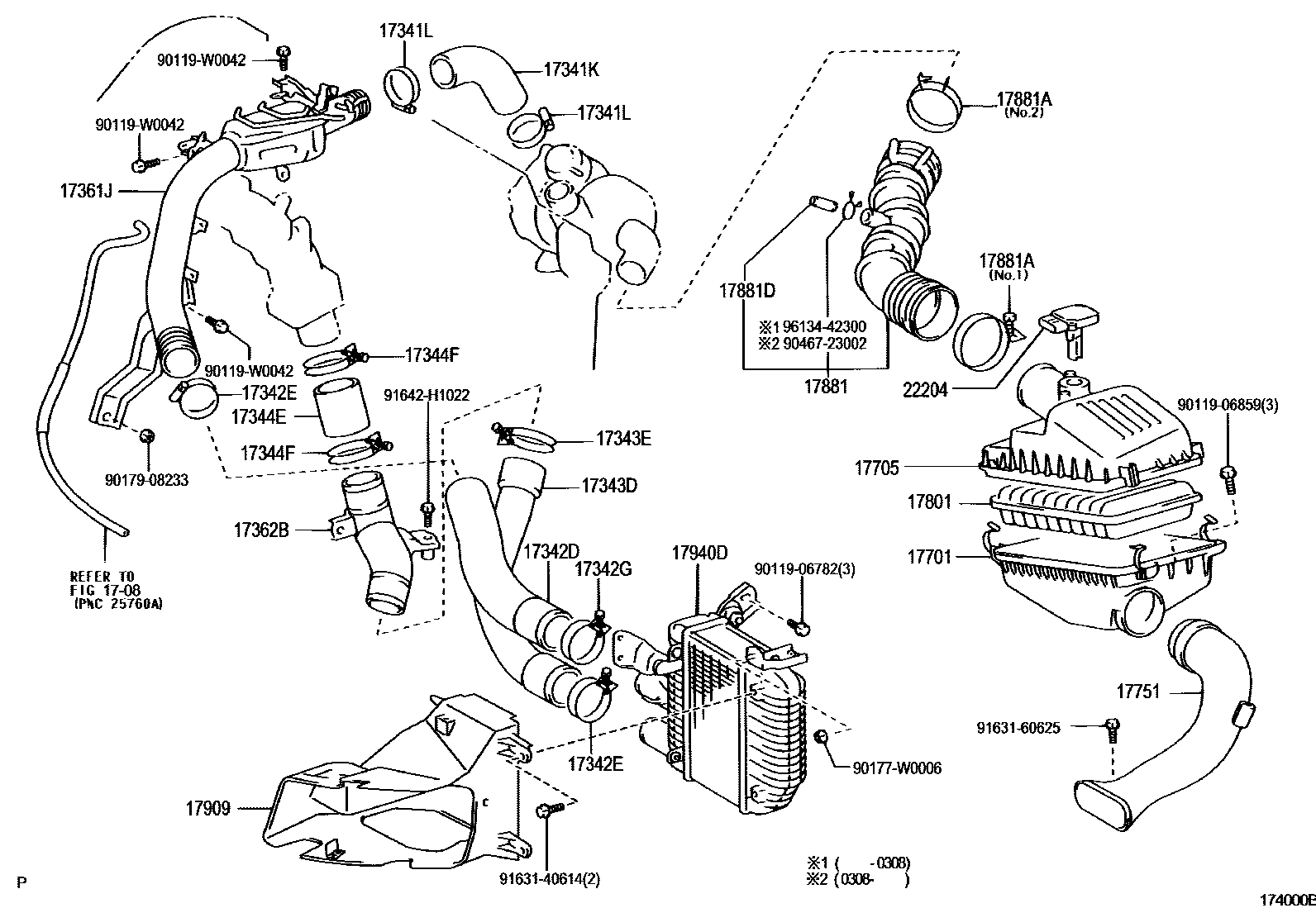

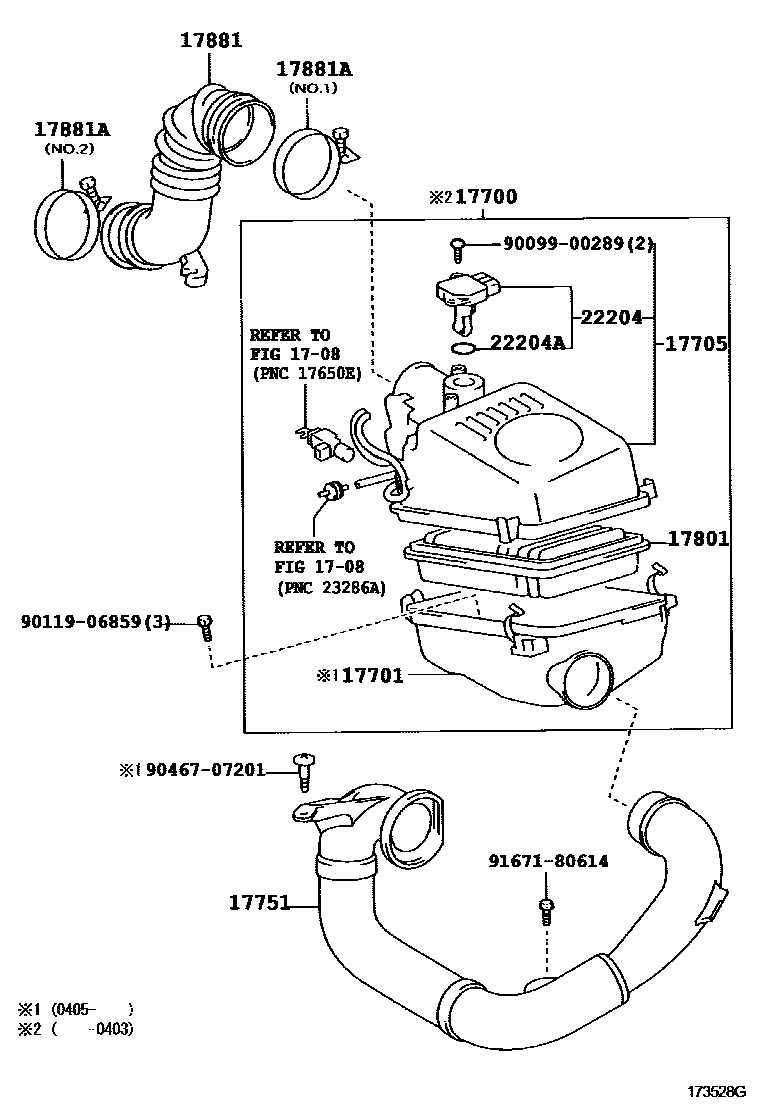

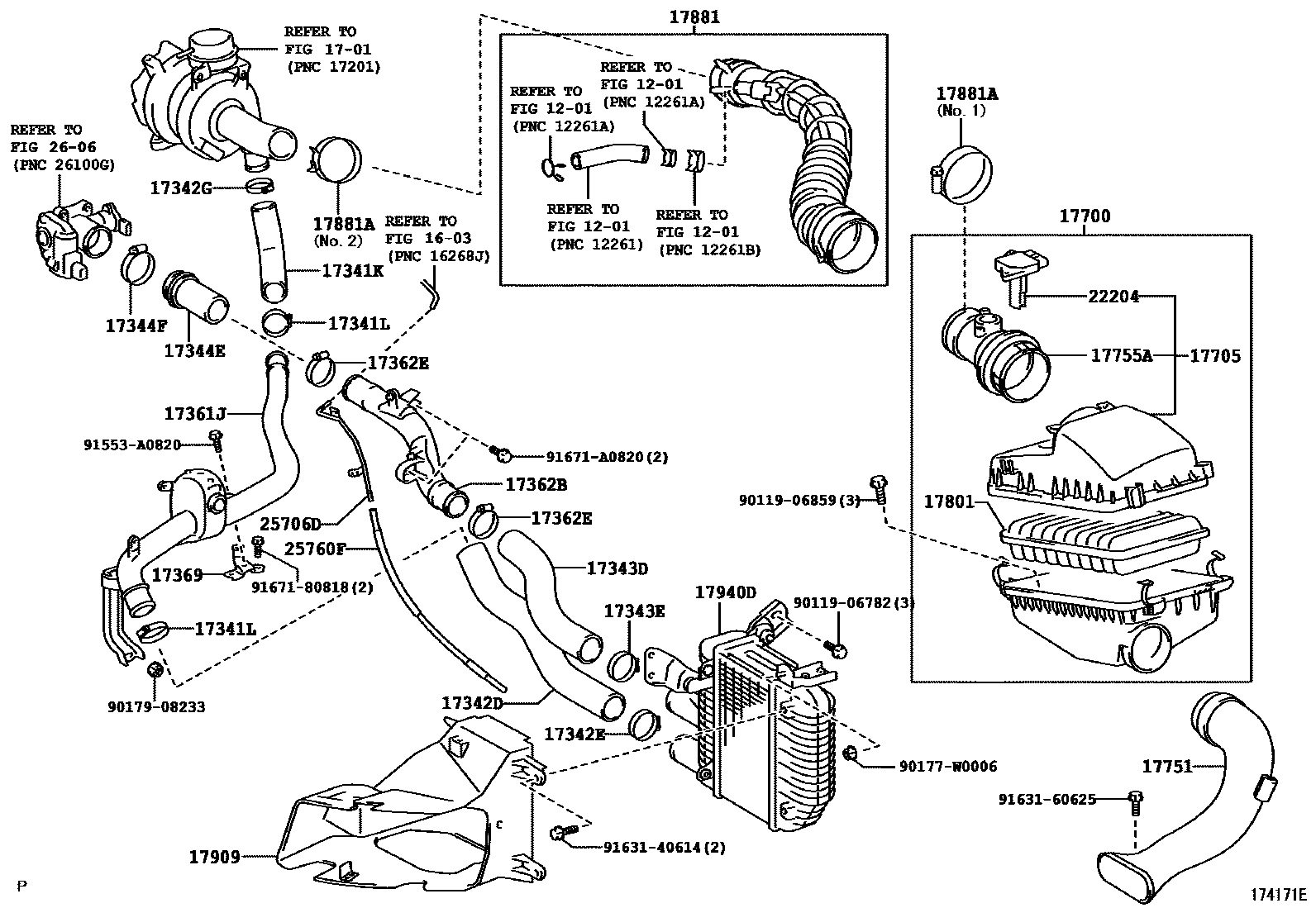

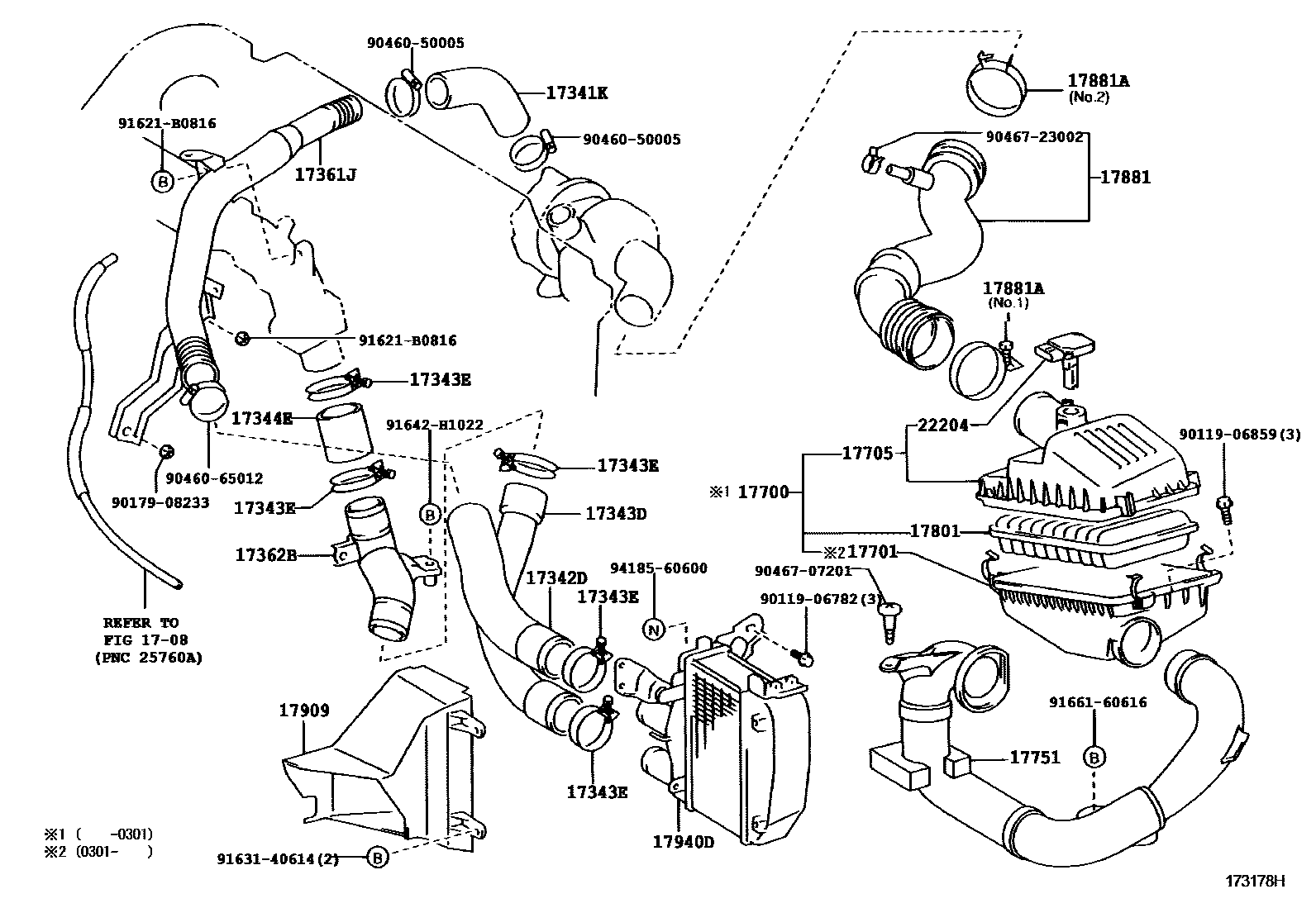

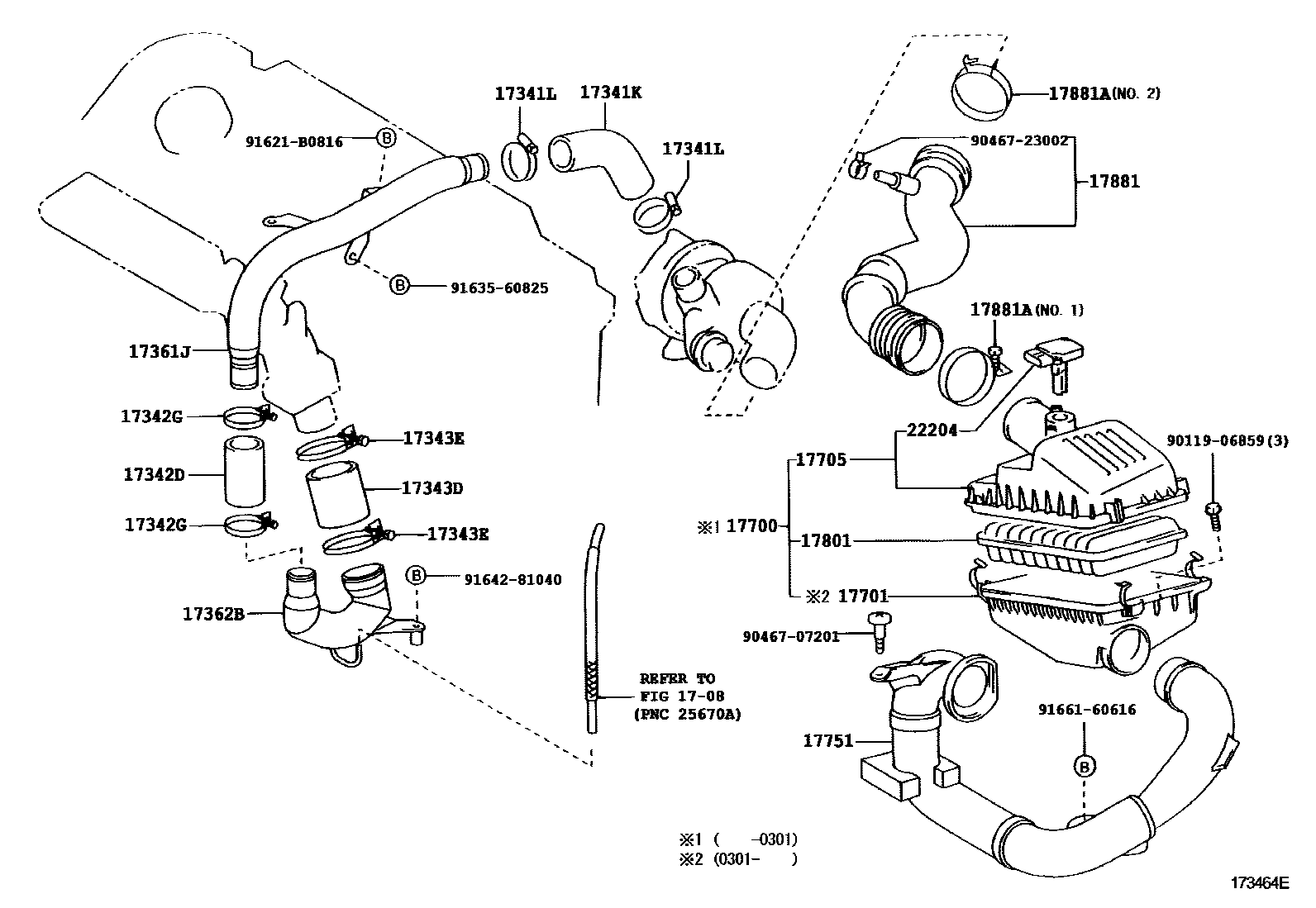

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 6 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341K | Air hose No. 1 (for intercooler) | 17341-27010 · 17341-27020 · 17341-27050 · 17341-33020 |
| 17341L | hose clamp | 90460-50006 · 90460-60006 |
| 17342D | Air hose No. 2 | 17342-27020 · 17342-27050 · 17342-33020 |
| 17342E | Clip or clip (for No. 2 air hose) | 90460-60006 · 90460-65012 |
| 17342G | No. 2 hose clamp (for intercooler) | 90460-50005 · 90460-50006 · 90460-73011 |
| 17343D | No. 3 air hose | 17343-0G010 · 17343-27020 · 17343-27030 · 17343-33010 |
| 17343E | Hose clamp (for size 3 air hose) | 90460-60006 · 90460-73011 |
| 17344E | No. 4 air hose | 17344-0G010 · 17344-27010 · 17344-33010 |
| 17344F | Hose clamp (for size 4 air hose) | 90460-60006 · 90460-73011 |
| 17361J | Air tube No. 1 | 17361-27040 · 17361-27060 · 17361-27070 · 17361-33010 |
| 17362B | No. 2 air pipe | 17362-27020 · 17362-27040 · 17362-27050 · 17362-33010 |
| 17362E | Clamp No. 2 (for No. 2 air tube) | 90460-60006 |
| 17369 | Air tube bracket | 17369-0N010 |
| 17700 | air filter assembly | 17700-22131 · 17700-22132 · 17700-22133 · 17700-27170 · 17700-33191 |
| 17701 | Air filter housing sub-assembly | 17701-0D040 · 17701-0D041 · 17701-0G010 · 17701-22111 · 17701-27170 |
| 17705 | Air filter cover sub-assembly | 17705-0D040 · 17705-0D041 · 17705-22131 · 17705-22132 · 17705-22133 · 17705-22134 · 17705-27040 · 17705-33061 · 17735-0G011 |
| 17751 | No. 1 air filter air inlet | 17751-0D030 · 17751-0D040 · 17751-0G010 · 17751-0G020 |
| 17755A | Air filter outlet | 17755-33010 |
| 17786 | Air filter clip | 17786-0D010 · 17786-0D011 |
| 17801 | Air filter element sub-assembly | 17801-0D010 · 17801-0D011 · 17801-0G010 · 17801-22020 · 17801-27020 |
| 17881 | No. 1 air cleaner hose | 17880-0G021 · 17880-0N020 · 17880-27040 · 17881-0D080 · 17881-0D081 · 17881-0D150 · 17881-0D160 · 17881-22090 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90080-46311 · 90466-51003 · 90466-54002 · 96111-10670 · 96111-10730 · 96111-10780 · 96111-10800 · 96111-10850 |
| 17881D | Connector tube (for air cleaner hose) | 90406-16009 · 90406-28001 |
| 17909 | Intercooler cold air pipe sub-assembly | 17909-0N010 · 17909-27030 · 17909-27031 |
| 17940D | Intercooler assembly | 17940-0G010 · 17940-0G011 · 17940-27030 · 17940-33020 |
| 22204 | Intake air flow meter assembly | 22204-0J010 · 22204-22010 · 22204-27010 · 22204-33010 |
| 22204A | O-ring (for intake air flow meter) | 90099-14141 |
| 25706D | Vacuum transfer pipe sub-assembly | 25706-33010 |
| 25760F | Vacuum transfer hose assembly | 25760-33020 |
