Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 9 images and 58 PNC and OE references.

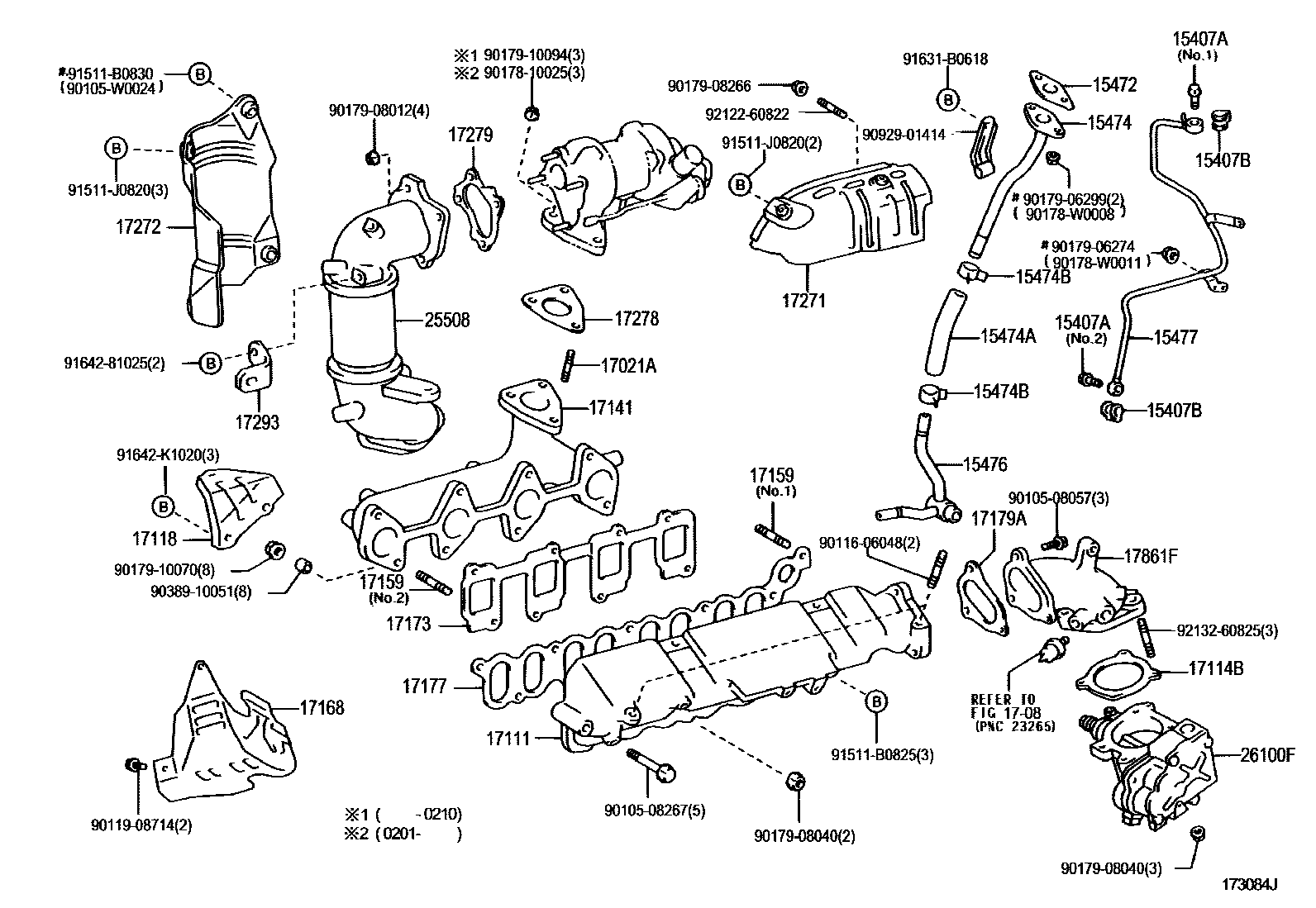

Toyota COROLLA Manifold EPC diagram — 173084J
Manifold — 173084J (200111 – 999999)

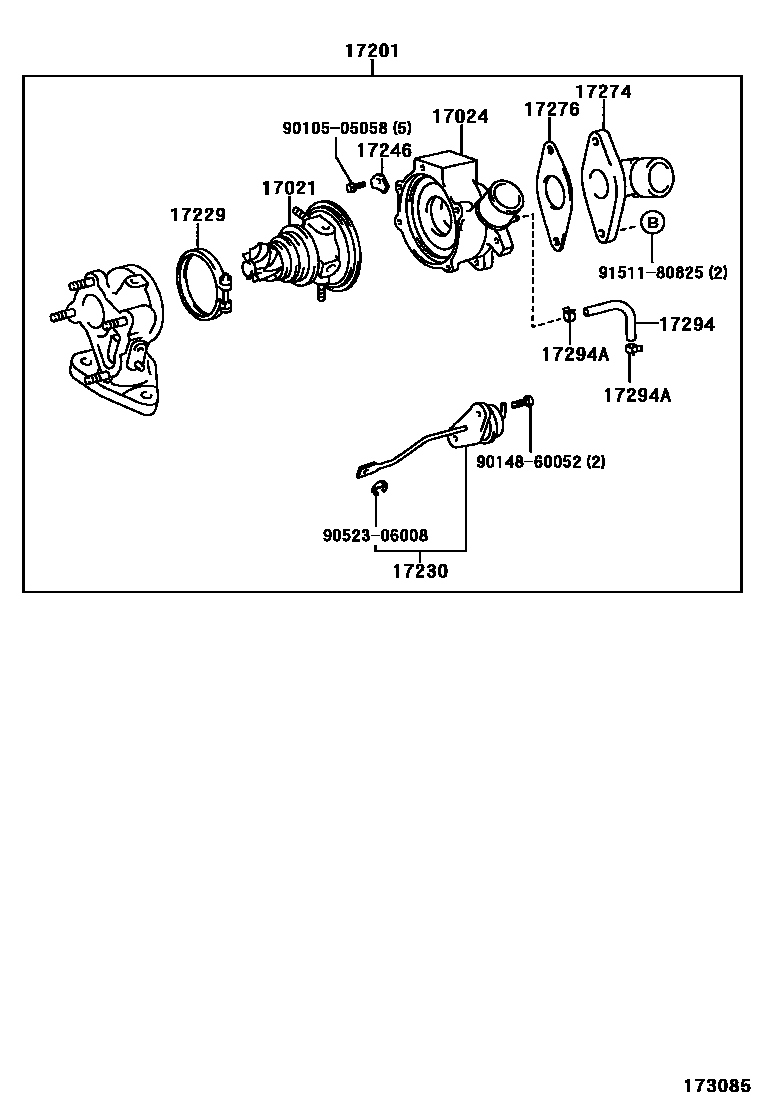

Toyota COROLLA Manifold EPC diagram — 173085
Manifold — 173085 (200111 – 999999)

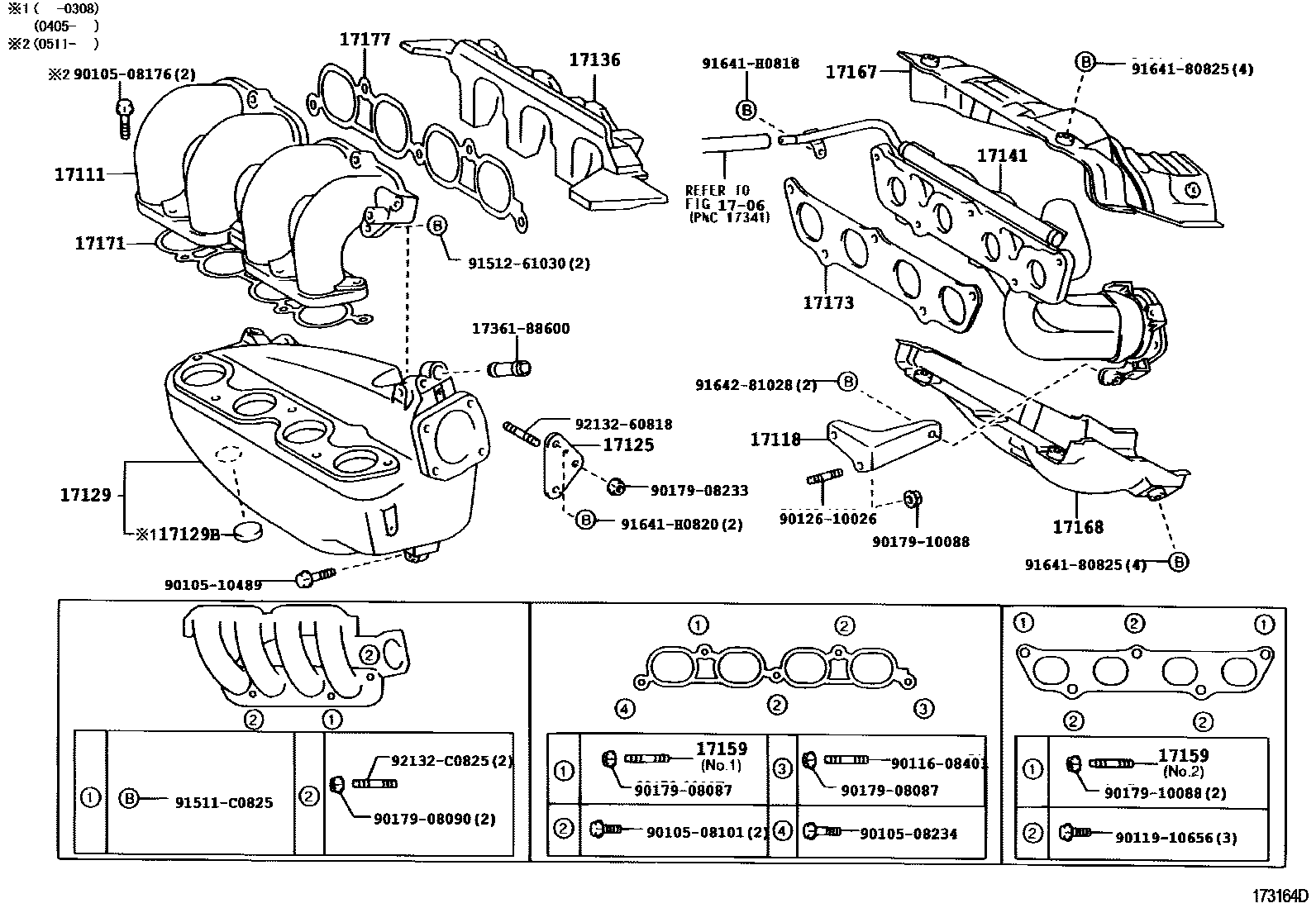

Toyota COROLLA Manifold EPC diagram — 173164E
Manifold — 173164E (200111 – 999999)

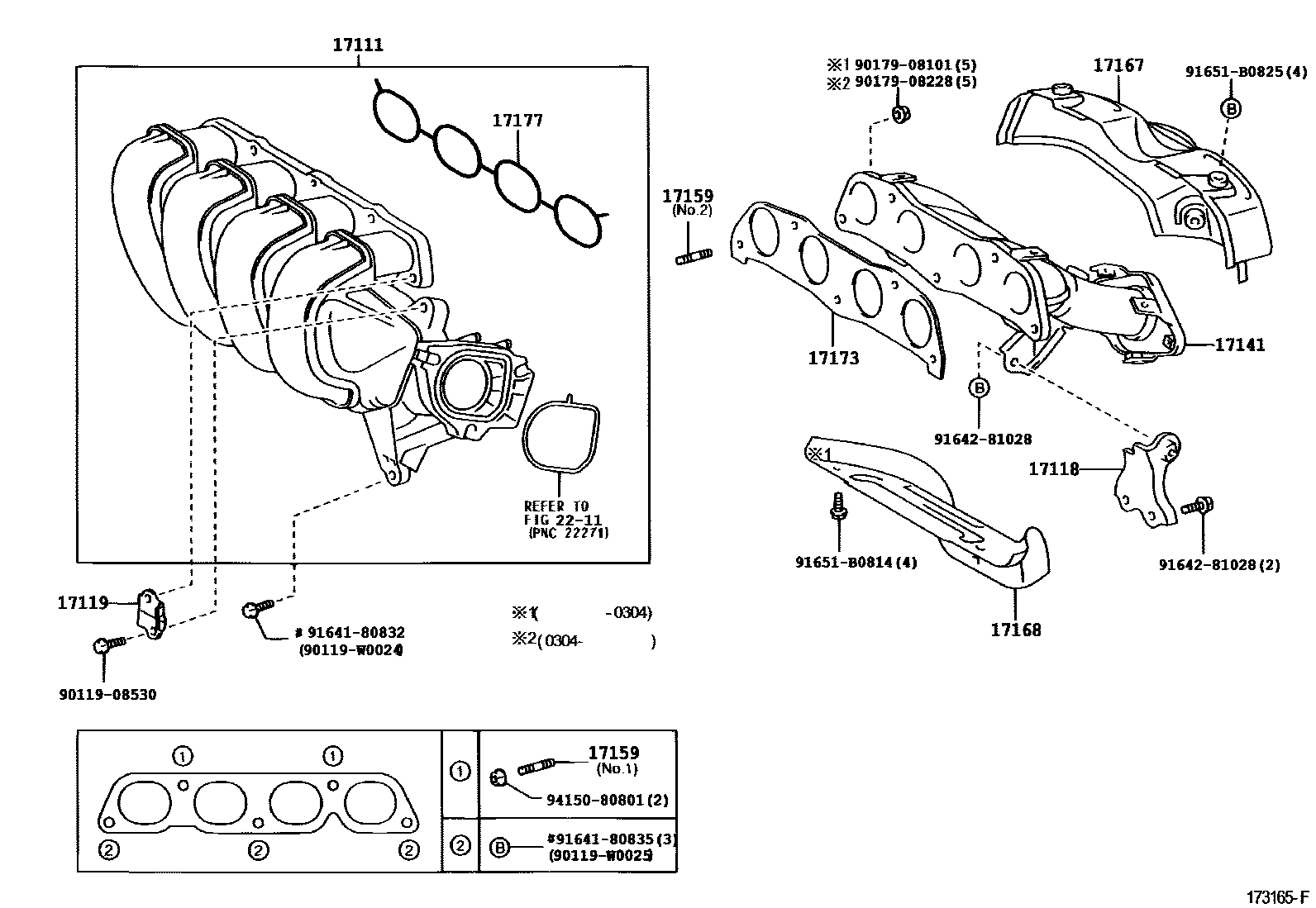

Toyota COROLLA Manifold EPC diagram — 173165F
Manifold — 173165F (200111 – 200405)

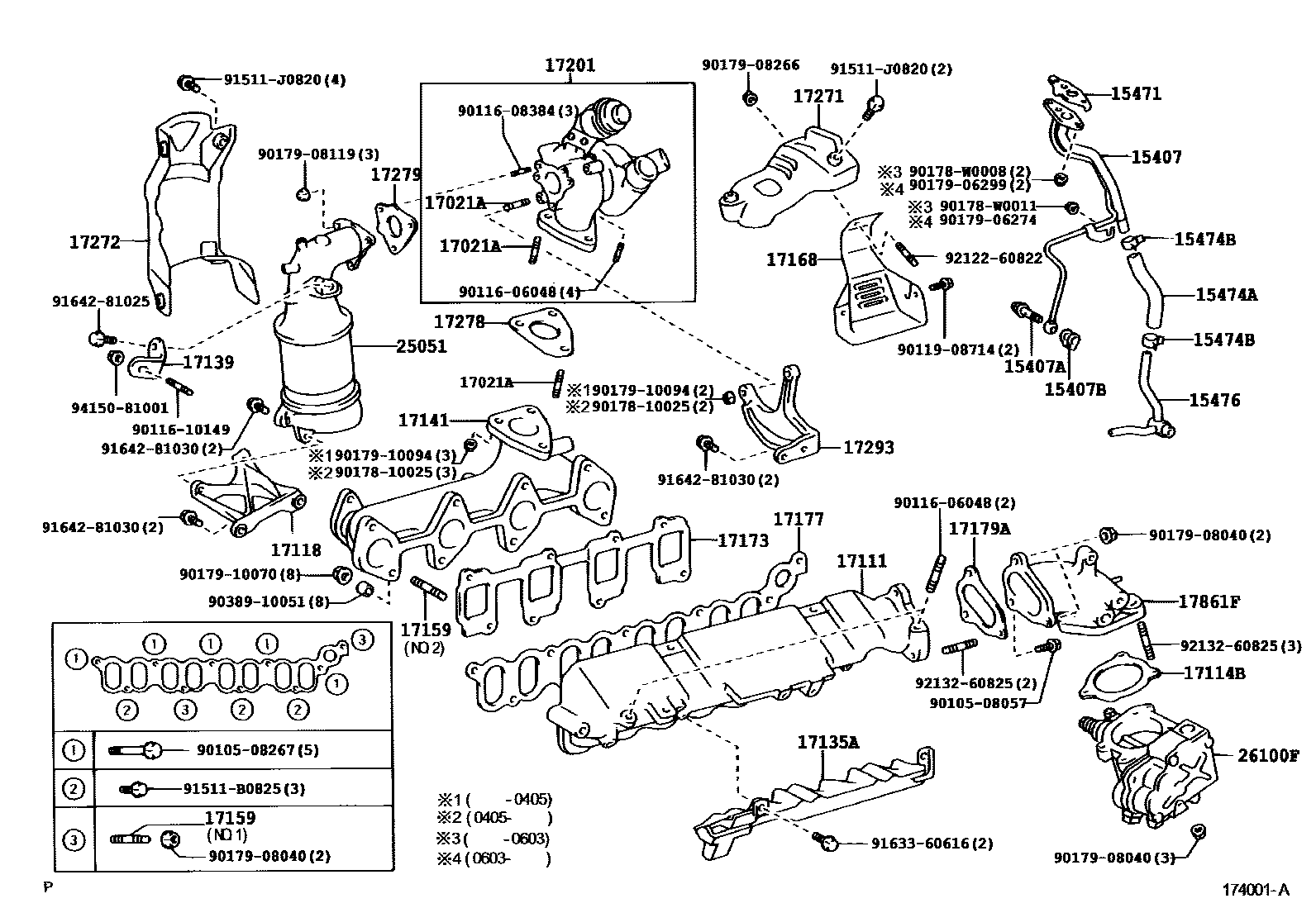

Toyota COROLLA Manifold EPC diagram — 174001A
Manifold — 174001A (200304 – 999999)

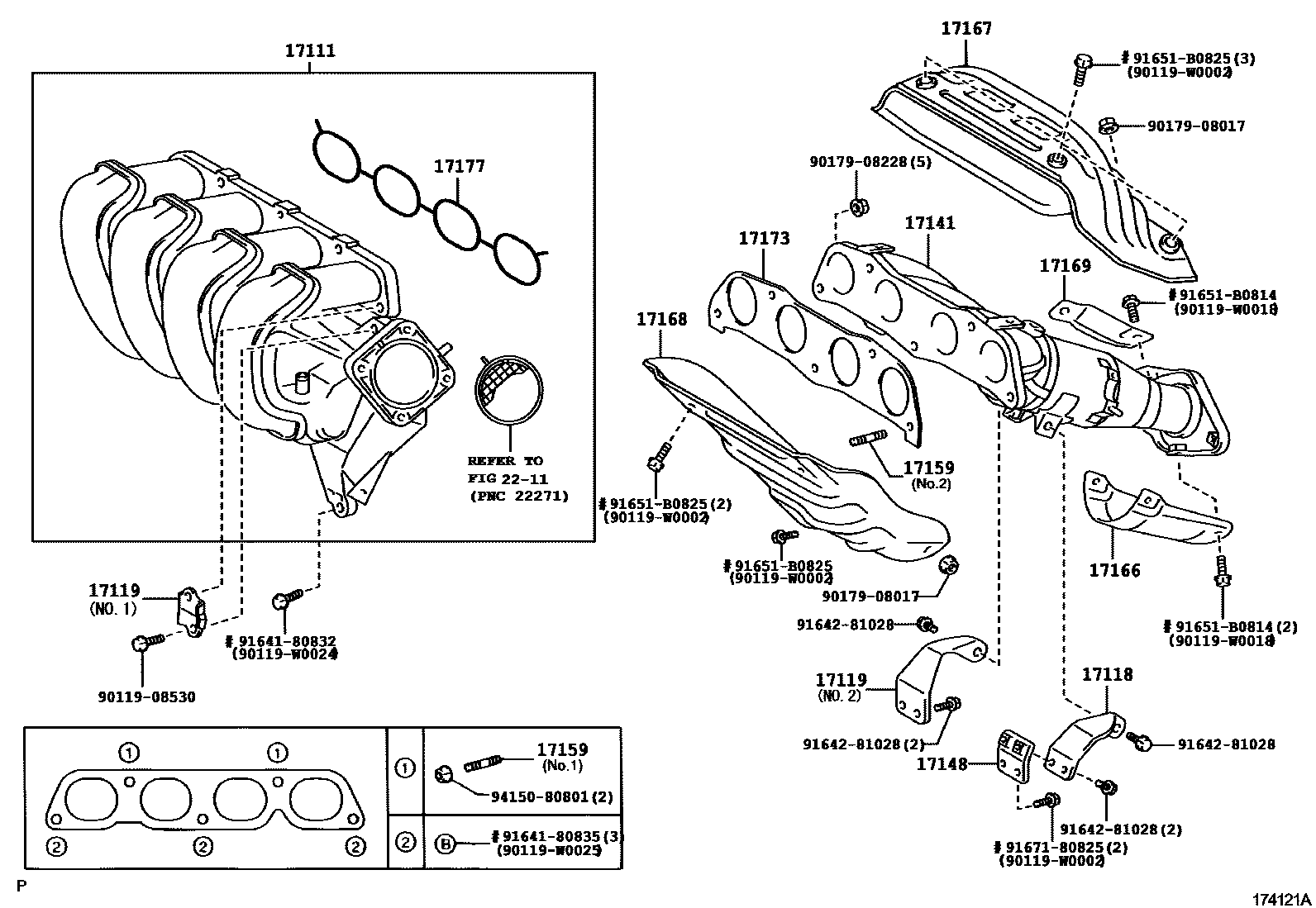

Toyota COROLLA Manifold EPC diagram — 174121B
Manifold — 174121B (200405 – 999999)

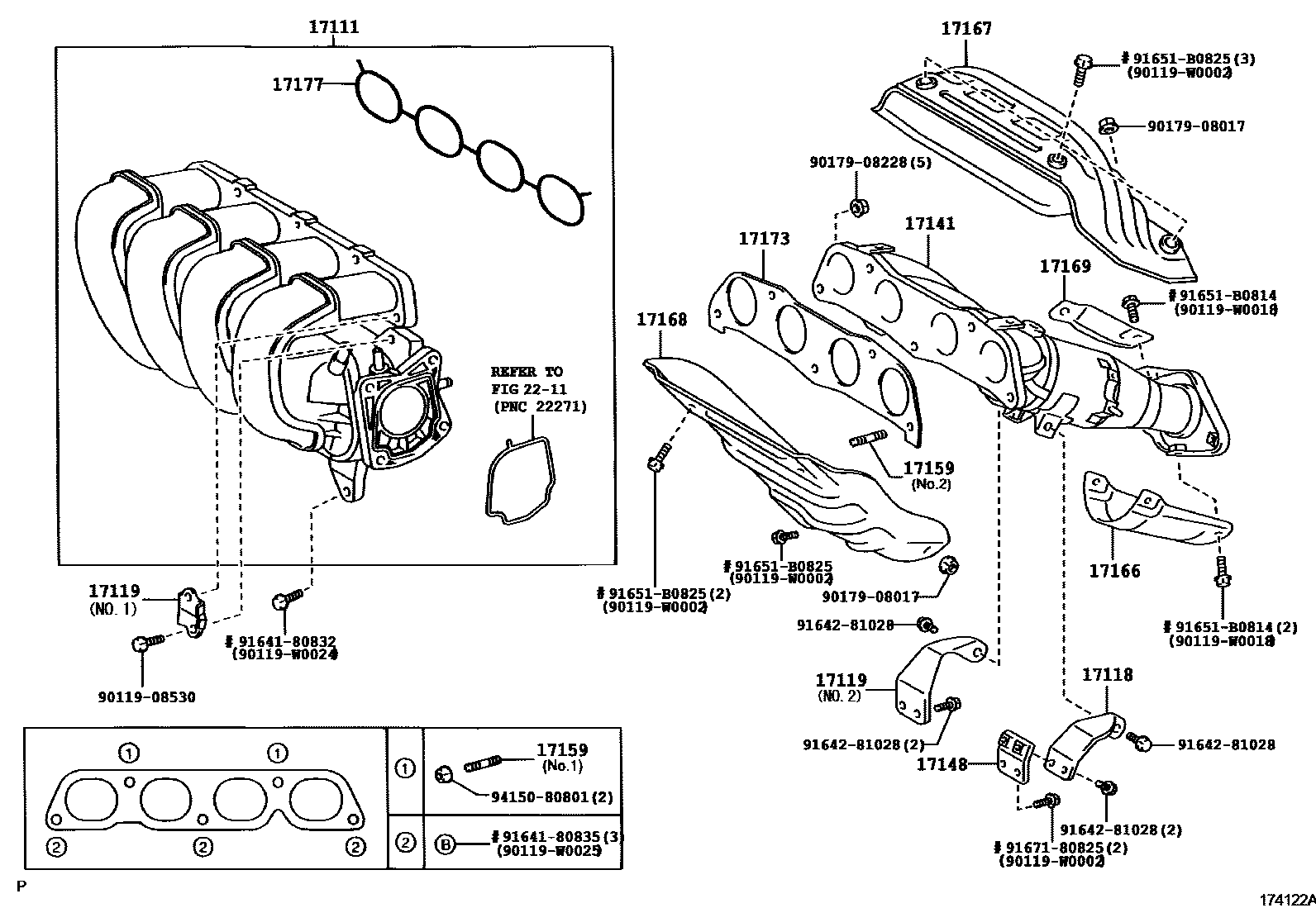

Toyota COROLLA Manifold EPC diagram — 174122B
Manifold — 174122B (200405 – 999999)

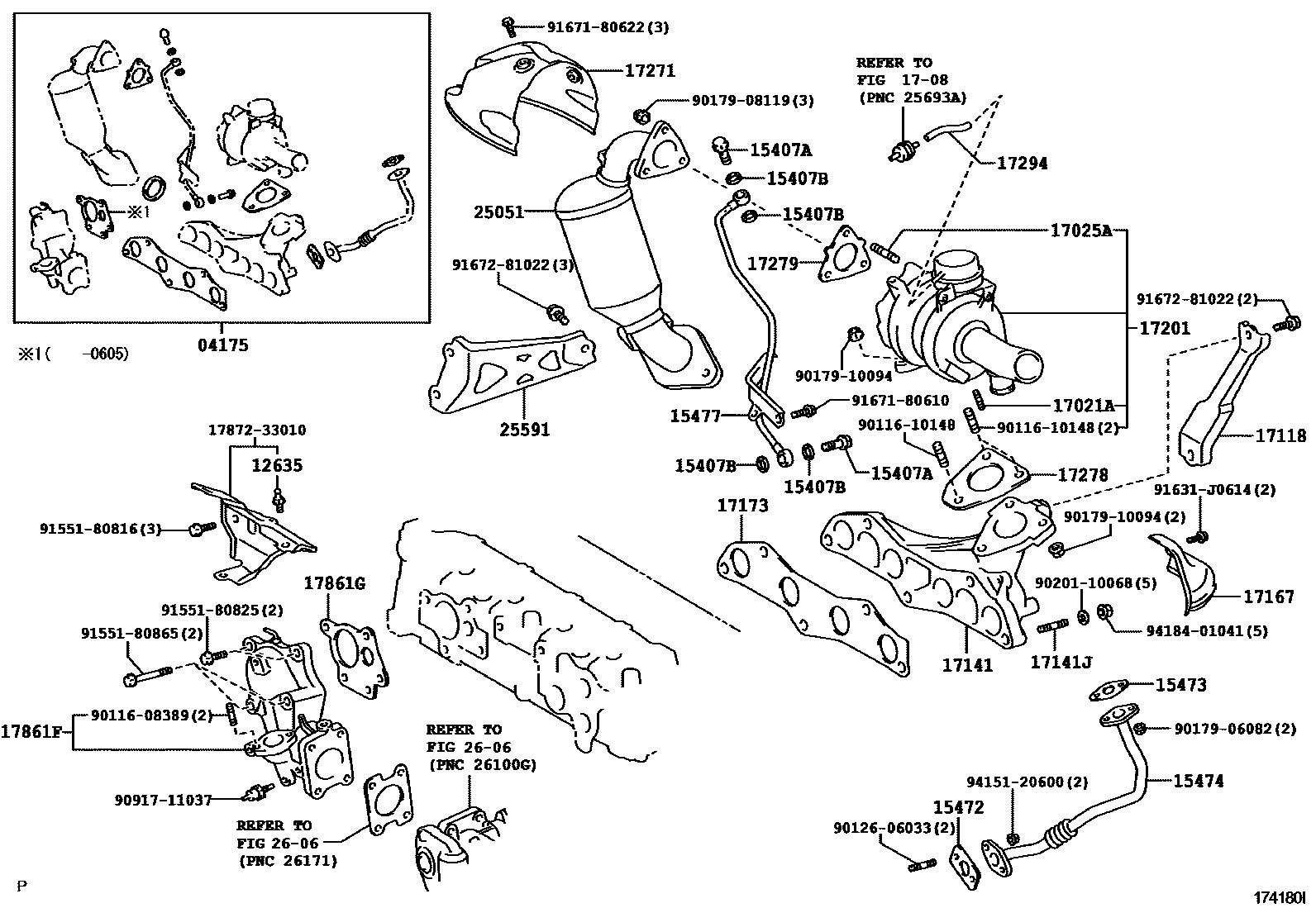

Toyota COROLLA Manifold EPC diagram — 174180I
Manifold — 174180I (200408 – 999999)

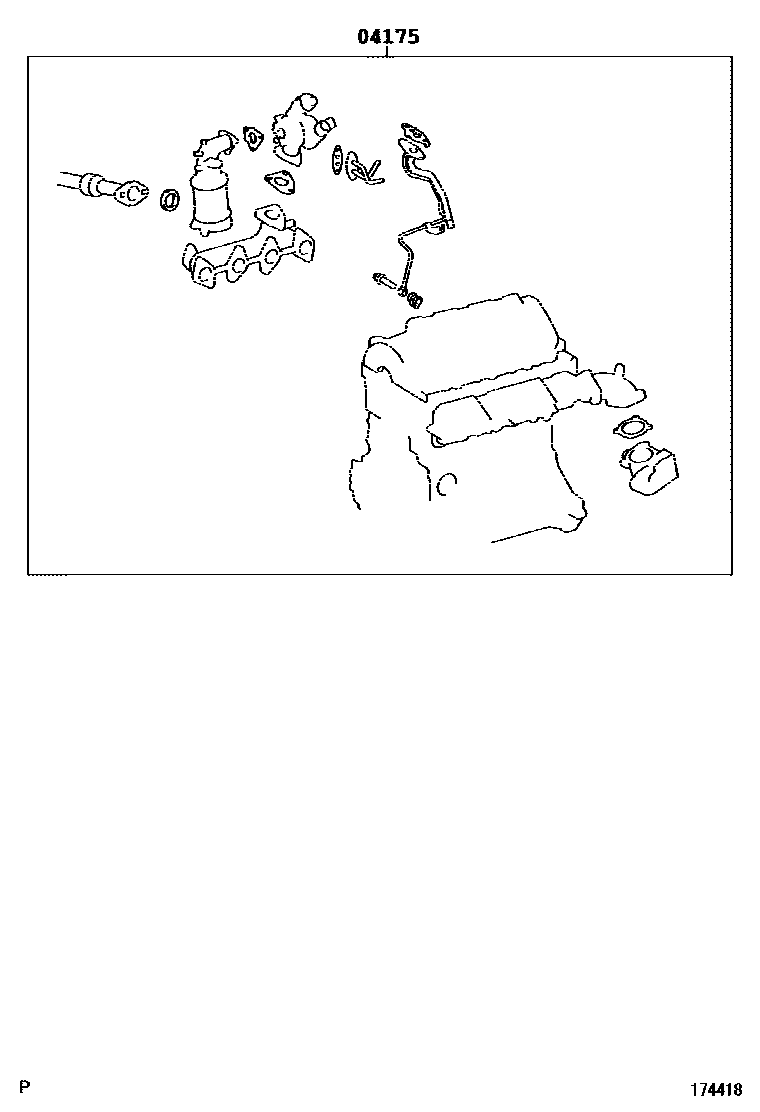

Toyota COROLLA Manifold EPC diagram — 174418
Manifold — 174418 (200405 – 999999)

PNC and OE references

PNCPart nameOE numbers
04175Turbocharger gasket assembly04175-0G010 · 04175-0N030 · 04175-0N031 · 04175-27010
12635hood connector12635-33010
15407Turbine oil inlet pipe sub-assembly15407-27011
15407AConnector bolt (for turbine oil inlet pipe)15606-27010 · 90401-10061 · 90401-10063 · 90401-10065
15407BGasket (for turbine oil inlet pipe)15328-27010 · 90430-10027 · 90904-30011
15471Turbine oil inlet pipe gasket15471-27020
15472No. 1 turbine oil outlet pipe gasket15472-27010 · 15472-33010
15473No. 2 turbine oil outlet pipe gasket15473-33010
15474Turbine oil outlet pipe15474-27010 · 15474-33010 · 15474-33020
15474ATurbine oil outlet hose15491-27020 · 15491-27030
15474BClamp or clip (for turbine oil outlet hose)96134-41900
15476No. 2 turbine oil outlet pipe15476-27020 · 15476-27030
15477Turbine oil inlet pipe15477-27020 · 15477-33010
17021Bearing shell sub-assembly17021-27010 · 17021-27020
17021AStud bolts (for bearing housing)90116-06048 · 90116-10148
17024Compressor housing sub-assembly17024-27030
17025AStud bolts (for turbine housing)90116-08260
17111Intake Manifold17111-27011 · 17111-27012 · 17111-88601 · 17120-0D030 · 17120-0D031 · 17120-0D070
17114BIntake flange gasket26171-27010
17118Manifold stays17118-0D050 · 17118-0G010 · 17118-22010 · 17118-22020 · 17118-22090 · 17118-27020 · 17118-33030
17119No. 2 manifold stay17119-22070 · 17139-22050
17125No. 1 pressure tank stay17125-88600
17129Intake pressure tank17109-22020 · 17109-88602
17129BScrew plug96411-43000
17135AIntake manifold No. 1 heat shield17135-27010
17136Intake manifold No. 2 heat shield17136-88600 · 17136-88601
17139No. 2 manifold stay17139-27020
17141exhaust manifold17104-0D031 · 17104-0D101 · 17104-22100 · 17140-88600 · 17140-88601 · 17141-27020 · 17141-27040 · 17141-33040
17141JStuds (for right exhaust manifold)90126-10018
17148Exhaust manifold plate (for EGR intake)17148-22030
17159Studs (for manifold to cylinder head)90116-10169 · 90126-08026 · 90126-08043 · 90126-10024 · 92122-80822 · 92132-60820
17166Exhaust manifold No. 4 heat shield17166-22010 · 17166-22011
17167Exhaust manifold No. 1 heat shield17167-0D040 · 17167-0D052 · 17167-22080 · 17167-33010 · 17167-88603
17168Exhaust manifold No.2 insulation pad17168-0D030 · 17168-22080 · 17168-22120 · 17168-27010 · 17168-27020 · 17168-88600
17169Exhaust manifold No. 3 heat shield17169-0D010
17171Gasket (intake manifold to exhaust manifold)17171-22040 · 17171-88600
17173Gasket (exhaust manifold to cylinder head)17173-0D010 · 17173-22010 · 17173-27010 · 17173-33010 · 17173-88600 · 17173-88601
17177No. 1 gasket (intake manifold to cylinder head)17171-0D030 · 17171-22030 · 17177-0G010 · 17177-22010 · 17177-27010 · 17177-88600
17179ANo. 2 intake manifold gasket17179-0G010 · 17179-27010
17201Turbocharger sub-assembly17201-0G010 · 17201-0N010 · 17201-27050 · 17201-27060
17229V-Belt17229-27010
17230Actuator assembly with bracket17230-29035 · 17230-29045
17246Compressor shell plywood17246-27010
17271No. 1 turbine vibration isolation pad17271-27050 · 17271-27060 · 17271-33030
17272No. 2 turbine vibration isolation pad17272-27050 · 17272-27060
17274Compressor oil inlet elbow pipe17274-27010
17276Compressor oil inlet gasket17276-27010
17278Gasket (turbo to exhaust manifold)17278-27010
17279Turbine outlet elbow gasket17279-27010 · 17279-27020
17293Turbocharger stay17293-0G010 · 17293-27020 · 17293-27030
17294Actuator hose17294-33010 · 90445-09035
17294AClamp (for actuator hose)90466-07001
17861FIntake connecting pipe17805-27010 · 17861-27011 · 17861-33020
17861GIntake connecting pipe gasket26171-33011
25051Exhaust manifold three-way catalytic converter sub-assembly25051-27060 · 25051-27061 · 25051-33040
25508Manifold three-way catalytic converter sub-assembly25051-27050
25591Manifold bracket25591-33020
26100FAir intake baffle assembly26100-27020
