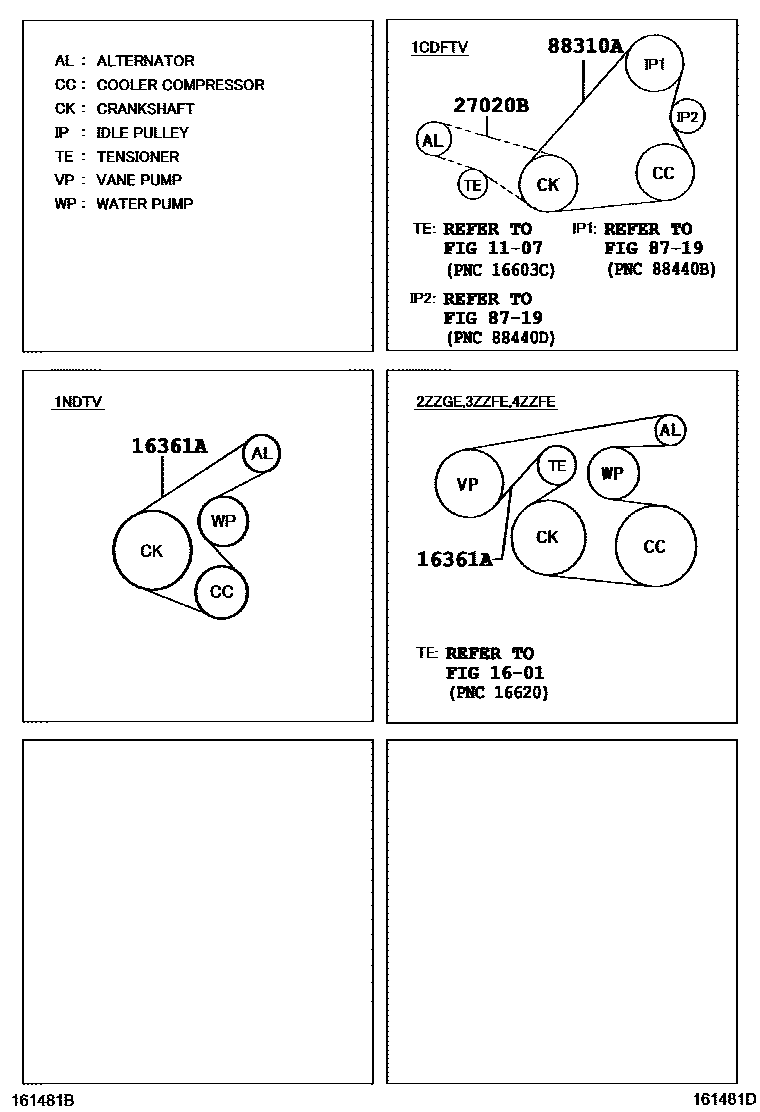

Toyota COROLLA V-Belt — Figure 1605
Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90916-02537 · 90916-02545 · 90916-02546 · 90916-W2007 · 90916-W2008 · 99366-C0970 · 99366-C1220 |
| 27020B | V-belt (for generator) | 90916-02517 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 99365-91110 · 99365-C1110 · 99365-D1110 |
