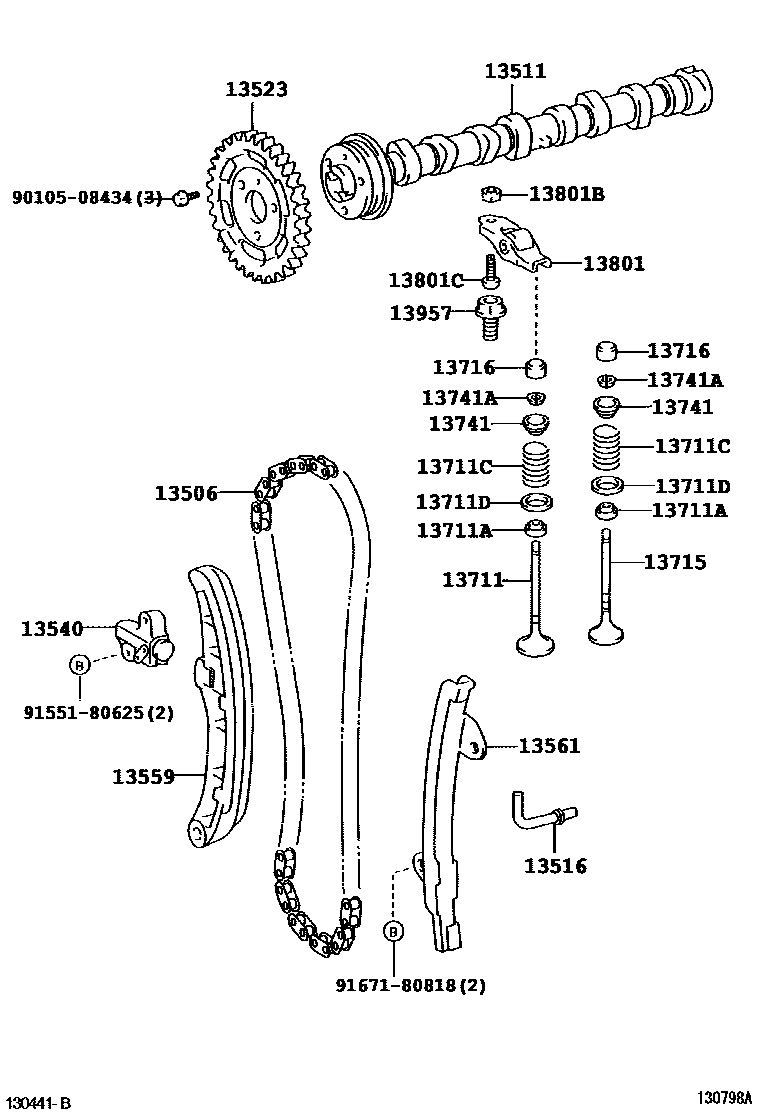

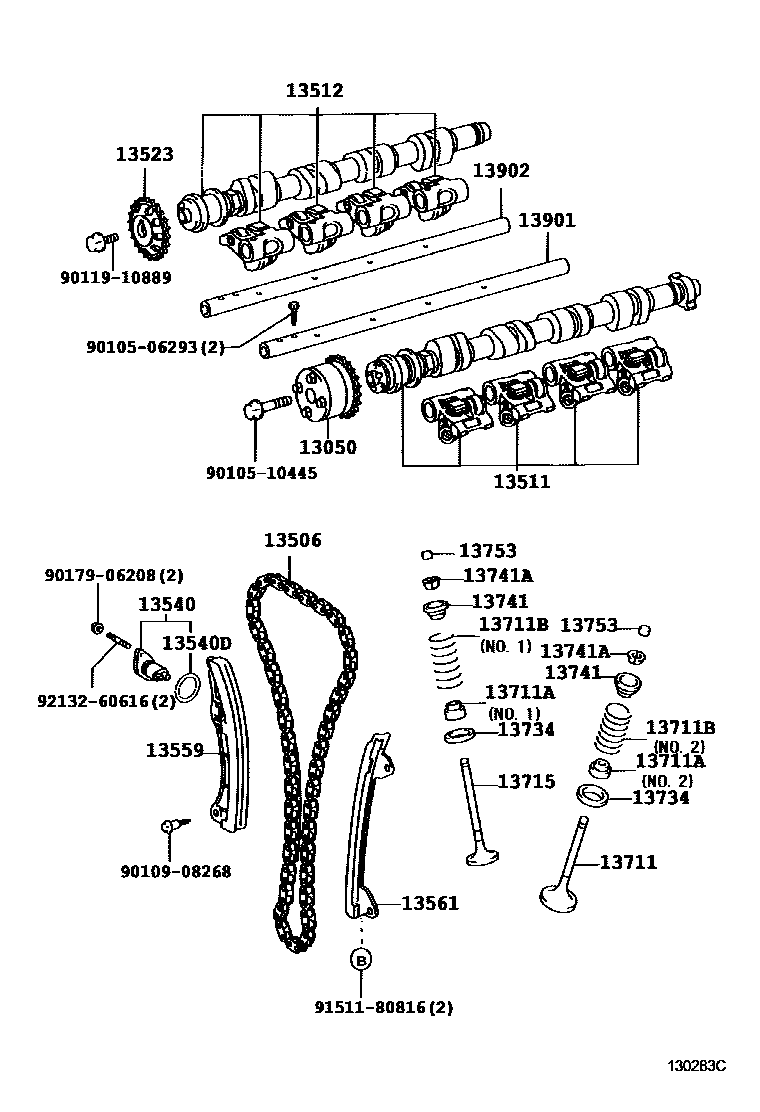

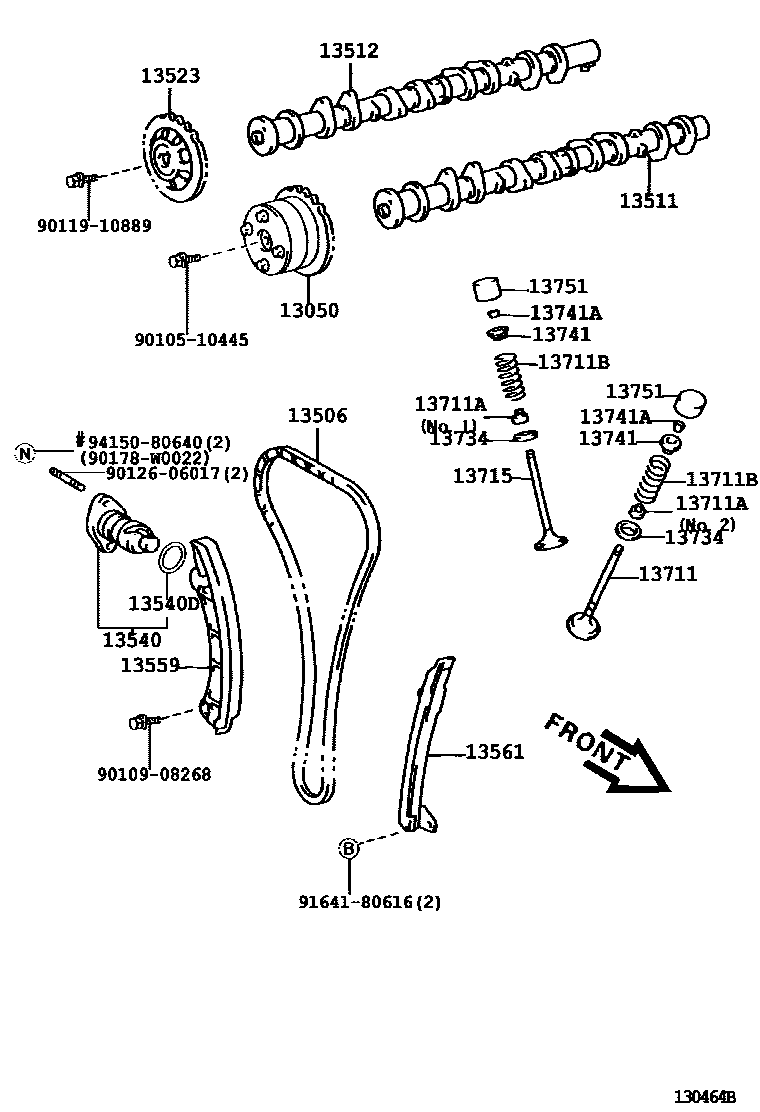

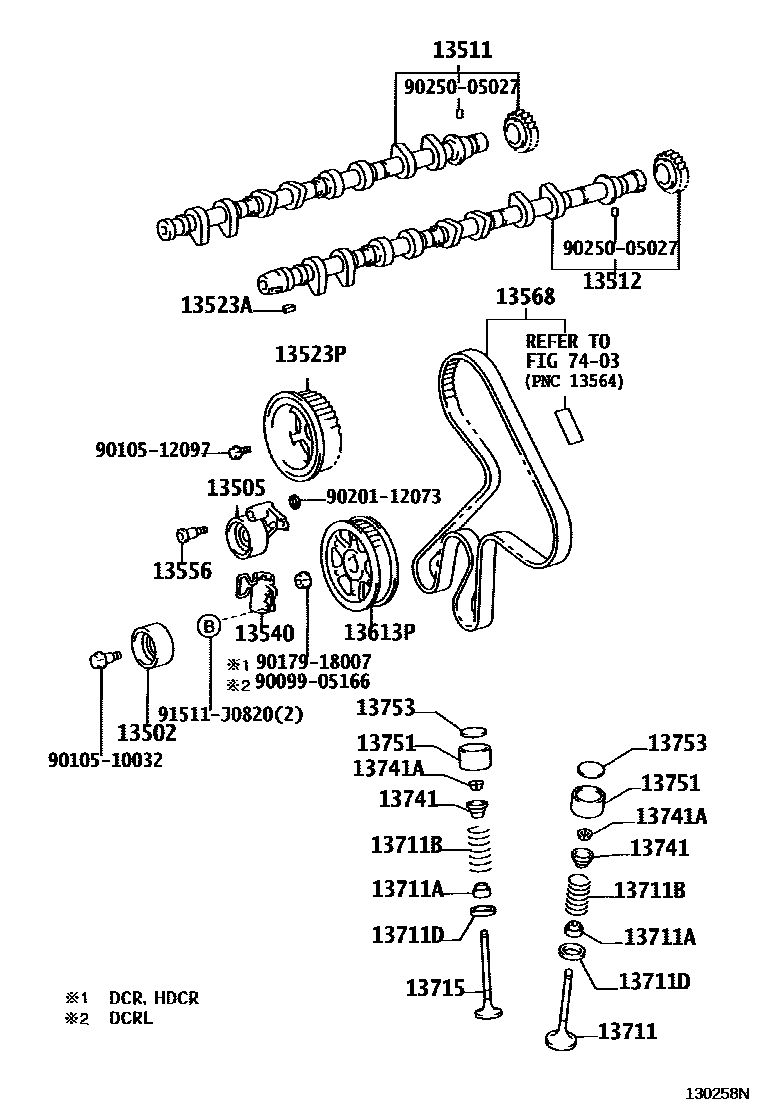

Toyota COROLLA Camshaft & Valve — Figure 1302
Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 4 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13050 | Camshaft timing gear assembly | 13050-0D010 · 13050-22011 · 13050-22012 |
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-27010 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-27010 |
| 13506 | Chain sub-assembly | 13506-0D020 · 13506-22030 · 13506-33020 · 13506-88600 |
| 13511 | camshaft | 13501-0D020 · 13501-0D021 · 13501-22060 · 13501-22061 · 13501-27011 · 13501-29025 · 13501-33010 |
| 13512 | Camshaft No. 2 | 13502-0D020 · 13502-0D021 · 13502-22010 · 13502-22011 · 13502-27011 · 13502-29015 |
| 13516 | oil nozzle | 13516-21020 |
| 13523 | Camshaft timing gear or sprocket | 13523-0D020 · 13523-22020 · 13523-33020 · 13523-33021 |
| 13523A | Half-moon pin (for timing gear) | 90280-05004 |
| 13523P | Camshaft timing pulley | 13523-27010 |
| 13540 | No. 1 chain tensioner assembly | 13540-0D020 · 13540-22022 · 13540-27011 · 13540-33020 · 13540-88600 |
| 13540D | O-ring (for chain tensioner) | 90301-22013 |
| 13556 | Timing belt idler shaft | 13556-27010 |
| 13559 | chain tensioner guide plate | 13559-0D020 · 13559-22011 · 13559-33010 · 13559-88600 |
| 13561 | No. 1 chain shock absorber | 13561-0D020 · 13561-22020 · 13561-33020 · 13561-88600 |
| 13568 | timing belt | 13568-29035 |
| 13613P | Fuel injection pump drive pulley | 13603-27010 · 13603-27020 |
| 13711 | intake valve | 13711-0D020 · 13711-22040 · 13711-27010 · 13711-33030 · 13711-88600 |
| 13711A | Oil seal or O-ring (for valve stem) | 90080-31061 · 90080-31062 · 90913-02101 · 90913-02111 · 90913-02114 · 90913-02115 · 90913-02119 · 90913-02121 |
| 13711B | Compression spring (for inner side) | 90080-50253 · 90501-29048 · 90905-01055 · 90905-01061 · 90905-01063 |
| 13711C | Compression spring (for outside) | 90501-36006 |
| 13711D | Flat washer (for valve spring seat) | 90201-19008 · 90560-11032 |
| 13715 | exhaust valve | 13715-0D020 · 13715-22040 · 13715-27010 · 13715-33040 · 13715-88601 · 13715-88602 |
| 13716 | valve stem cover | 13716-33010 |
| 13734 | Valve spring seat | 13734-74010 · 13734-88600 |
| 13741 | Valve spring seat ring | 13741-10020 · 13741-16010 · 13741-22021 · 13741-88600 |
| 13741A | Valve spring seat lock plate | 90080-38115 · 90913-03021 · 90913-03033 |
| 13751 | valve lifter | 13751-16010 · 13751-22040 · 13751-22050 · 13751-22060 · 13751-22070 · 13751-22080 · 13751-22090 · 13751-22100 · 13751-22110 · 13751-22120 · 13751-22130 · 13751-22140 · 13751-22150 · 13751-22160 · 13751-22170 · 13751-22180 · 13751-22190 · 13751-22200 · 13751-22210 · 13751-22220 · 13751-22230 · 13751-22240 · 13751-22250 · 13751-22260 · 13751-22270 · 13751-22280 · 13751-22290 · 13751-22300 · 13751-22310 · 13751-22320 · 13751-22330 · 13751-22340 · 13751-22350 · 13751-22360 · 13751-22370 · 13751-22380 |
| 13753 | valve adjustment gasket | 13753-22450 · 13753-22460 · 13753-22470 · 13753-22480 · 13753-22490 · 13753-22500 · 13753-22510 · 13753-22520 · 13753-22530 · 13753-22540 · 13753-22550 · 13753-22560 · 13753-22570 · 13753-22580 · 13753-22590 · 13753-22600 · 13753-22610 · 13753-22620 · 13753-22630 · 13753-22640 · 13753-22650 · 13753-22660 · 13753-22670 · 13753-22680 · 13753-22690 · 13753-22700 · 13753-22710 · 13753-22720 · 13753-22730 · 13753-22740 · 13753-22750 · 13753-22760 · 13753-22770 · 13753-22780 · 13753-22790 · 13753-22800 · 13753-22810 · 13753-22820 · 13753-22830 · 13753-22840 · 13753-22850 · 13753-27010 · 13753-27030 · 13753-27050 · 13753-27070 · 13753-27090 · 13753-27110 · 13753-27130 · 13753-27150 · 13753-27170 · 13753-27190 · 13753-27210 · 13753-27230 · 13753-27250 · 13753-27270 · 13753-27290 · 13753-27310 · 13753-27330 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-33020 |
| 13801B | Hex nut (for valve adjustment) | 90170-07004 |
| 13801C | valve adjustment screw | 13788-33010 |
| 13901 | No. 1 valve rocker arm shaft sub-assembly | 13901-22020 |
| 13902 | No. 2 valve rocker arm shaft sub-assembly | 13902-22010 |
| 13957 | valve rocker arm pivot | 13957-33010 |
