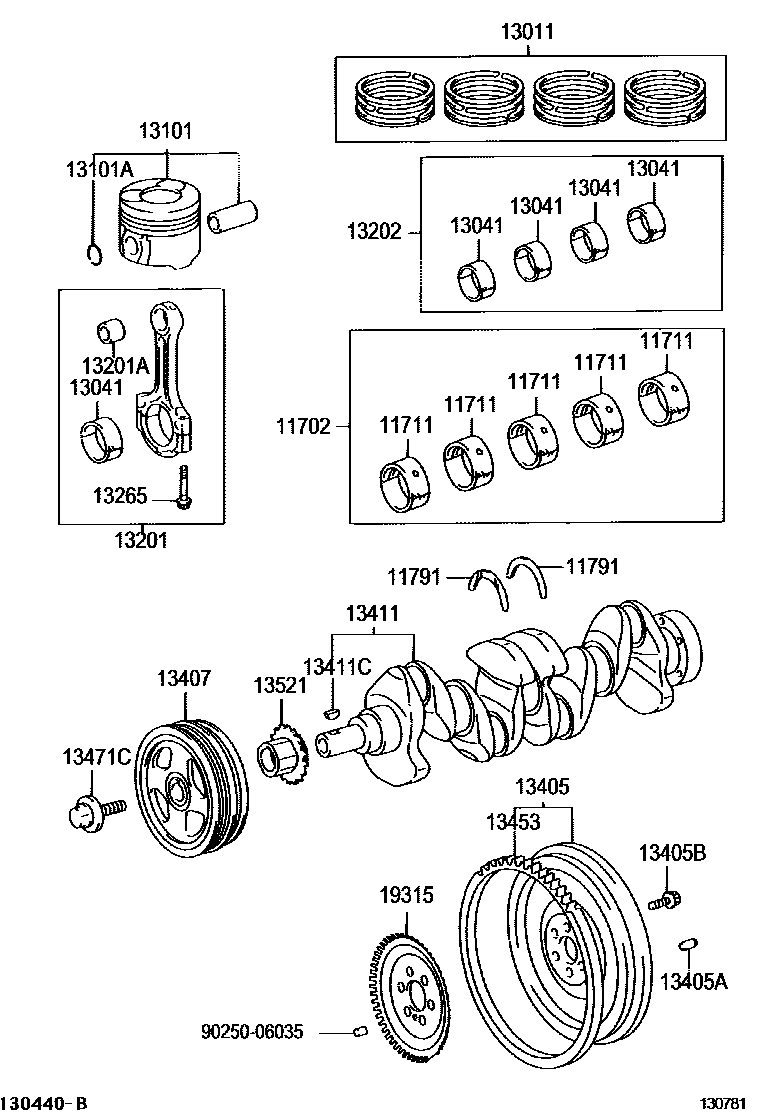

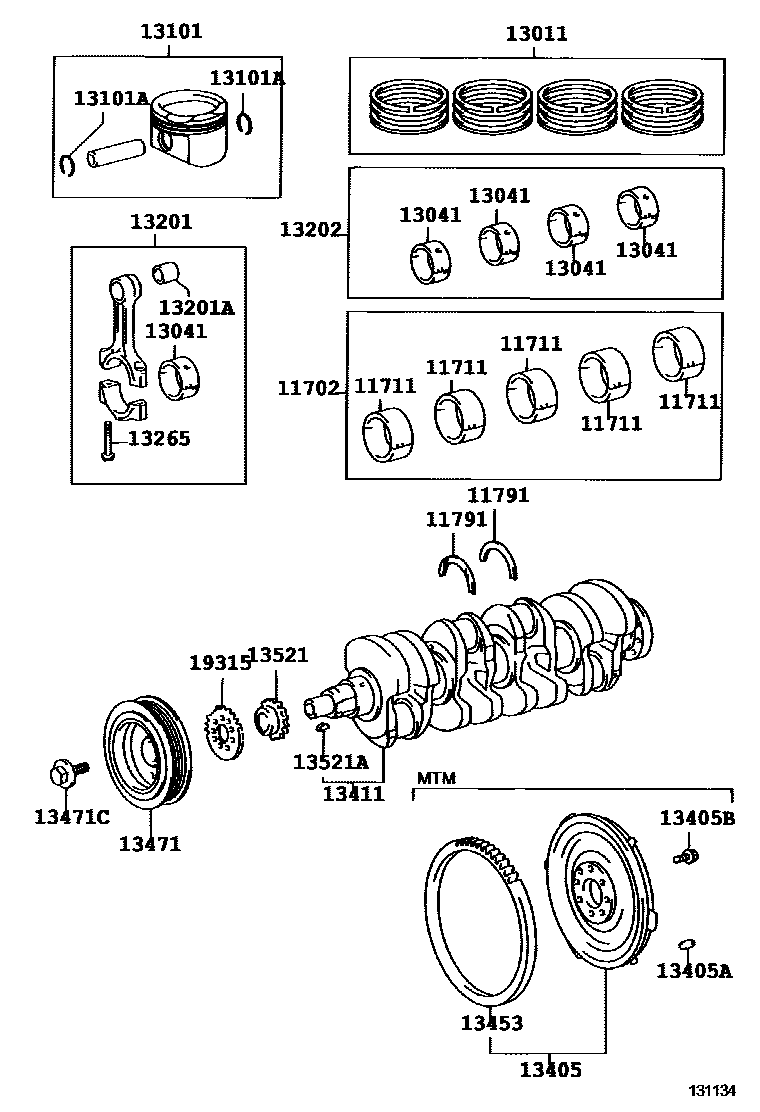

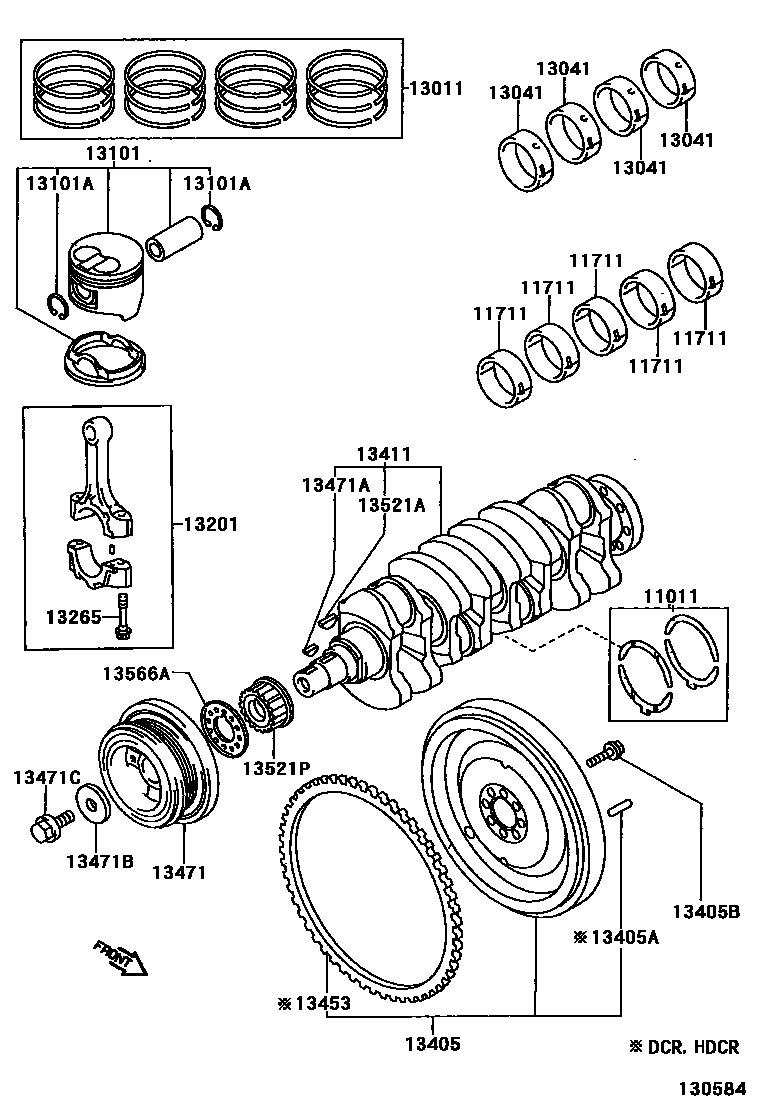

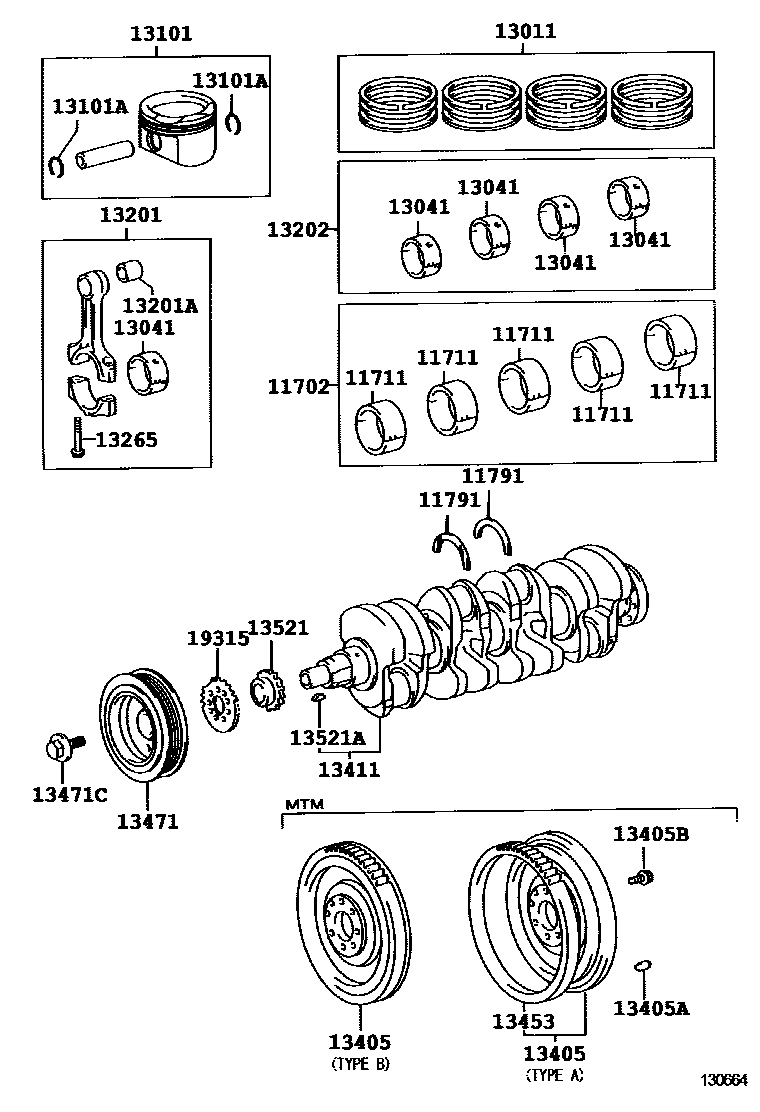

Toyota COROLLA Crankshaft & Piston — Figure 1301
Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-64010 · 11012-64010 · 11013-64010 |
| 11702 | crankshaft bearing assembly | 11704-21010 · 11704-21020 · 11704-22011 · 11704-22021 · 11704-22030 · 11704-88600 |
| 11711 | crankshaft bearings | 11701-0D020 · 11701-22010 · 11701-88600 |
| 11791 | Thrust washer on crankshaft | 11791-0D020 · 11791-22020 · 11791-33030 · 11792-33030 · 11793-33030 |
| 13011 | Piston ring assembly | 13011-0D020 · 13011-0D030 · 13011-0D040 · 13011-0D070 · 13011-0D110 · 13011-22070 · 13011-22100 · 13011-22170 · 13011-22200 · 13011-22220 · 13011-27030 · 13011-27040 · 13011-33060 · 13011-33070 · 13011-88601 |
| 13041 | Connecting rod bearing | 13041-0D041 · 13041-22023 · 13041-88600 |
| 13101 | Piston sub-assembly with pin | 13101-0D110 · 13101-0D111 · 13101-0N030 · 13101-22051 · 13101-22052 · 13101-27070 · 13101-88601 |
| 13101A | Bore snap ring (for piston pin) | 90080-52139 · 90520-20064 · 90520-32013 |
| 13201 | Connecting rod sub-assembly | 13201-09130 · 13201-09140 · 13201-09490 · 13201-09580 · 13201-29075 · 13201-29145 · 13201-39055 |
| 13201A | Bushing (for connecting rod small end) | 90999-73140 · 90999-73142 · 90999-73147 |
| 13202 | Connecting rod bearing assembly | 13204-22023 · 13204-22024 · 13204-33041 · 13204-88600 |
| 13265 | Connecting rod bolts | 13265-21020 · 13265-22020 · 13265-22030 · 13265-46020 |
| 13405 | Flywheel sub-assembly | 13405-0D010 · 13405-0D020 · 13405-27010 · 13405-33020 · 13405-88600 · 13450-0G010 · 13450-0G011 · 13451-22020 · 13451-22030 |
| 13405A | Direct sales (for flywheel) | 90250-08054 · 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10071 · 90148-10004 · 90910-02103 · 90913-01024 |
| 13407 | Crankshaft damper sub-assembly | 13407-33030 |
| 13411 | crankshaft | 13401-0D030 · 13401-0D040 · 13401-22030 · 13401-22040 · 13401-22051 · 13401-27011 · 13401-33011 |
| 13411C | Direct sales (for crankshaft) | 95161-30416 |
| 13453 | flywheel ring gear | 13453-10010 · 13453-55010 · 13453-64050 |
| 13471 | crankshaft pulley | 13470-0D040 · 13470-0G010 · 13470-0G011 · 13470-22041 · 13470-27010 · 13470-88600 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-05007 |
| 13471B | Flat Washer (for crankshaft pulley assembly) | 90560-16026 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-16065 · 90119-12127 · 90119-12351 · 90119-14106 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0D020 · 13521-22020 · 13521-33020 |
| 13521A | Key (for crankshaft timing gear) | 90280-06001 · 95161-30416 |
| 13521P | crankshaft timing pulley | 13521-27010 |
| 13566A | timing belt guide | 13566-64011 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-22020 · 19315-22030 · 19315-33010 |
