Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 4 images and 11 PNC and OE references.

Toyota COROLLA Ventilation Hose EPC diagram — 120216
Ventilation Hose — 120216 (200111 – 999999)

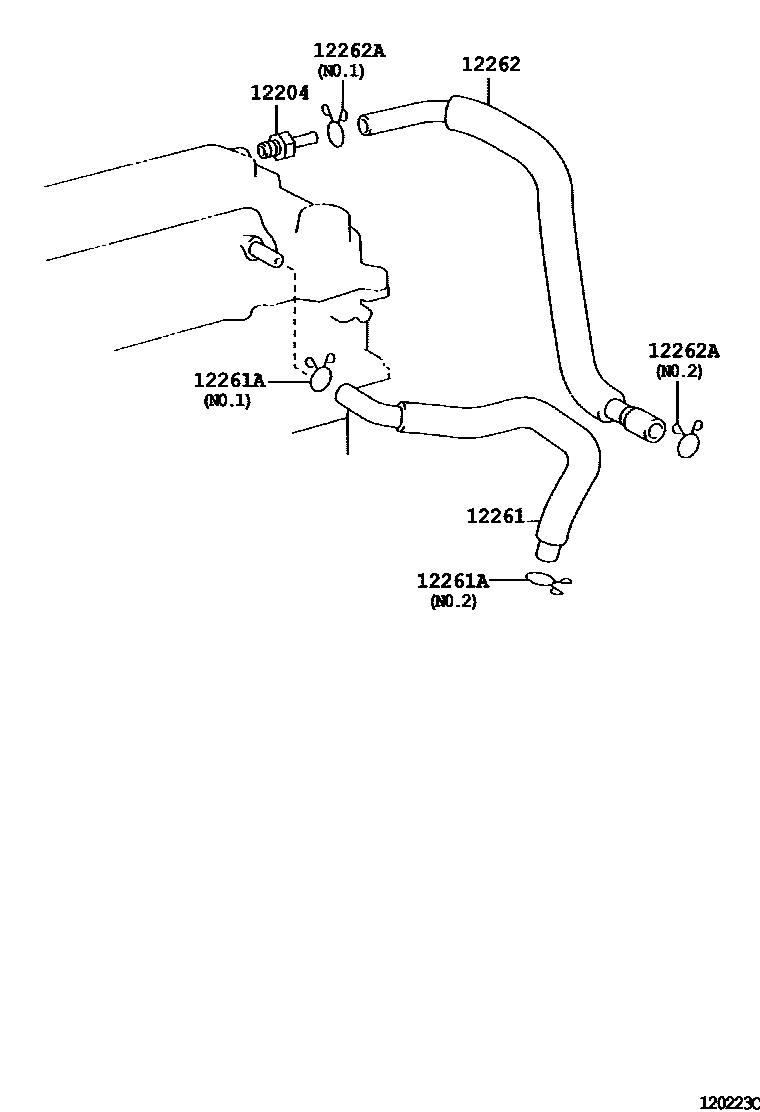

Toyota COROLLA Ventilation Hose EPC diagram — 120223C
Ventilation Hose — 120223C (200111 – 999999)

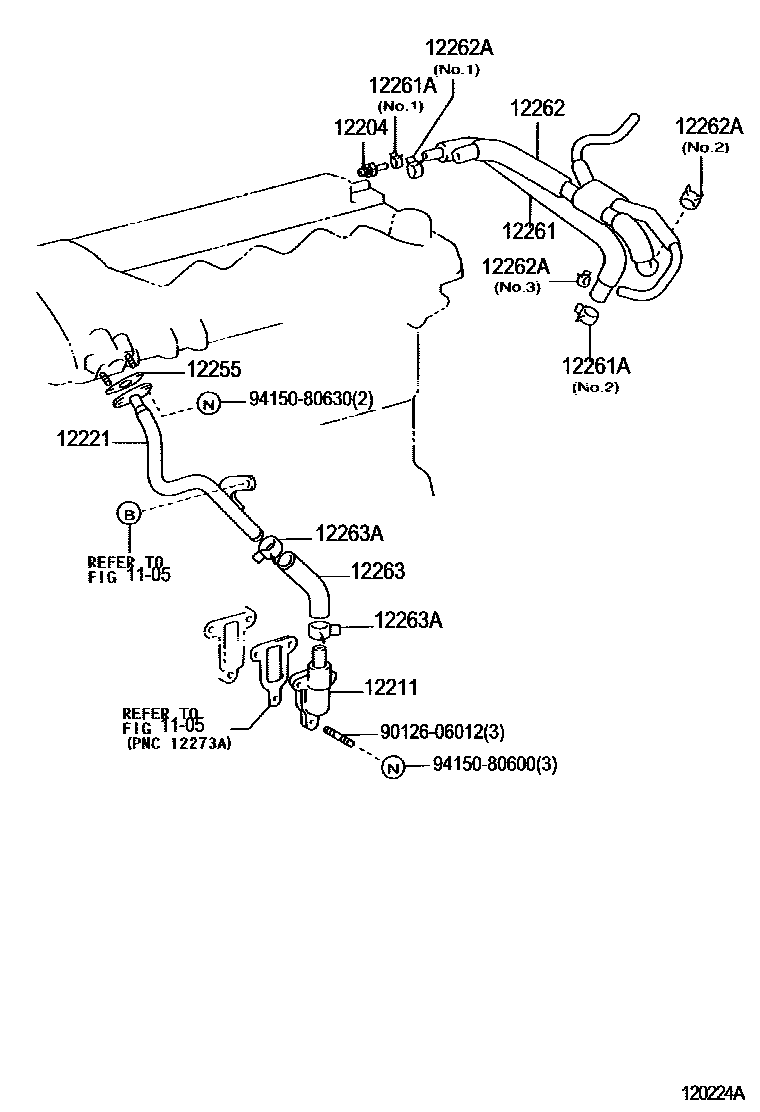

Toyota COROLLA Ventilation Hose EPC diagram — 120224A
Ventilation Hose — 120224A (200111 – 999999)

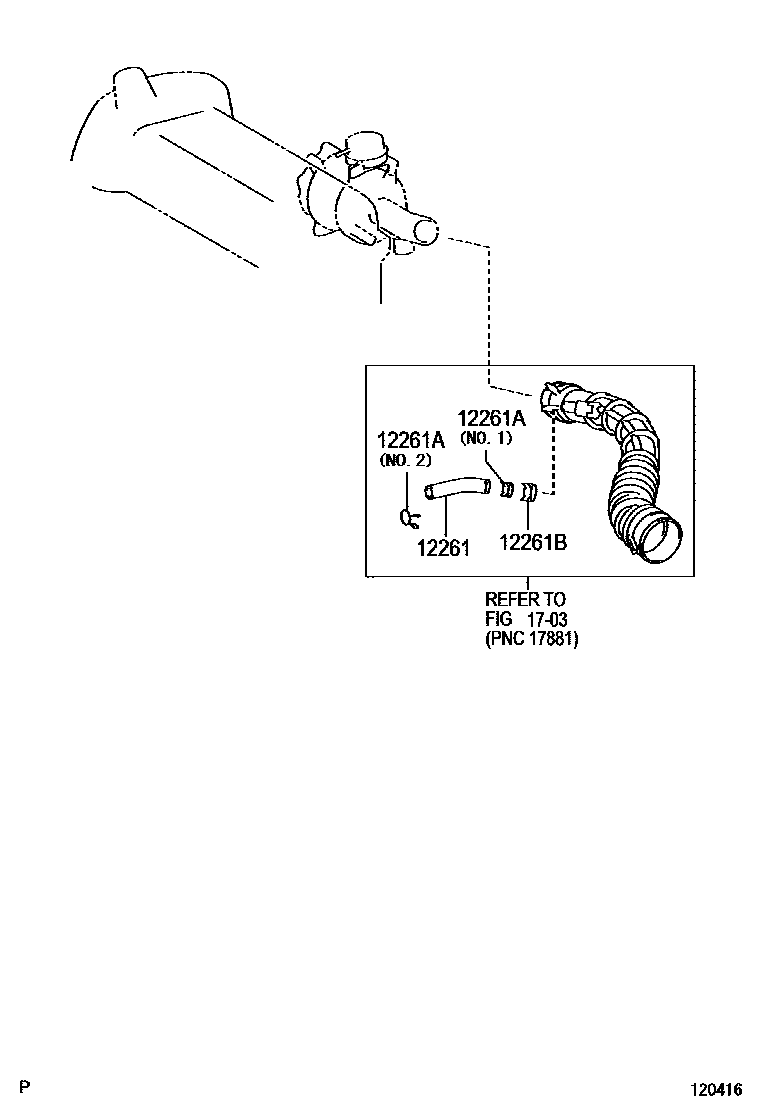

Toyota COROLLA Ventilation Hose EPC diagram — 120416
Ventilation Hose — 120416 (200408 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-22050 · 12204-22051 · 12204-88600
12211Ventilation box No. 112211-88600
12221Ventilation duct No. 112221-88601
12255Ventilation padding12255-88600
12261Ventilation Hose12261-0D070 · 12261-22050 · 12261-22070 · 12261-27030 · 12261-27060 · 12261-33060 · 12261-88601
12261AClip or clip (for vent hose)90466-23004 · 90466-24001 · 90467-14037 · 90467-20009 · 90467-21004 · 90467-21152 · 90467-23002 · 96134-52600
12261BClip or clip (for vent hose)96134-52600
12262Ventilation hose No. 212262-0D080 · 12262-0D100 · 12262-22060 · 12262-22080 · 12262-22090 · 12262-88602
12262AClamp (for vent hose No. 2)90467-13103 · 90467-19003 · 90467-19019 · 90467-21010 · 96132-51300
12263No. 3 ventilation hose12263-88600
12263AClip (for ventilation hose)90467-31003
