Toyota COROLLA Engine Mounting — Figure 1107

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 8 images and 17 PNC and OE references.

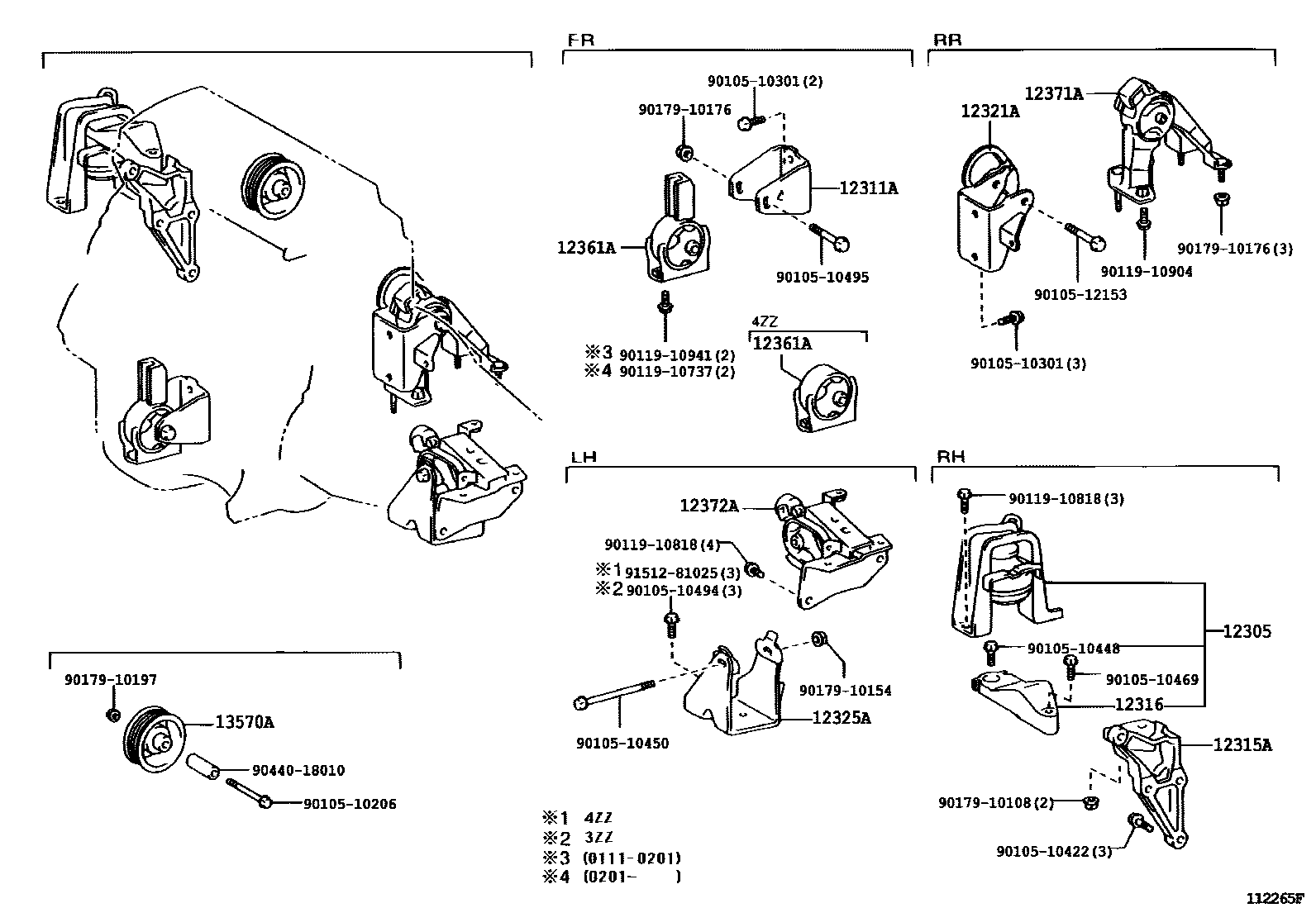

Toyota COROLLA Engine Mounting EPC diagram — 112265F — Engine Mounting — 112265F (200111 – 200208)

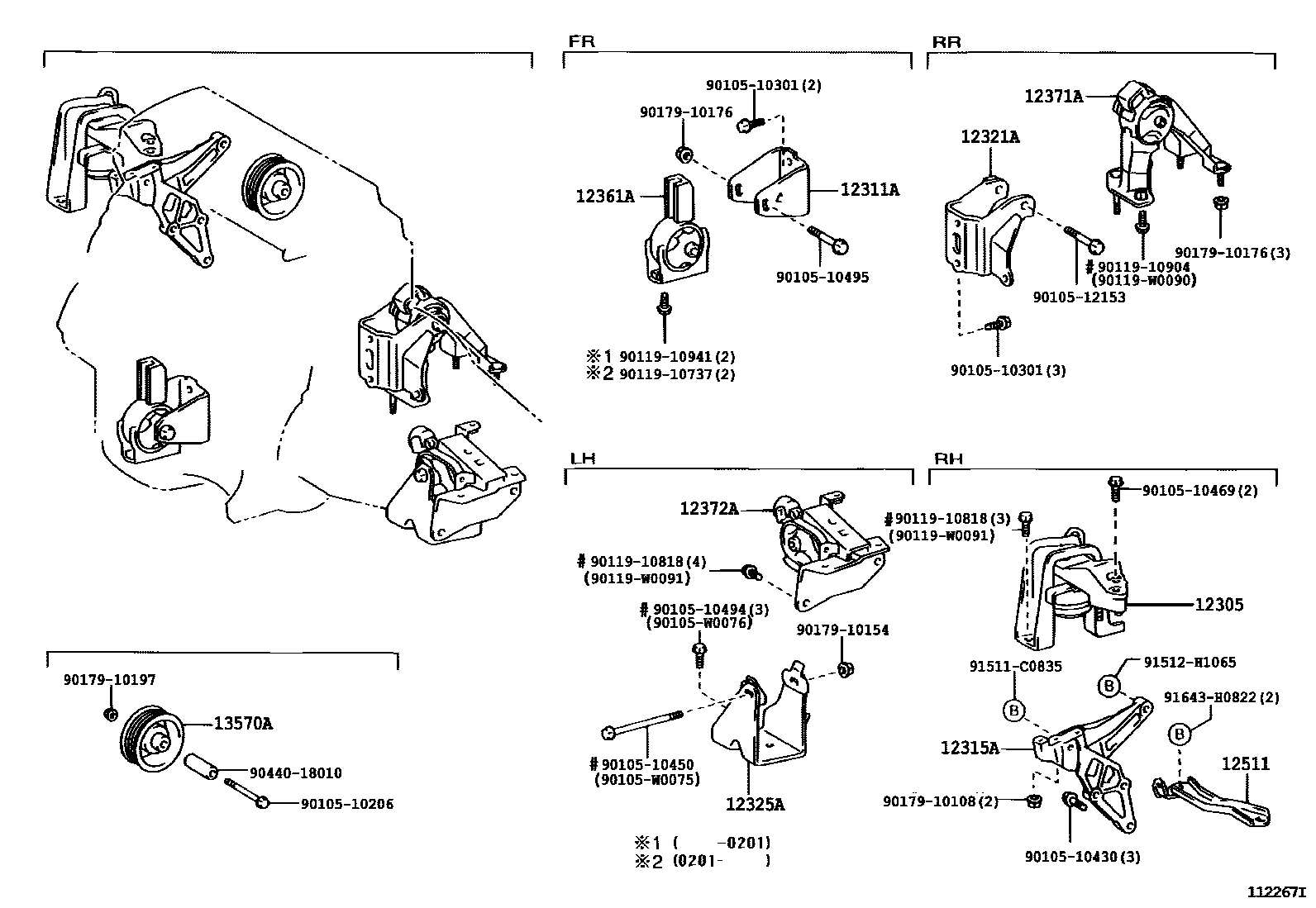

Toyota COROLLA Engine Mounting EPC diagram — 112267I — Engine Mounting — 112267I (200111 – 999999)

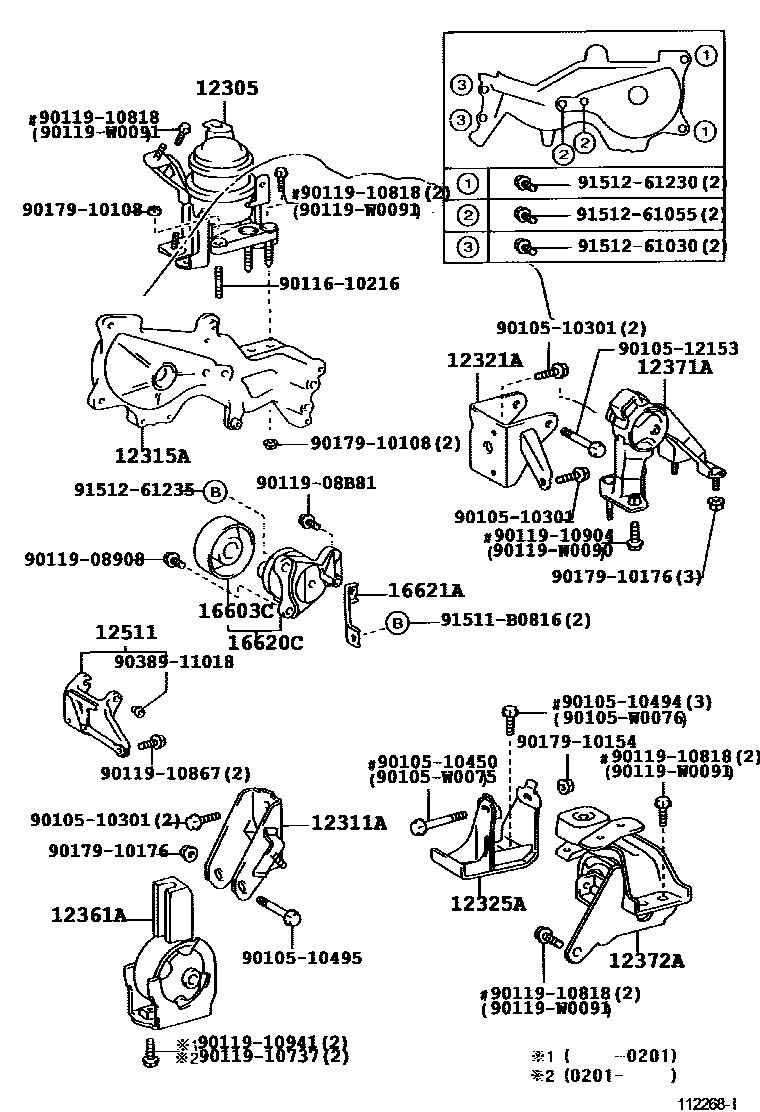

Toyota COROLLA Engine Mounting EPC diagram — 112268I — Engine Mounting — 112268I (200111 – 200405)

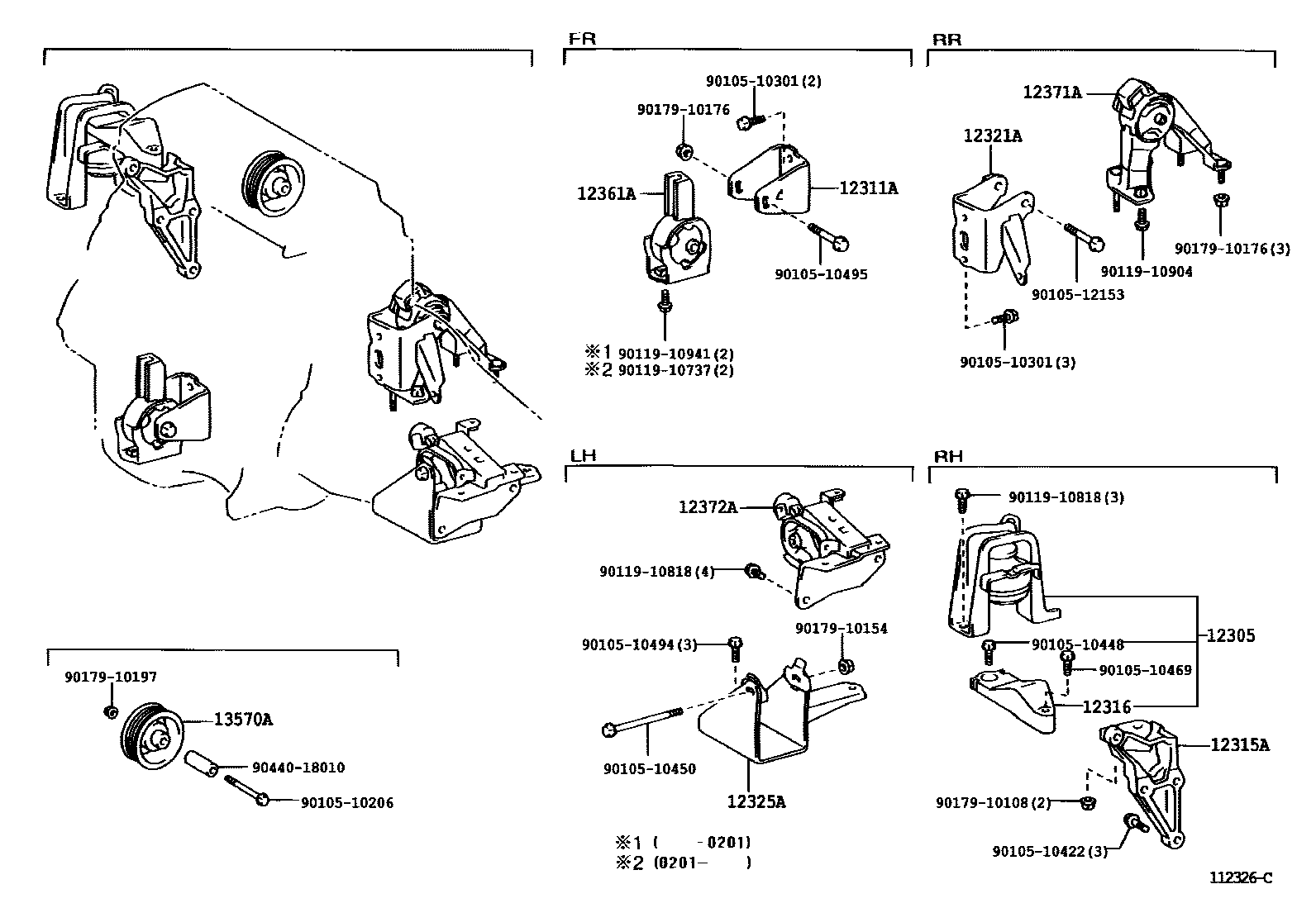

Toyota COROLLA Engine Mounting EPC diagram — 112326C — Engine Mounting — 112326C (200111 – 200208)

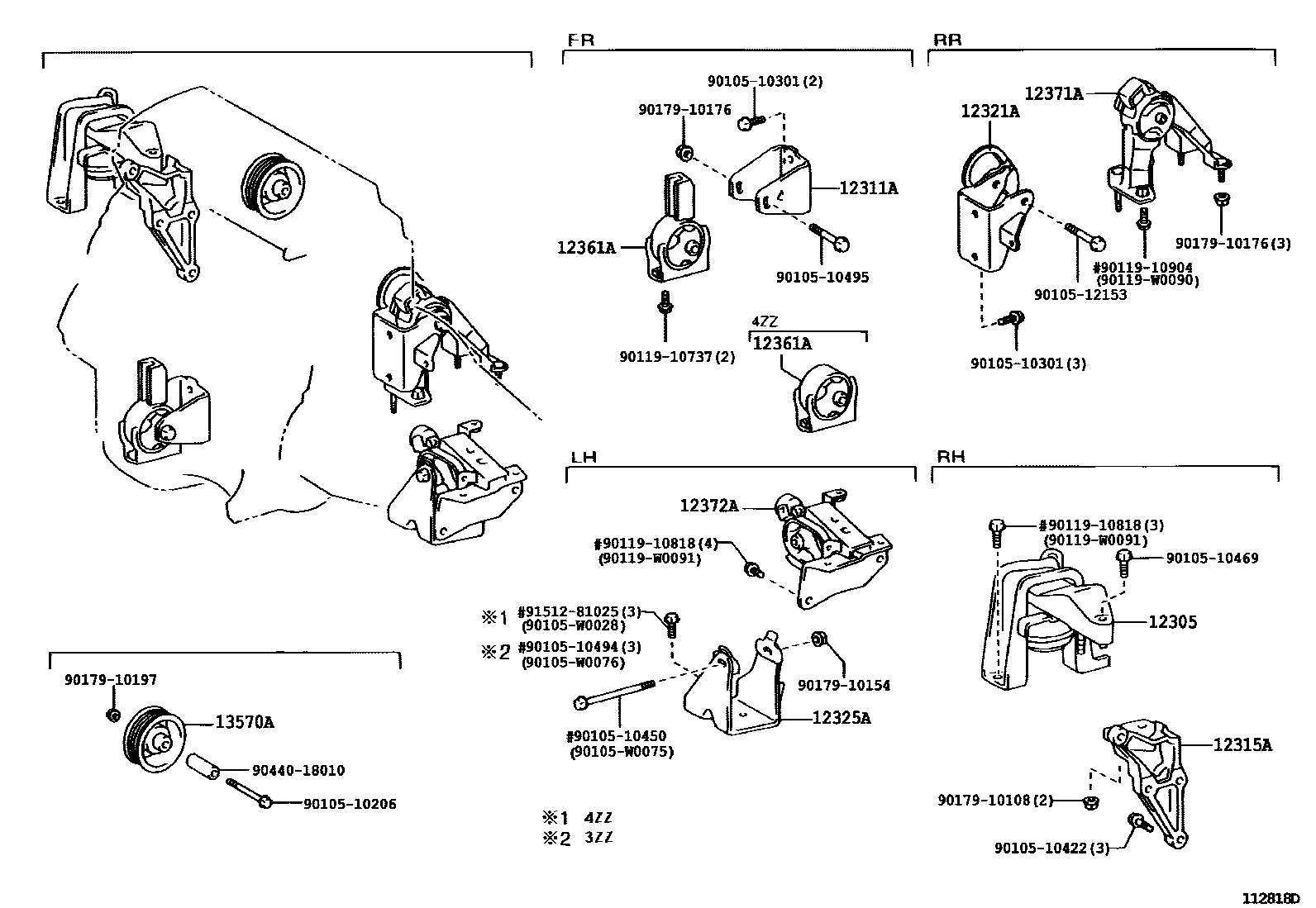

Toyota COROLLA Engine Mounting EPC diagram — 112818D — Engine Mounting — 112818D (200208 – 999999)

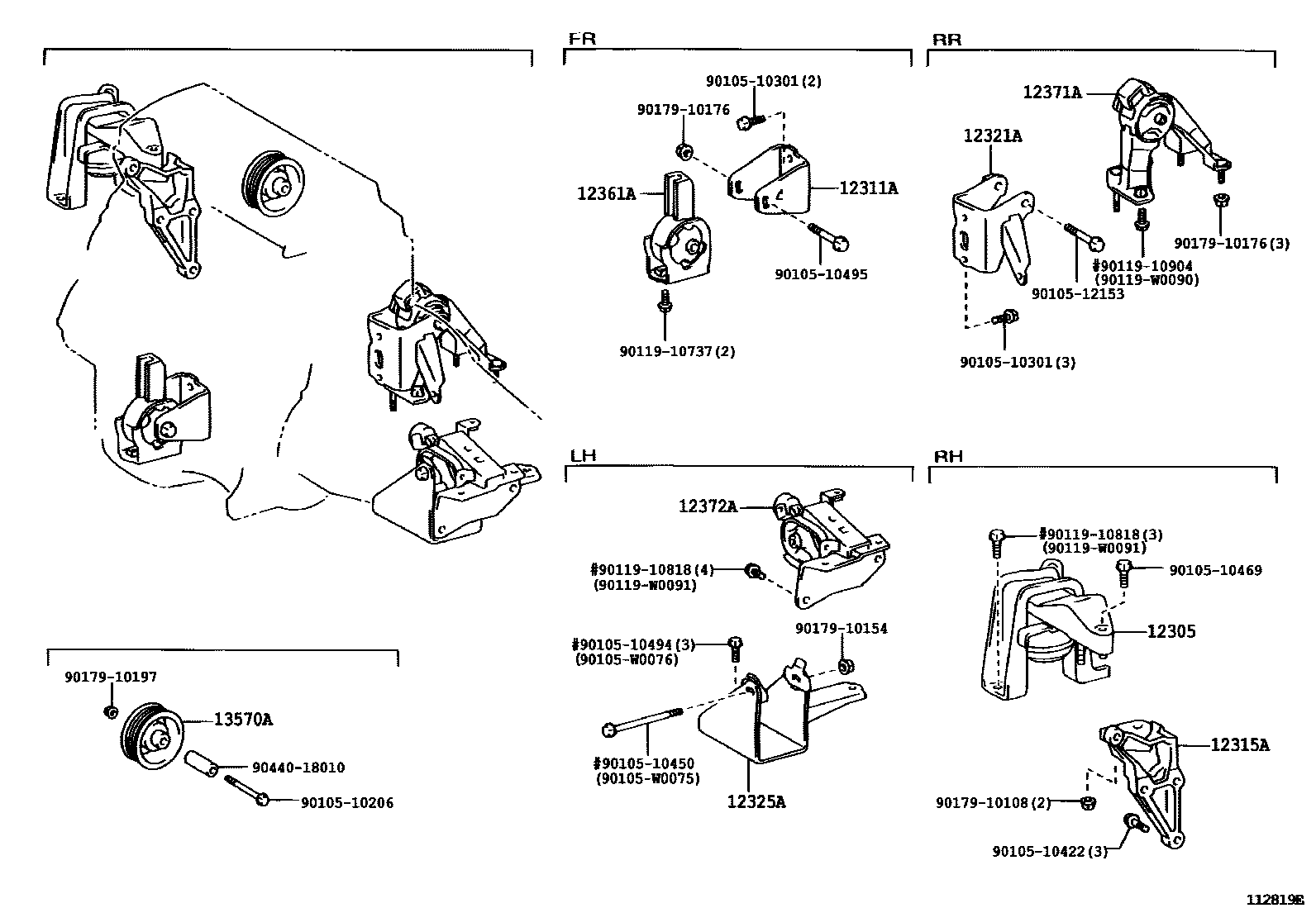

Toyota COROLLA Engine Mounting EPC diagram — 112819E — Engine Mounting — 112819E (200208 – 999999)

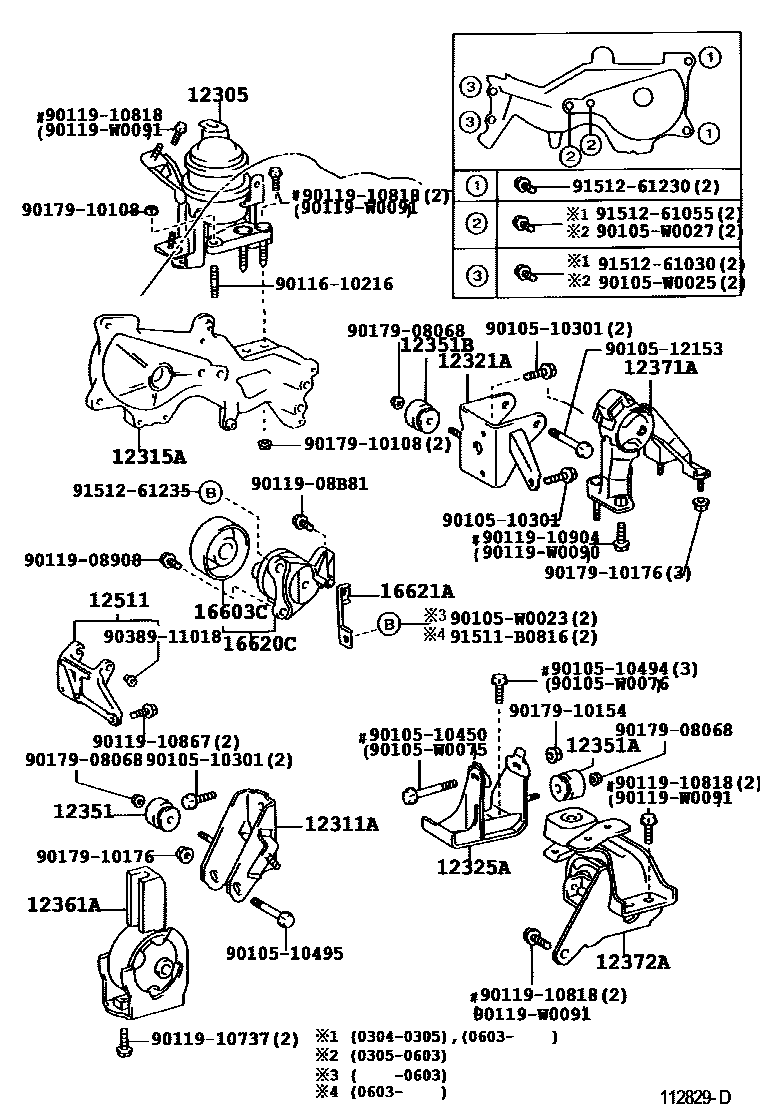

Toyota COROLLA Engine Mounting EPC diagram — 112829D — Engine Mounting — 112829D (200304 – 999999)

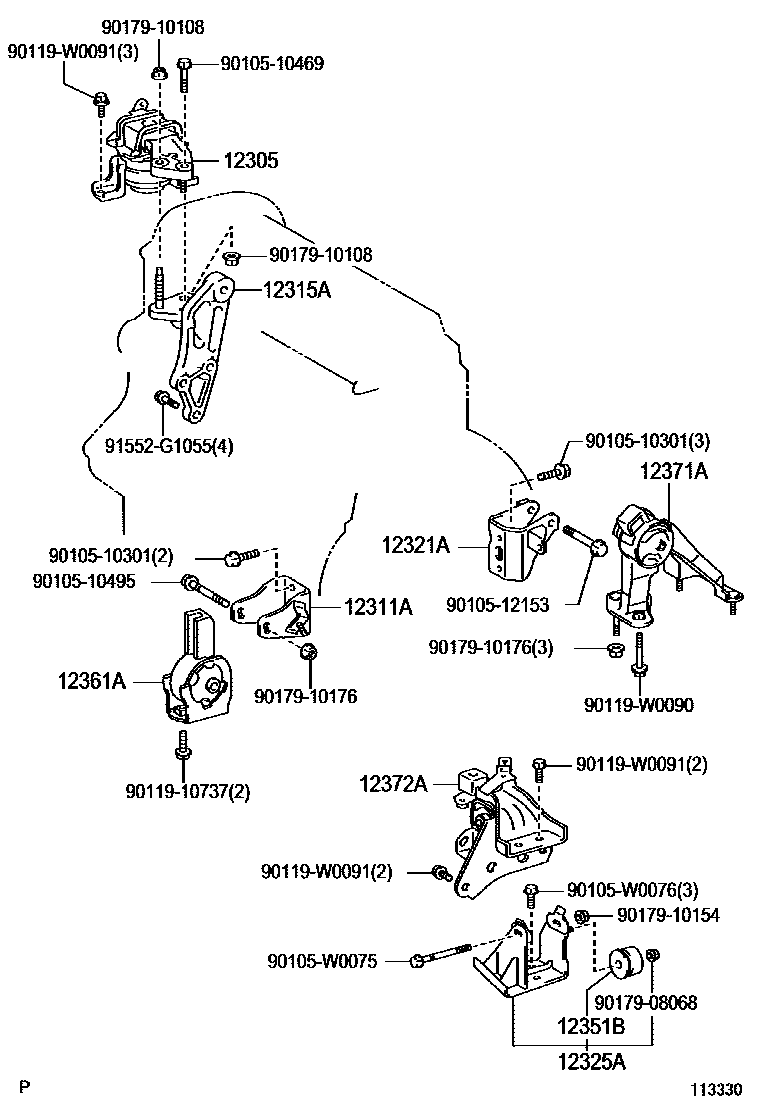

Toyota COROLLA Engine Mounting EPC diagram — 113330 — Engine Mounting — 113330 (200408 – 999999)

PNC and OE references

PNC	Part name	OE numbers
12305	Engine right side mounting vibration isolation pad sub-assembly	12305-0D050 · 12305-0D051 · 12305-22150 · 12305-22180 · 12305-22250 · 12305-27020 · 12305-27050 · 12305-33060
12311A	Engine front mounting bracket (for transverse engine)	12311-0D050 · 12311-0D120 · 12311-0G010 · 12311-22120 · 12311-27020
12315A	Engine right side mounting bracket (for transversely mounted engine)	12315-0D040 · 12315-0D070 · 12315-0G010 · 12315-22050 · 12315-22070 · 12315-27030 · 12315-33040
12316	Engine No. 2 right side suspension bracket	12316-22100
12321A	Rear engine mounting bracket (for transverse engine)	12321-0D150 · 12321-0D151 · 12321-0D160 · 12321-0D161 · 12321-0G020 · 12321-0G021 · 12321-22110 · 12321-22120 · 12321-22121 · 12321-22140 · 12321-27030
12325A	Engine left side mounting bracket (for transversely mounted engine)	12304-33010 · 12325-0G010 · 12325-22090 · 12325-22100 · 12325-22120 · 12325-22270 · 12325-27020
12351	engine mount shock absorber	12351-0D020
12351A	Engine mount shock absorber (for vibration isolation pad)	12351-0D030
12351B	engine mount shock absorber	12351-0D020 · 12351-33010
12361A	Engine front mounting vibration isolation pad (for transversely mounted engine)	12361-0D070 · 12361-0D080 · 12361-0D081 · 12361-0D110 · 12361-0D120 · 12361-0D150 · 12361-0G010 · 12361-21040 · 12361-22090 · 12361-27030
12371A	Engine rear mount vibration isolation pad	12371-0D090 · 12371-22130 · 12371-27020 · 12371-33060
12372A	Engine left-side mounting vibration isolation pad (for transversely mounted engines)	12372-0D080 · 12372-0D090 · 12372-27020 · 12372-33020
12511	No. 1 generator bracket	12511-0G010 · 12511-27010 · 12511-88601
13570A	No. 1 poly-ribbed belt idler assembly	13570-22010
16603C	Idler gear sub-assembly	16603-27010 · 16603-27011
16620C	Poly V-belt tensioner assembly	16620-27020 · 16620-27021
16621A	Poly V-belt tensioner bracket	16621-0G010 · 16621-27010
