Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103
Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 12 images and 2 PNC and OE references.

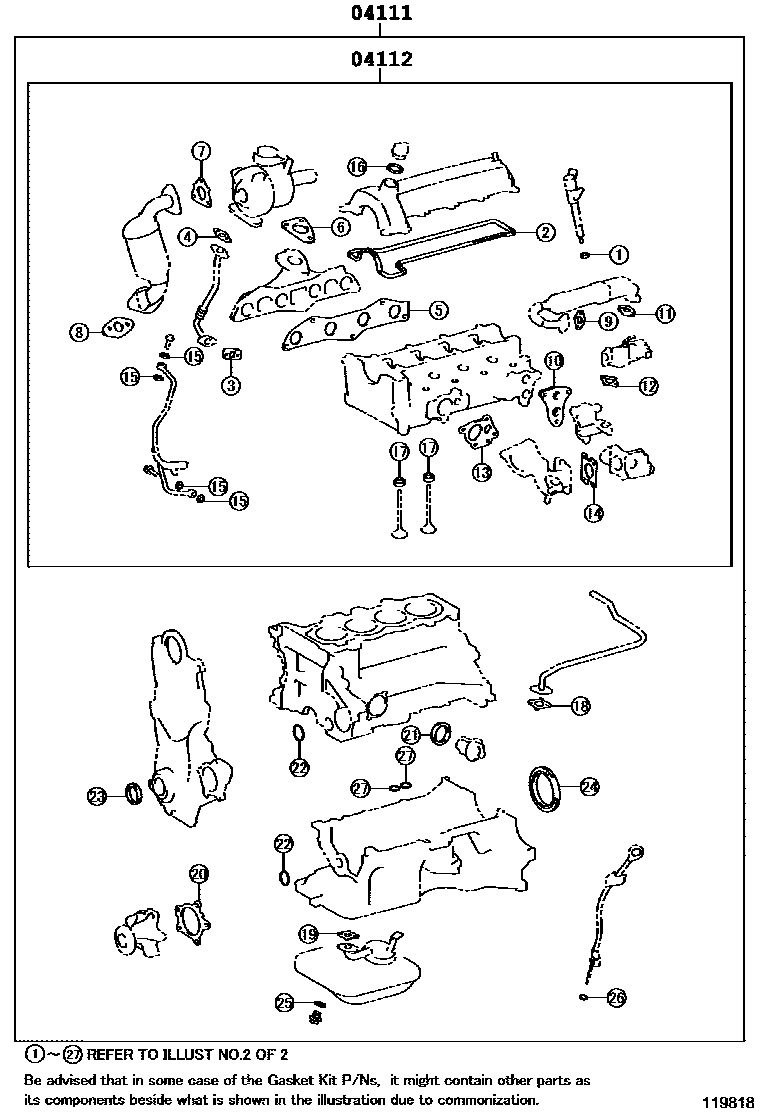

Engine Overhaul Gasket Kit — 119818 (200408 – 999999)

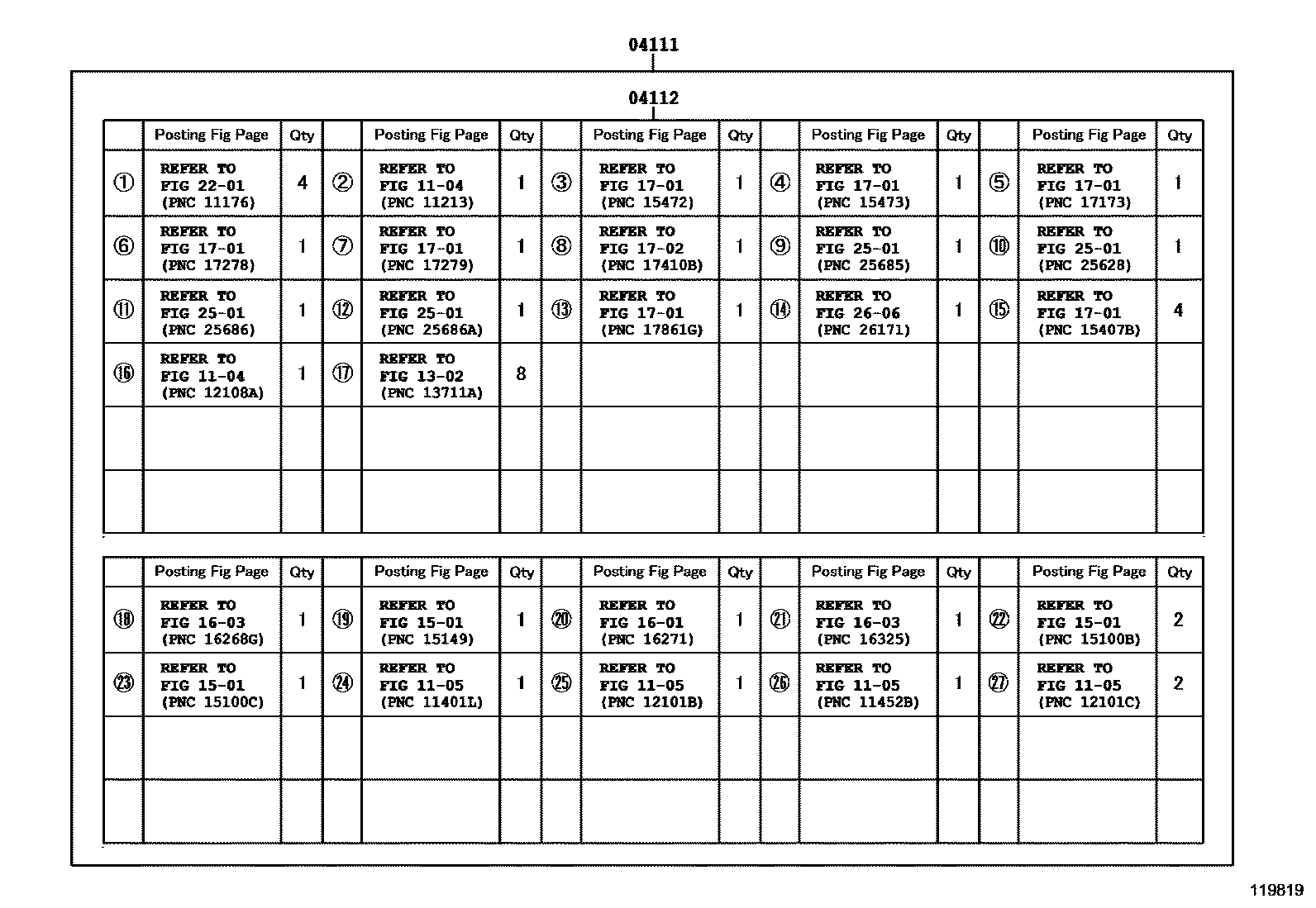

Engine Overhaul Gasket Kit — 119819 (200408 – 999999)

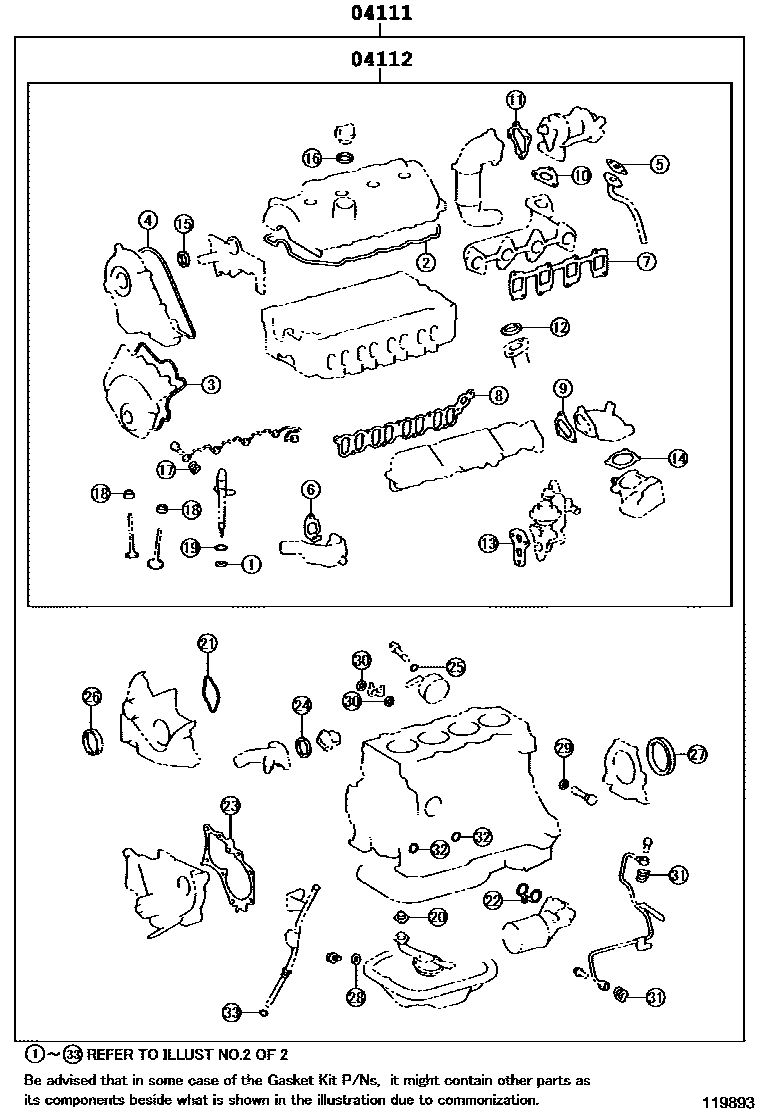

Engine Overhaul Gasket Kit — 119893 (200111 – 200405)

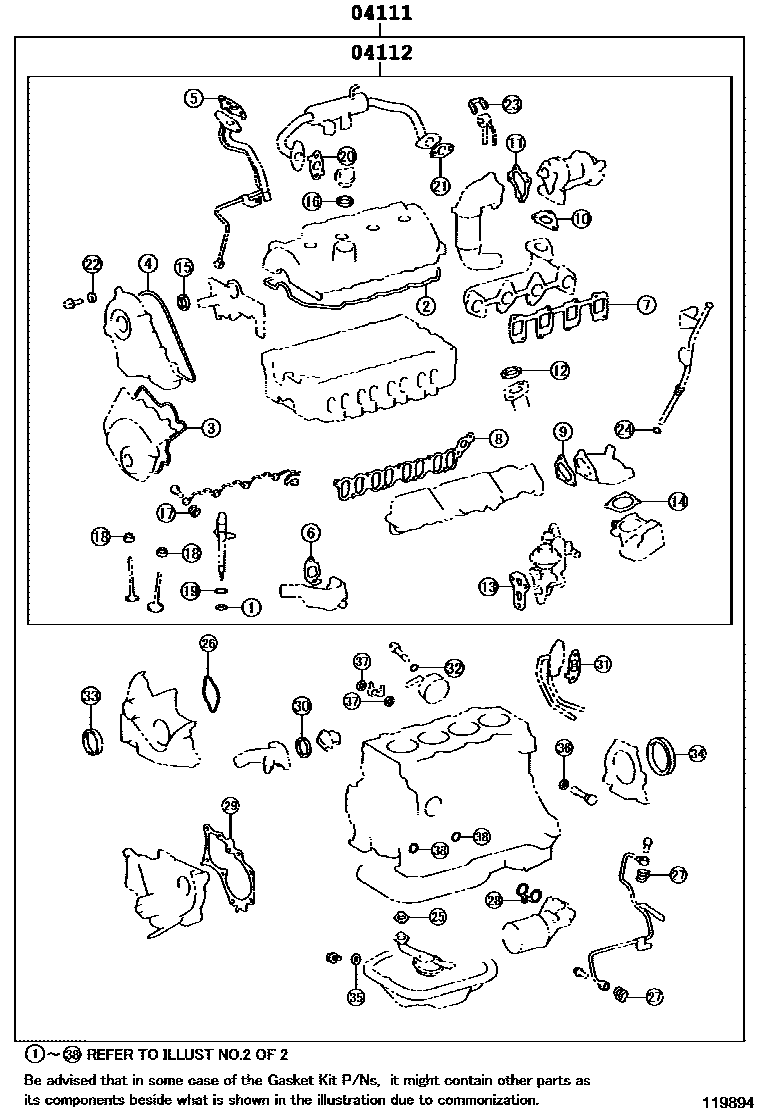

Engine Overhaul Gasket Kit — 119894 (200304 – 999999)

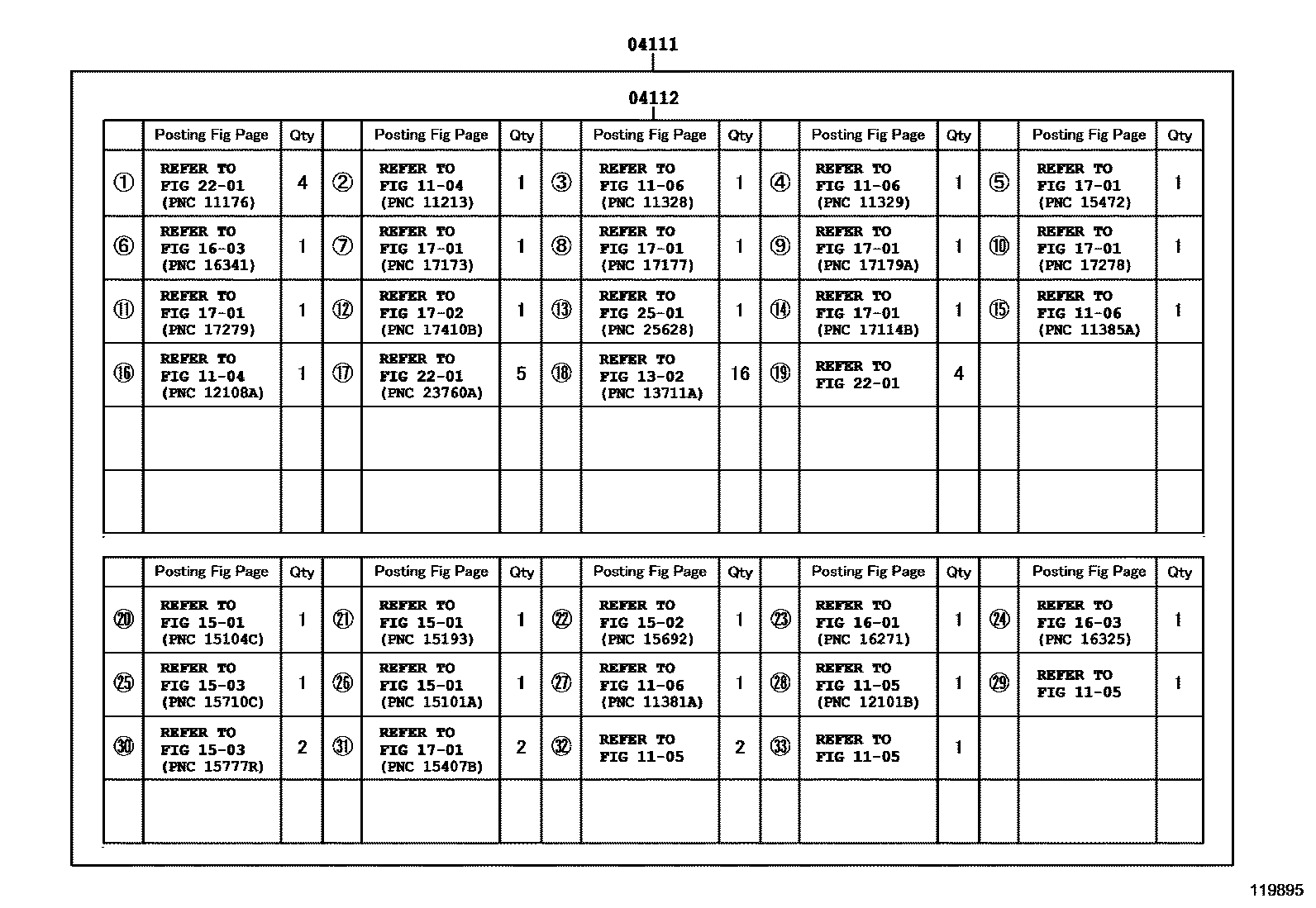

Engine Overhaul Gasket Kit — 119895 (200111 – 200405)

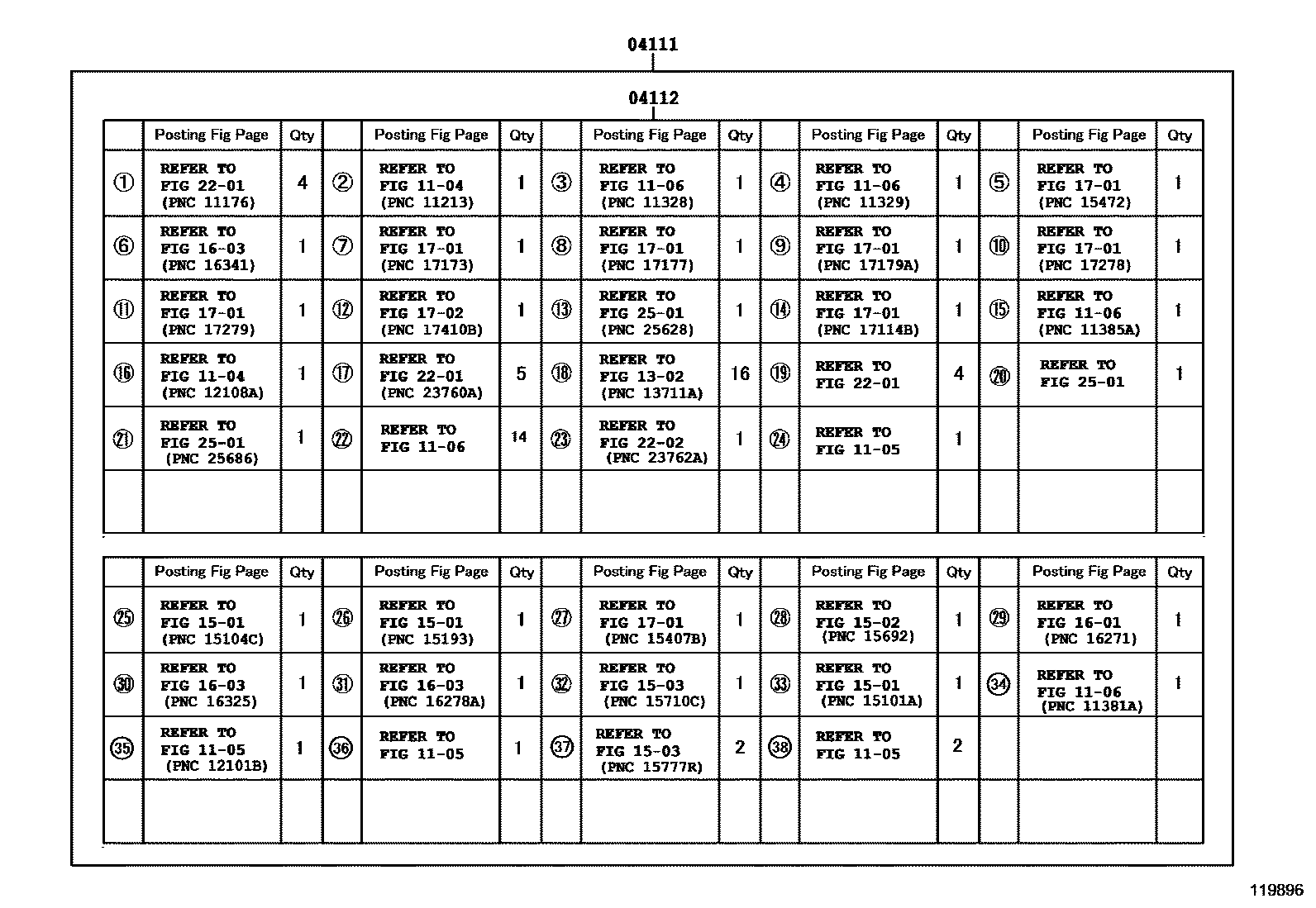

Engine Overhaul Gasket Kit — 119896 (200304 – 999999)

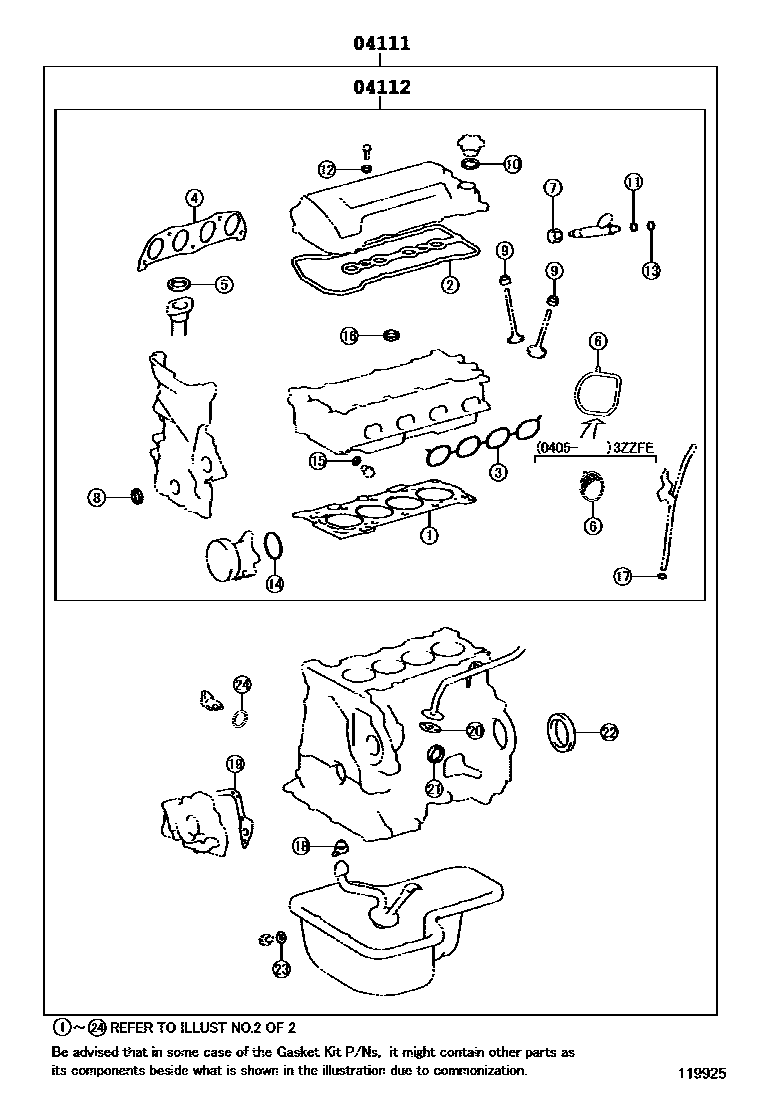

Engine Overhaul Gasket Kit — 119925 (200111 – 999999)

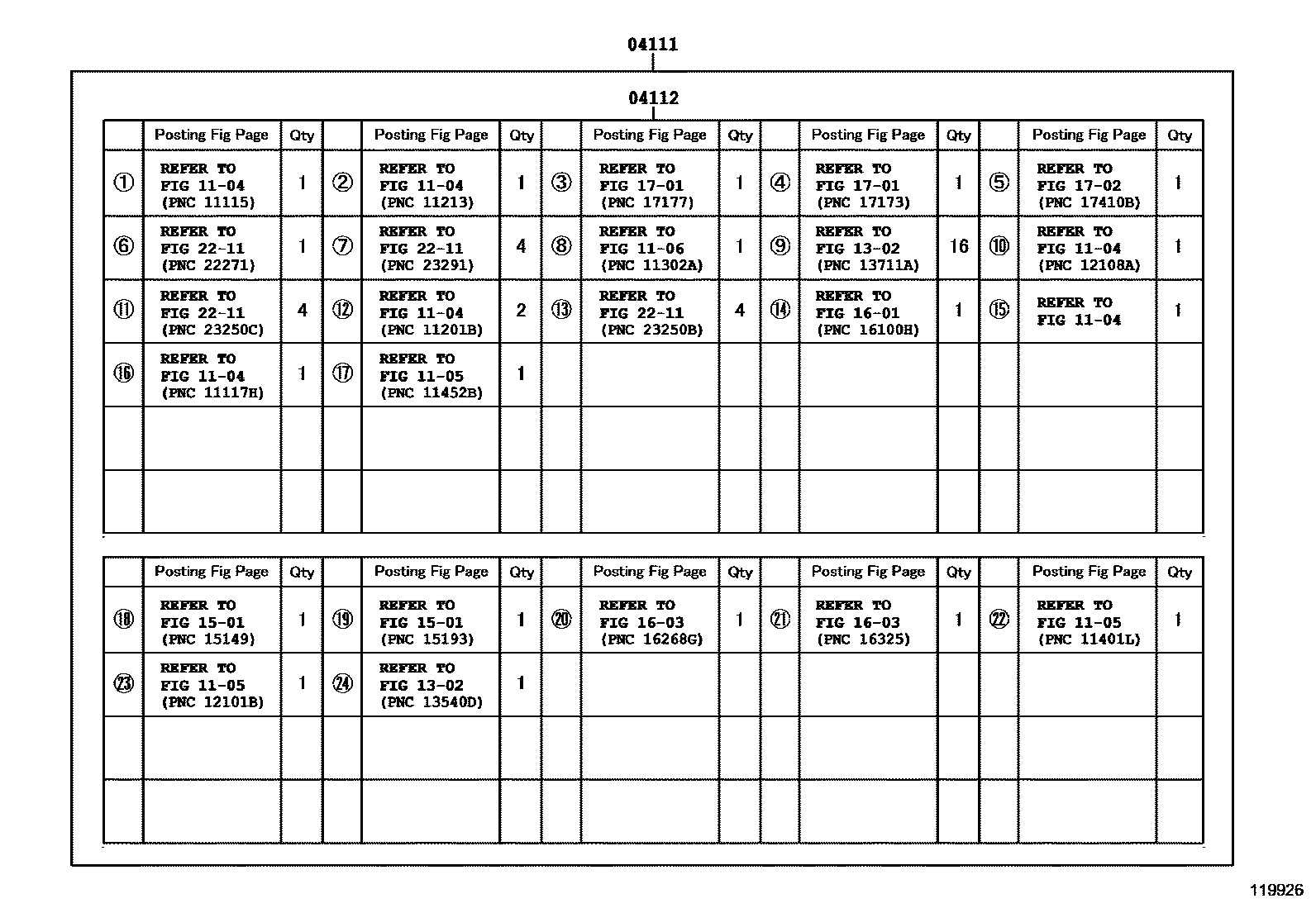

Engine Overhaul Gasket Kit — 119926 (200111 – 999999)

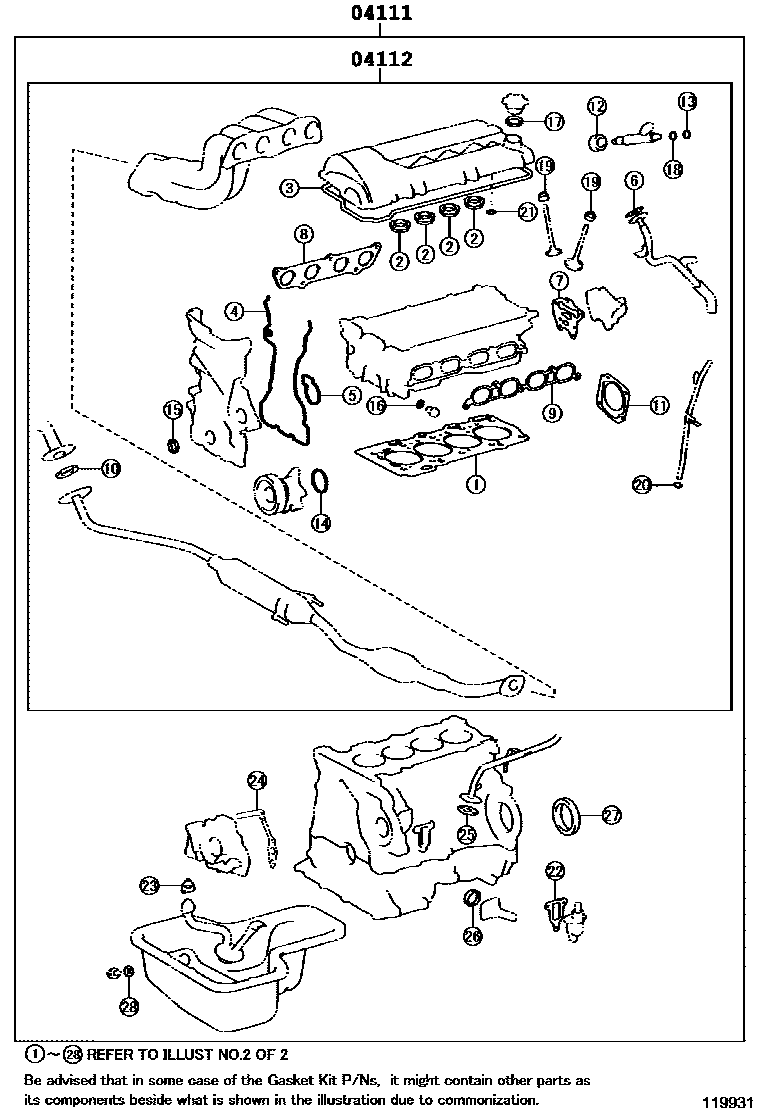

Engine Overhaul Gasket Kit — 119931 (200111 – 200405)

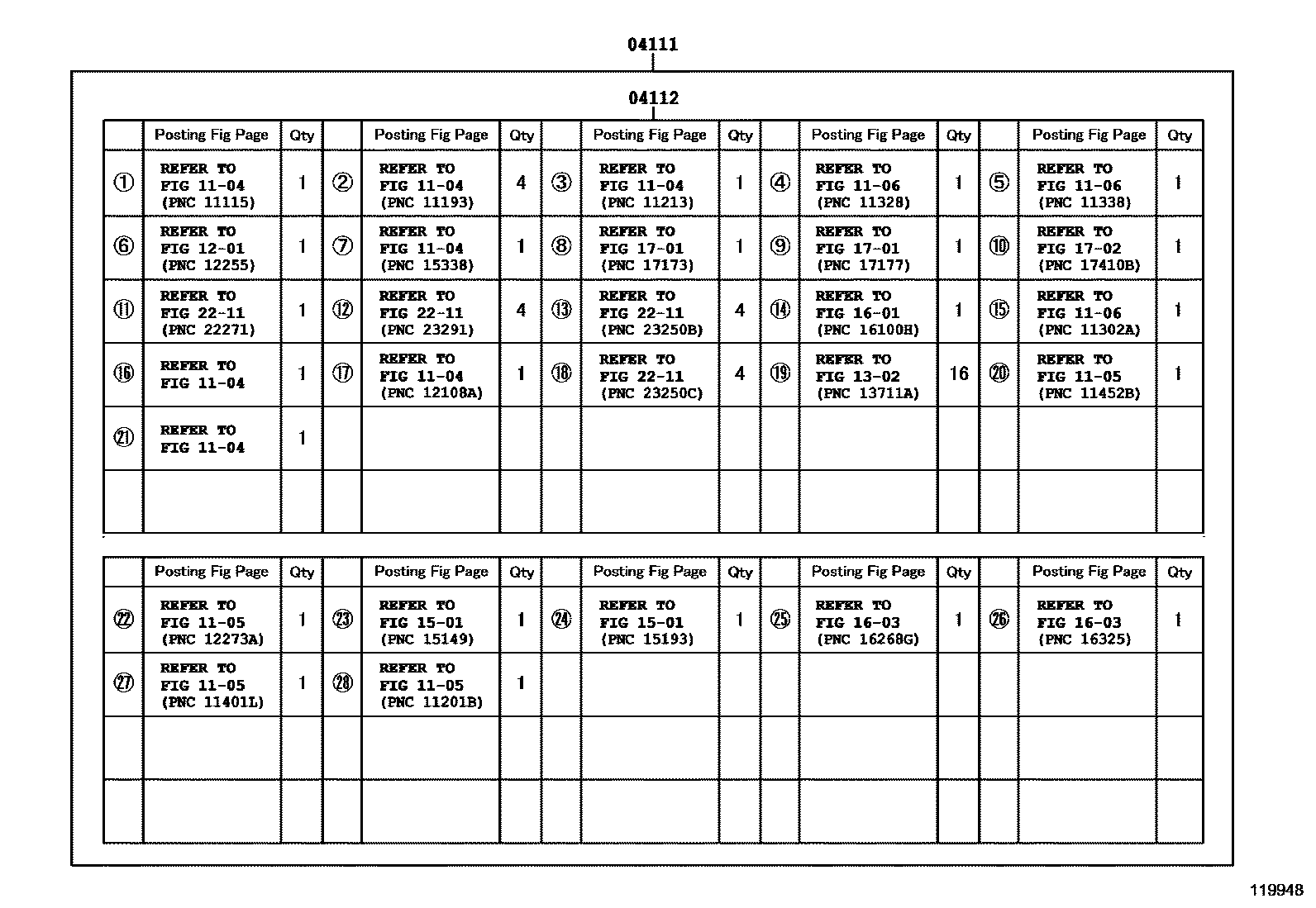

Engine Overhaul Gasket Kit — 119948 (200111 – 200405)

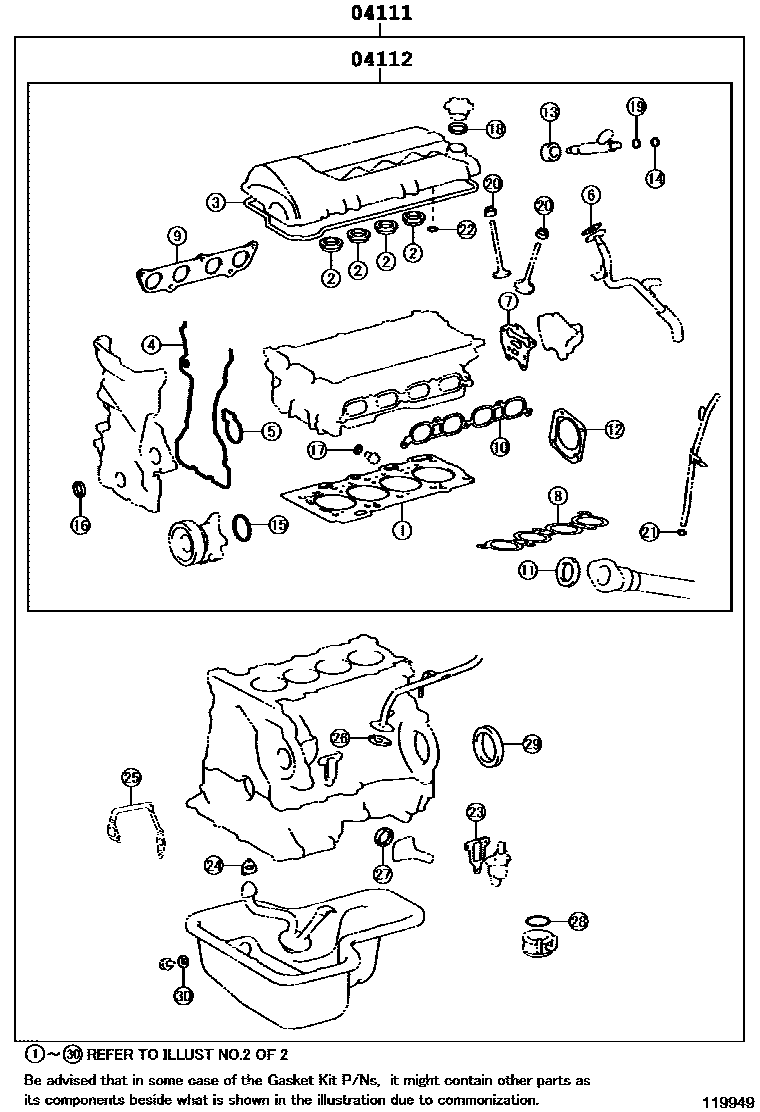

Engine Overhaul Gasket Kit — 119949 (200405 – 999999)

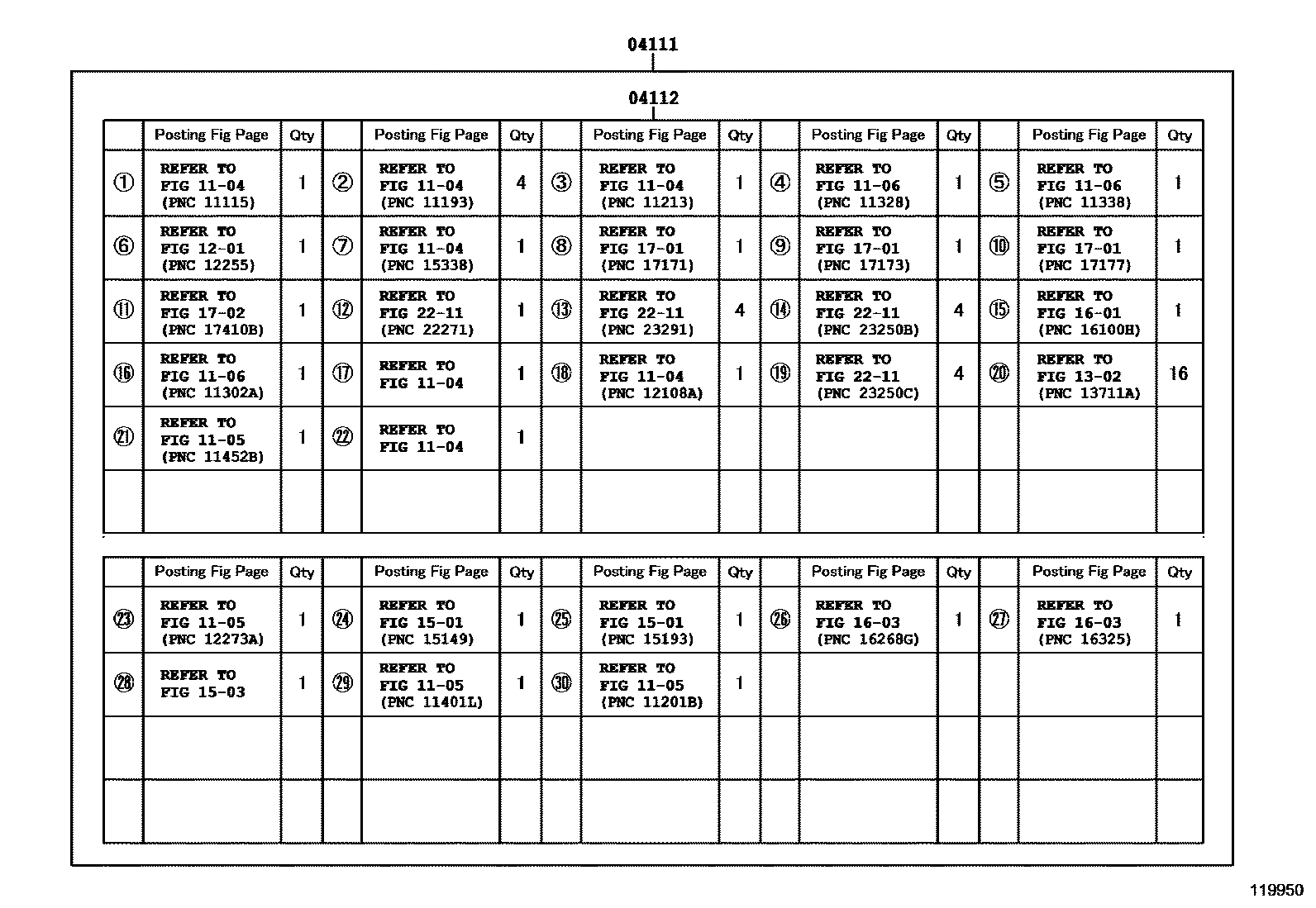

Engine Overhaul Gasket Kit — 119950 (200405 – 999999)PNC and OE references
| PNC | Part name | OE numbers |
|---|
| 04111 | Engine overhaul gasket assembly | 04111-0D100 · 04111-0D101 · 04111-0D102 · 04111-0D282 · 04111-0D410 · 04111-0G010 · 04111-0G100 · 04111-0N030 · 04111-22140 · 04111-22141 · 04111-22720 · 04111-27100 · 04111-27190 |
| 04112 | Engine valve grinding pad assembly | 04112-0D100 · 04112-0D101 · 04112-0D102 · 04112-0D281 · 04112-0D291 · 04112-0G010 · 04112-0G100 · 04112-0N030 · 04112-22140 · 04112-22141 · 04112-22241 · 04112-27090 · 04112-27180 |
