Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

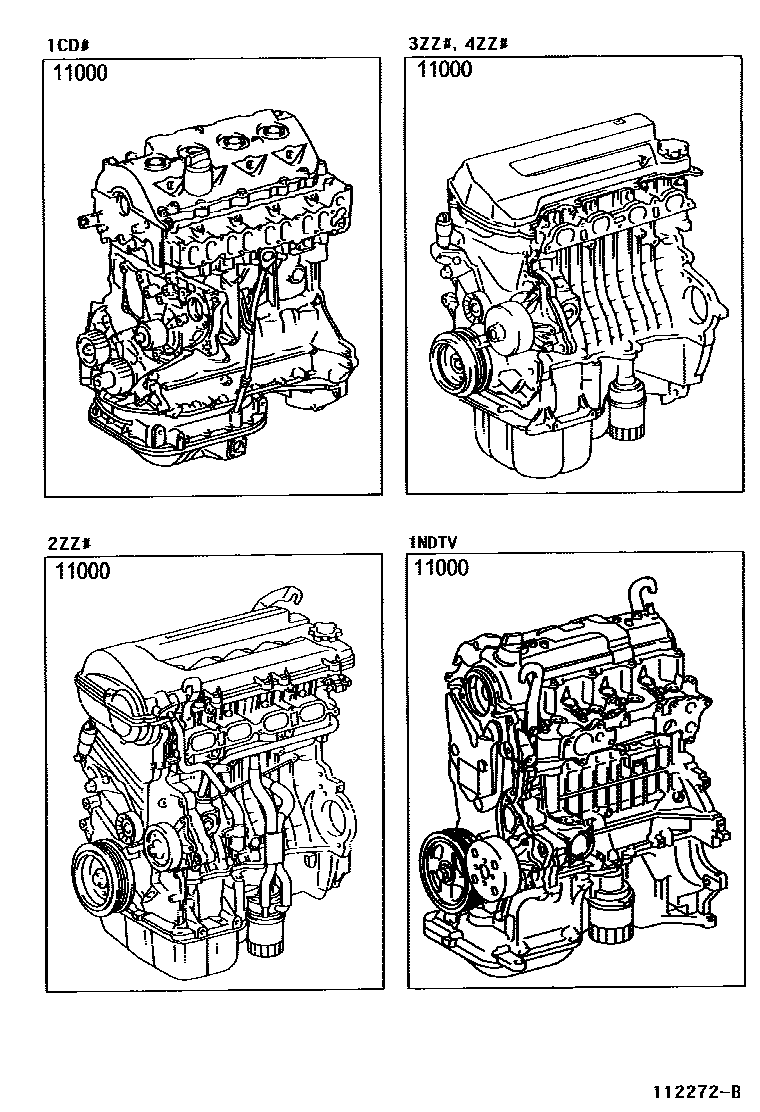

Toyota COROLLA Partial Engine Assembly EPC diagram — 112272B
Partial Engine Assembly — 112272B (200111 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-0D140 · 19000-0D150 · 19000-0G010 · 19000-27200 · 19000-27210 · 19000-27280 · 19000-33210 · 19000-88708 · 19000-88717
