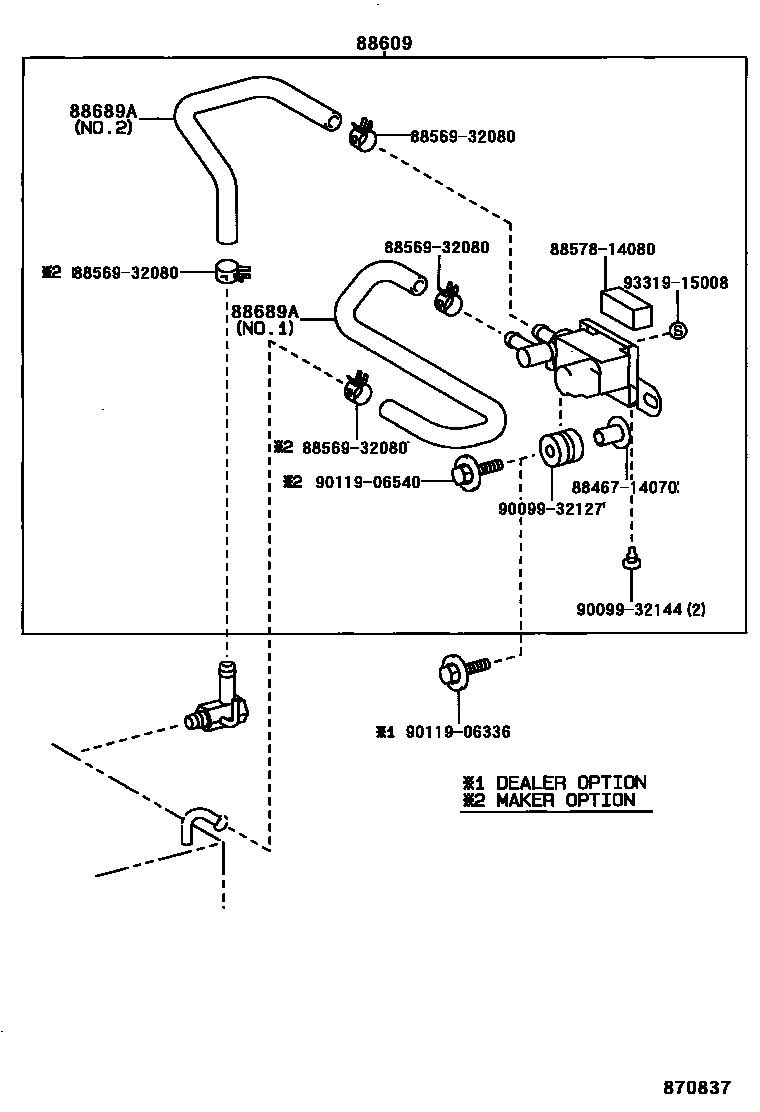

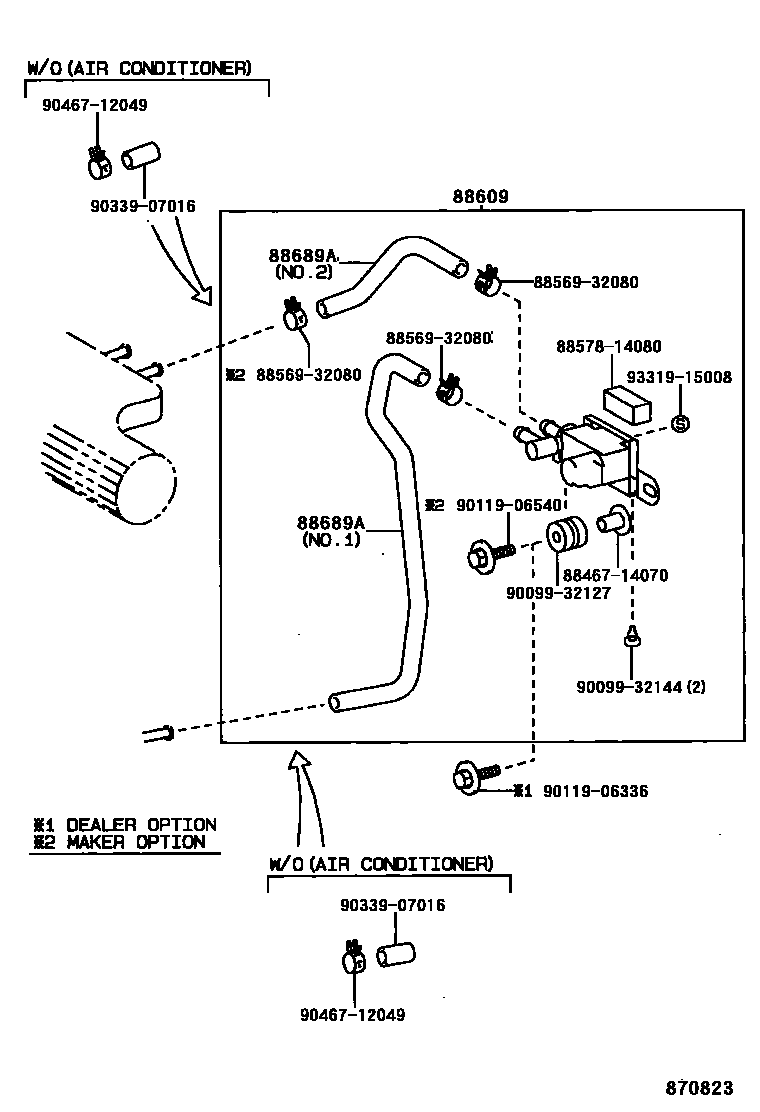

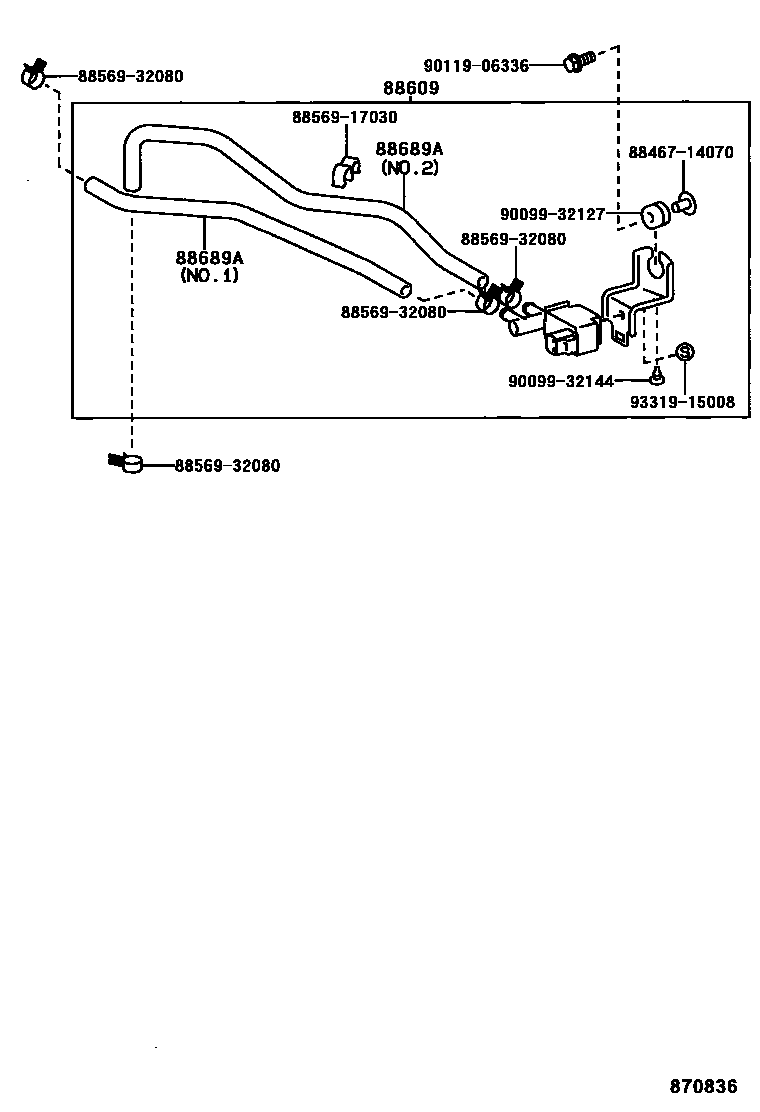

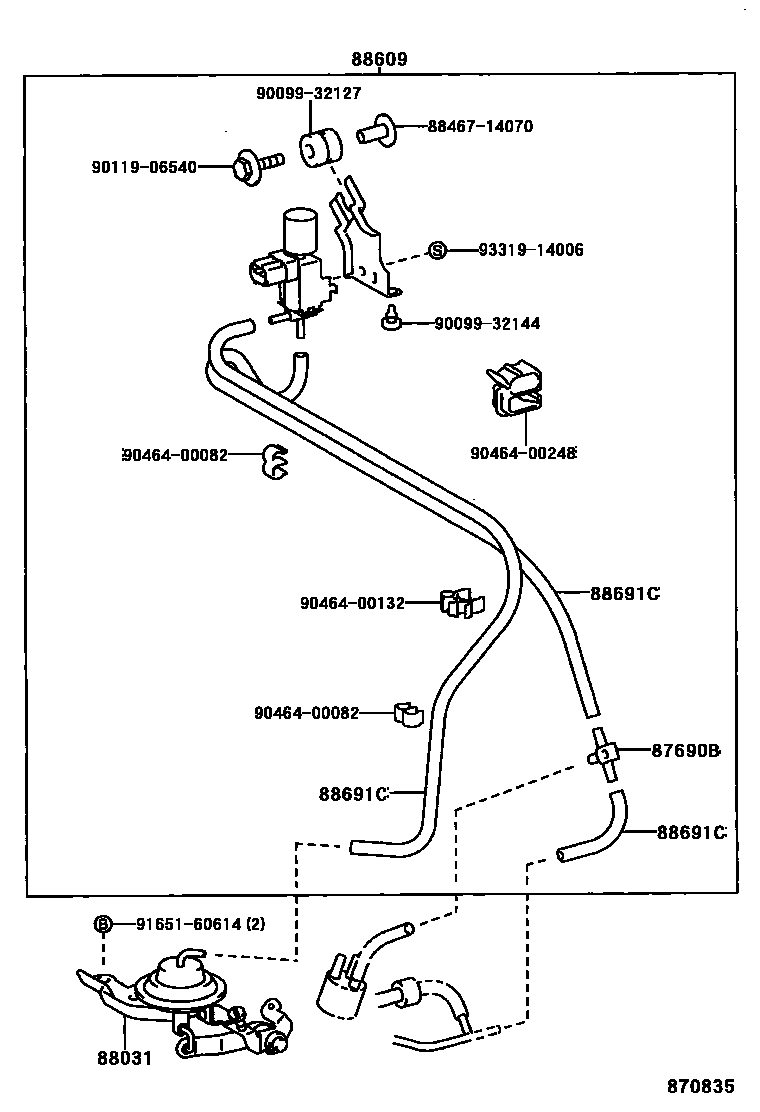

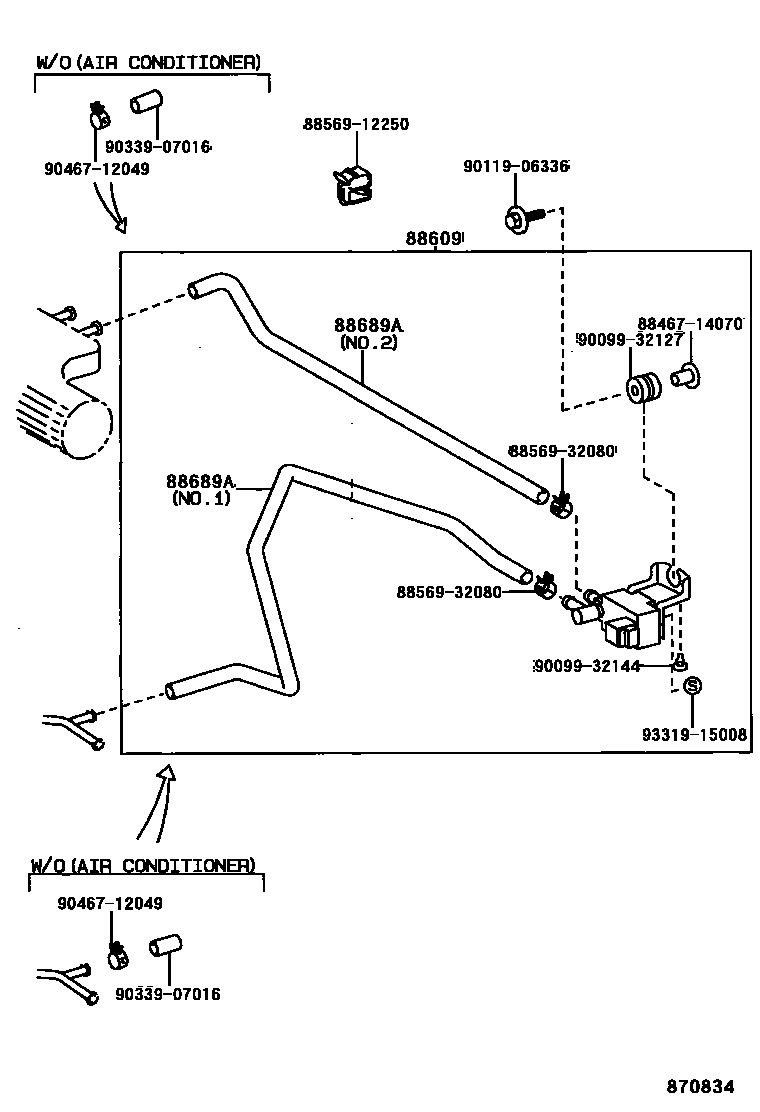

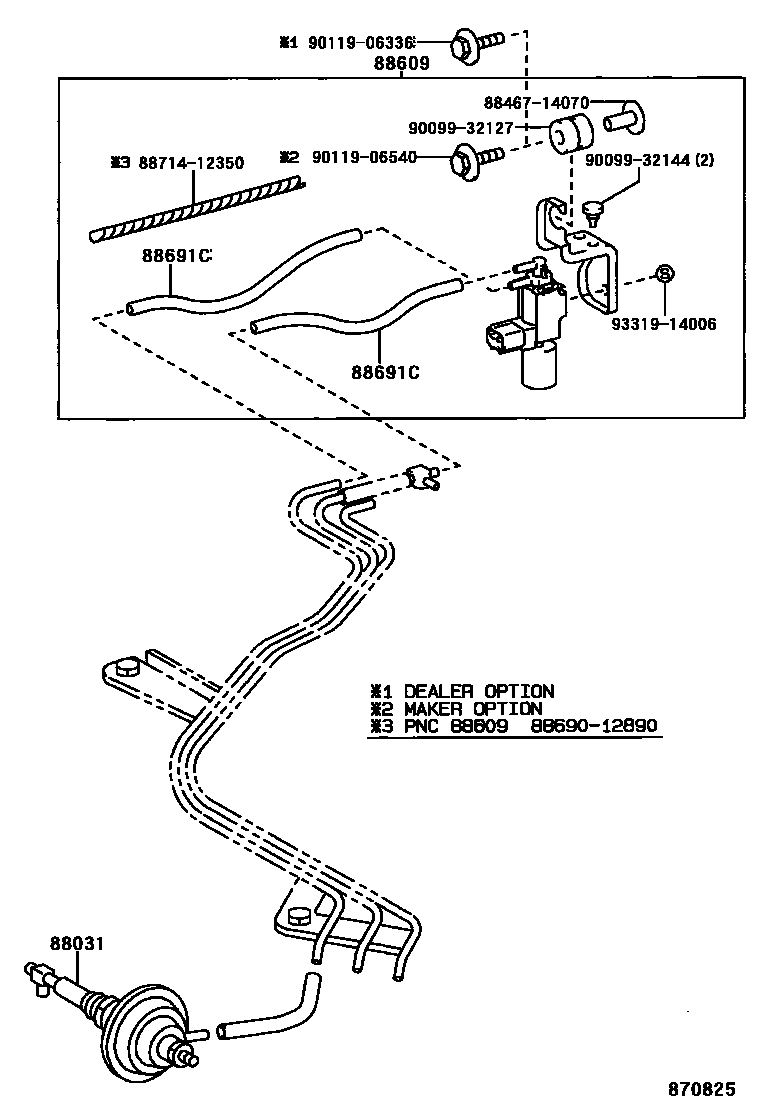

Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717
Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 6 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87690B | tee pipe | 90413-04005 |
| 88031 | Idle speed lift actuator assembly | 88031-12200 · 88031-20080 |
| 88609 | Idle speed lifting device sub-assembly | 88609-12750 · 88609-12790 · 88609-12890 · 88609-1A010 · 88690-1A020 · 88690-1A030 · 88690-1A050 · 88690-1A060 · 88690-1A070 · 88690-1A080 |
| 88689A | Cooler Vacuum Hose No. 1 | 88689-12540 · 88689-12550 · 88689-12560 · 88689-12570 · 88689-12580 · 88689-12590 · 88689-12600 · 88689-12610 |
