Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

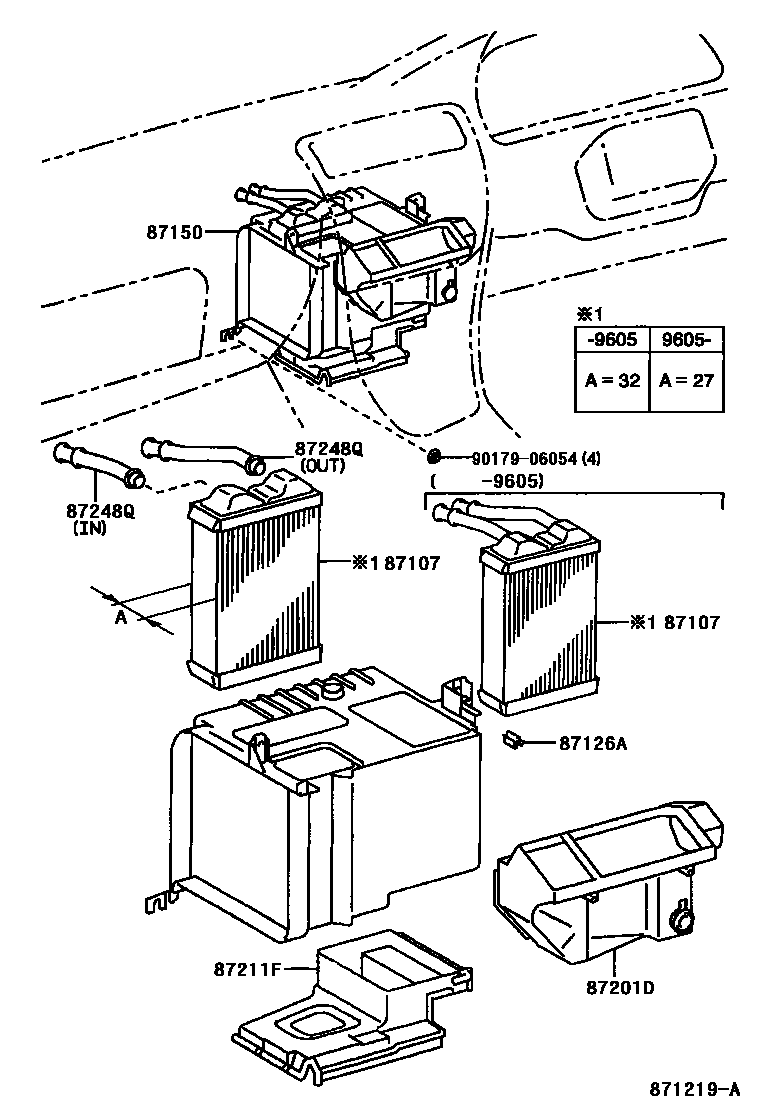

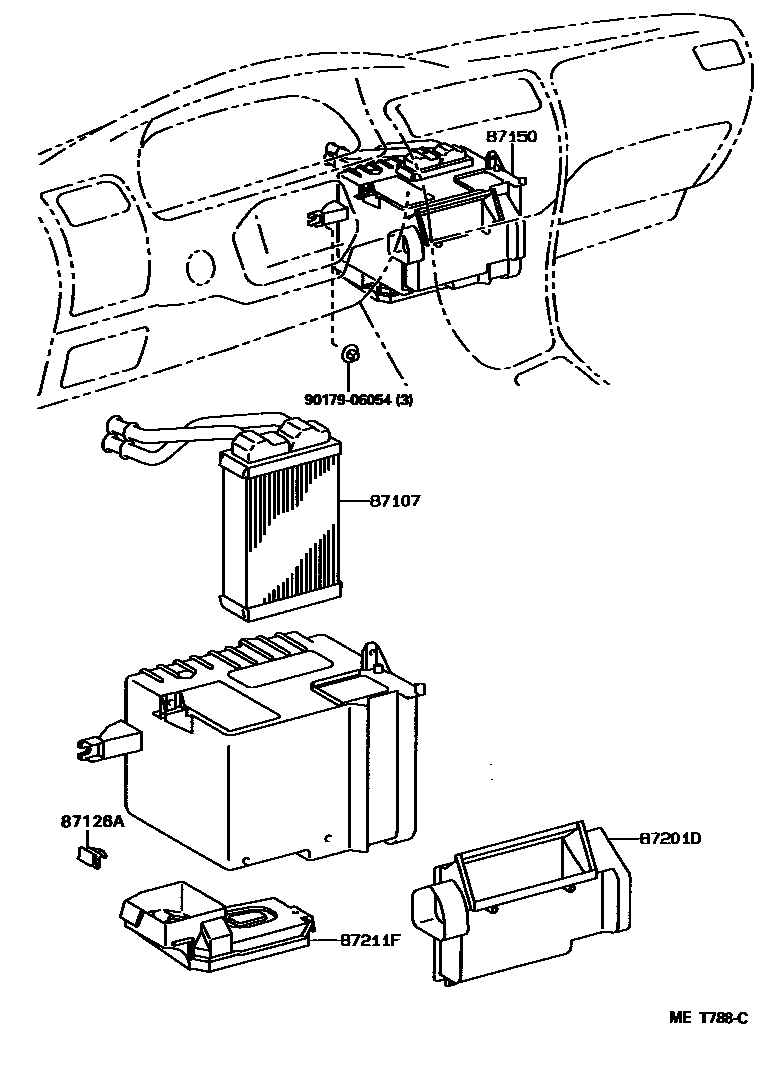

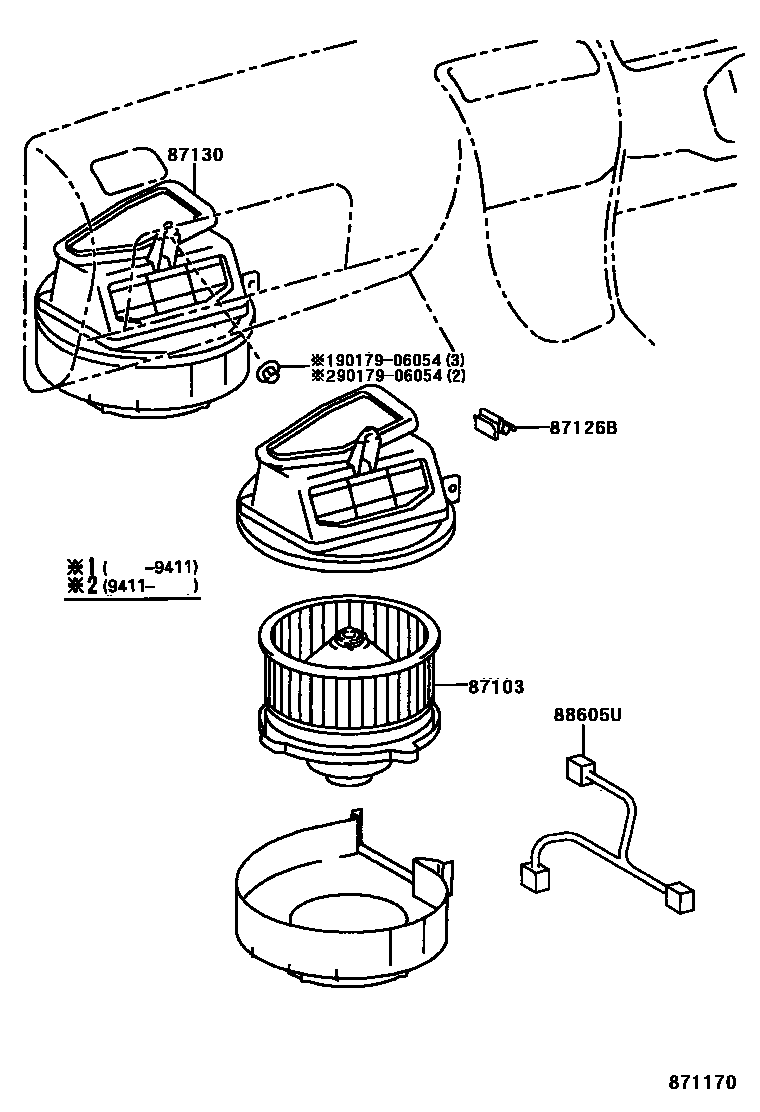

Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87103 | Heater blower motor sub-assembly with fan | 87103-12030 · 87103-12040 |
| 87107 | Heater radiator device sub-assembly | 87107-12380 · 87107-12480 · 87107-12490 · 87107-12491 · 87107-12500 |
| 87126A | heater control clip | 87126-12050 |
| 87126B | heater control clip | 87126-12040 |
| 87130 | Front heater blower assembly | 87130-12280 · 87130-12281 · 87130-12300 · 87130-12301 |
| 87150 | Heater radiator assembly | 87150-12660 · 87150-12661 · 87150-12662 · 87150-12680 · 87150-12681 · 87150-12682 · 87150-12690 · 87150-12691 · 87150-12711 · 87150-12712 · 87150-1A060 |
| 87201D | Air duct sub-assembly | 87201-12380 · 87201-12390 · 87201-12400 · 87201-12410 · 87201-12540 |
| 87211F | air duct | 87211-12160 · 87211-12180 · 87211-12190 |
| 87248Q | Front heater radiator water pipe | 87156-12020 · 87156-12030 |
| 88605U | Air conditioning wiring harness sub-assembly | 88605-1E870 · 88605-1H100 · 88605-1K110 · 88605-1K120 |
