Toyota COROLLA 后刮水器 — Figure 8502

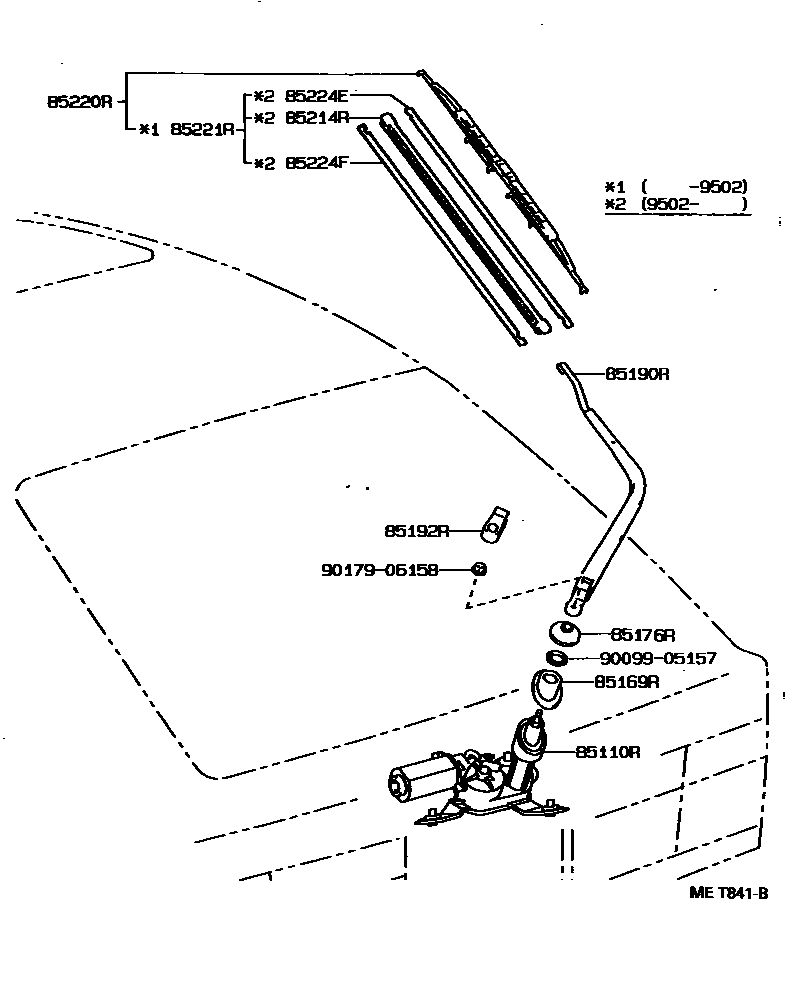

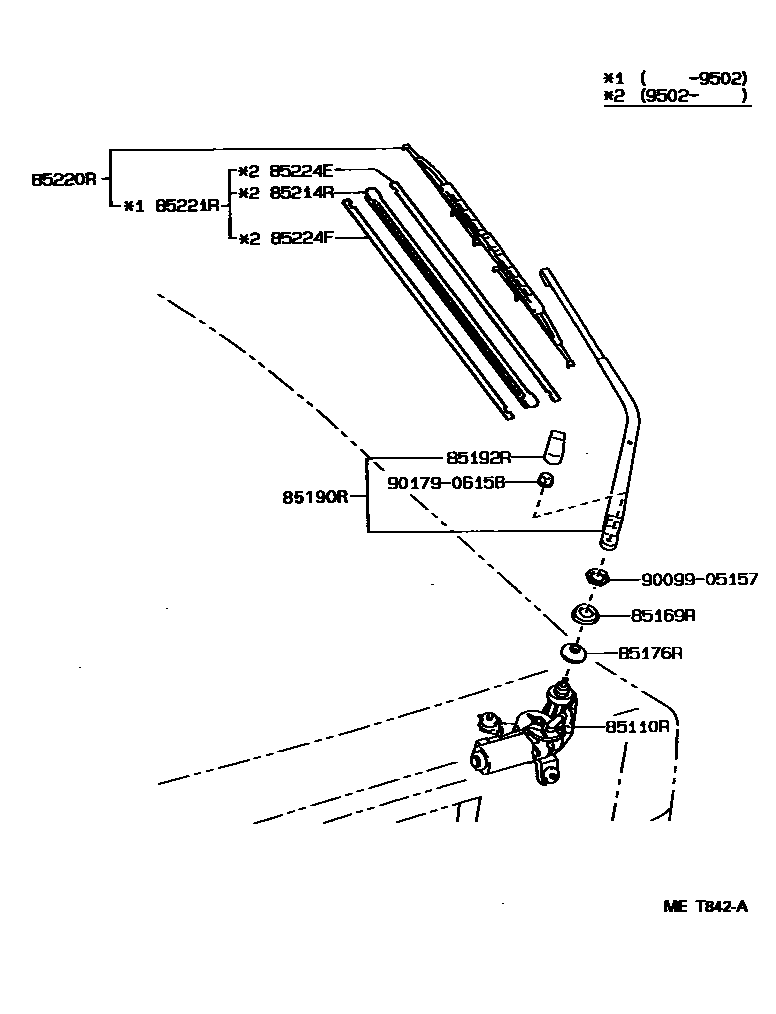

Toyota COROLLA EPC diagram 8502, 后刮水器, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-12780 · 85130-12790 · 85130-12810 · 85130-12820 |
| 85169R | No. 1 rear wiper link pivot washer | 85134-12770 · 85134-12780 |
| 85176R | Rear wiper connecting rod cover | 85176-13070 |
| 85190R | Rear wiper arm assembly | 85241-12020 · 85241-12021 · 85241-12030 · 85241-12031 · 85241-12040 · 85241-12041 · 85241-12050 · 85241-12051 · 85241-12060 · 85241-12061 · 85241-12070 · 85241-12071 |
| 85192R | Rear wiper arm cover | 85244-12010 · 85245-20020 |
| 85214R | Rear wiper rubber strip | 85214-12280 · 85214-22360 |
| 85220R | Rear wiper blade assembly | 85242-12020 · 85242-12021 · 85242-12030 · 85242-12031 · 85242-12040 · 85242-12041 · 85242-12050 · 85242-12051 |
| 85221R | Rear wiper blade | 85243-12010 · 85243-12020 · 85243-14010 |
| 85224E | No. 1 rear wiper rubber strip back plate | 85224-12690 · 85224-60050 |
| 85224F | No. 2 rear wiper rubber strip back plate | 85224-12690 · 85224-60050 |
