Toyota COROLLA 后组合灯 — Figure 8111

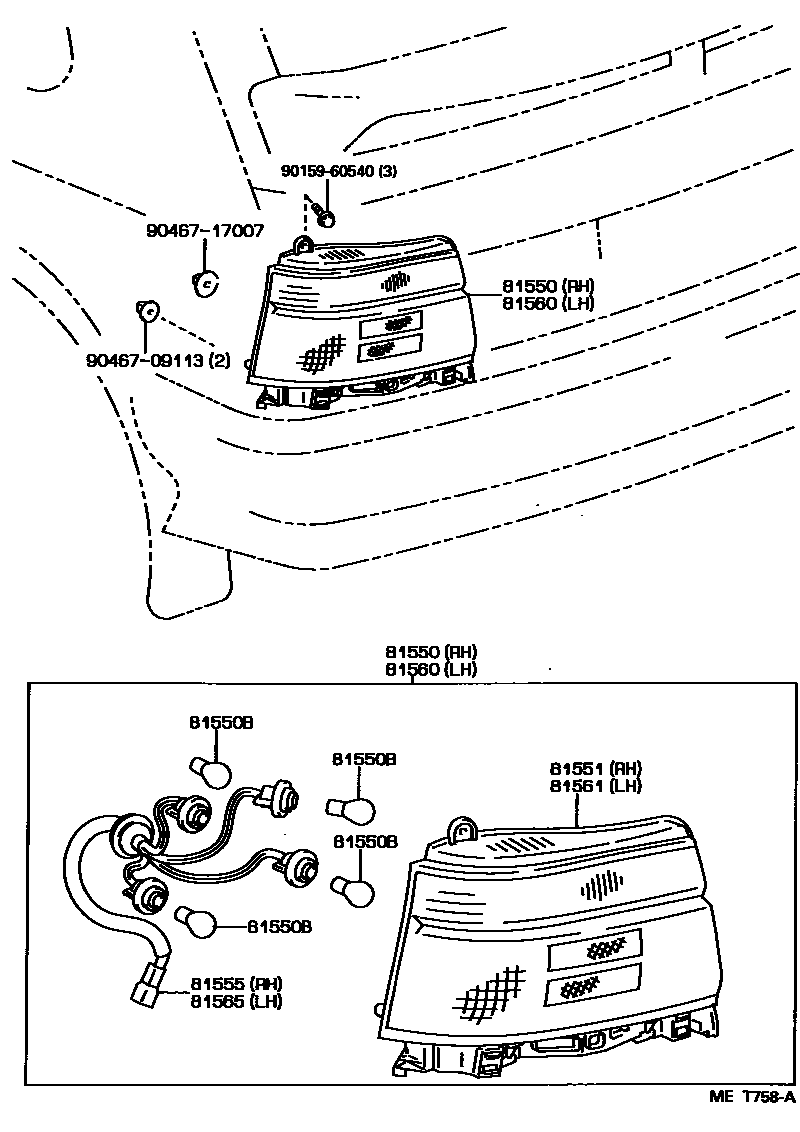

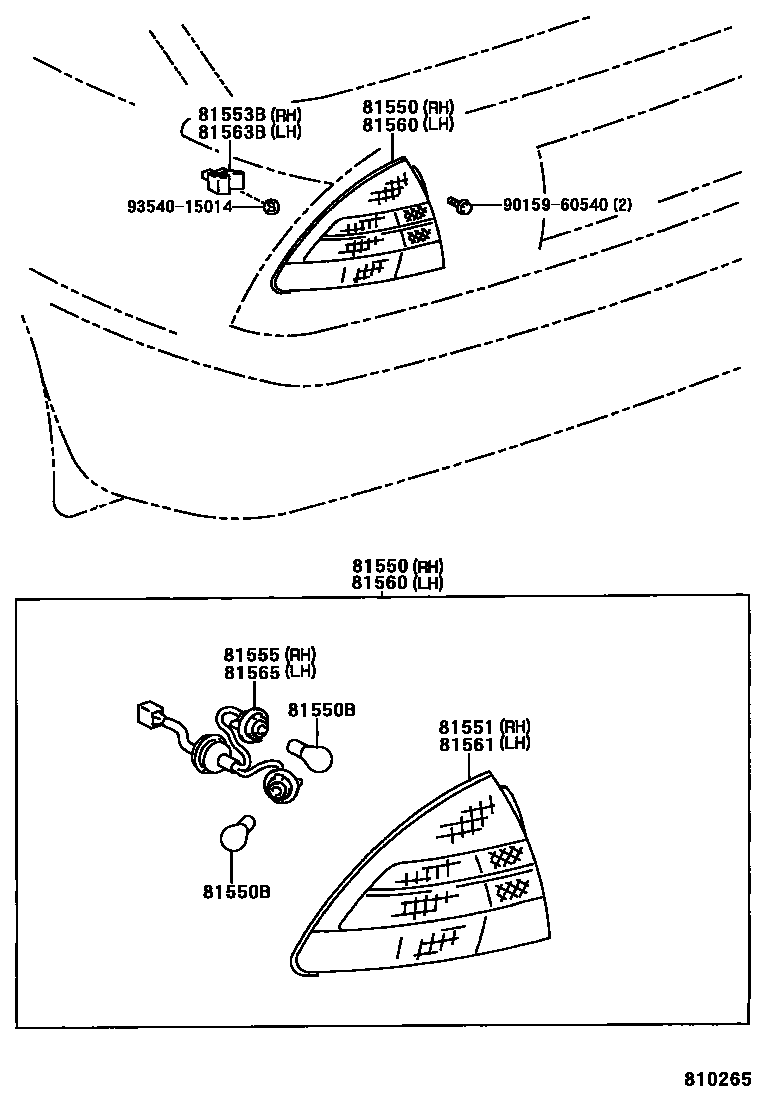

Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-1A740 · 81550-1A741 · 81550-1A750 · 81550-1A751 · 81550-1A780 · 81550-1A781 |
| 81550B | Bulb (for rear combination lights) | 99132-11210 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-1A740 · 81551-1A741 · 81551-1A750 · 81551-1A751 · 81551-1A780 · 81551-1A781 |
| 81553B | Right rear combination lamp bracket sub-assembly | 75135-12010 · 75135-12011 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-1A740 · 81555-1A780 · 81565-1A680 |
| 81560 | Left rear combination light assembly | 81560-1A680 · 81560-1A681 · 81560-1A690 · 81560-1A691 · 81560-1A740 · 81560-1A741 |
| 81561 | Left rear combination lamp shade | 81561-1A680 · 81561-1A681 · 81561-1A690 · 81561-1A691 · 81561-1A740 · 81561-1A741 |
| 81563B | Left rear combination lamp bracket sub-assembly | 75135-12010 · 75135-12011 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-1A740 · 81555-1A780 · 81565-1A680 |
