Toyota COROLLA Fog Lamp — Figure 8102

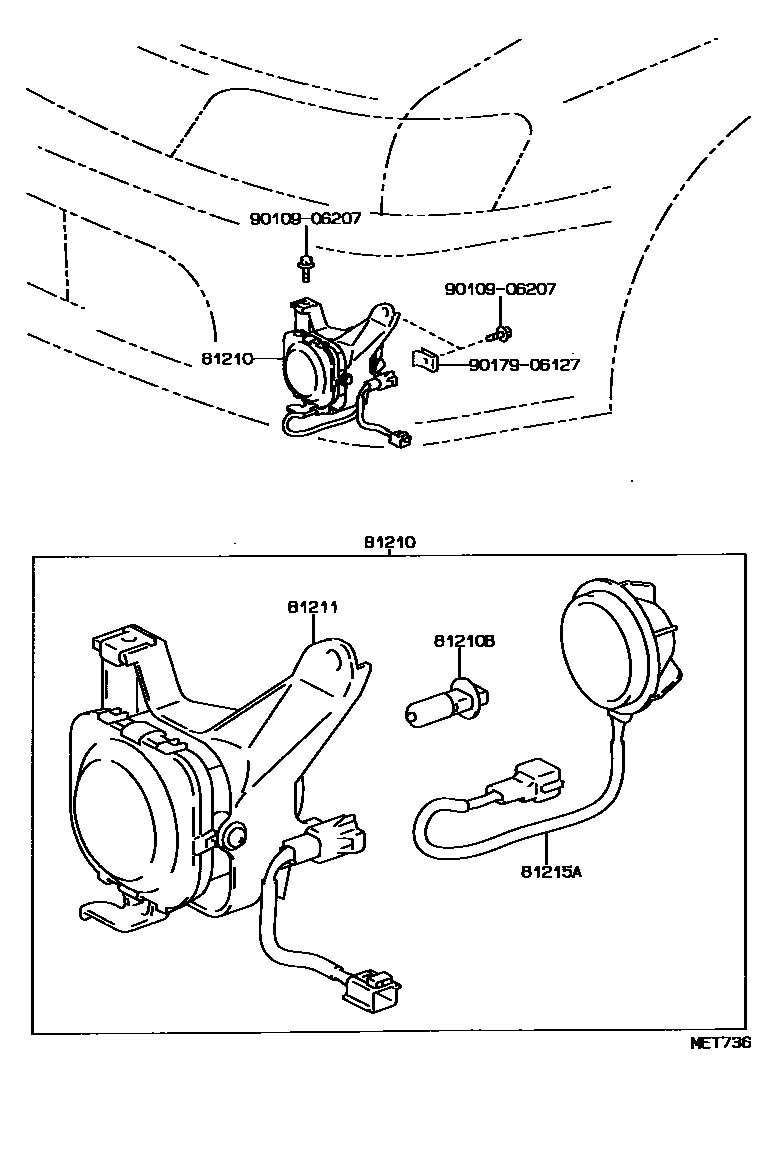

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210 | Fog light assembly | 81210-12090 · 81220-12080 |
| 81210B | fog light bulb | 90981-13018 |
| 81211 | fog lamp shade | 81211-12090 · 81221-12080 |
| 81215A | Fog light holder and wiring harness | 81215-12080 |
