Toyota COROLLA accelerator pedal connecting rod — Figure 7801

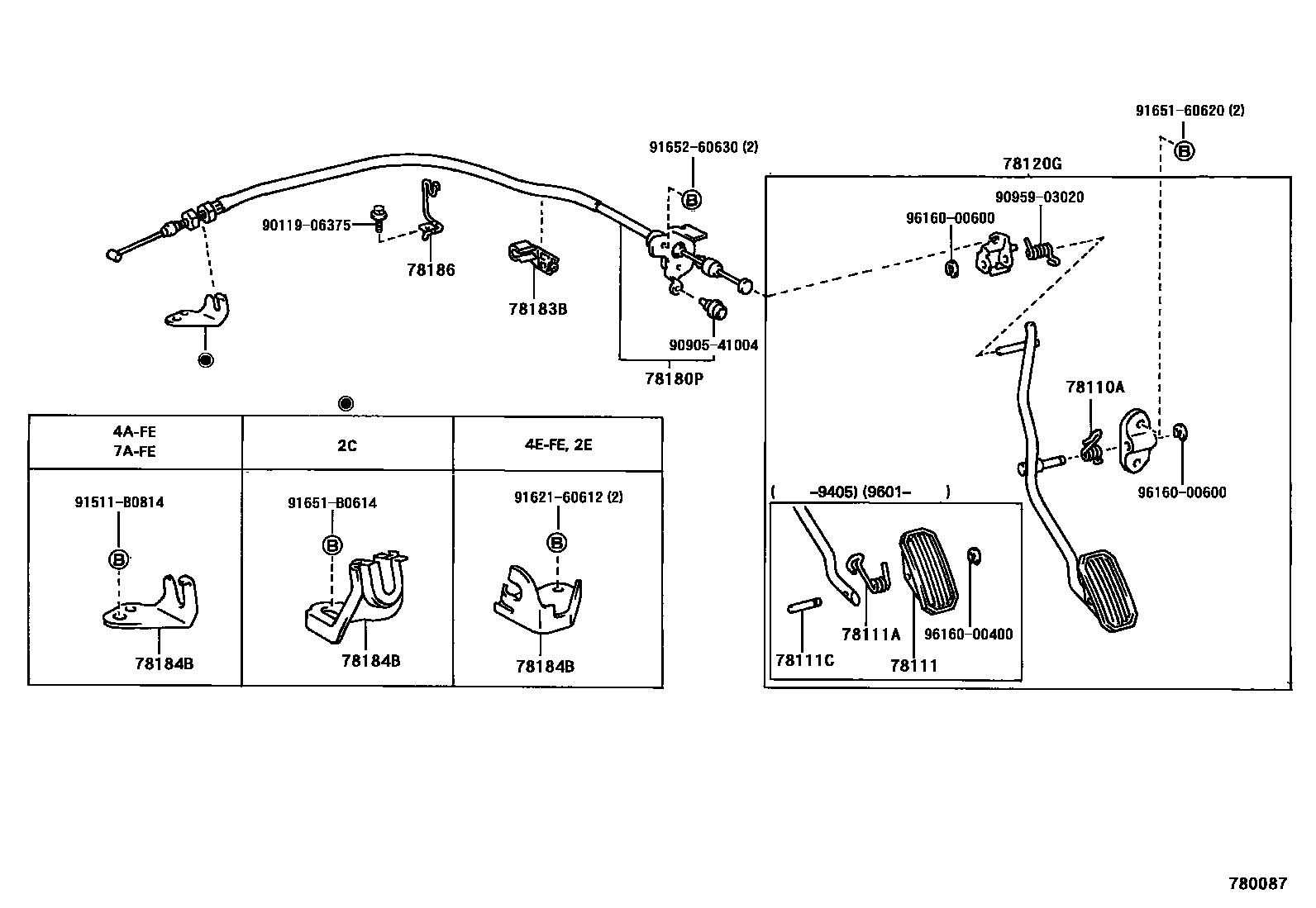

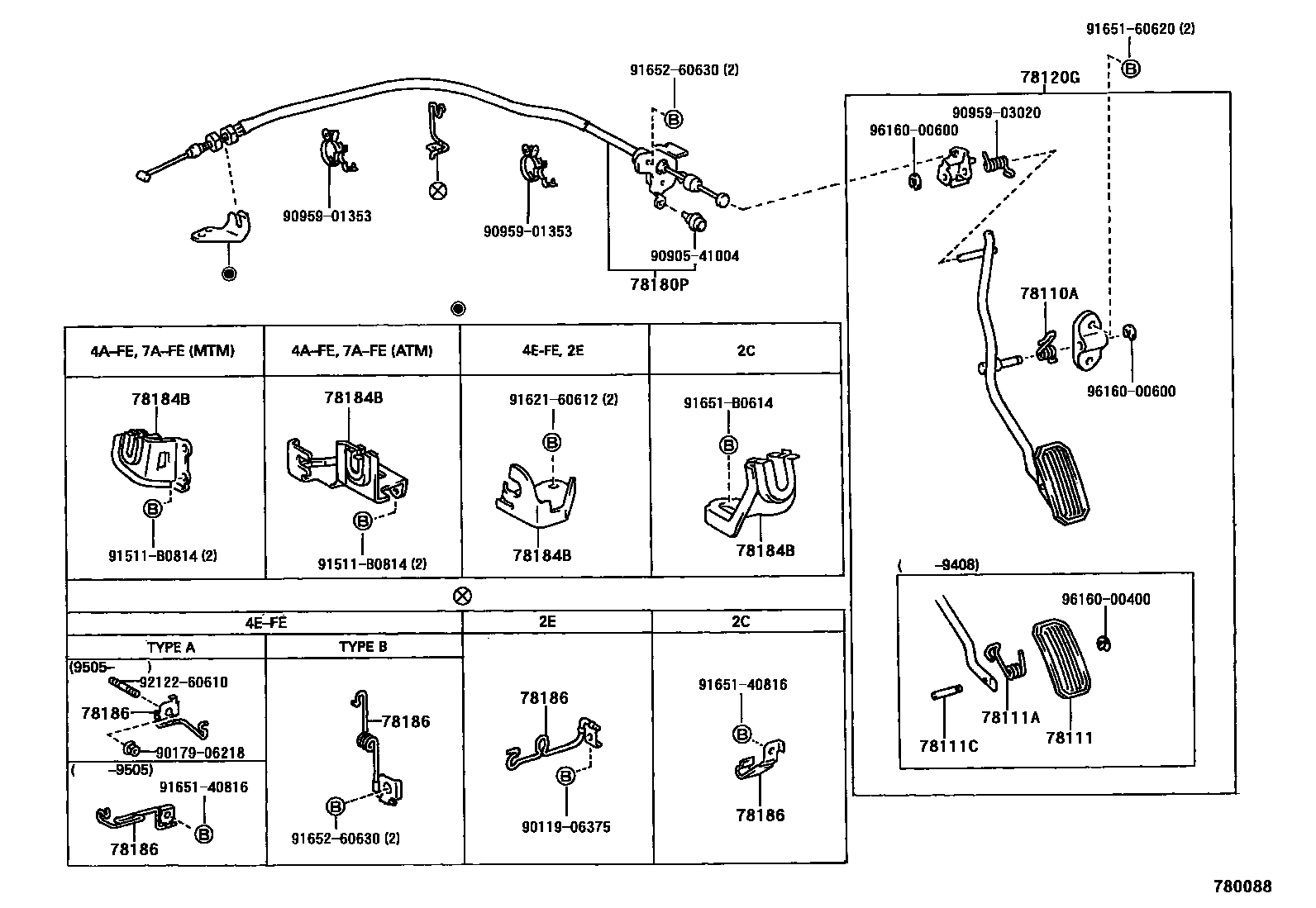

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 · 90508-26036 |
| 78111 | accelerator pedal | 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-18050 · 90959-03040 |
| 78111C | pin (for gas pedal) | 90249-05001 |
| 78120G | Accelerator pedal lever assembly | 78120-12150 · 78120-12151 · 78120-12160 · 78120-12161 · 78120-12200 · 78120-12201 · 78120-12210 · 78120-12220 · 78120-12221 · 78120-12230 |
| 78180P | Accelerator pedal control cable assembly | 78180-02030 · 78180-1A420 · 78180-1A440 · 78180-1A490 · 78180-1A520 · 78180-1A550 · 78180-1A580 · 78180-1A590 · 78180-1A660 · 78180-1A760 |
| 78183B | Accelerator pedal control cable clip | 78183-12160 |
| 78184B | Throttle pedal control cable bracket | 78024-12040 · 78024-12041 · 78024-12050 · 78024-32140 · 78184-10080 · 78184-12280 · 78184-16070 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-12170 · 78186-12290 · 78186-12320 · 78186-16120 · 78186-16150 · 78186-16190 |
