Toyota COROLLA 挡泥板和扰流板 — Figure 7601

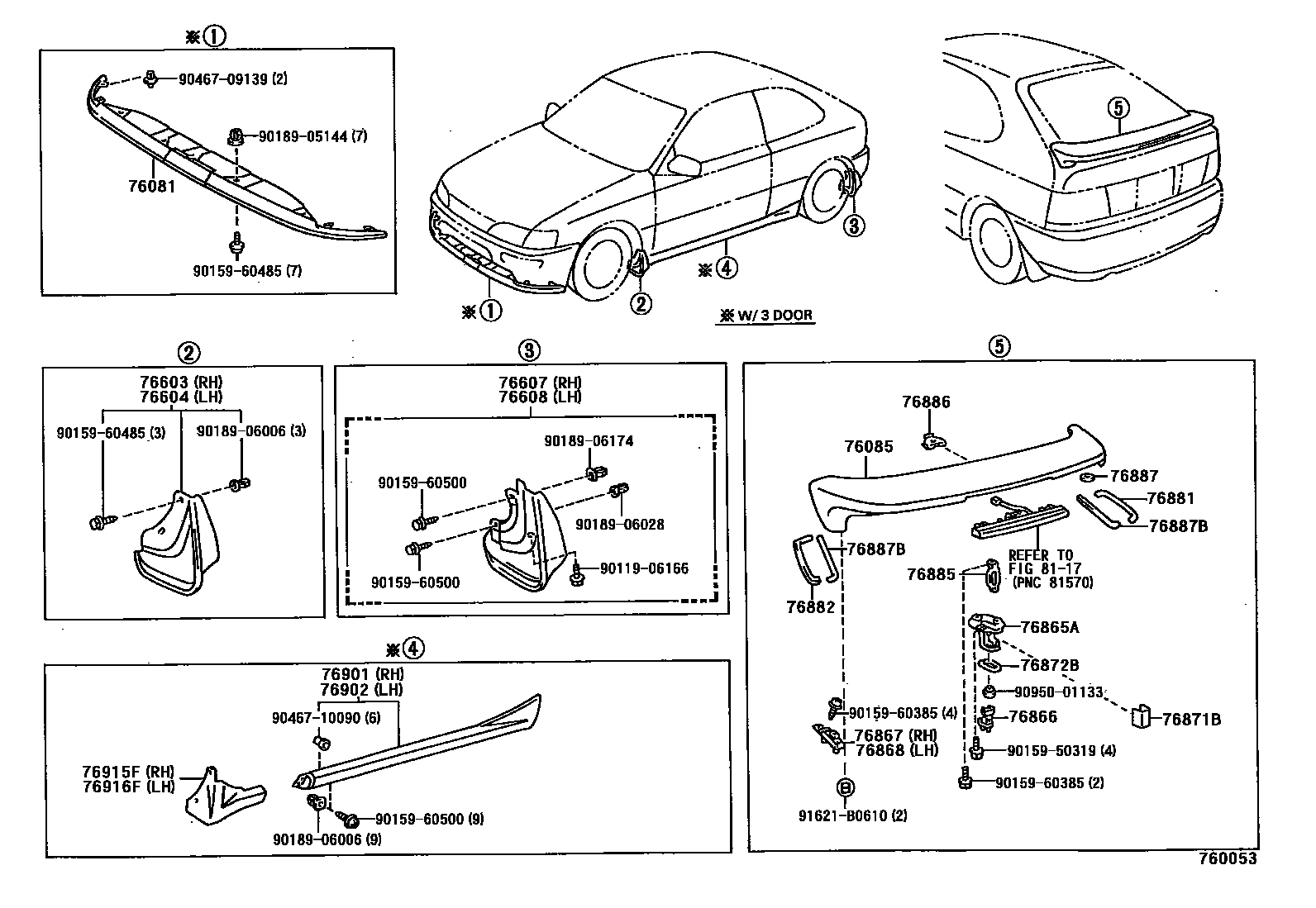

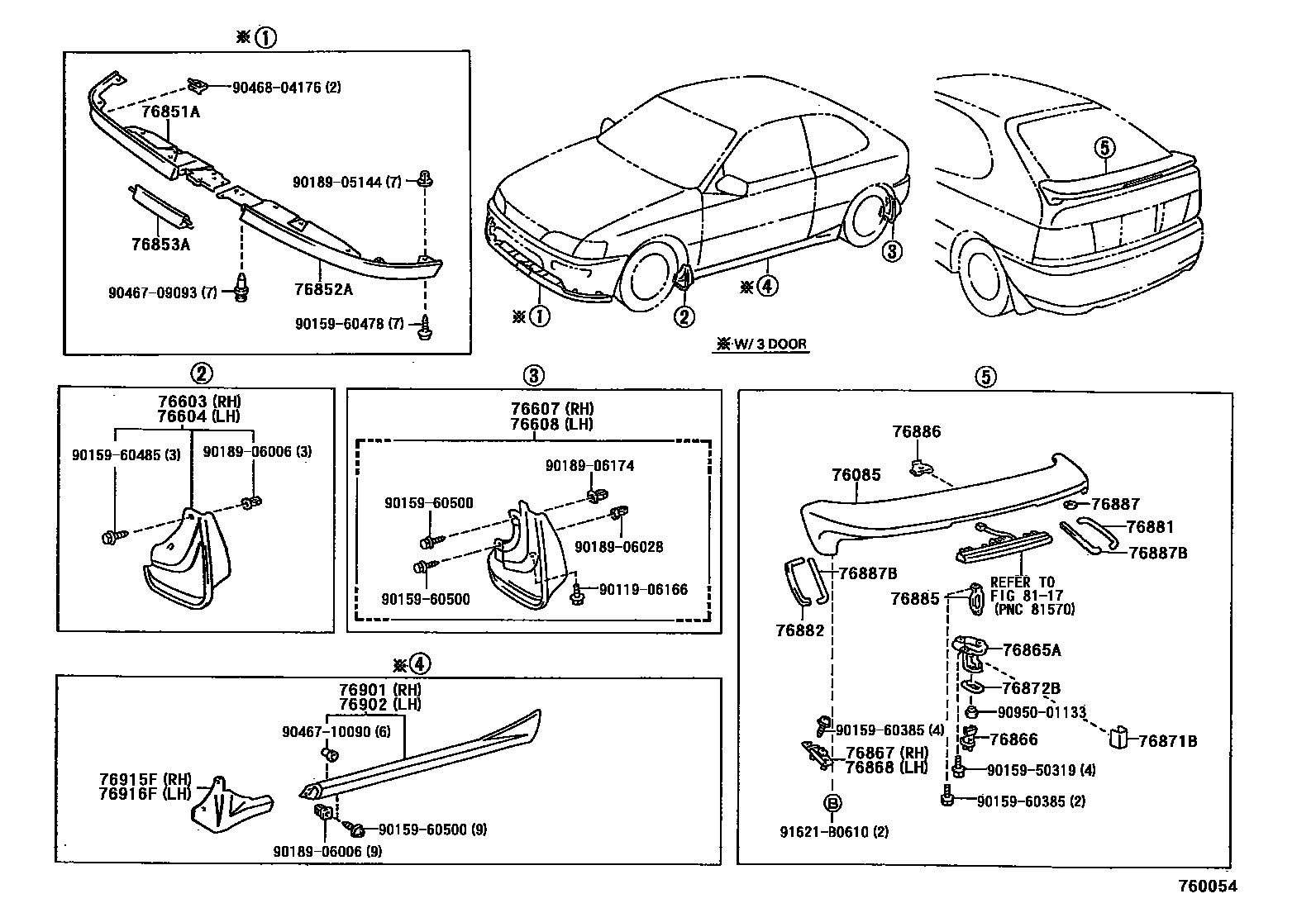

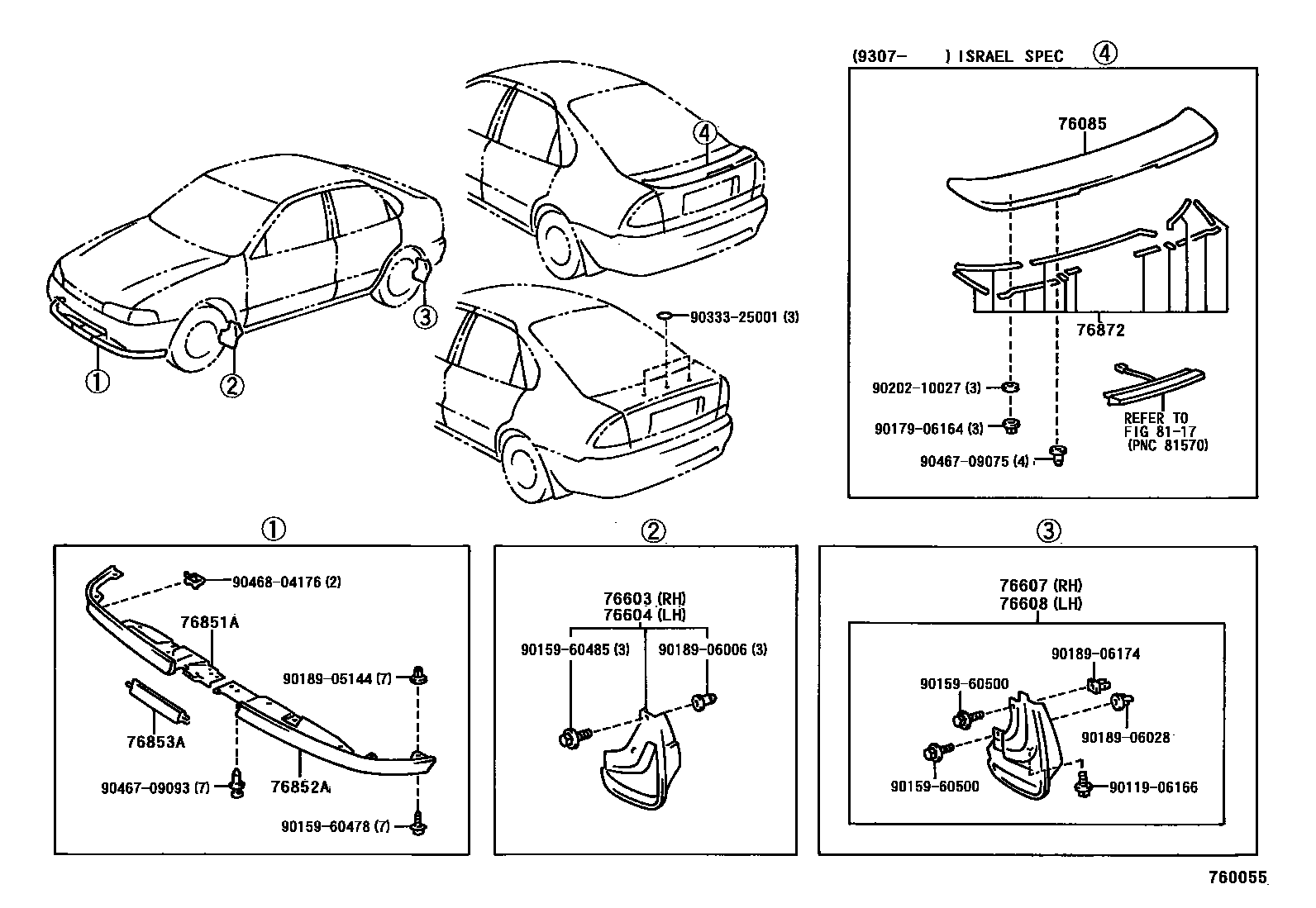

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76081 | Front spoiler sub-assembly | 76081-12100 |
| 76085 | Rear spoiler sub-assembly | 76085-12912 · 76085-12913 · 76871-12180 |
| 76603 | Right front fender fender sub-assembly | 76621-19215 |
| 76604 | Left front fender fender sub-assembly | 76622-19215 |
| 76607 | Right rear side fender sub-assembly | 76625-19445 · 76625-19465 |
| 76608 | Left rear side fender sub-assembly | 76626-19445 · 76626-19465 |
| 76851A | Right front spoiler cover | 76851-12110 |
| 76852A | Left front spoiler cover | 76852-12080 |
| 76853A | No. 1 front spoiler fixings | 76853-12090 |
| 76865A | Side fender fixings | 76865-12900 |
| 76866 | No. 2 rear spoiler fixing piece | 76866-12100 |
| 76867 | Right rear spoiler fixing | 76867-12110 |
| 76868 | Left rear spoiler fixing | 76868-12090 |
| 76871B | rear spoiler cover | 76871-12902 |
| 76872 | No. 1 rear spoiler protective strip | 76872-12130 |
| 76872B | Rear center spoiler protective strip | 76872-12100 |
| 76881 | No. 1 right rear spoiler protective strip | 76881-12030 |
| 76882 | No. 1 left rear spoiler protective strip | 76881-12030 · 76882-12030 |
| 76885 | No. 5 rear spoiler fixing piece | 76885-12060 |
| 76886 | No. 6 rear spoiler fixing piece | 76886-12050 |
| 76887 | Rear spoiler seal | 76887-21010 · 90540-12008 |
| 76887B | No. 2 rear spoiler protection strip | 76887-12030 · 90999-91054 |
