Toyota COROLLA 侧防护条 — Figure 7503

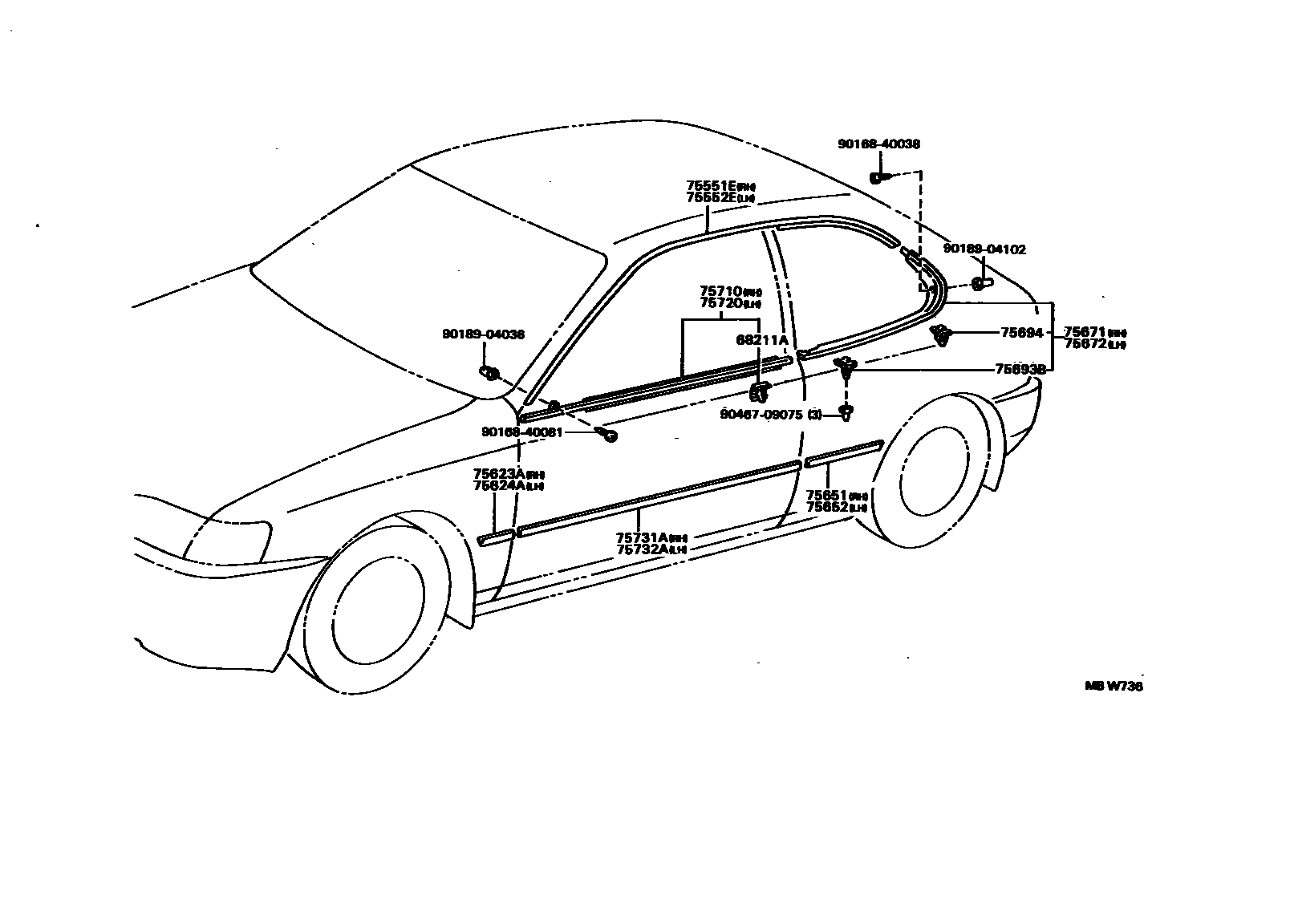

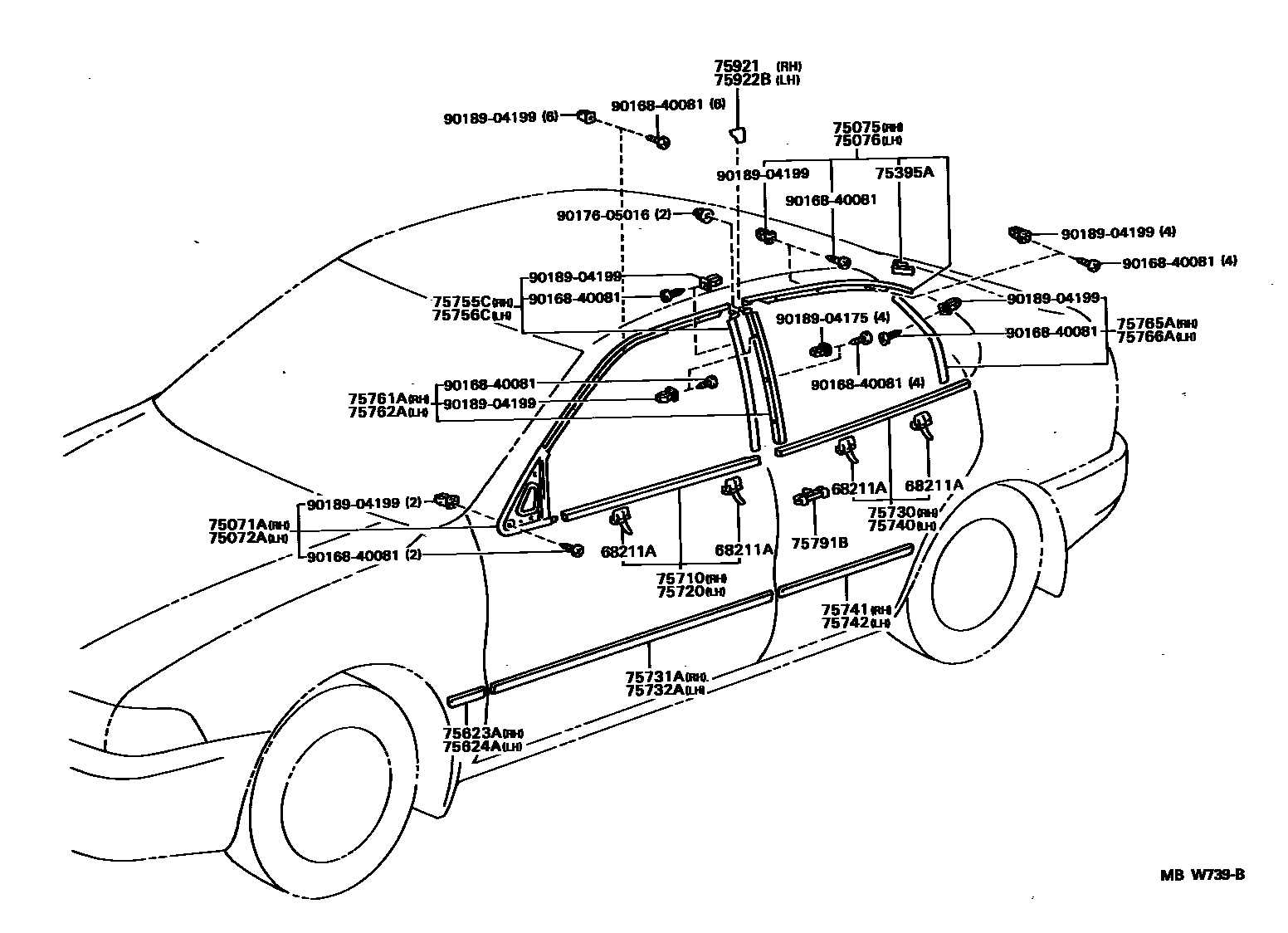

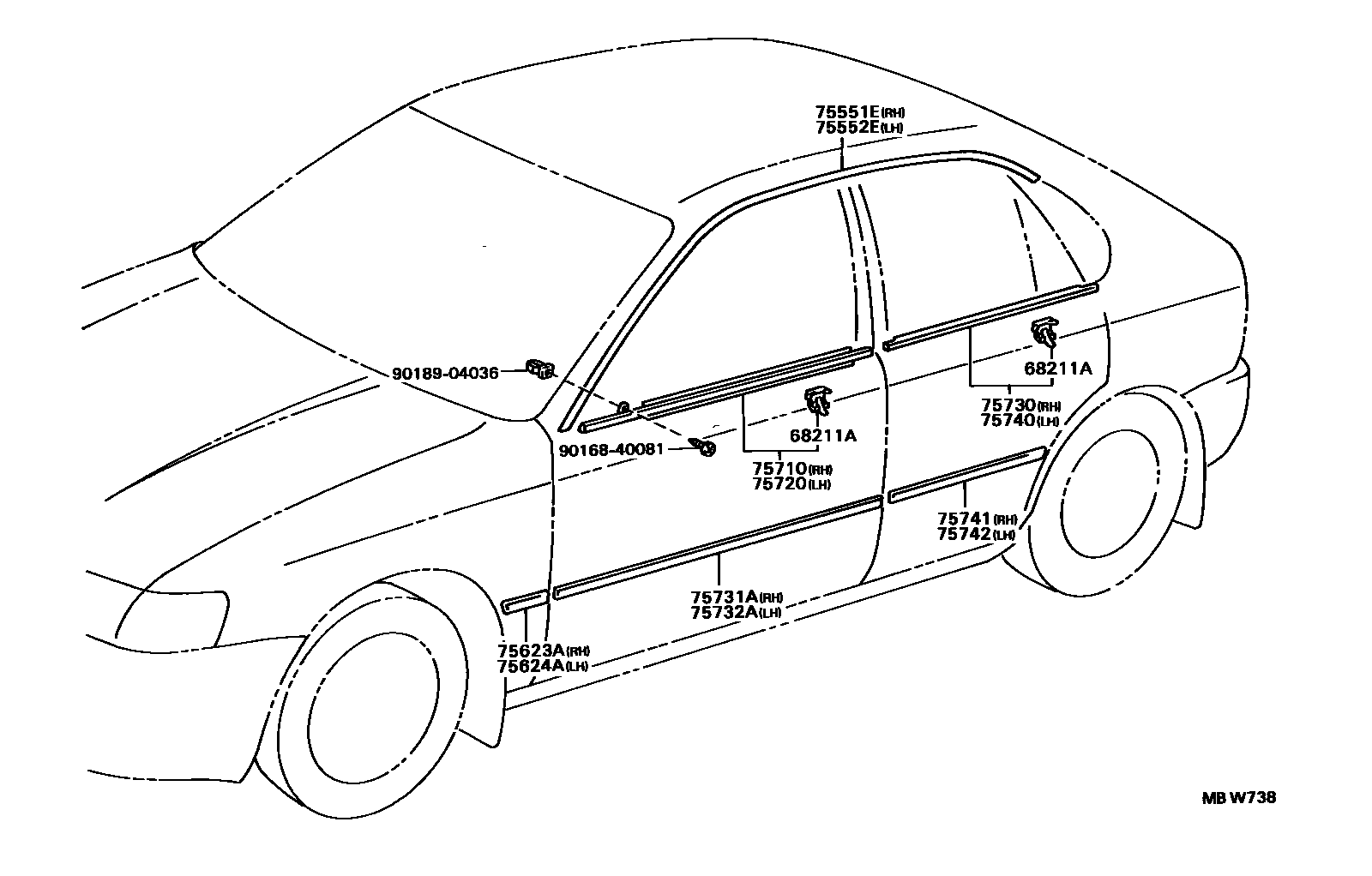

Toyota COROLLA EPC diagram 7503, 侧防护条, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68211A | Door belt line protection strip clip | 68211-12180 · 68211-12190 · 68211-13010 · 68212-12020 |
| 75071A | Right front door outer protective strip sub-assembly | 75071-12070 |
| 75072A | Left front door outer protective strip sub-assembly | 75072-12070 |
| 75075 | Right rear door outer protective strip sub-assembly | 75075-12040 |
| 75076 | Left rear door outer protective strip sub-assembly | 75076-12070 |
| 75395A | No. 1 outer protective strip clip | 75395-12120 |
| 75551E | Drainage groove side decorative strip on the right side of the roof | 75551-12520 · 75551-12530 |
| 75552E | Drainage groove side decorative strip on the left side of the roof | 75552-12520 · 75552-12530 |
| 75623A | Right front fender outer rear protective strip | 75623-12640 · 75623-12660 |
| 75624A | Left front fender outer rear protective strip | 75624-12640 · 75624-12660 |
| 75651 | Right side outer protective strip | 75651-1A020 |
| 75652 | Left side outer protective strip | 75652-1A020 |
| 75671 | Right corner window decorative strip | 75660-12220 |
| 75672 | Left corner window decorative strip | 75670-12220 |
| 75693B | No. 1 rear corner window decorative strap fixings | 75693-12110 |
| 75694 | No. 2 rear corner window decorative strap fixings | 75694-12040 |
| 75710 | Right front door waistline protection strip assembly | 75710-12500 · 75710-12520 · 75710-12580 |
| 75720 | Left front door waistline protection strip assembly | 75720-12500 · 75720-12520 · 75720-12580 |
| 75730 | Right rear door waistline protection strip assembly | 75730-12240 · 75730-13040 |
| 75731A | Right front door outer protective strip | 75731-1A330 · 75731-1A350 · 75731-1A390 |
| 75732A | Left front door outer protective strip | 75732-1A170 · 75732-1A190 · 75732-1A230 |
| 75740 | Left rear door waistline protection strip assembly | 75740-12330 · 75740-13040 |
| 75741 | Right rear door outer protective strip | 75741-12840 · 75741-12860 |
| 75742 | Left rear door outer protective strip | 75742-12830 · 75742-12850 |
| 75755C | Right front door window frame rear protective strip | 75755-12090 |
| 75756C | Left front door window frame rear protective strip | 75756-12110 |
| 75761A | Right rear door window frame front protective strip | 75761-12040 |
| 75762A | Left rear door window frame front protective strip | 75762-12040 |
| 75765A | Right rear door window frame rear protective strip | 75077-12040 |
| 75766A | Left rear door window frame rear protective strip | 75078-12020 |
| 75791B | Waistline side protective strip clip | 75791-12060 |
| 75921 | No. 1 right side light-shielding film | 75921-12020 |
| 75922B | No. 1 left shading film | 75922-12020 |
