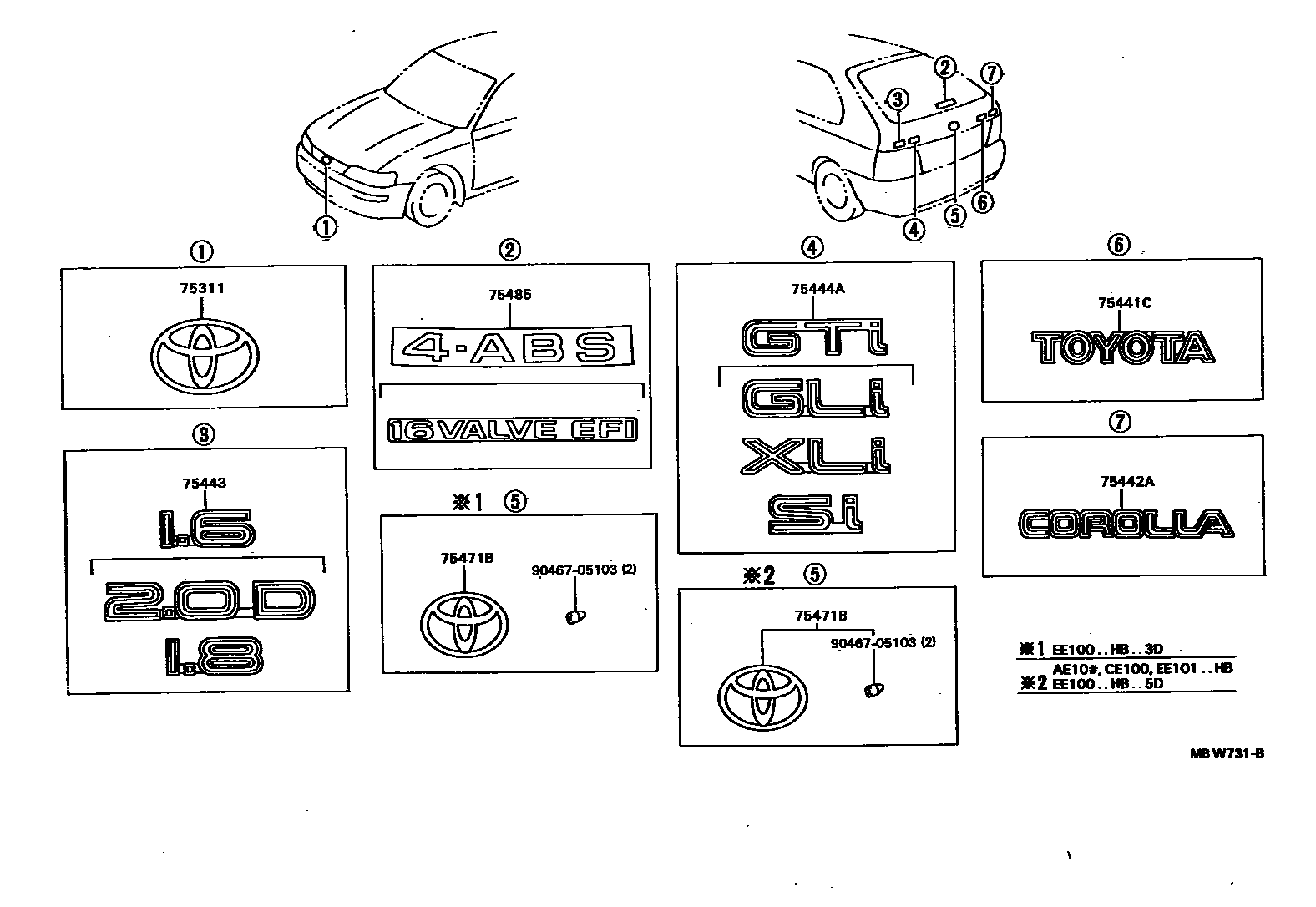

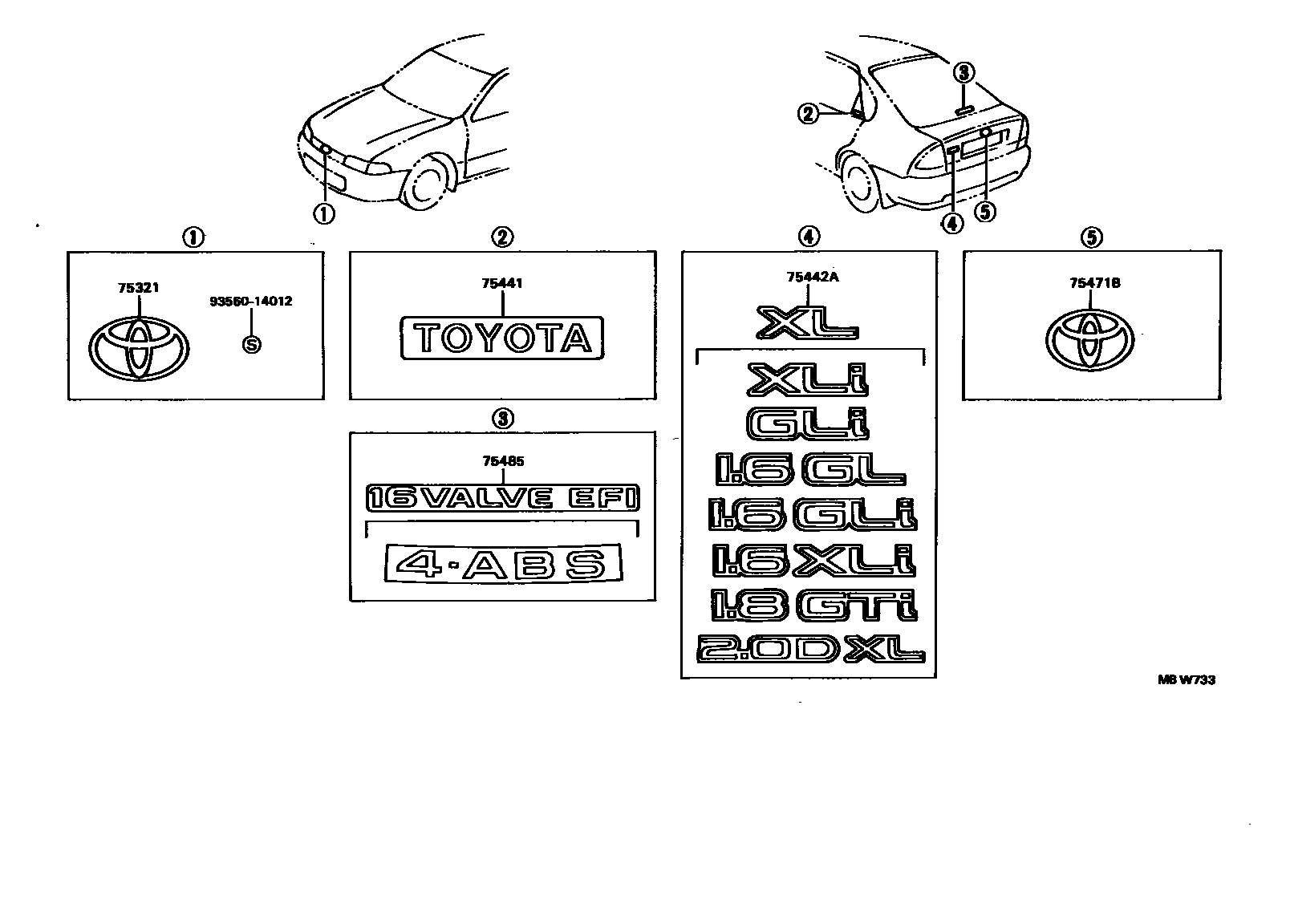

Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-1A740 |
| 75321 | Radiator grille or front plate | 75321-12380 |
| 75441 | Rear No. 1 nameplate (factory mark) | 75473-12080 |
| 75441C | Back door nameplate | 75441-12720 |
| 75442A | No. 2 nameplate on back door | 75442-1A170 · 75442-1A190 · 75442-1A210 · 75442-1A230 · 75442-1A240 · 75442-1A250 · 75442-1A260 · 75442-1A270 |
| 75443 | No. 3 nameplate on back door | 75443-1A650 · 75443-1A660 · 75443-1A670 |
| 75444A | No. 4 nameplate on back door | 75444-1A040 · 75444-1A050 · 75444-1A060 · 75444-1A070 · 75444-1A080 |
| 75471B | No. 1 nameplate on rear body | 75441-12710 · 75471-12020 · 75471-12030 |
| 75485 | Back window nameplate | 75485-12210 · 75485-12260 · 75485-12310 |
