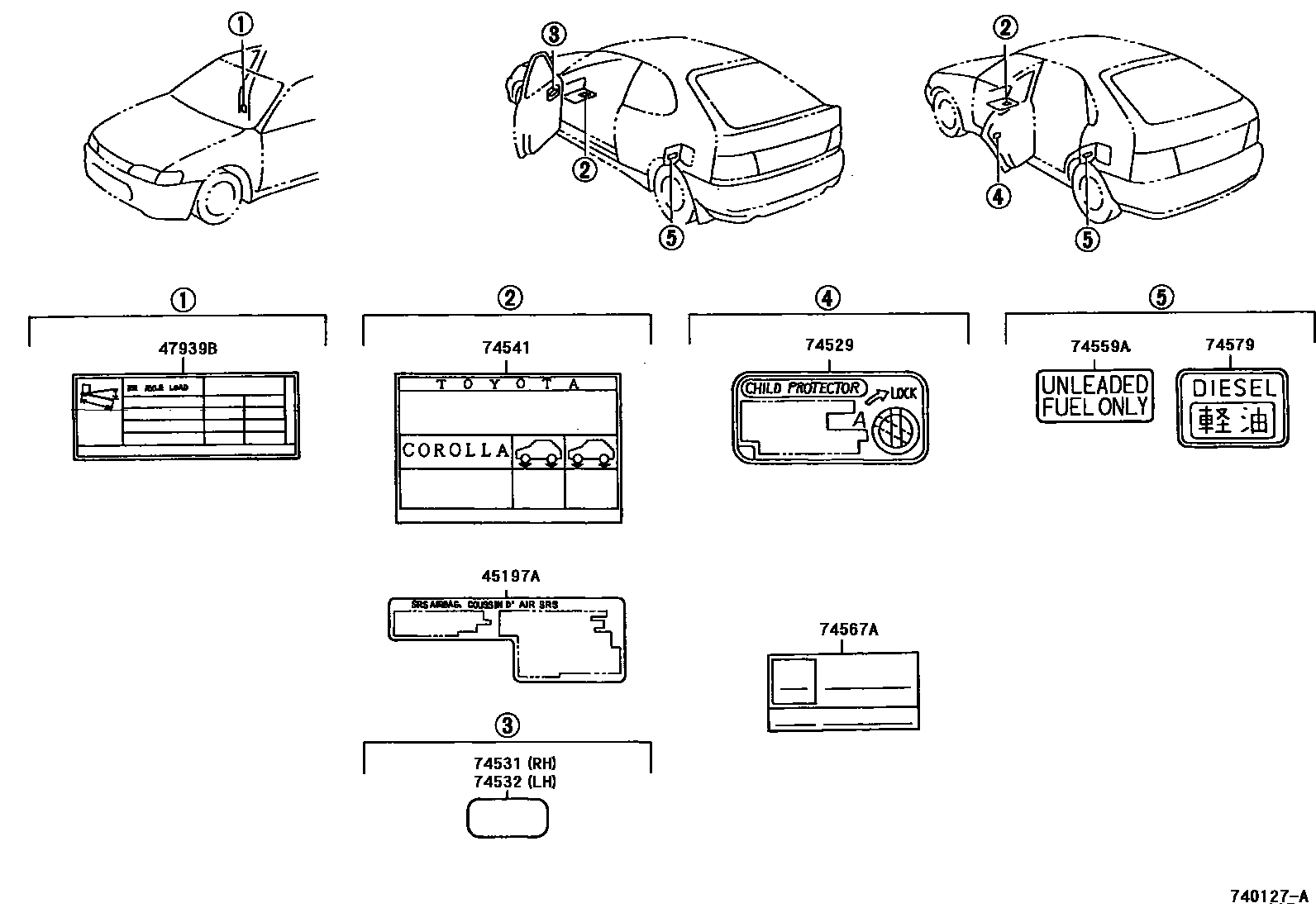

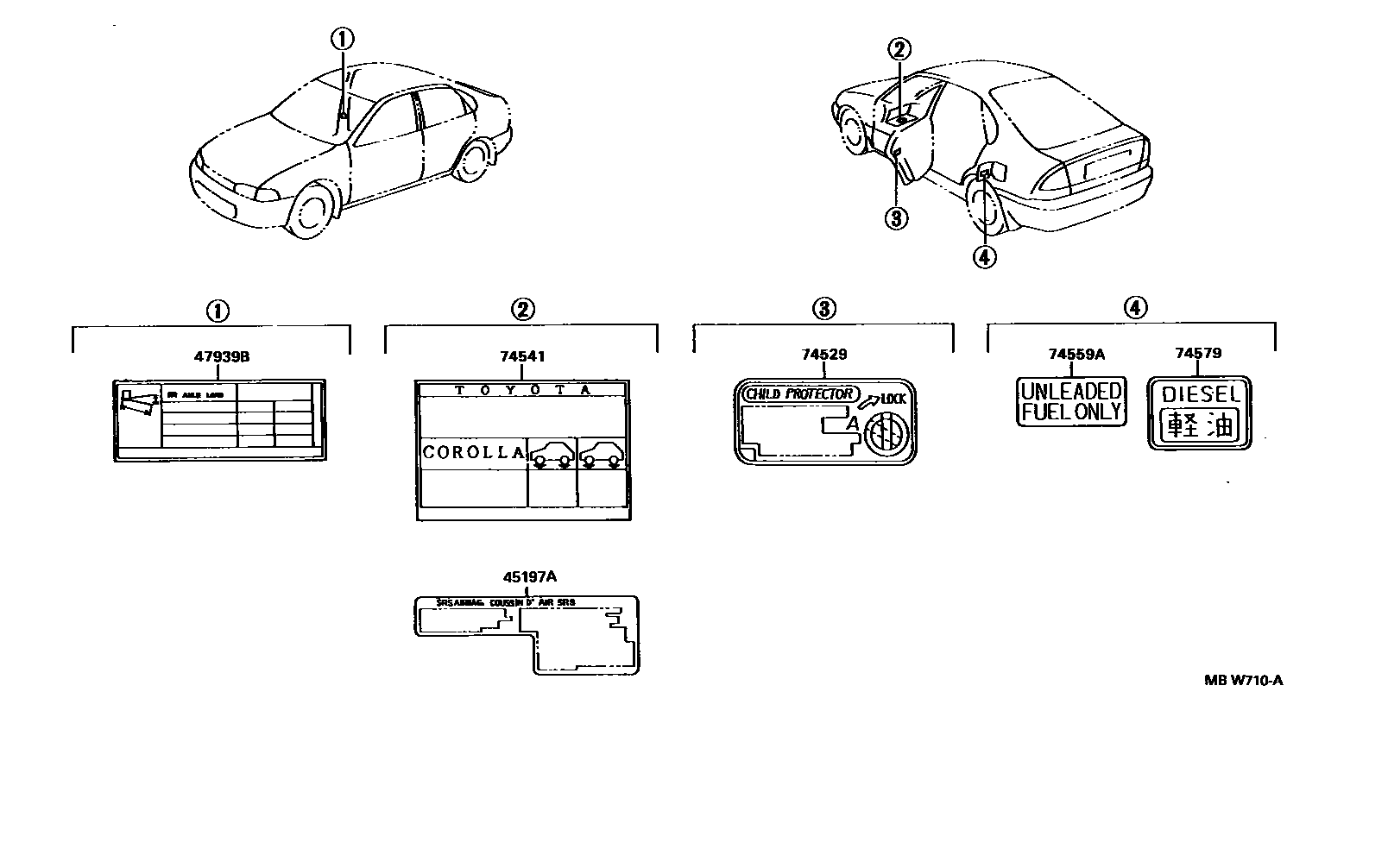

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45197A | air bag warning label | 45197-12070 |
| 47939B | Load sensing valve marking information label | 47939-12030 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-32010 · 69349-32010 |
| 74531 | Right door inner handle warning plate | 74531-12010 |
| 74532 | Left door inner handle warning plate | 74531-12010 |
| 74541 | tire pressure warning plate | 42661-1A510 · 42661-1A520 · 42661-1A521 · 42661-1A530 · 42661-1A550 · 42661-1A560 · 42661-1A770 · 42661-1A780 · 42661-1A790 |
| 74559A | Fuel warning plate | 74559-14050 · 74559-50010 |
| 74567A | E.C.E approval number plate | 74567-27111 |
| 74579 | Unleaded fuel warning nameplate | 74559-14030 |
