Toyota COROLLA 锁芯组件 — Figure 6712

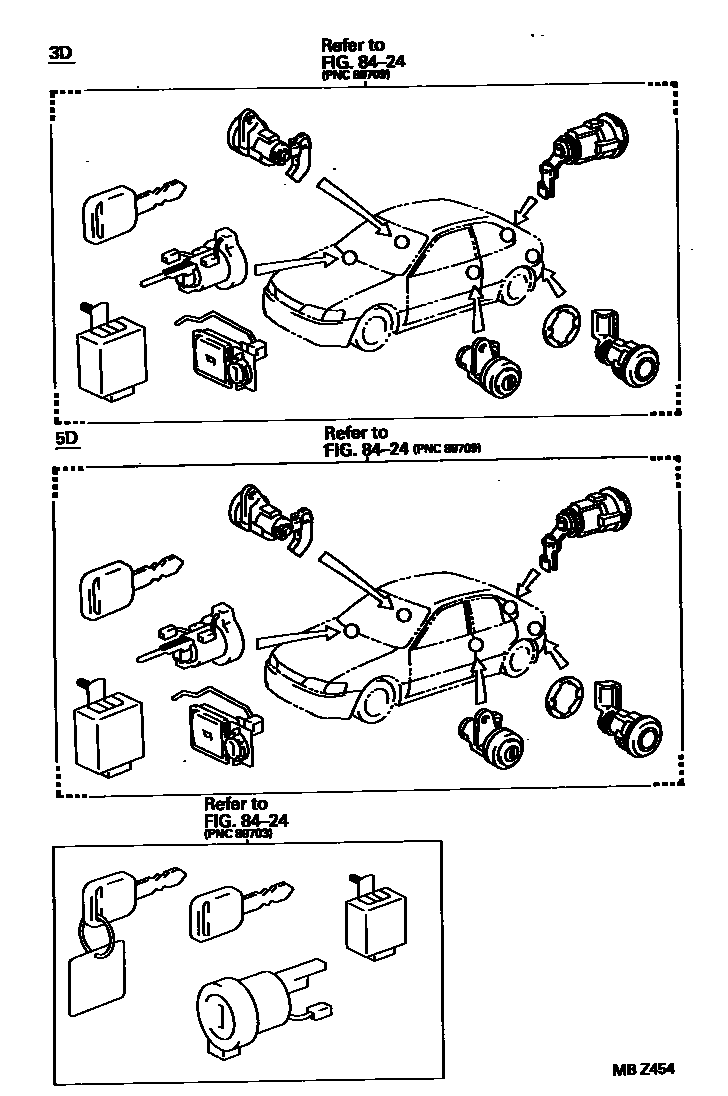

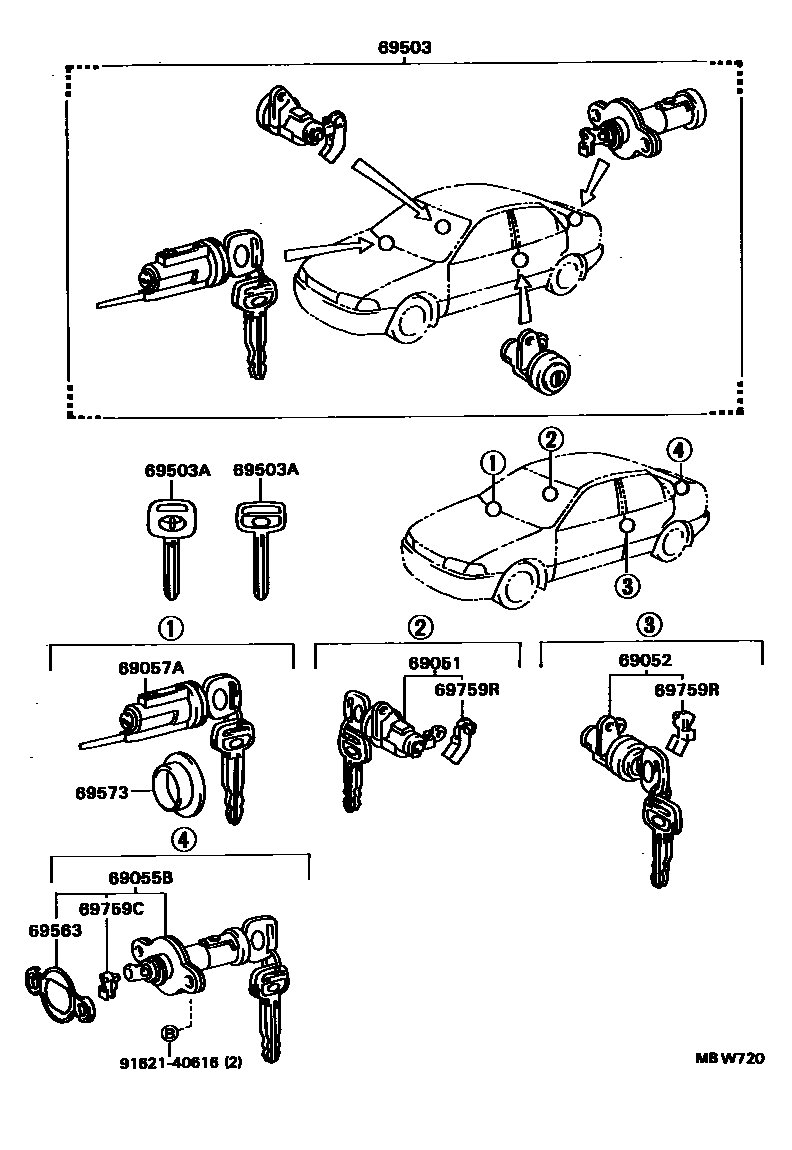

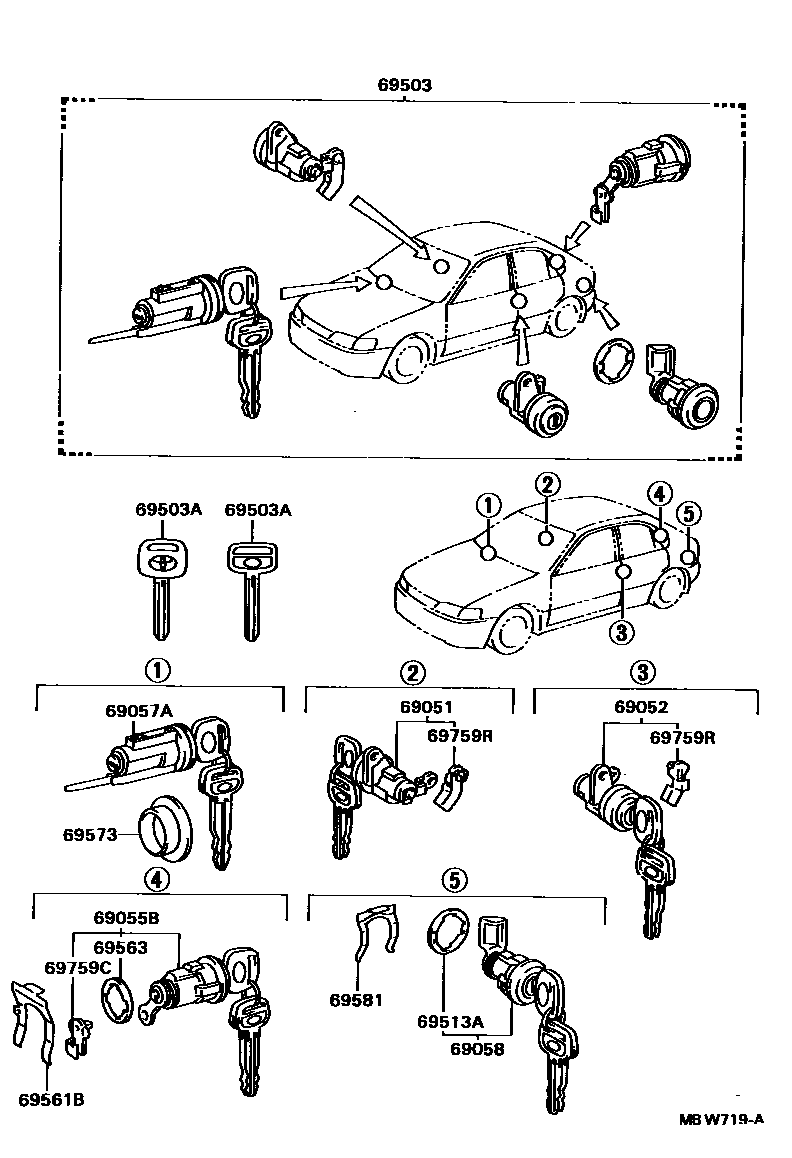

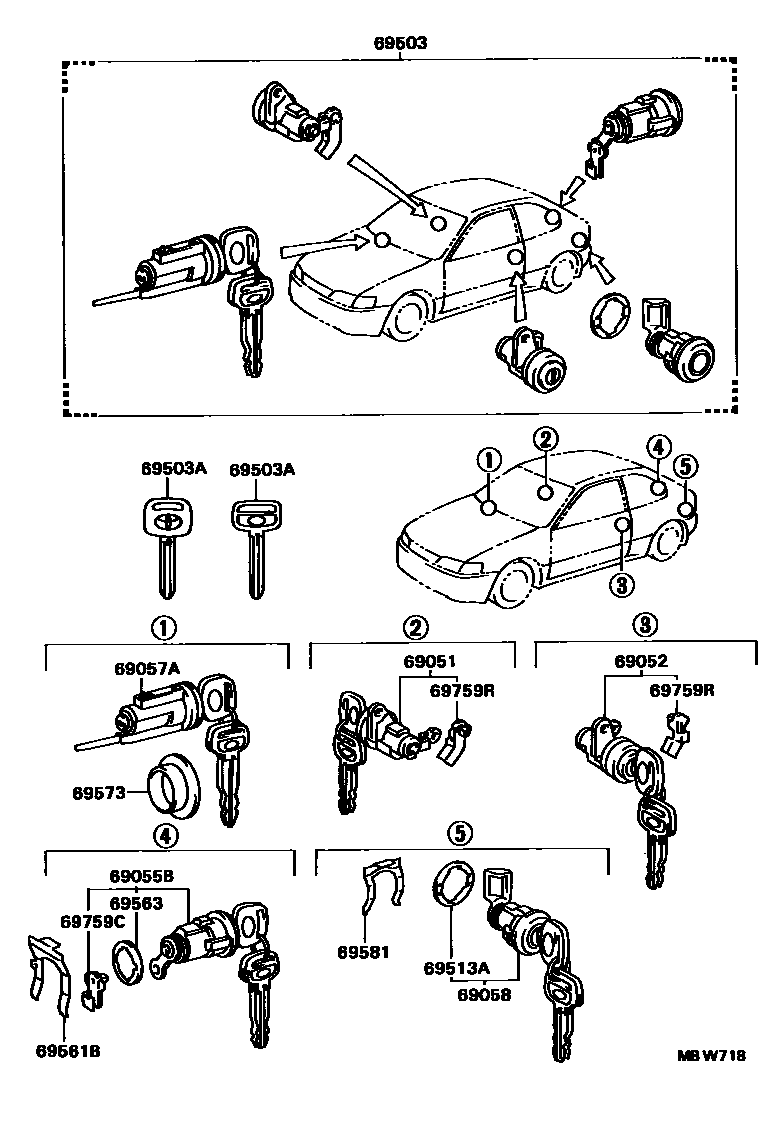

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12360 · 69051-12450 |
| 69052 | Left door lock cylinder and key assembly | 69052-12360 · 69052-12450 |
| 69055B | Rear door lock cylinder and key assembly | 69055-12760 · 69055-12840 · 69055-1A160 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12220 |
| 69058 | Fuel filler cap lock cylinder and key assembly | 69058-12170 · 69058-12190 |
| 69503 | Door lock cylinder components | 69005-1A550 · 69005-1A590 · 69005-1A600 |
| 69503A | external tooth key | 90999-00185 |
| 69513A | Door lock cylinder gasket | 69513-32010 |
| 69561B | Rear door lock cylinder fixing parts | 69561-10040 |
| 69563 | Rear door lock cylinder gasket | 69563-12090 · 69563-20040 |
| 69573 | Ignition switch lock cylinder gasket | 69573-12010 |
| 69581 | Fuel filler cap lock cylinder fixing piece | 69581-12020 |
| 69759C | Back door lock cylinder buckle | 69759-24080 |
| 69759R | Front door lock cylinder buckle | 69759-12080 · 69759-12090 |
