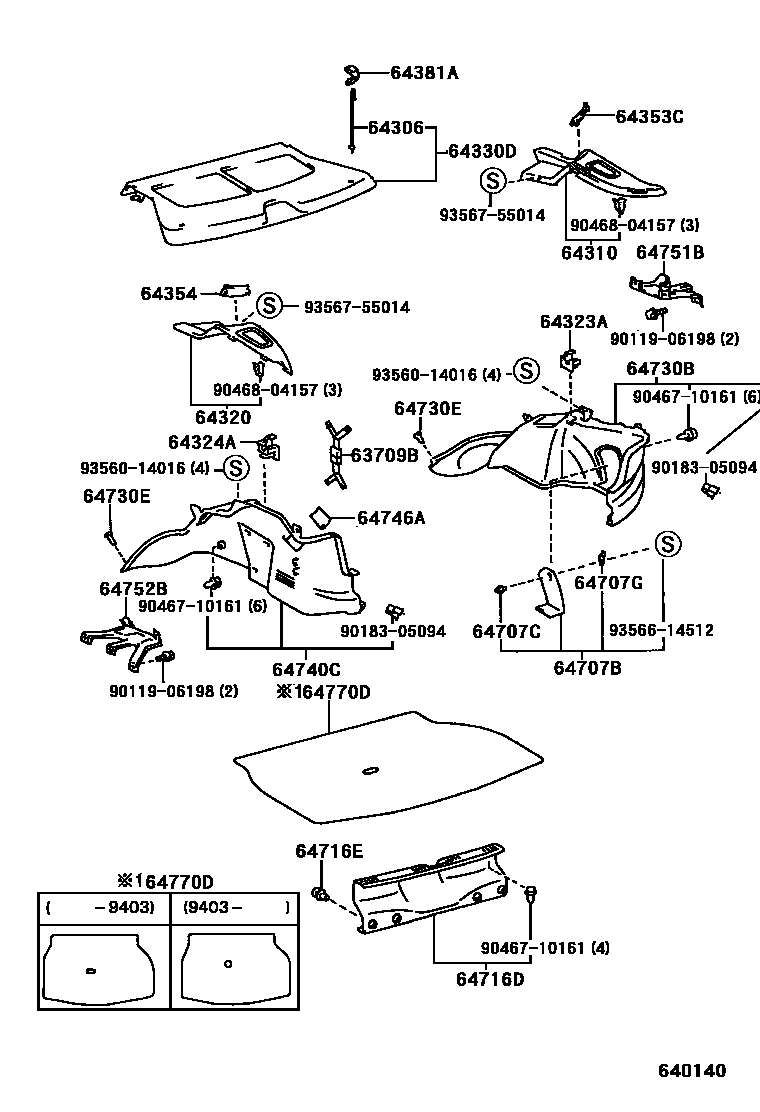

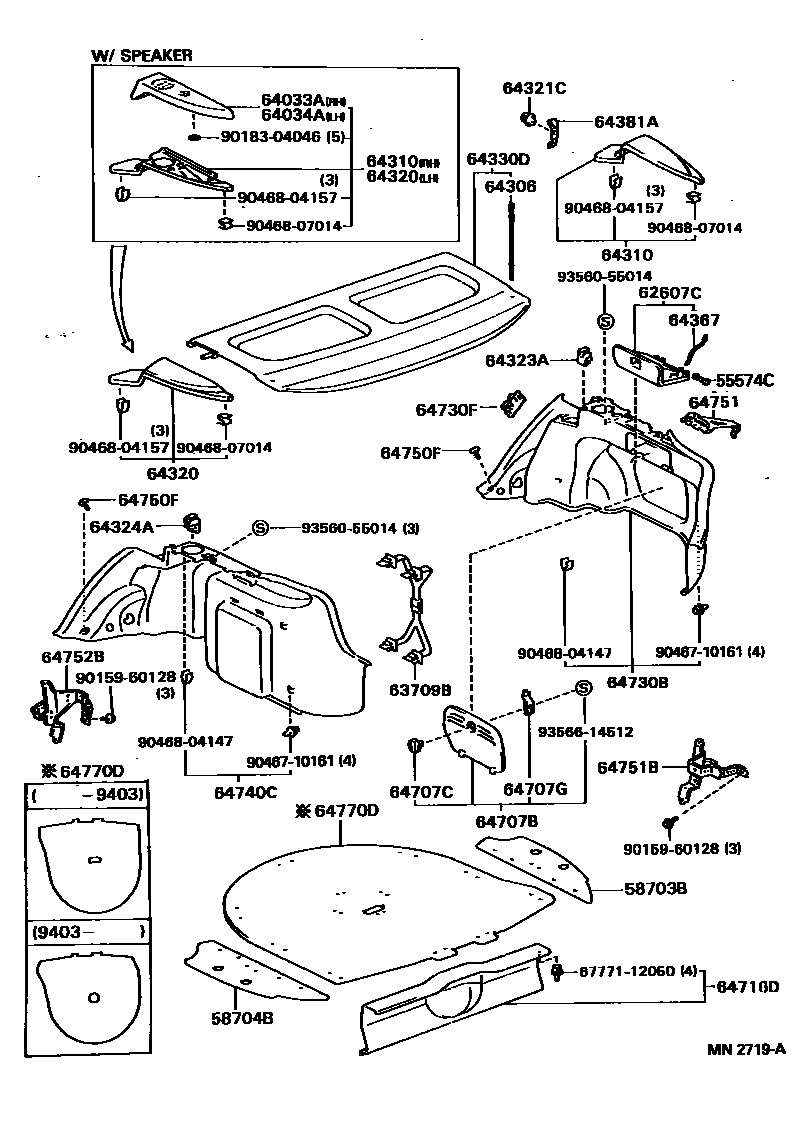

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55574C | Glove box cover hinge shaft | 55574-10010 |
| 58703B | Trunk door right side decorative cover sub-assembly | 58703-12060 |
| 58704B | Luggage door left decorative cover sub-assembly | 58704-12060 |
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-12050 · 64306-12070 |
| 64323A | Glove box decorative panel right clip | 64323-12050 · 64327-12020 |
| 64324A | Glove box decorative panel left clip | 64324-12020 · 64328-12020 |
| 64367 | Glove box decorative panel fixing rod | 64367-12060 |
| 64381A | Glove box decorative panel hanger | 64381-12020 · 64381-12030 |
| 64707G | Jack cover stop | 64981-16021 |
| 64716E | Clip (for rear floor decorative cover) | 90467-07146 |
| 64730F | Clip (for bottom panel side decorative panel) | 62566-12020 |
| 64751 | Speaker fixing bracket on the right side of the bottom decorative panel | 64757-12010 |
| 64751B | No. 1 right speaker fixing bracket | 64751-12040 · 64751-12050 |
| 64752B | No. 1 left speaker fixing bracket | 64752-12040 · 64752-12050 |
| 64770D | Spare tire cover assembly | 64770-12171 · 64770-12181 · 64770-12191 · 64770-12200 |
