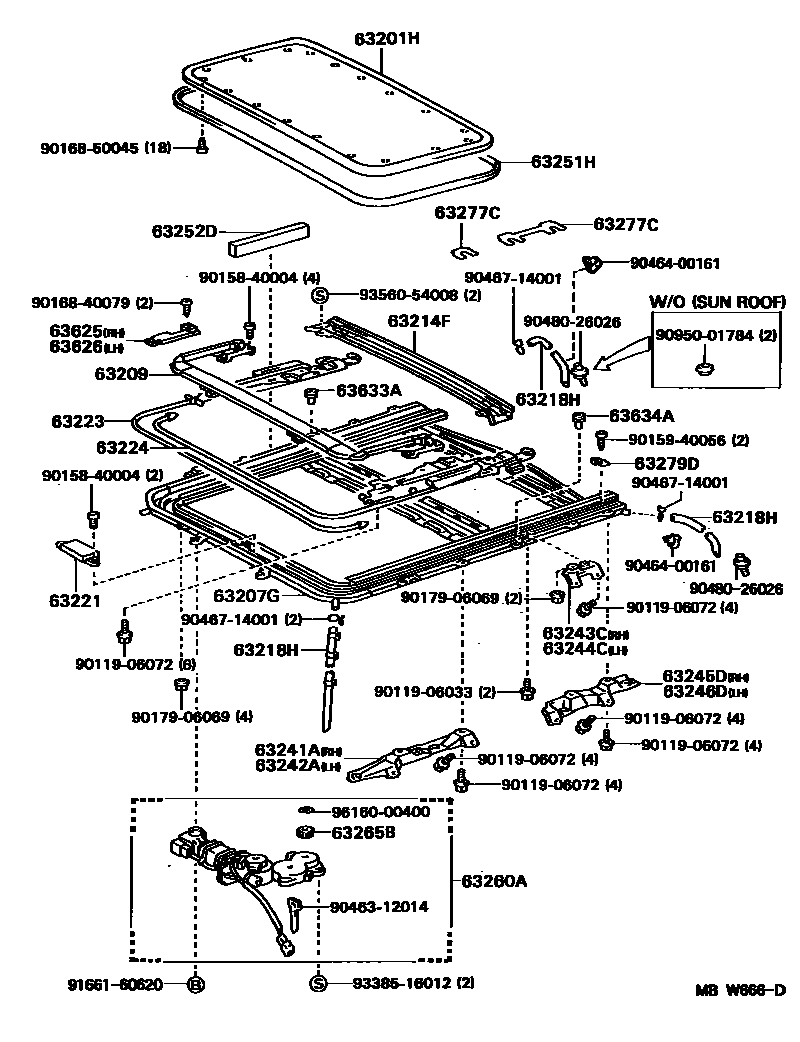

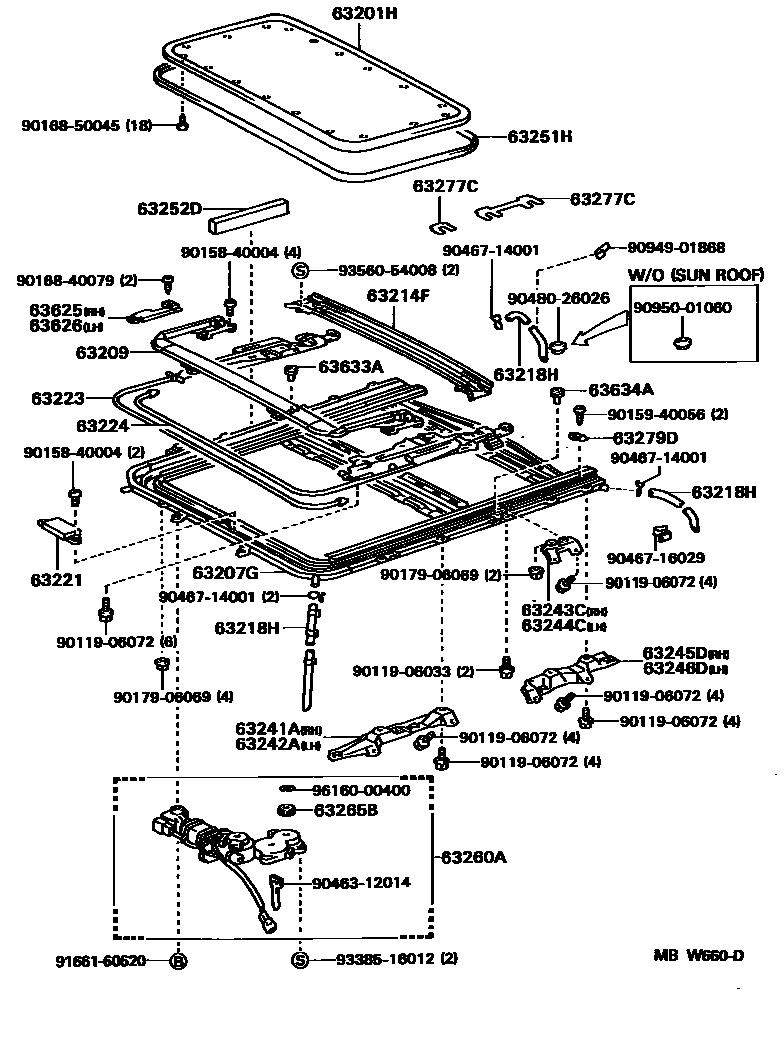

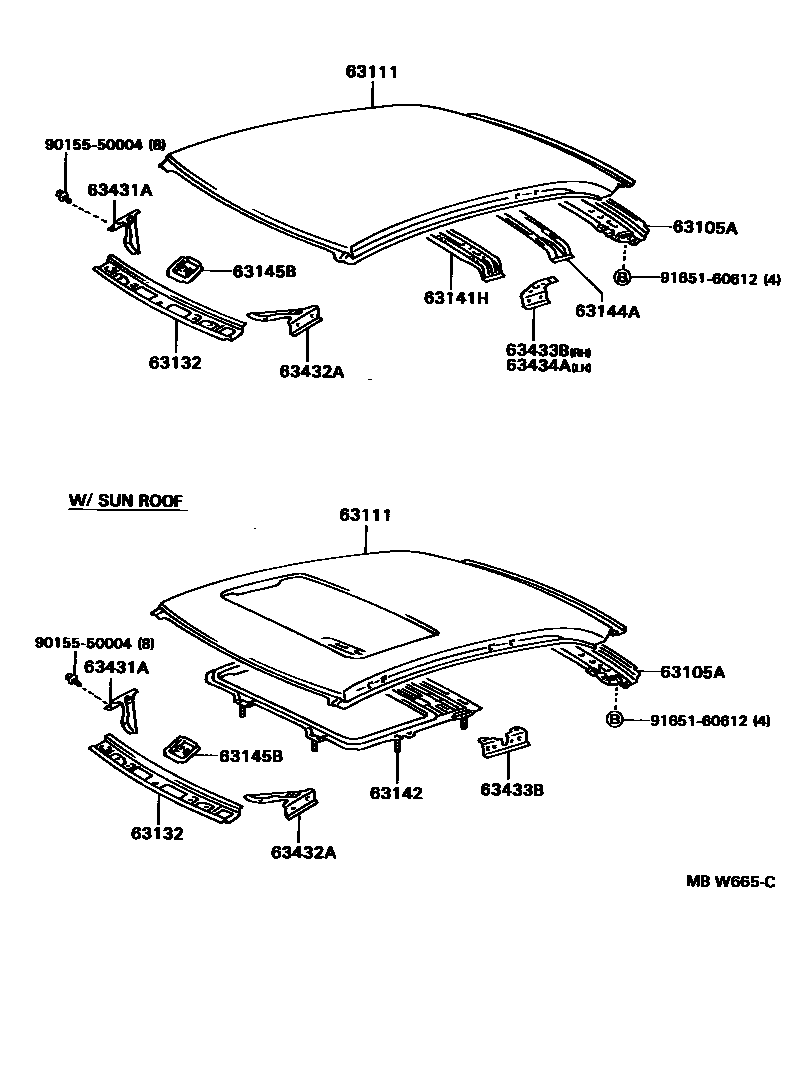

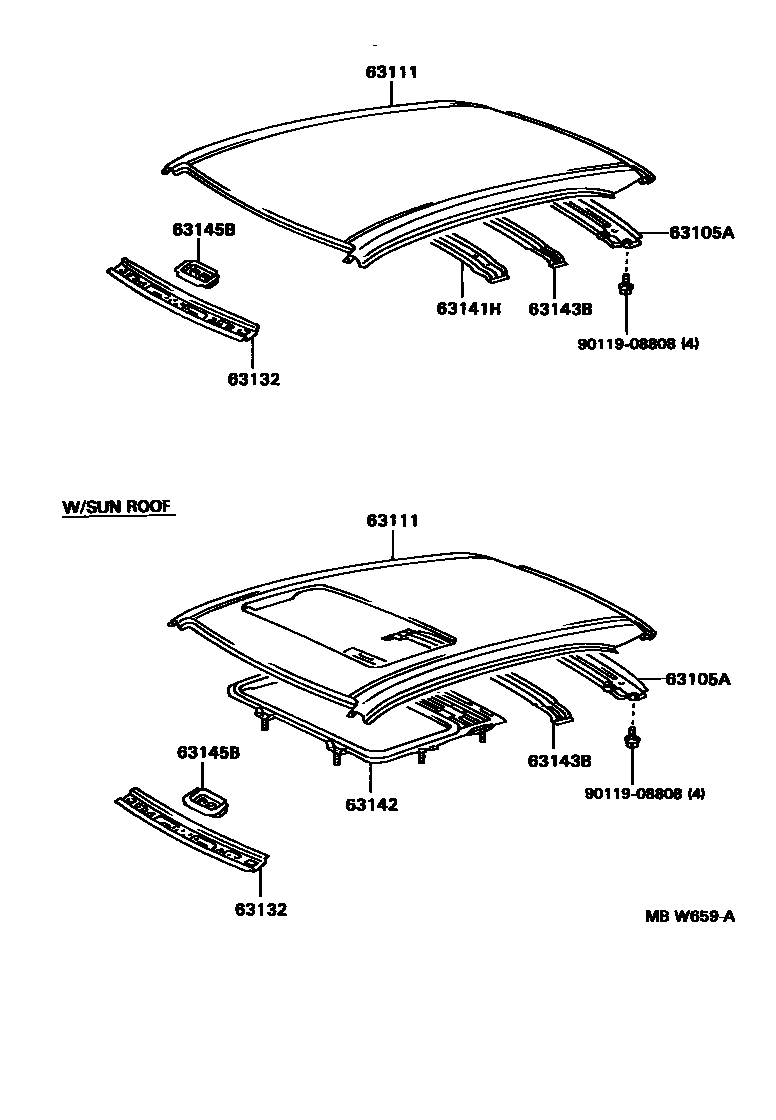

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 4 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63105A | Back door opening frame sub-assembly | 63105-12210 · 63105-12220 |
| 63111 | roof panel | 63111-12590 · 63111-12600 · 63111-12630 · 63111-12640 · 63111-12650 · 63111-12660 |
| 63132 | Windshield inner roof panel | 63132-12170 · 63132-12180 |
| 63141H | Center roof panel reinforcement | 63141-12160 · 63141-12170 |
| 63142 | No. 2 roof panel reinforcement | 63142-12060 |
| 63143B | No. 3 roof panel reinforcement | 63143-12060 · 63143-12070 |
| 63144A | No. 4 roof panel reinforcement | 63144-12030 |
| 63145B | Windshield roof reinforcement | 63145-12100 |
| 63201H | Sliding sunroof panel sub-assembly | 63201-12190 |
| 63207G | Sliding sunroof guide rail sub-assembly | 63207-12111 · 63207-12112 |
| 63209 | Roof deflector sub-assembly | 63209-12100 |
| 63214F | Roof rear drain channel | 63214-12040 |
| 63218H | Sliding skylight drain hose | 63249-12210 · 63249-12220 · 63249-12230 · 63249-32090 |
| 63221 | Sliding sunroof cable duct | 63221-12070 |
| 63223 | Right sliding sunroof transmission cable | 63223-12080 |
| 63224 | Left sliding sunroof transmission cable | 63224-12070 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-12040 · 63241-12060 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63242-12020 · 63242-12040 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-12060 · 63243-12070 |
| 63244C | Sliding sunroof frame left center mounting bracket | 63244-12060 · 63244-12070 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-12030 · 63245-12050 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63246-12020 · 63246-12040 |
| 63251H | Sliding skylight seal | 63250-12020 |
| 63252D | Sliding skylight frame sealing strip | 63252-12030 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12070 |
| 63265B | Sliding sunroof driving gear | 63265-12020 |
| 63277C | Sliding skylight panel gasket | 63277-20020 · 63277-20030 · 63277-20040 · 63277-20050 |
| 63279D | Sliding sunroof guide rail stop | 63279-12020 |
| 63431A | No. 1 roof right inner luggage rack bracket | 63431-12020 |
| 63432A | No. 1 roof left inner luggage rack bracket | 63432-12020 |
| 63433B | No. 2 roof right inner luggage rack bracket | 63433-12020 · 63433-12040 |
| 63434A | No. 2 roof left inner luggage rack bracket | 63434-12020 |
| 63625 | Right sliding sunroof guide block | 63625-12010 |
| 63626 | Left sliding sunroof guide block | 63626-12010 |
| 63633A | Sliding sunroof frame bushing No. 1 | 63633-12010 |
| 63634A | Sliding sunroof frame bushing No. 2 | 63634-12010 |
