Toyota COROLLA 角窗 — Figure 6103

Toyota COROLLA EPC diagram 6103, 角窗, with 3 images and 6 PNC and OE references.

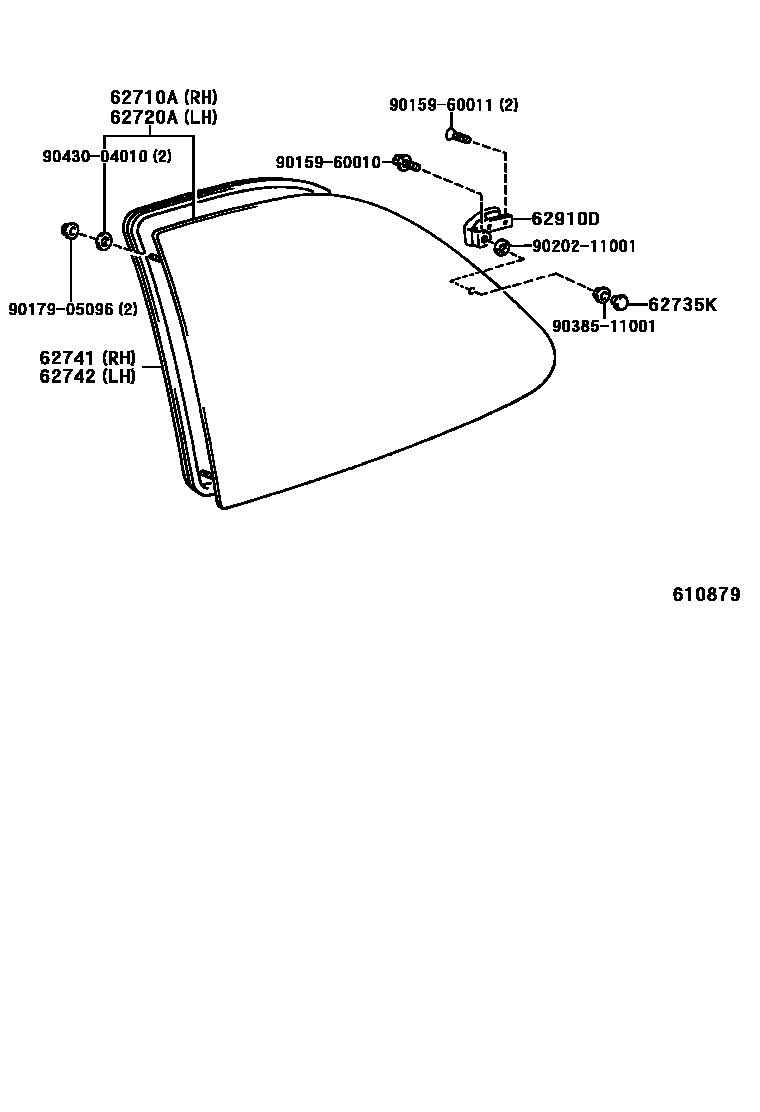

Toyota COROLLA 角窗 EPC diagram — 610879
角窗 — 610879 (199205 – 999999)
Toyota COROLLA 角窗 EPC diagram — MBW657
角窗 — MBW657 (199206 – 999999)
Toyota COROLLA 角窗 EPC diagram — MBW658
角窗 — MBW658 (199205 – 199505)

PNC and OE references

PNCPart nameOE numbers
62710ARight corner window assembly62710-12740 · 62710-12750 · 62710-12770 · 62710-12780 · 62710-12790 · 62710-12791 · 62710-12800 · 62710-12801
62720ALeft corner window assembly62720-12740 · 62720-12750 · 62720-12770 · 62720-12780 · 62720-12790 · 62720-12791 · 62720-12800 · 62720-12801
62735KCorner window hinge fixings62735-10030
62741Right corner window sealing strip62741-12160
62742Left corner window sealing strip62741-12160
62910DCorner window lock assembly62910-12100 · 62920-12030
